ATOMOS / NINJA ULTRA

This lightweight, compact 5-inch monitor can be attached to a camera. It supports recording in ProRes RAW up to 8Kp30 (when connected via HDMI).

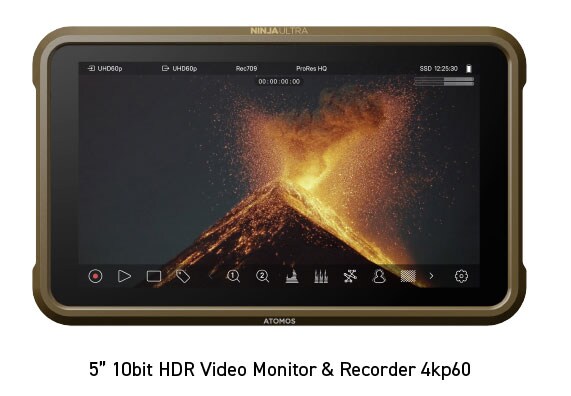

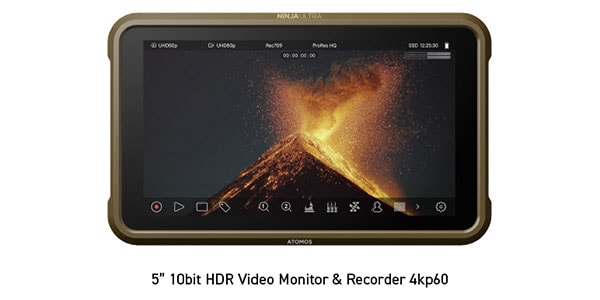

5-inch 1000nit HDR monitor recorder

【Operating Environment】
■Ambient operating temperature:
0-40 degrees C (no condensation)

【Structure】
■Chassis material:
Aluminum and ABS plastic
■Cooling:
Dynamically controlled fan and heat sink
■Tally lamp:
Incorporated into the back
■Power button:
Turns the main power on/off and the screen lock on/off
■AtomX expansion slot: Has one

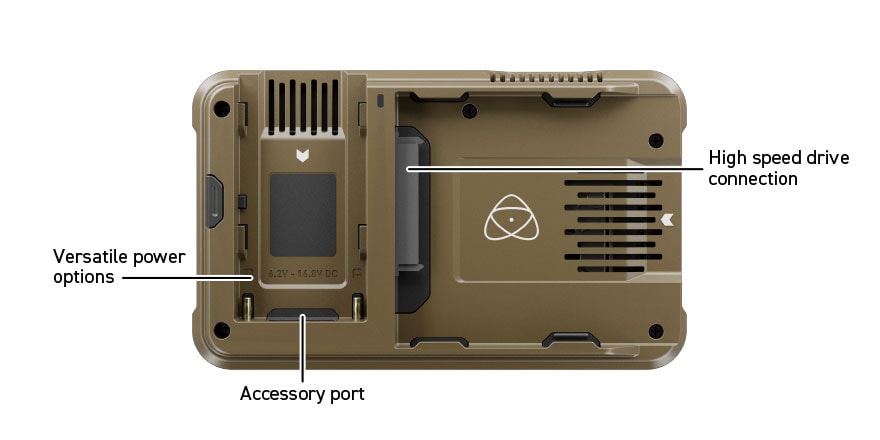

Power
■Supported input voltage:
DC 6.2-16.8 V
■Operating power:
5.8V - 7.2V (battery) or USB PD charger of 45W or more (via the included USB-C PD-2.1mm DC jack power cable)
■Supported battery:
ATOMOS NPF L series
■Built-in battery: Not included
■Battery life:
5200mAh: Up to approx. 2 hours (4Kp60 screen display and recording)
7800mAh: Up to approx. 3 hours (4Kp60 screen display and recording)
■DC input:
Connect to the DC jack on the included battery eliminator
■Optional AC adapter can be used:
■D-Tap:
Connect the included battery eliminator and optional D-tap to the DC cable

【Monitor】
■Touch screen
SuperAtom IPS panel (capacitive touch)
■Screen size:
5.2 inches
■ Screen resolution/PPI: 1920 x 1080/427
■ Color depth:
11092-bit (8+2 FRC)
■ Backlight: Edge-lit
■ Maximum brightness: 1000 nits
■ Aspect ratio: 16:9
Color temperature: D65
*Other color temperature settings, such as D93, are not supported.
Color gamut: Rec 709
Calibration support:
Atomos Calibrator supported
(Requires ATOMOS USB serial cable and Calibrate ColorChecker Display Pro/ColorChecker Display Plus or Xrite i1 Display Pro/Plus)

Color Pipeline
Gamma:
Sony SLog/SLog2/SLog3, Canon CLog/CLog2/Clog3, Arri Log CEI160/LogCEI200/LogCEI250/LogCEI320/LogCEI400/LogCEI500/LogCEI640/LogCEI800/LogCEI1000/LogCEI1280/LogCEI1600 I400/LogCEI500/LogCEI640/LogCEI800/LogCEI1000/LogCEI1280/LogCEI1600, Panasonic Vlog, JVC
JLog1, Red LogFilm/Log3G10/Log3G12, FujiFilm Flog, PQ (HDR10), HLG,
Nikon N-Log, Z CAM Z-Log2, Olympus OM-Log400 / Flat, Leica L-Log
■Gamut:
BT2020, DCI P3, PDCI P3 65, Sony SGamut/SGamut3/SGamut3.cine/Canon
Cinema/DCIP3/DCIP3+/BT2020,Panasonic V Gamut,ArriAlexaWide
Gamut Rec709, JVCLS300, Red DragonColor/DragonColor2/RedColor2/
RedColor3/RedColor4/RedWideGamut
■3DLUT display: .Cube format
■3DLUT output: Loop out
■3DLUT 50/50: Supported
■Monitoring mode:
Native/709/HLG/PQ/3D LUT
■HDR output conversion: Log/HDR to HLG/PQ/Dolby Vision

【Video Input】

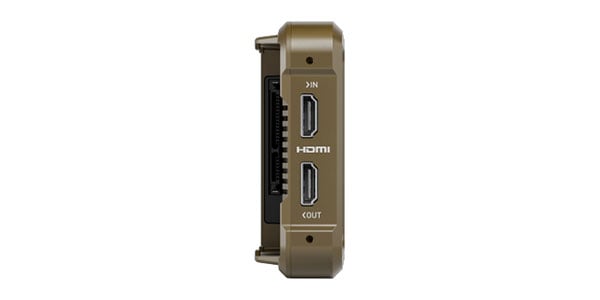

■HDMI: 1xhdmi(2.0) - up to 4K60p
■HDMI RAW:
ProRes RAW recording - up to 8K30p
■SDI:
1xSDI - up to 4K60p Optional ATOMOS CONNECT or AtomX SDI module required
■SDI RAW:
Supported: Use in conjunction with optional ATOMOS CONNECT or AtomX SDI module
■Color depth:
8/10-bit video/RAW to 16-bit (ProRes RAW recording is up to 12-bit)
■Video chroma sub-sampling:
4:2:2, 4:2:0
HDCP copy protection: Not supported
【Metadata】
HDMI:
RAW - White balance, exposure index, shutter speed/angle, iris F stop, ISO, gamma, color gamut
SDI:
File names from Arri, RED, Sony, Canon
RAW - White balance, exposure index, shutter speed/angle, iris F stop, ISO, gamma, color gamut

【Video Output】

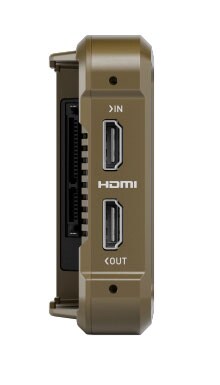

■HDMI:
1 x HDMI - compatible up to 4K60p
■RJ45/GigE
compatible when used with optional ATOMOS CONNECT
■Wi-Fi 6:
compatible when used with optional ATOMOS CONNECT
■Video Chroma Sub-sampling: 4:2:2
■Color Depth: 10bit

【Web Streaming】
■USB UVC:
Compatible with optional AtomX CAST
■RJ45/GigE:
Compatible with optional ATOMOS CONNECT
■RTMP/S
Compatible with optional ATOMOS CONNECT

【Network functions (subscription plan available)】
*Compatible with optional ATOMOS CONNECT

■Streaming distribution:
Compatible (YouTube, Facebook Live, Twitch, other custom RTMP)

■Frame.io Camera to Cloud:
Compatible (Adobe free/paid plans available)
■Sony Ci Media Cloud:
Compatible (Sony free/paid plans available)
■Atomos EDIT upload function:
Supported (multiple plans available)
■Live production function:
Supported (multiple plans available)
■Remote view function:
Supported (multiple plans available)
■NDI HX2 transmission:
Supported (paid activation) *Recording when transmitting 4K is not supported

Video conversion
HDMI to SDI:
Compatible when used with the optional AtomX SDI module
SDI to HDMI:
Compatible when used with the optional ATOMOS CONNECT or AtomX SDI module: video and RAW inputs can be output as video

Audio input/output
Audio quality:
24bit/48kHz
Audio codec: PCM
HDMI:
8ch 24-bit (dependent on input signal)
■SDI:
12ch 24-bit (dependent on input signal)

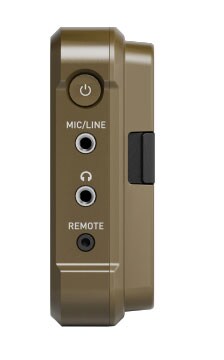

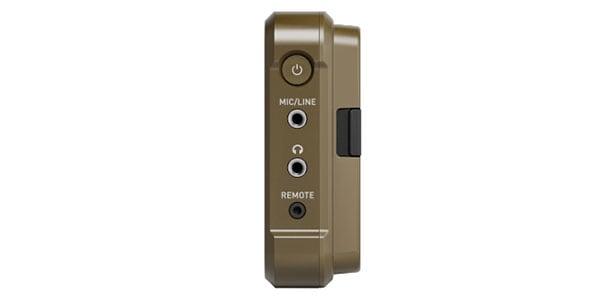

■Analog audio input:
3.5mm 2 channels (only compatible with dynamic microphones with power supply)
■Headphone output:
3.5mm 2 channels
■Audio input delay setting:
It can be set from the menu

【Time Code/Sync】
■Compatible with superimposed data: HDMI and SDI
■Time: Compatible Time and date
■LTC (recording mode only):
Optional ATOMOS CONNECT or AtomX Sync module required Wireless RF connection
■Wireless AirGlu RF Server and Client:
Optional ATOMOS CONNECT or AtomX Sync module required
■Wireless AirGlu BT Server:
Optional ATOMOS CONNECT or AtomX Sync module required

【Chassis】
■SIZE: 151(W)×91.5(H)×31(D)mm
■Weight (monitor unit): 360g
■Mounting screw holes:
Anti-rotation 3/8-16 screw holes
1/4-20 screw mount adapter incorporated, one each on top and bottom
