BOSS / RV-200 REVERB

The RV-200 is a reverb pedal in the BOSS 200 series, with a sophisticated design and the best sound quality in its class. It has 12 types, including the newly developed ARPVERB. It covers a wide range of sounds, from natural reverberation that enhances the original sound to unique reverbs that make the performance even more impressive.

You can save up to 127 of the sounds you create as user memories. In addition, there are also a variety of functions that expand the possibilities of your performance, such as carry-over, HOLD, WARP, and TWIST. The RV-200's wide variety of reverbs will add color to your stage, drawing the audience into the player's performance
.

1. The highest sound quality in its class, thanks to advanced processing with a sampling rate of 96 kHz, 32-bit AD/DA conversion, and 32-bit float (floating-point) internal calculations
2. 12 reverb types, including the newly developed ARPVERB
3. DENSITY button for adjusting the focus of the reverb
4. Sophisticated panel layout for easy and speedy operation
5. 127 user memories for saving created tones
6. Carry-over function allows you to choose whether or not to retain the reverb when the effect is turned off
7. Output mode switching allows individual output of effect sound and direct sound or direct sound mute
8. Two footswitches that can be customized with functions
9. HOLD, WARP, and TWIST functions that can be controlled with footswitches
10. Extensive control terminals for external footswitches, expression pedals, and MIDI control
11. MIDI terminal (stereo mini type)
12. Uses two power sources: the separately sold AC adapter PSA-100S or three AA batteries

Main Specifications
Sampling frequency: 96kHz, AD/DA conversion: 32-bit, internal processing: 32-bit floating point
12 modes: ROOM, HALL, PLATE, SPRING, SHIMMER, ARPVERB, SLOWVERB, MODULATE, +DELAY, LO-FI, GATE, REVERSE
●Memory: 127 + manual
●Nominal input level INPUT A/MONO, B: -10dBu ●Maximum input level INPUT A/MONO, B: +7dBu ●Input impedance INPUT A/MONO, B: 2M Ω
●Nominal output level: OUTPUT A/MONO, B: -10 dBu ●Maximum output level: OUTPUT A/MONO, B: +7 dBu ●Output impedance: OUTPUT A/MONO, B: 1 kΩ
●Recommended load impedance: OUTPUT A/MONO, B: 10 kΩ or more
●Bypass: buffered

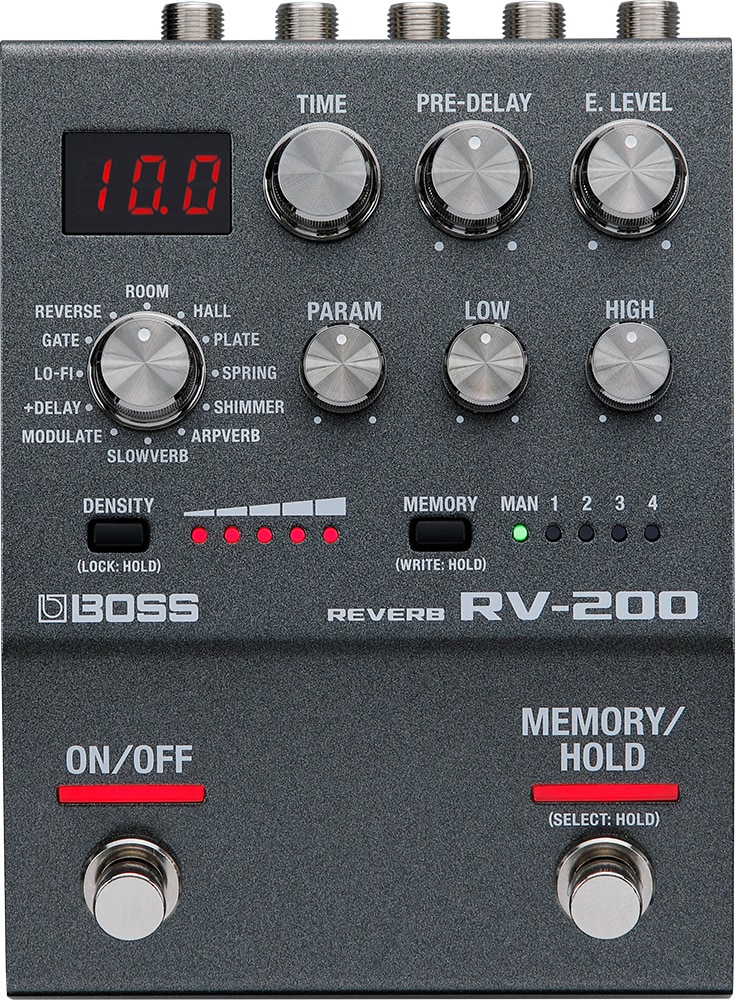

● Controls: ON/OFF switch, MEMORY/HOLD switch, MODE knob, TIME knob, PRE-DELAY knob, E. LEVEL knob, PARAM knob, LOW knob,
HIGH knob, DENSITY button, MEMORY button
● Display: 7-segment 3-digit (LED)
Density indicator, MEMORY (MAN, 1-4) indicator
INPUT (A/MONO, B), OUTPUT (A/MONO, B) terminals: standard type, CTL 1, 2/EXP terminals: TRS standard type,

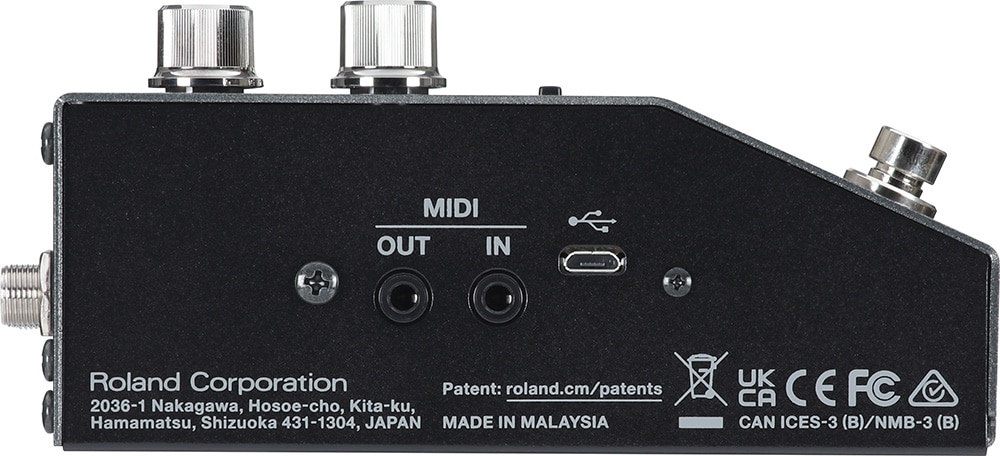

　　　　　　MIDI (IN, OUT) terminals: stereo mini type, DC IN terminal, USB terminal: USB2.0 micro-B (program updates only)
● Power supply: 3 x AA alkaline batteries, AC adapter (sold separately)
●Current consumption: 260mA
●Battery life during continuous use: Alkaline batteries: approx. 4 hours *Varies depending on usage conditions.
●External dimensions: 101 (W) x 138 (D) x 63 (H) mm (excluding rubber feet)
101 (W) x 138 (D) x 65 (H) mm (including rubber feet)
●Weight: 610g
680g (including batteries)
●Accessories: “Safety Precautions” leaflet, “How to Obtain the User's Manual” leaflet, 3 x AA alkaline batteries, 4 x rubber feet, warranty card
●Optional extras: AC adapter: PSA-100S
Footswitch: FS-5U
　　　　　Dual foot switch: FS-6, FS-7
　　　　　Expression Pedals: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI Connecting Cables: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
