ARTURIA / ARTURIA AUDIO FUSE 16 RIG オーディオ・インターフェイス

AudioFuse 16Rig is a high-density audio interface.

■Audio Interface
■USB

Main Features
The most important equipment in the studio
A studio full of synths? Recording a full band? Need complex monitoring and routing?
The AudioFuse 16Rig provides the next level of connectivity, versatility, and ease of operation needed for professional audio applications.
connectivity, versatility, and ease of use for professional audio applications. Let your sound matter.
16” is just the beginning.

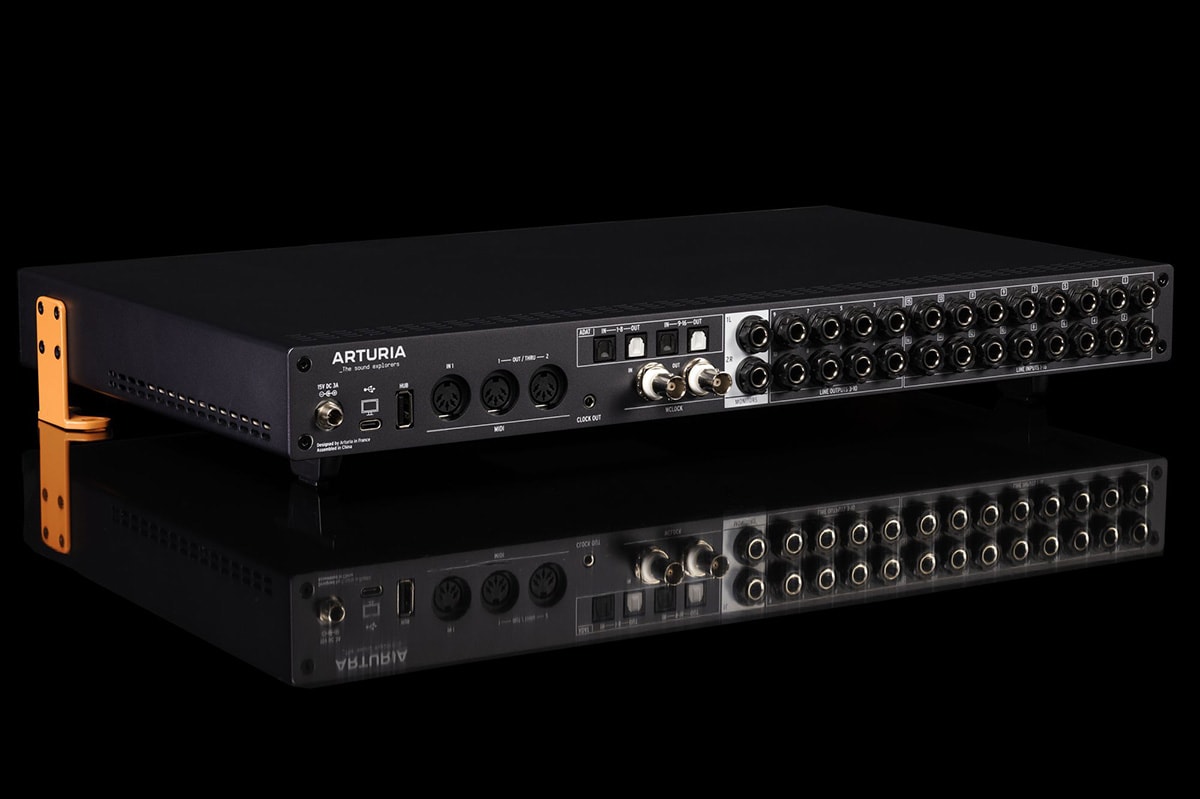

Handle your setup with an audio interface that has all the inputs and outputs you need. The entire setup is connected to the rear I/O.

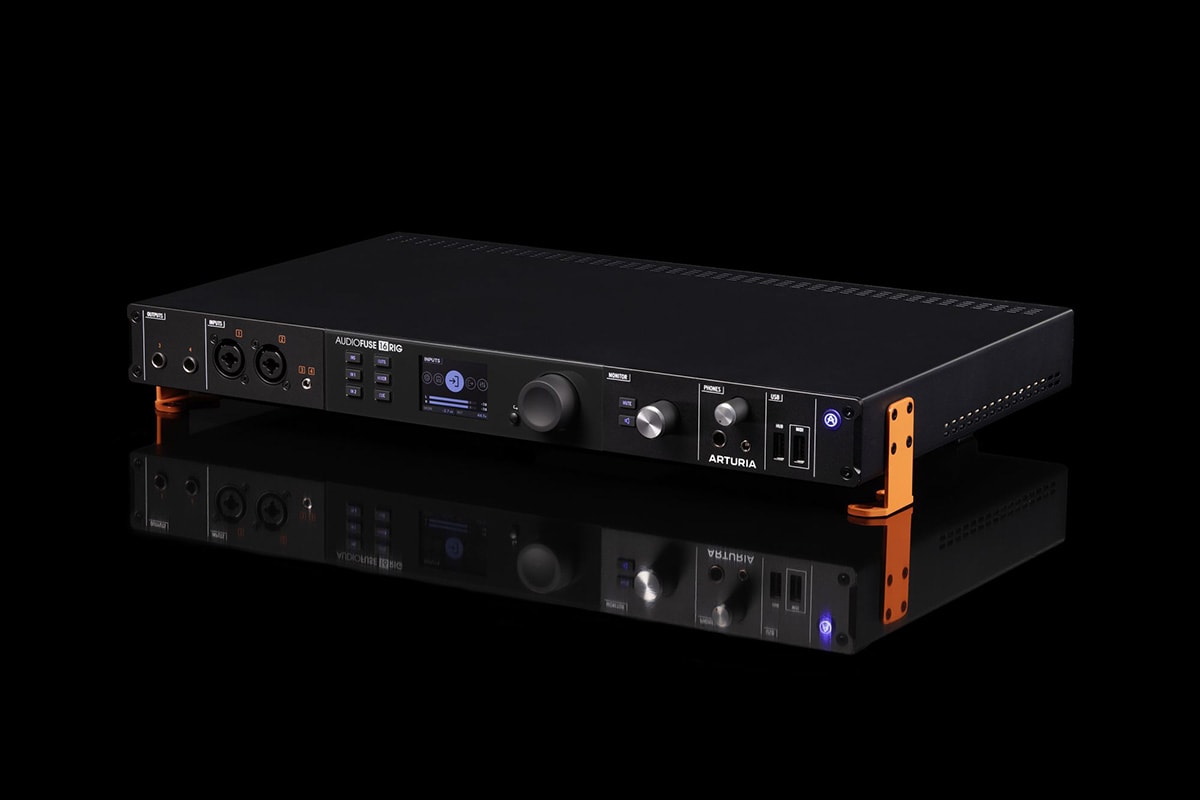

Add microphones, instruments, and devices on the front panel while keeping the entire setup connected to the rear I/O.
You can add microphones, instruments, and devices on the front panel while keeping the entire setup connected to the rear I/Os. Inputs and outputs can be expanded with ADAT and re-routed as needed.
High Sound Quality
Premium 24-bit AD/DA converters from ESS and Cirrus Logic provide recording
ESS and Cirrus Logic's premium 24-bit AD/DA converters deliver the brilliance and clarity you expect from recording. Regardless of the input combination, whether synths, guitars, or vocals, you can expect the best sound possible.
No matter what your input combination - synths, guitars, vocals, etc. - you can expect the best sound possible.
Standalone Audio Tool
The AudioFuse 16Rig is also a great tool for live performance, including machine live
AudioFuse 16Rig is a stand-alone audio tool. The low-latency, MIDI-controllable built-in mixer allows you to use audio and MIDI even when no computer is connected.
The built-in, low-latency, MIDI-controlled mixer allows you to send and receive audio and MIDI signals even when no computer is connected. Configuration presets can also be stored.
Configuration presets can be saved, and setups can be easily linked together.

Comprehensive Audio Routing and Special Features
AudioFuse 16Rig connections provide multiple sends and returns for creative recording and mixing.
AudioFuse 16Rig connections include multiple send/returns for creative recording and mixing, A/B speaker switching for confident mixing, guitar reamps, and ensemble recording.
A/B speaker switching for confident mixing, guitar riamps, multiple headphone outputs for ensemble recording, and more.
configurations to suit your needs.
Choice of Workflows
Control AudioFuse 16Rig settings via front panel controls, the included AudioFuse Control Center software, or from your desktop.
Control AudioFuse Control Center software, or configure the interface for desktop or rackmount use.
interface for desktop or rackmount use, integrate into any studio environment, or switch between different audio scenarios instantly and easily.
The AudioFuse 16Rig can be controlled via front-panel controls or the included AudioFuse Control Center software.


16 TRS analog inputs, including 2 high-quality digitally controlled preamped inputs, 3.5mm stereo
3.5mm stereo mini jack
12 analog outputs, including 8 DC-coupled TRS line outputs, stereo monitor outputs, and a 3.5mm stereo mini-jack
6.35mm jack for rear or dial headphone output
ADAT for up to 16 additional channels of 48 kHz input/output
Word clock input/output
MIDI in/out via 5-pin DIN or class-compliant USB (for DAW or standalone use)
DAW or stand-alone)
Low-latency USB-C connection and front and back USB hub ports
Two built-in stand-alone mixers controllable via MIDI
Color display
Removable adapter for desktop or rackmount installation
Includes AudioFuse Control Center software for firmware and configuration (includes complete input/output matrix)
Includes AudioFuse Control Center software for firmware and configuration (including complete input/output matrix)
Bundled with AudioFuse Creative Suite software, including Analog Lab Intro and Arturia FX plug-ins
Body dimensions/weight: 440 (W) x 295 (D) x 45 (H) mm/ 3.83 kg
Dimensions/weight: 610 (W) x 340 (D) x 104 (H) mm/ 5.1 kg


Analog Lab Intro
AudioFuse Control Center
Pre 1973
Pre V76
Pre TridA
Filter MINI
Chorus JUN-6
Comp FET-76
Delay TAPE-201
Rev PLATE-140
Phaser BI-TRON
Comp DIODE-609
