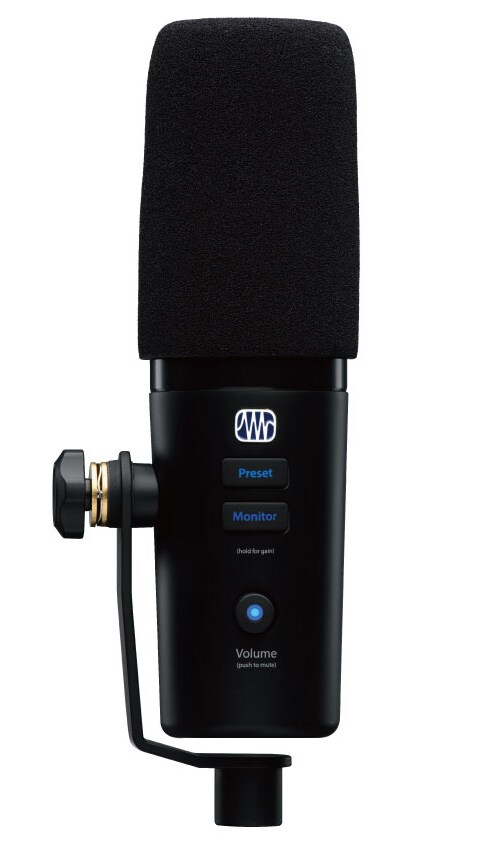

PRESONUS / REVELATORDYNAMIC

A new generation USB dynamic microphone that integrates effects, mixer and loopback. Achieves clean sound. Easy to connect with just one USB cable. Compatible with both Apple and Android devices, it can be used in any situation.

Professional bus-powered USB-C dynamic microphone perfect for vocal recording, podcasting, streaming, vlogging, gaming, and more

DESIGNED FOR YOUR VOICE: Custom-designed dynamic microphone capsule delivers clear sound and superior off-axis sound rejection.

Professional sound made easy: Carefully crafted professional presets let you create professional sounds in just one click. You can also create your own custom presets to share, save, and create on the go.

Customizable mix: Integrated mixer with two dedicated loopback audio channels. Add backing tracks, Skype calls, gameplay audio, and more

Onboard processing: Revelator Dynamic has all the effects processing to refine your sound, including reverb, compression, EQ, Voice FX, and more.

Bus-powered: Revelator Dynamic can be powered by connected USB-C devices, with no additional power required? Compatible with both Apple and Android devices

Desktop stand included: Telescoping desktop microphone stand PTS-1 is included.

Loud and clear sound: headphone output, volume control, zero-latency monitoring

Studio-quality sound: 96kHz/24-bit operation for pristine audio recording

Recording software included: Complete recording solution with Studio One Artist DAW recording software and Studio Magic software bundle, including tutorials, extensive sound samples, and virtual instruments

Compatible with ?macOS? and Windows?
Compatible with iOS? and iPadOS? (Camera Connection Kit may be required)
Compatible with Chromebooks


·microphone
Type: Monaural dynamic
Directivity: Cardioid
Frequency characteristics (±3.0dB): 20Hz to 20kHz
Sensitivity: 1.6mV/Pa
Max SPL: 135dB <3% THD
・Headphone output
Type: 1/8” TRS active stereo
Output (RMS): 22.6mW (16Ω)
THD：0.01%
Frequency characteristics: 20Hz to 20kHz
Impedance: 16Ω
Dynamic range: 77.5dB
・Audio interface
Type: USB-C? Compatible USB 2.0
Sample rate: 44.1, 48, 88.2, 96kHz (?Note: 44.1 and 48kHz are macOS only in multi mode)
Bit depth: 24-bit
Power supply: USB bus powered
Hardware controls: Direct monitor, mic gain, headphone level, mute, preset selection
Software controls: mic gain, pattern selection, monitor mix, preset management
Onboard DSP:
PreSonus Fat Channel: High-pass filter, noise gate, 3 compressor models, 3 EQ models, limiter
Voice effects: comb filter, delay, doubler, ring modulator, vocoder
reverb


External dimensions (height x width x depth): 222 x 83 x 130mm
Mass: 0.42kg
