PRESONUS / Revelator USB接続PC用マイク

All-in-one USB microphone combining selectable polar patterns, loopback and effects for convenient, high-performance recording.

■ Revelator: a new generation of USB microphone
Designed for podcasts, streaming, vlogging, gaming commentary, home recording, meetings and applications including YouTube, Zoom, Skype, Google Meet and OBS. Revelator combines three polar patterns, a high-resolution 24-bit converter, Fat Channel DSP, voice effects, a six-channel USB audio interface with loopback and mixer, and a software suite for studio-style recording wherever you work.

■ Great sound at the press of a button

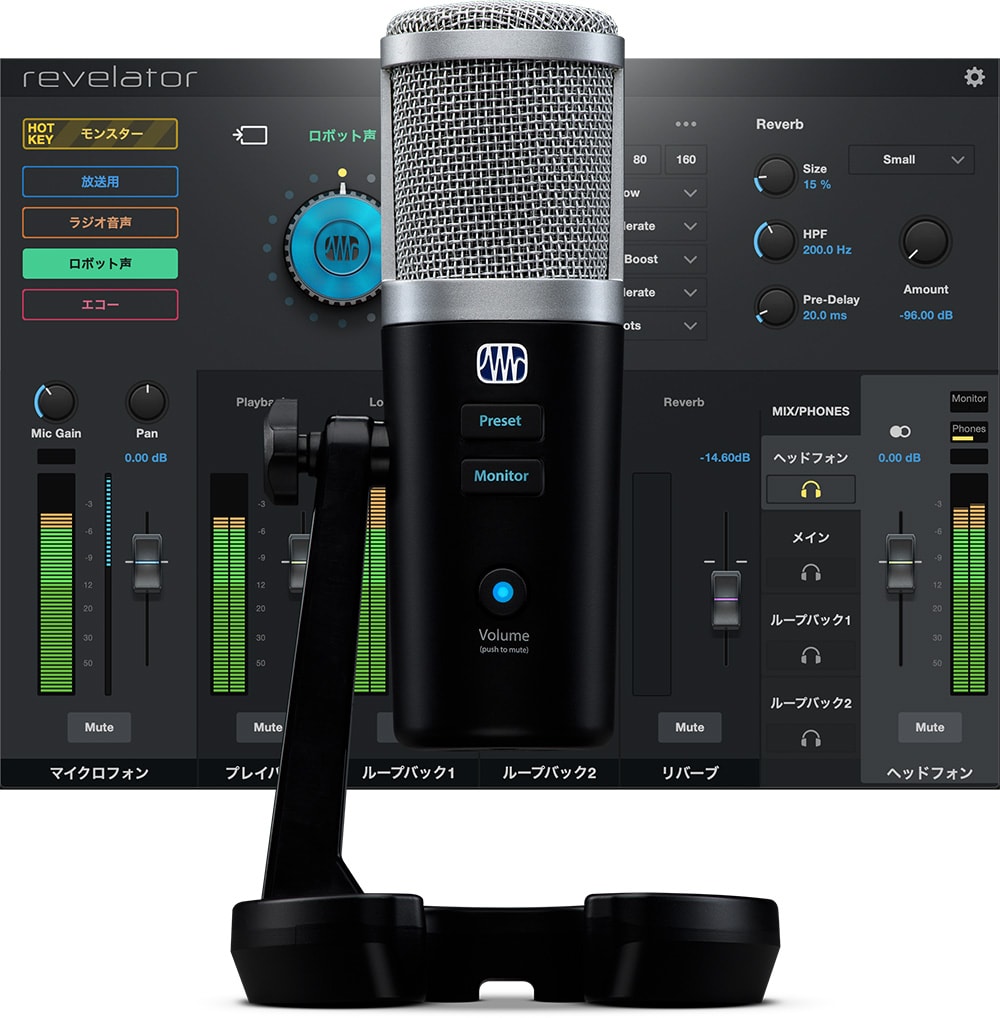

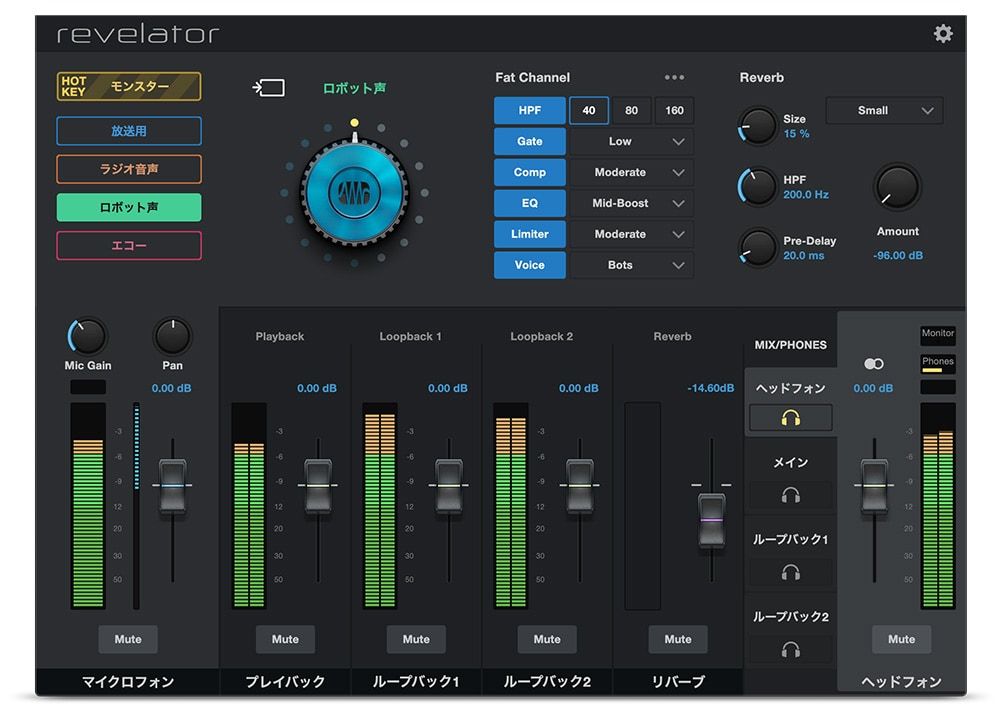

Eight studio-quality presets combine PreSonus high-pass filtering, gate, compression, EQ, limiting and Voice FX, ranging from broadcast speech to robot voices. Edit presets with Universal Control software and save your own sounds in eight user slots.

■ Three polar patterns
Cardioid: frontal pickup for a single voice or instrument, reducing unwanted surrounding sound.
Bidirectional: front and rear pickup for face-to-face interviews, with the interviewer on one side and guest on the other.
Omnidirectional: even pickup around the microphone for recording the entire room.

■ Easy loopback
Mix audio from multiple applications for recording or streaming meetings and gaming sessions. Alongside the microphone input, the mixer provides two stereo loopback inputs, four channels in total, to combine two applications. Two stereo loopback outputs, four channels in total, support more advanced routing.

■ Professional design

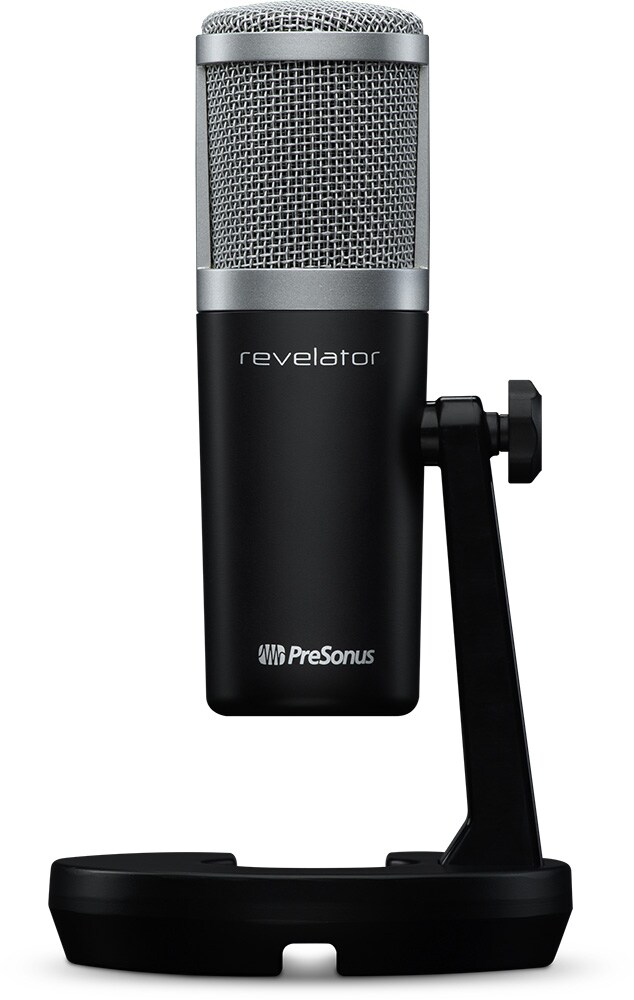

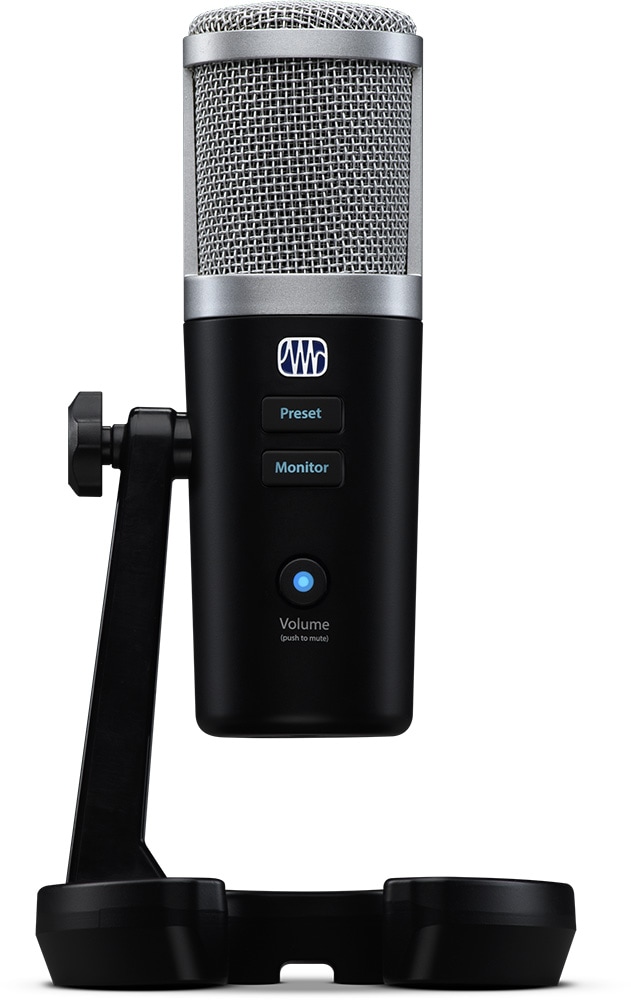

Elegant styling and rugged construction enhance on-camera presentation. The stand includes cable management. USB-C, headphone output and a stand-mounting thread are located on the underside for use with compatible boom stands.

■ Studio-quality processing
DSP derived from PreSonus StudioLive Fat Channel includes a high-pass filter for low-frequency noise, gate, three compressor models (standard, tube and FET), three EQ models (standard, passive and vintage), limiter and Voice FX. Up to four presets can be accessed from the microphone buttons, with editing and user-preset creation in software.

■ Creative voice effects
Six Voice FX types include doubler, detuner, vocoder, ring modulator, filter and delay. Edit effects and create presets using Universal Control. Additional effects are planned through future updates.

■ Included software suite
Studio One Artist offers drag-and-drop recording and editing, sound effects and background music, level automation, waveform editing and effects processing. Loops, samples and instruments such as drum machines, samplers and analog synthesizers support music production. Third-party VST/AU plugins are supported .

■ Studio Magic software suite
A free Studio Magic suite is available for registered users of eligible PreSonus hardware, with 19 software/content items from 17 participating vendors: Ableton, Arturia, Brainworx, Cherry Audio, Ghosthack Essential Sounds, iZotope, Klanghelm, KV331 Audio, Lexicon, M-ag Audio, Melodics, Native Instruments, Output, Soundsnap, Plugin Alliance, UJAM and UVI. It includes a DAW, lesson tools, sound packs, seven virtual instruments and nine effects plugins, with a stated total value above JPY 100,000.

Specifications
Microphone
■ Polar patterns: cardioid, bidirectional, omnidirectional
■ Frequency response (±3 dB): 20 Hz–20 kHz
■ Sensitivity: 1 mV/Pa
■ Maximum SPL: 110 dB at less than 3% THD
■ Headphone output: 1/8-inch TRS active stereo
■ RMS output: 22.6 mW into 16 Ω
■ THD: 0.008%

Headphone output
■ Frequency response: 20 Hz–20 kHz
■ Impedance: 16 Ω
■ Dynamic range: 77.5 dB

Audio interface
■ Connection: USB-C, compatible with USB 2.0
■ Sample rates: 44.1, 48, 88.2 and 96 kHz; macOS multimode supports 44.1 and 48 kHz only
■ Bit depth: 24-bit
■ Power: USB bus power
■ Hardware controls: direct monitor, microphone volume, headphone volume, mute and preset selection
■ Software controls: microphone volume, pattern selection, monitor mix and preset management/editing
■ Onboard DSP:
Fat Channel: high-pass filter, noise gate, standard/tube/FET compressors, standard/passive/vintage EQ and limiter
Mixer: reverb
Voice FX: doubler, detuner, vocoder, ring modulator, filter and delay
■ Dimensions (H × W × D): 225 × 130 × 130 mm
■ Weight: 0.73 kg

System requirements
Windows: Windows 10, 64-bit; Intel i3/AMD A10 or better; minimum 4 GB RAM, 8 GB recommended.
Mac: macOS 10.13 or later, 64-bit; Intel i3 or better; minimum 4 GB RAM, 8 GB recommended.
Both: compatible USB-C or USB-A 2.0 port; 32 GB free disk space; PreSonus Universal Control 3.4 or later, 3.5 or later for Japanese UI; 1,366 × 768 display, high-DPI recommended; multitouch display required for touch operation.
Requirements may differ with DAWs other than Studio One; consult the DAW documentation. Overall performance and audio latency depend on processor capability, RAM, and disk capacity and speed.
