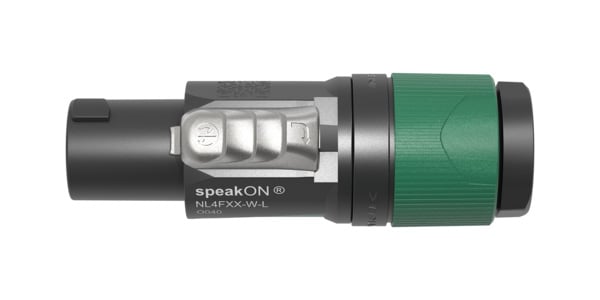

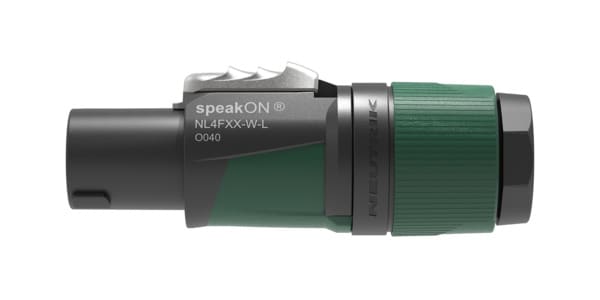

NEUTRIK / NL4FXX-W-L

The NL4FXX-W-L is a world-standard connector for connecting speakers and power amplifiers for professional audio equipment, developed based on a unique concept. The cable diameter is 10 to 16 mm, and a torque wrench is used for screwing the core wire. Please use a torque wrench (27mm socket, 2.5 Nm compatible) or torque screwdriver (T8) specified by the manufacturer.

speakON FXX series 4-core cable connector for loudspeakers (Applicable cable diameter: 10 to 16 mm)

speakON is a world-standard connector for connecting speakers and power amplifiers for professional audio equipment, developed based on a unique concept.
The FXX series is the successor to the SPX series, speakON's standard line, and has evolved further in many respects.

Product Features
Rated current up to 37A rms
Neutrik's unique bushing and strain relief design allows for the use of cables with diameters from 10 mm to 16 mm.
IEC 61984 certified (can be used as a component of equipment compliant with IEC 62368-1 product safety standard)
Highly reliable and robust, manufactured to Neutrik quality standards recognized worldwide
Easy assembly, as the strain relief is secured to the insert by simply tightening the bushing.
Easy and reliable twist-lock system
Ergonomic design with non-slip material on a portion of the housing and a portion of the bushing that idles to prevent kinking.
This product is not designed to be used as an AC power supply or power supply connector.
HTLACB, HTLACA, torque wrench (27mm socket, 2.5 Nm), and torque screwdriver (T8) are required for assembly. For details, please refer to the assembly movie.
