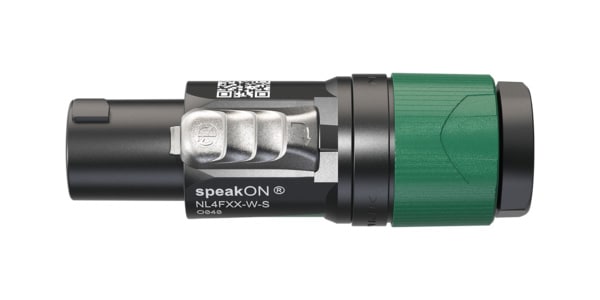

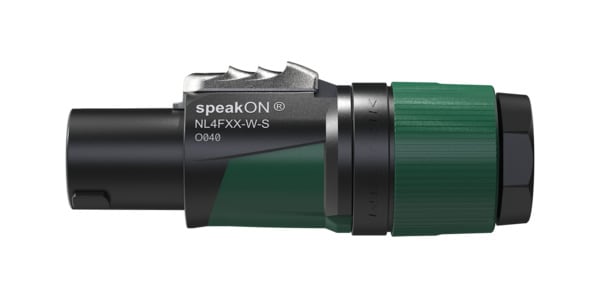

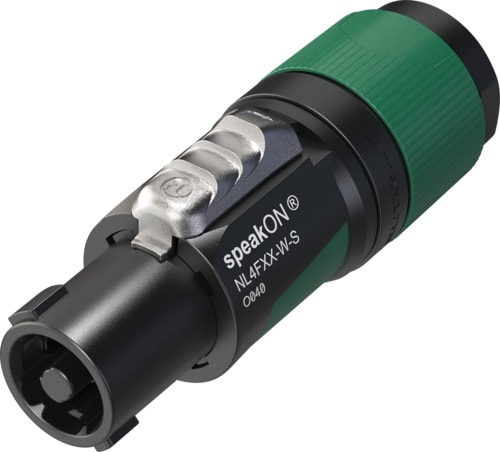

NEUTRIK / NL4FXX-W-S

NL4FXX-W-S is a global standard connector for connecting speakers and power amplifiers in professional audio equipment, developed based on a unique concept. Compatible cable diameters are 6 to 12 mm. Use a torque wrench to screw in the core wire. Please use the torque wrench (27 mm socket, 2.5 Nm compatible) and Torx driver (T8) specified by the manufacturer.

Loudspeaker cable connector speakON FXX series 4-core (compatible cable diameter 6-12mm)

speakON is a uniquely designed global standard connector for connecting speakers and power amplifiers in professional audio equipment.
The FXX series is the successor to speakON's standard line, the SPX series, and has evolved in many ways.

Product features

- Rated current up to 37A rms

- Neutrik's unique bushing and strain relief are compatible with cables with diameters from 6mm to 12mm

- IEC 61984 certified (can be used as a component of equipment that complies with product safety standard IEC 62368-1)

- High reliability and robustness manufactured with globally recognized Neutrik quality. Easy assembly as the strain relief is fixed to the insert simply by tightening the bushing

- Easy and reliable twist lock system

- Ergonomic design with non-slip material used for part of the housing

- Kinking can be prevented by the specification that part of the bushing rotates freely

* This product is not designed to be used as an AC power supply or power supply connector.

* Assembly requires HTLACB, HTLACA, torque wrench (27mm socket, 2.5 Nm compatible), and Torx driver (T8). Please see the assembly video for details.
