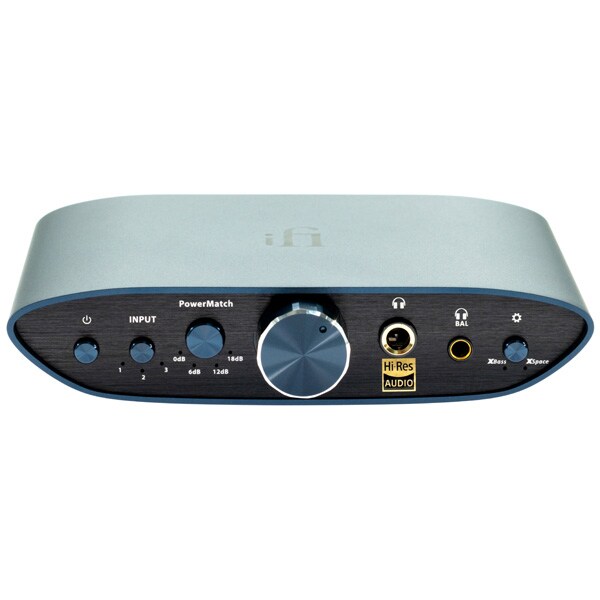

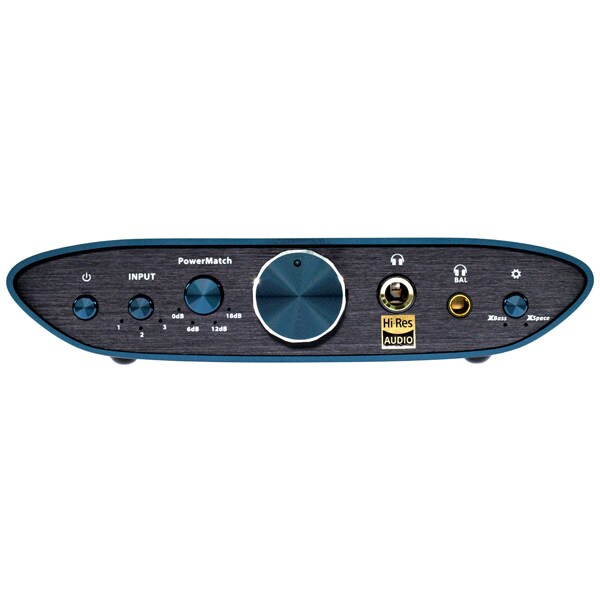

iFI Audio / ZEN CAN Signature Standard

ZEN CAN Signature Standard is an IEM and headphone amplifier featuring audiophile-grade components for superior sound.

■ZEN CAN Signature Standard further evolves the conventional design and is equipped with enhanced circuitry and audiophile-grade components.
Its balanced symmetrical dual mono circuit can deliver 1890mW (11.0V) into a 64Ω load and over 15V into a 600Ω load.

■ZEN CAN Signature Standard has a variety of input options, including stereo RCA, 3.5mm single-ended, and 4.4mm balanced, allowing connection to laptops, phones, and DACs.
The output features a 4.4mm balanced option for headphones that support balanced connections. It also has a 6.3mm jack for standard single-ended headphones. If you want to use earphones with a 3.5mm plug, you can rest assured that a 3.5mm-6.3mm adapter is available.

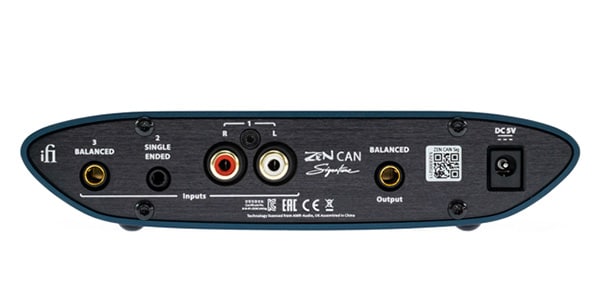

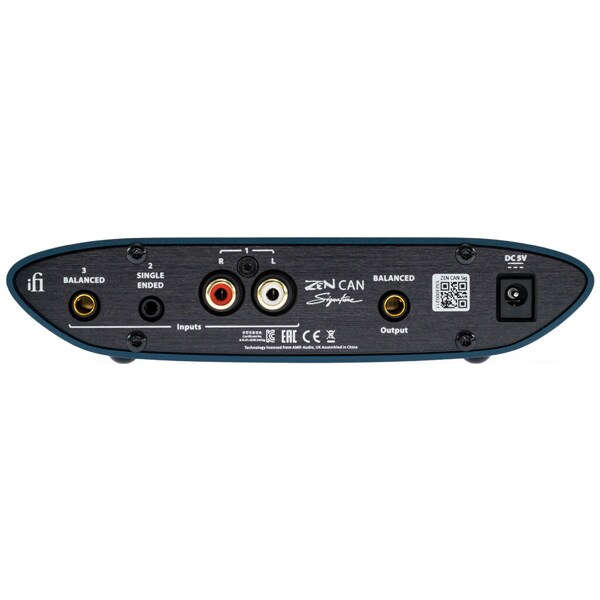

There's also an analog balanced output on the back panel, perfect for connecting to active speakers via a 4.4mm-XLR adapter.

■ZEN CAN Signature Standard has multiple customization options to accommodate a variety of headphones.
PowerMatch allows four gain settings in 6dB steps: 0dB, 6dB, 12dB, and 18dB. This feature ensures compatibility from ultra-sensitive IEMs to power-hungry headphones. We recommend starting at 0dB and gradually adjusting the gain level to find the optimal volume.
It also features two analog processing modes, XSpace and XBass, designed to improve the headphone's soundstage and bass response. XBass addresses the problem of low frequency loss, which is especially common with open-back headphones.

■Input voltage: 5V/2.5A (iPower II included [AC100-240V])
■Input: 4.4mm balanced, RCA single end, 3.5mm single end
■Output: 4.4mm balanced line output, 4.4mm balanced headphone output, 6.3mm single-ended headphone output
■Maximum output
·balance
>15.1V/385 mW (@600Ω)
>6.2V/1200 mW (@ 32Ω)
・Single end
>7.6V/98 mW (@600Ω)
>7.2V/1600 mW (@ 32Ω)
■THD&N
・Balance: <0.006% (@ 360 mW/2.4V 16Ω)
・Single-ended: <0.005% (@ 100 mW/1.27V 16Ω)
■SN ratio
・Balance: >121dBA (@ 15.2V)
・Single-ended: >120dBA (@ 7.6V)
■Maximum input
・Balance: 7.4V RMS
・RCA: 3.8V RMS
・3.5mm: 1.92V RMS
・Gain: 0dB, 6dB, 12dB, 18dB
・Frequency characteristics: 10Hz - 200kHz (-3dB)
■Power consumption
・No signal: ~5W
・Maximum consumption ~12W
■Size: 158mmx117mmx35 mm
■Weight 550g
