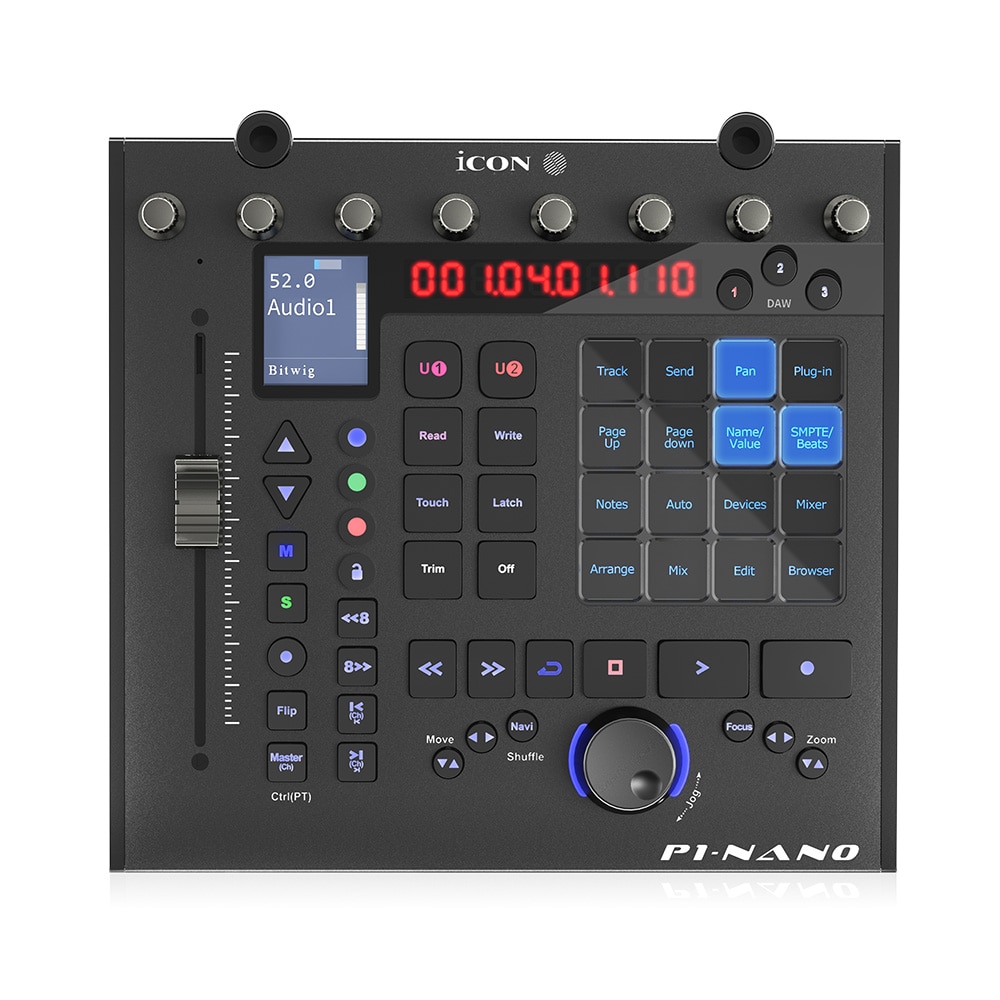

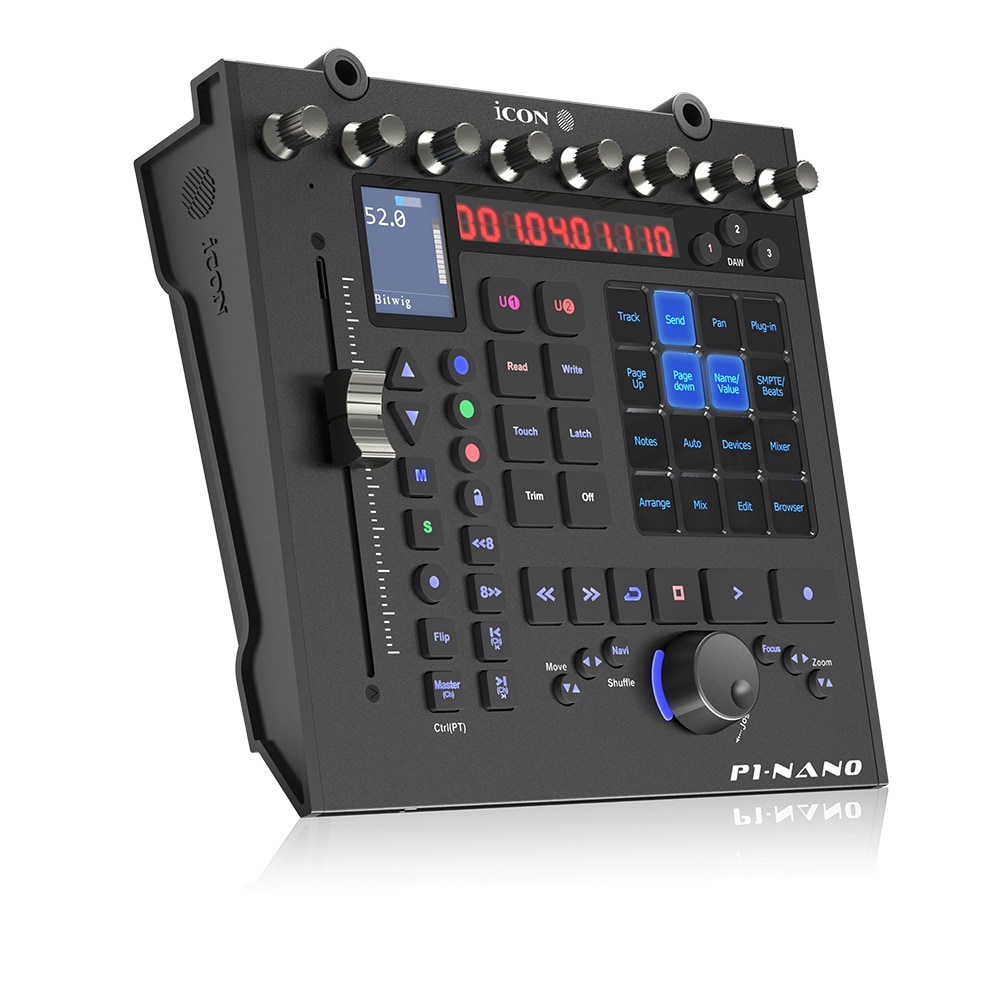

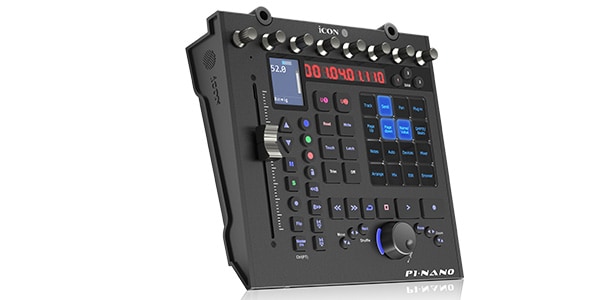

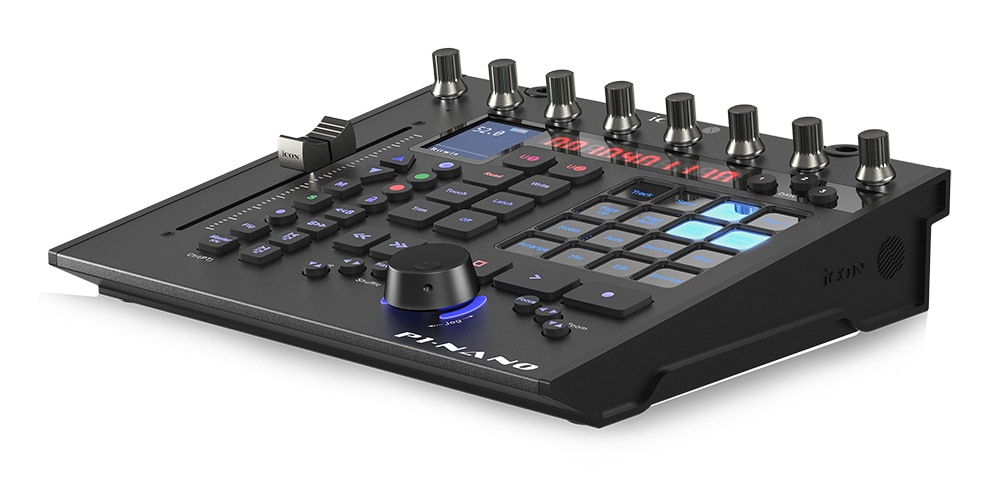

ICON DIGITAL / P-1 Nano

The P1-Nano is a powerful controller that intuitively controls your DAW. With a single fader configuration, it offers a wealth of control, allowing you to streamline your workflow and get your projects done faster.

■ Control Surface

Customisable Touchscreen
The P1 Nano features a 16 (4x4) touchscreen display that can be configured with up to five command layers to suit your specific workflow. Quickly access the controls you need at the touch of a button.

Plug-in and automation control
Control your session with eight encoder knobs and the optional D5 expansion display. Self-illuminating command buttons and motorised faders are useful for vocal riding and automation creation.

Integration with major DAWs
With P1 Nano, you can control up to three different DAWs at once without interrupting your workflow. It can control many popular DAWs, including Bitwig, Cubase / Nuendo, Logic Pro X, Ableton Live, Pro Tools, and LUNA.

Multiple DAW presets provided
The dedicated iMap software comes with multiple DAW presets.

Main features
- 100 mm motorised fader with 12-bit resolution and touch-sensitivity
- 16-panel digital touch display with assignable commands (up to 80 different displays and operations are possible by switching between the five layer modes)
- Drag and drop operation using the free ‘iMAP’ app for setting up allows you to assign various functions of the DAW to the 16-panel touch screen
- DAW selection buttons allow you to instantly switch between three different DAWs
- Onboard display showing channel names, control values, metering, etc.
- Eight smooth-action dual-function encoder knobs
・12-segment LED display showing the time location of the project in SMPTE / BBT (bars : beats : ticks) format
・Smooth-action jog wheel shuttle for high-speed search, scrub and control
・Illuminated function buttons for ‘Lead’, ‘Write’, ‘Touch’, ‘Latch’, ‘Trim’ and ‘Off’ that can be enabled/disabled according to the DAW
Illuminated buttons for channel control, including mute, solo, and record
Illuminated transport buttons for playback, stop, record, rewind, fast forward, and loop
Flip and master buttons for switching fader functions and accessing the master channel
Illuminated zoom buttons with two directional keys (up/down and left/right)
- Illuminated focus buttons allow you to ‘focus’ on plug-ins, EQ parameters, etc. using the jog wheel
- Two illuminated track buttons for selecting individual channels
- Two illuminated bank buttons that allow you to shift eight channels at a time
- Supports Mackie Control and HUI protocols for seamless integration with compatible music production software
Supports: Ableton Live, Adobe Audition, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer 11, FL Studio, Logic Pro X, Harrison Mixbus 32C, Pro Tools, Reaper, Reason, Samplitude, Studio One, Tracktion, Universal Audio Luna*

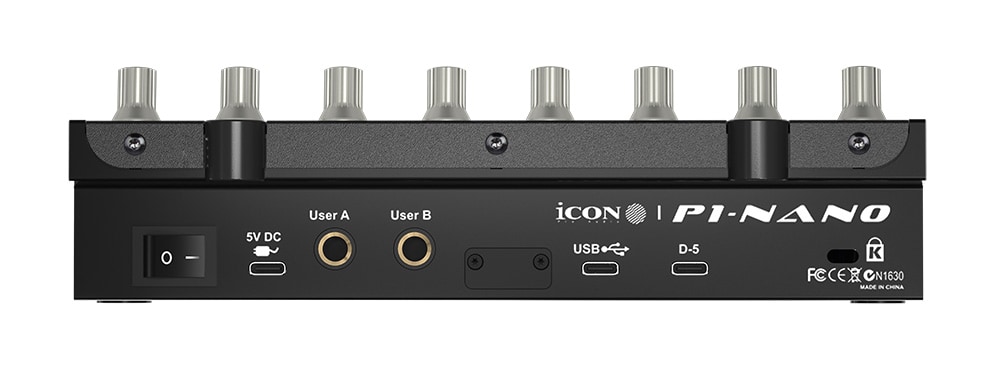

・High-speed connection via USB 3.0 (when using a USB hub, please use a powered hub. If the bus power supply from the USB port is insufficient, please connect a commercially available external power adapter to the 5VDC input.)
・Firmware upgrades possible via the included USB-C cable connection and iMap software
- Two freely configurable footswitch terminals (1/4’ TS, limited DAW compatibility)
- Expansion display D5 (sold separately) can be connected
- Robust metal casing with excellent quality and Kensington lock port
- Dimensions: 213 mm x 196 mm x 60 mm
- Weight: 896 g
Compatible OS: MacOS 10.15 or later and Windows 10 or later (class compliant)
* Not all parameters can be handled depending on the version of the DAW.
* (When using with Logic Pro) The meter on the P1-M side may not be fully compatible.
* When connecting this unit to a PC or Mac, be sure to use the supplied USB cable.

Specifications are subject to change without notice.

Please refer to the distributor product page for the latest system requirements.
