BASTL INSTRUMENTS / KASTLE ARP

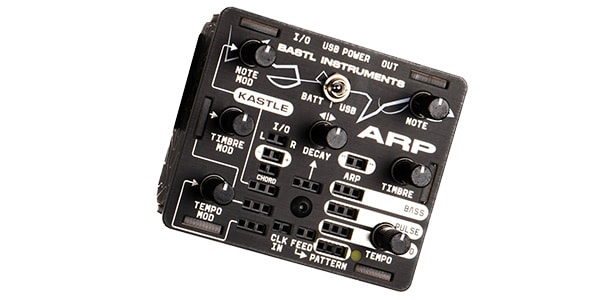

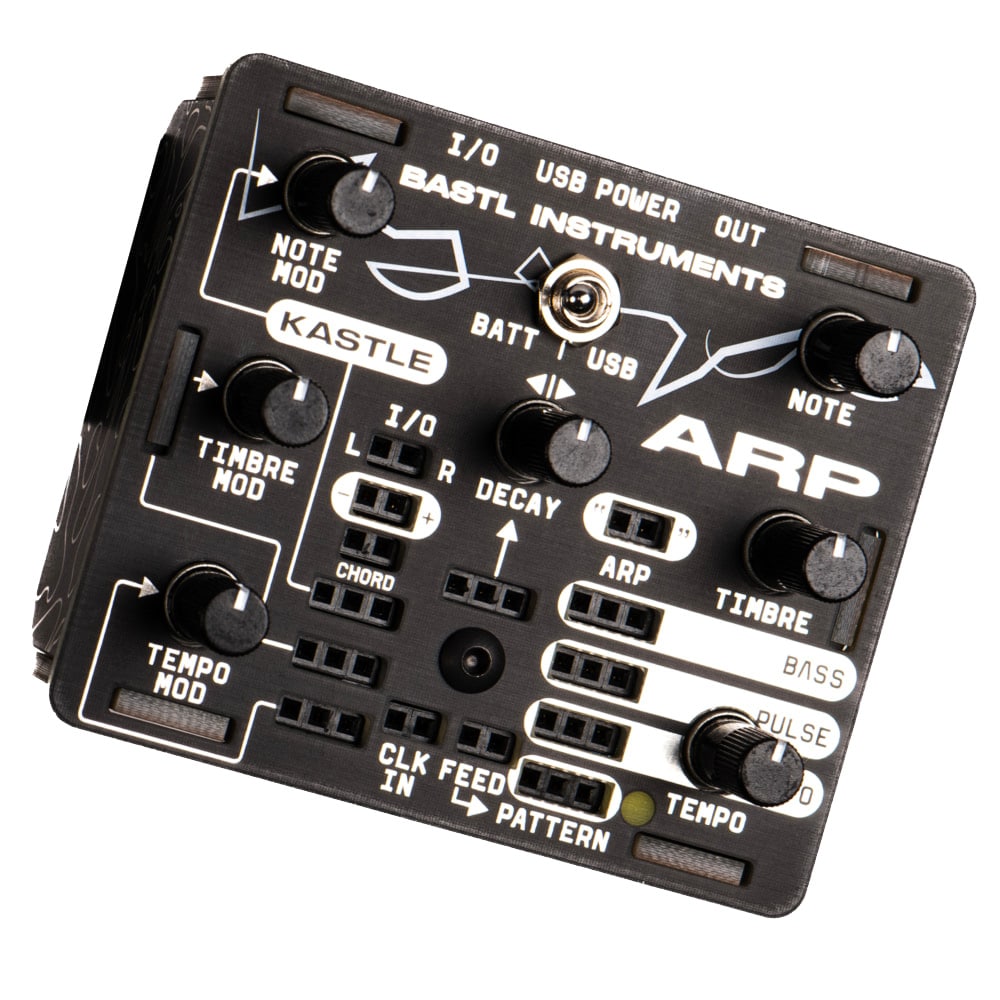

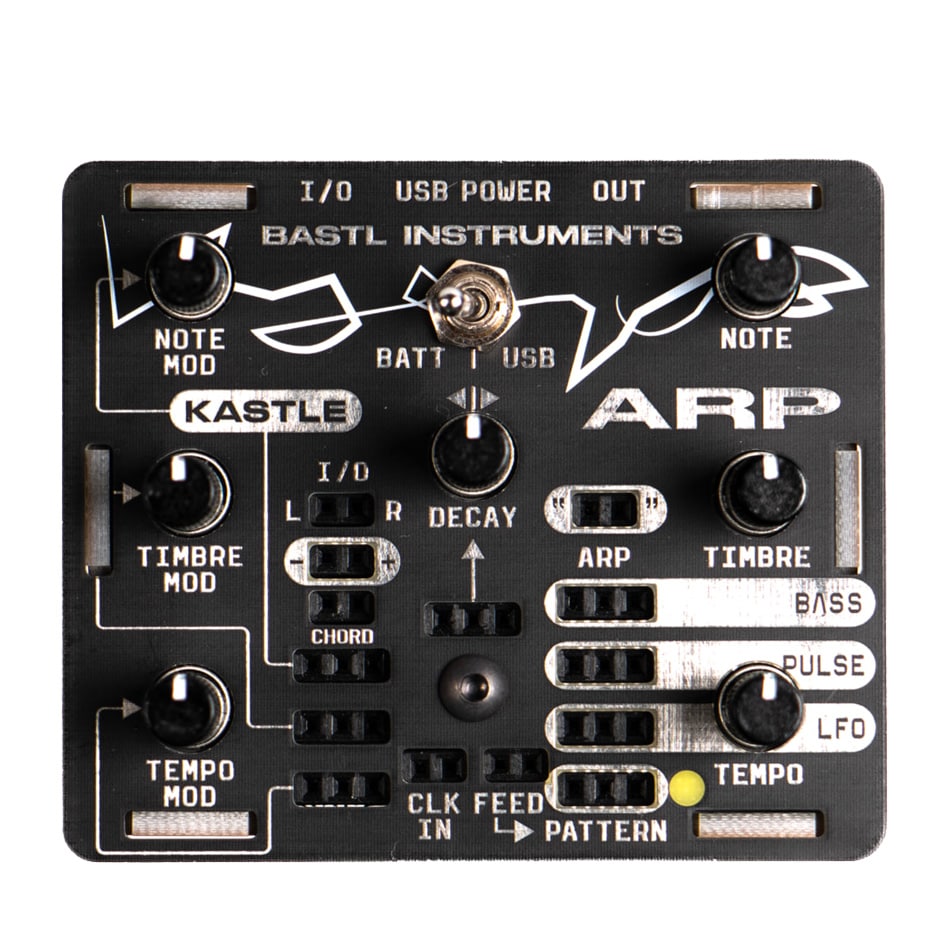

BASTL INSTRUMENTS/KASTLE ARP is a pocket-sized melodic micro-modular synthesizer.

The KASTLE ARP from BASTL INSTRUMENTS is a unique modular melody generator based on a quantised sine wave oscillator and digital wave shaper.

The pitch selection is based on a simple concept that unleashes complexity. The quantised oscillator is always tuned, and the pitch can be selected from the NOTE input and CHORD input. The decay envelope can be retriggered to add variation by skipping the pitch. The Timbre control allows you to blend the noble sine wave with 8-bit chip tune.

It functions as a full-fledged modular system, and is also compatible with the Eurorack modular system. You can play a variety of functions such as six syntheses, unique wave shapers, random steps, and LFOs with flexible patching.

The melodically arranged Kastle synthesiser!
The Kastle ARP is a palm-sized, battery-powered modular synthesiser that combines considered simplicity with complexity, and is equipped with a multifunctional LFO section inherited from the original Kastle Drum.

It's perfect for playing melody lines, and when combined with other Kastle series synthesizers, you can build a full-fledged modular synthesizer system, despite its compact size!

In BOOT mode, you can perform root note and fine pitch tuning. In addition, the sub-bass output plays the root pitch of the current chord and enhances the overall sound.

A wide variety of tones using sine waves and XOR wave shapers, and Rungler arpeggios.
The Kastle ARP is based on a pitch-quantised sine wave oscillator, combined with a digital XOR wave shaper.

This allows you to create a wide range of tones, from pure sounds to wave-shaped sounds.

By playing this sound with the 8/16/random step step voltage, which is an arrangement of the Rungler circuit, and with the special decay envelope circuit, you can play in a surprisingly organic way.

■Outstanding combination with the Kastle family and other devices!
If you add effects such as delay and reverb to the Kastle ARP, you can play the best melodies.

You can also build a magnificent modular system by patching and combining it with other KASTLE synths, even though it is micro-sized with jumper cable patching!

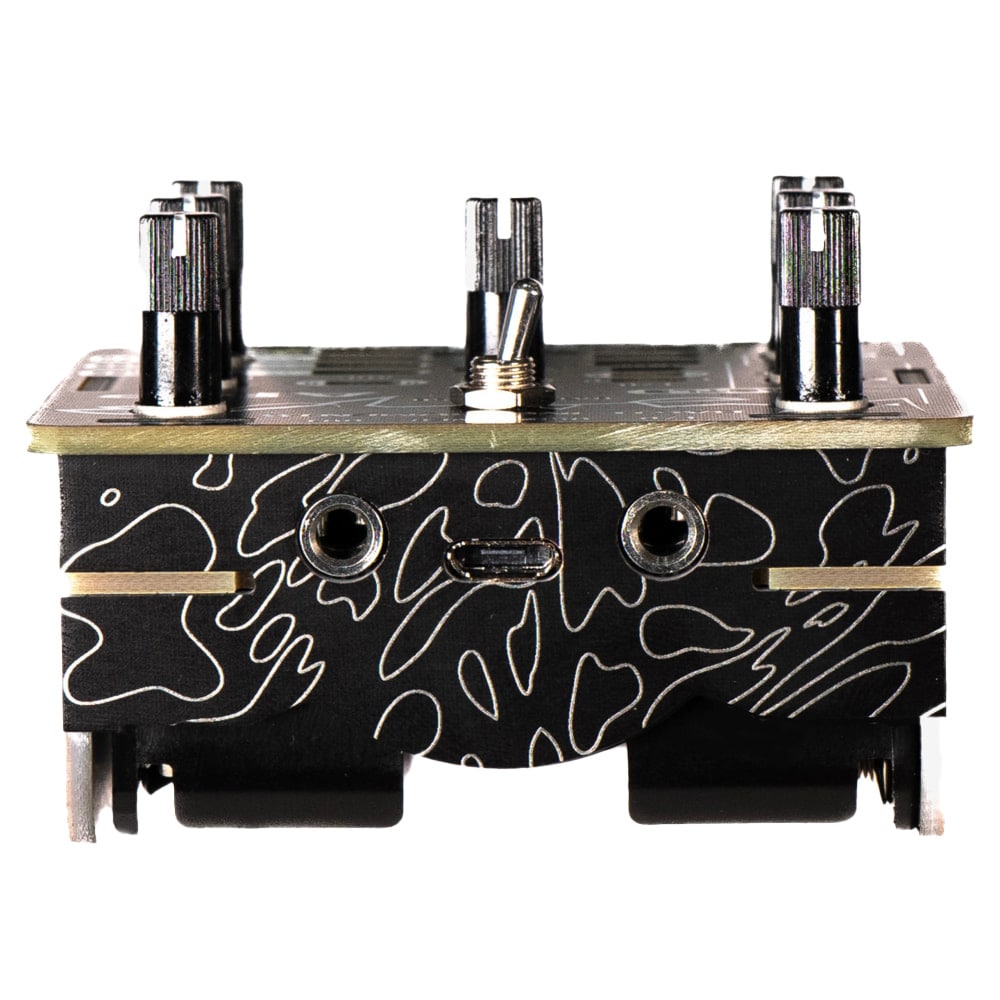

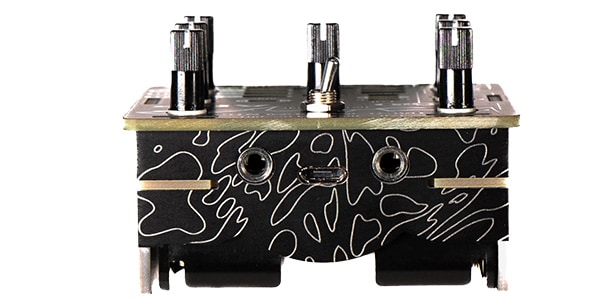

You can also freely patch it with external devices such as Eurorack modulars via the I/O port! The Kastle ARP is not just a gadget synth, but a flexible modular system that can control large systems or become part of them!

■ It can be powered by USB or batteries, so you can use it as a modular synth anytime, anywhere!
The KASTLE ARP can be powered by 3 AA batteries or USB. It can also drive headphones, so you can enjoy modular synthesis anytime, anywhere, indoors or outdoors. This is a fully-fledged, ultra-individualistic Czech Republic synthesiser that you can play on the train or at a picnic!

Features
Pitch-quantised sine wave oscillator
NOTE knob to browse through 8 octaves
Timbre XOR wave shaper
CHORD CV input to switch between 3 chords
CV-controlled decay envelope generator
Negative decay triggers pitch changes for melodic variation
BASS output based on chord root note
Boot mode allows you to set and fine-tune the root note
Clock with square and triangle wave outputs and voltage control
Step voltage generator with random, 8-step and 16-step loop modes
Two I/O CV ports that can be routed to any patch point
Main output that can also drive headphones
3 AA batteries or USB power (switch selectable)
Open source
Durable black and silver PCB enclosure
10 x jumper patch cables included
Size: 70 x 60 x 50 mm
