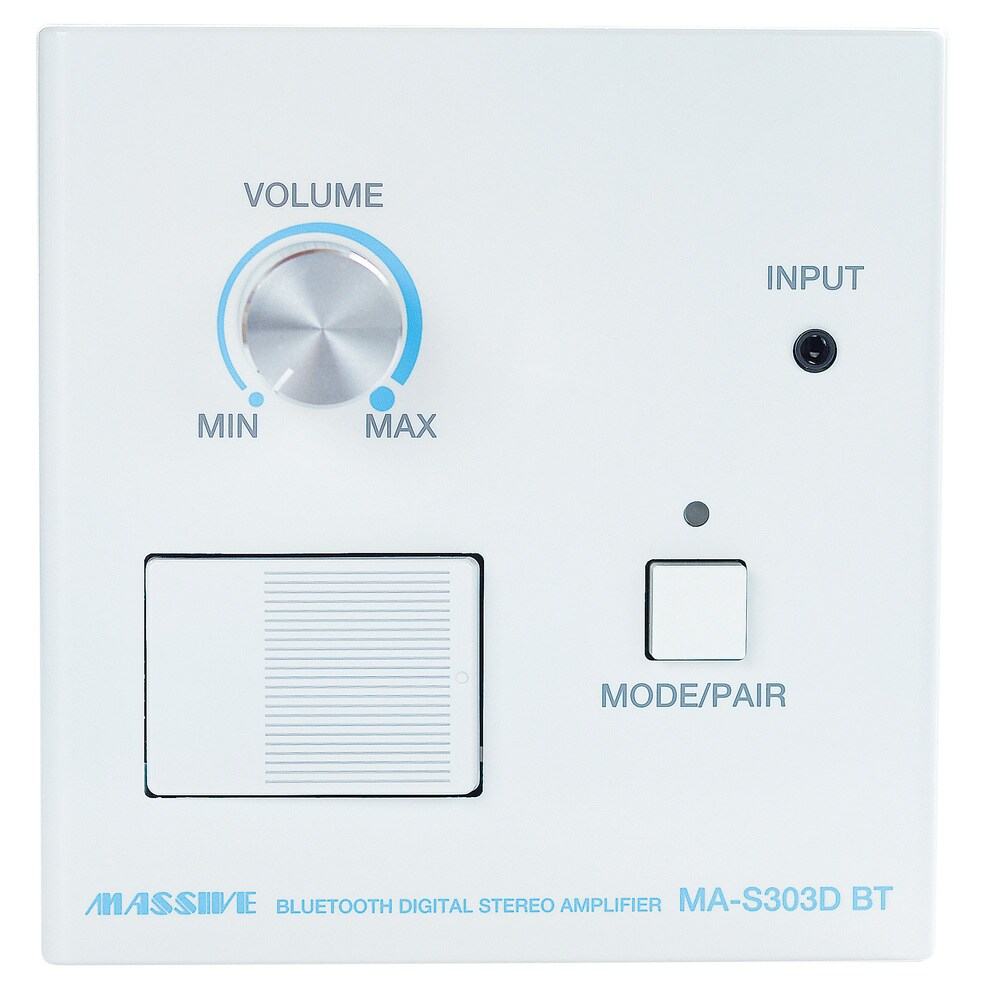

MASSIVE / MA-S303DBT

A wall-mounted stereo amplifier with Bluetooth function that can be switched between monaural and stereo. It can be matched with a wide range of scenes from hotels to residences.

[Main standards]
Power supply voltage: AC100V 50Hz/60Hz
Maximum output: 5W+5W (6Ω load)
Input sensitivity (front 3.5mm jack): 55mV/47kΩ (3.5Φ mini stereo jack unbalanced)
Input sensitivity (line input inside the wall): 55mV/10kΩ (built-in preset VR)
Frequency characteristics: 10Hz to 40kHz
Output load impedance: 6Ω~8Ω
Communication method: Bluetooth standard Ver.5.0
Output: Bluetooth standard Power Class1
Communication distance: Approximately 30m *If there are no obstacles
Frequency band used: 2.4GHz band
Compatible profiles: A2DP, AVRCP
Compatible codec: SBC
Supported content protection: SCMS-T method
Transmission band: 20Hz to 20kHz

[Case]
External dimensions (W x H x D): 116 x 120 x 55mm
Mass: 350g
Installation method: Can be installed in a 2-piece switch box
(Equivalent to Mirai Kogyo deep slide box SBY-W)
Accessories: Instruction manual (this book, for construction workers), mini hex wrench

【remarks】
Ideal installation position: washroom, living room, kitchen, hotel room, etc.

*For installation work, please contact the installation company yourself.
