ART / BT-DI

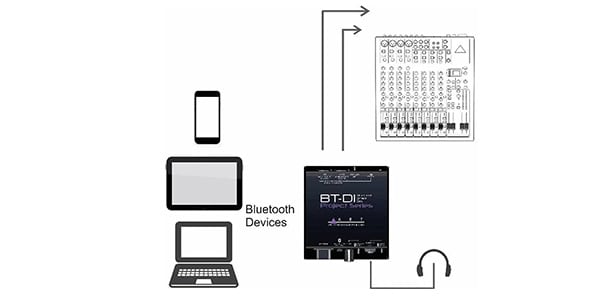

ART/BT-DI is a Bluetooth DI box that can receive audio signals from smartphones, PCs, etc. via Bluetooth, and send them to PA equipment such as mixers and powered speakers.

■Direct box
■For Bluetooth devices

～Product overview～

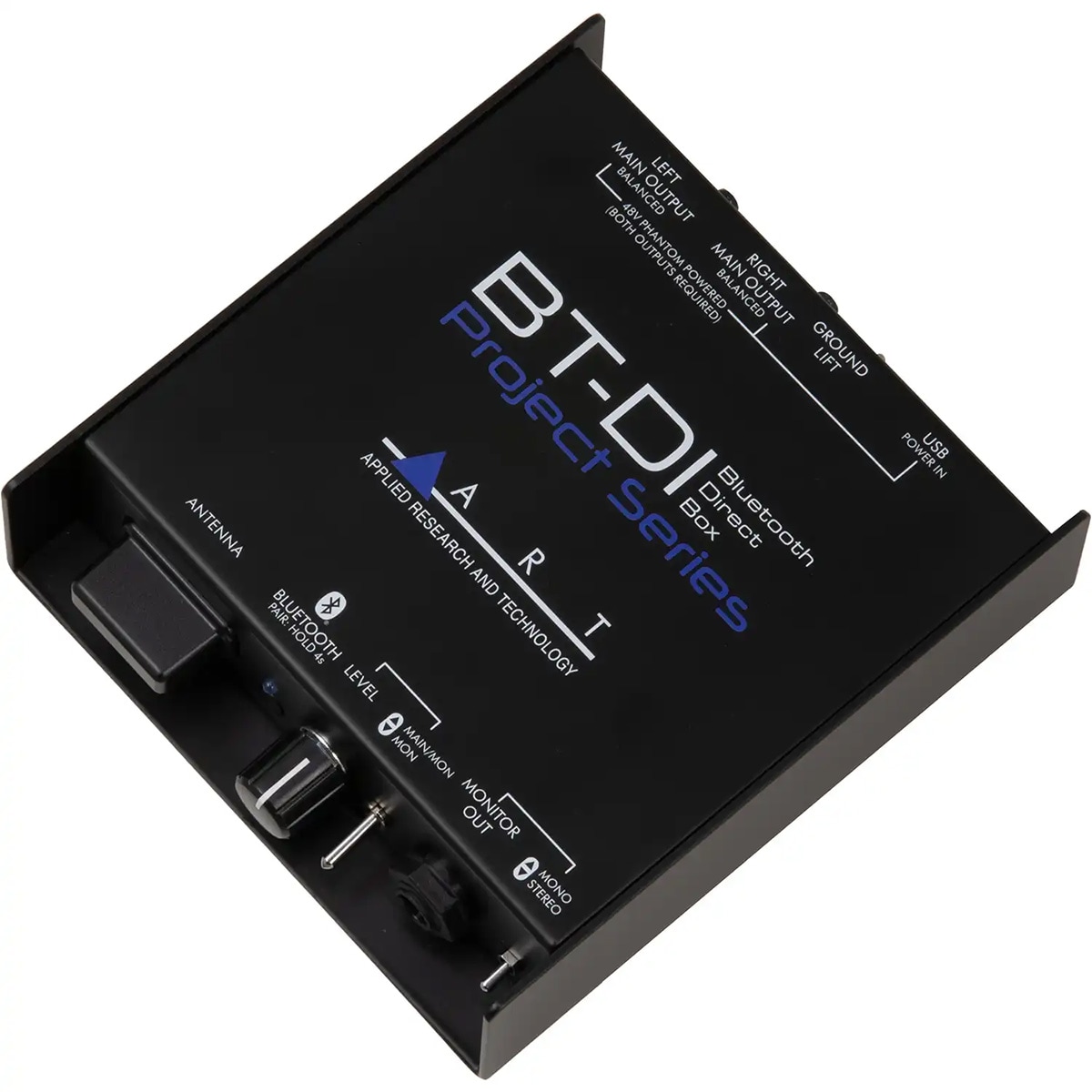

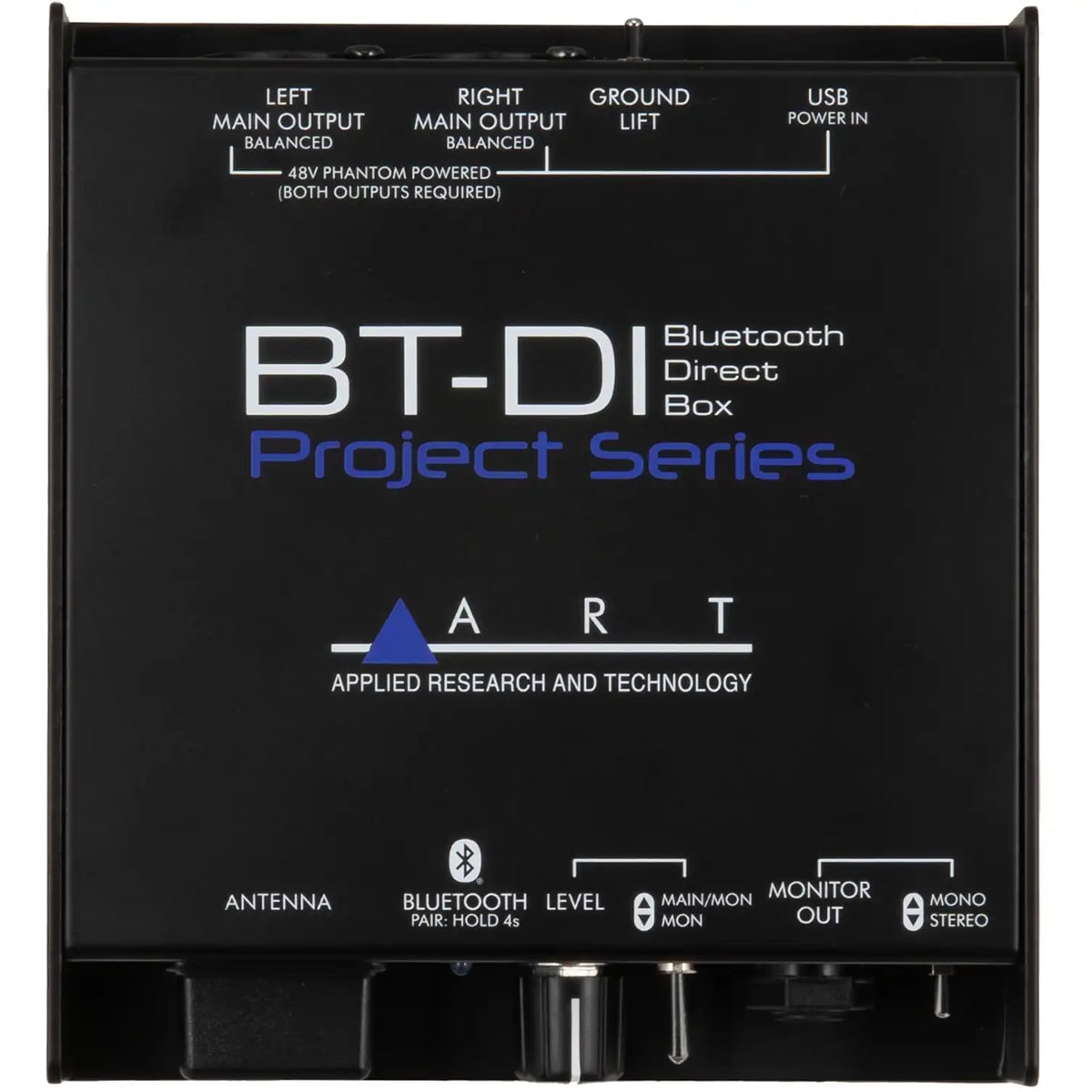

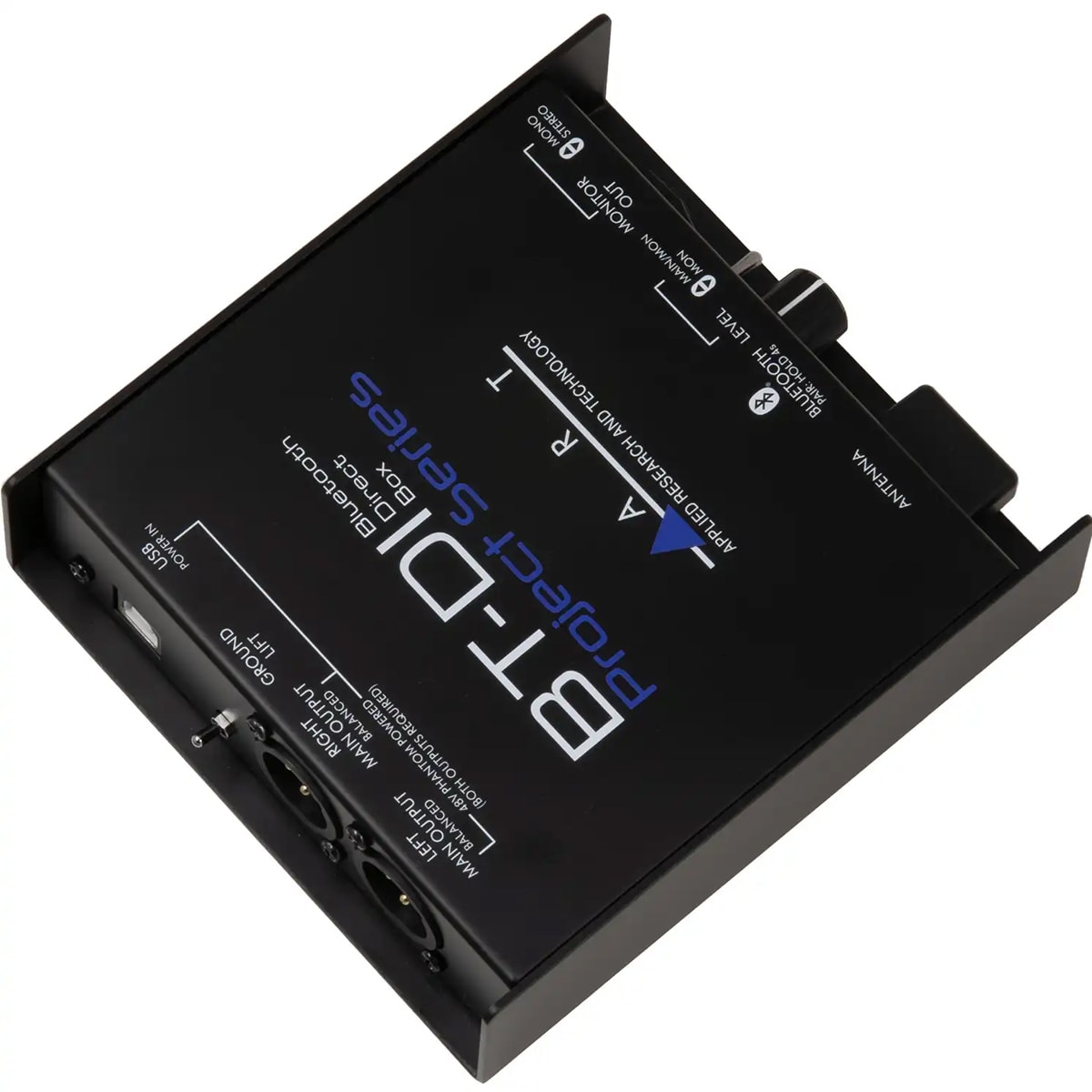

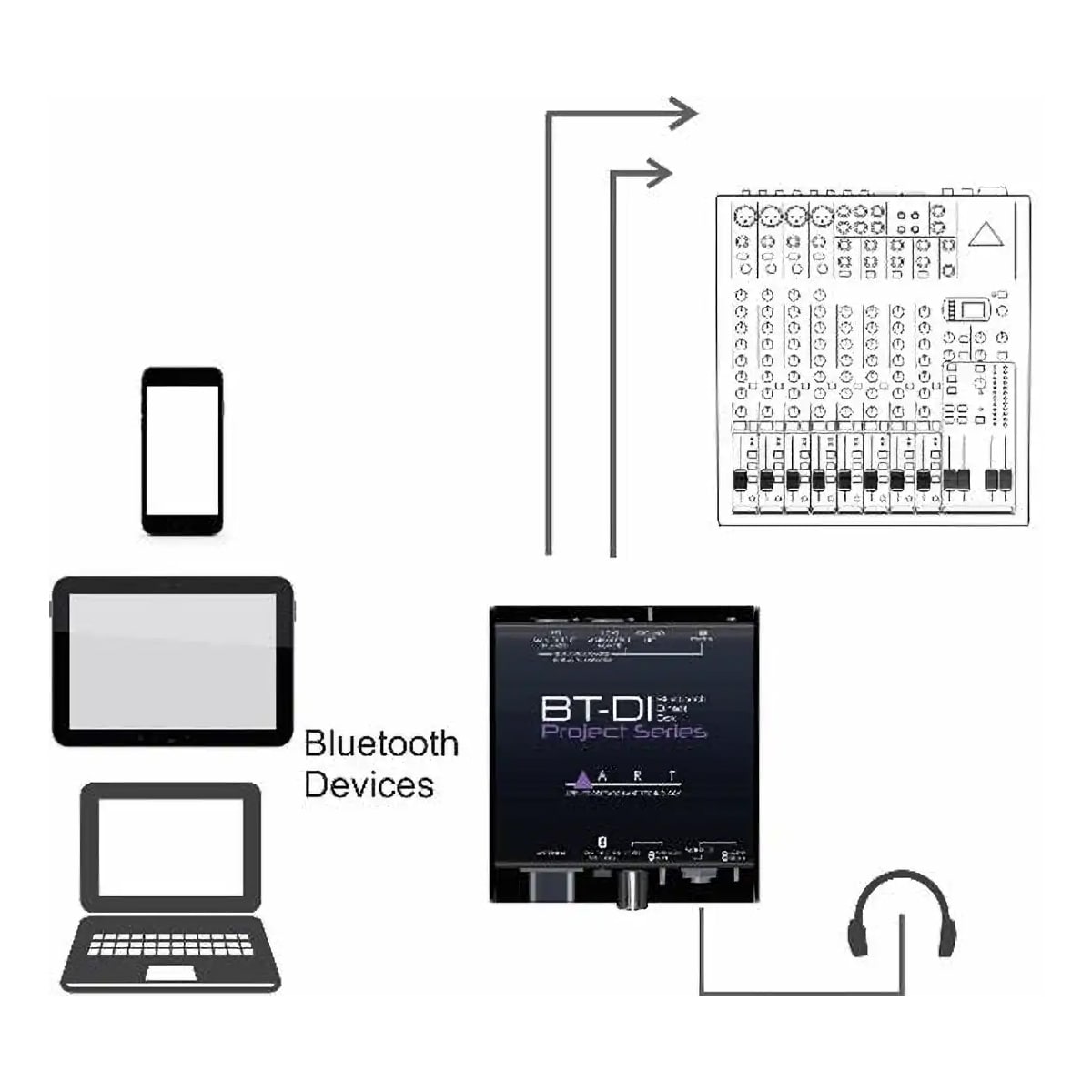

BT-DI is a DI box that receives audio signals from smartphones, computers, etc. via Bluetooth, and sends them to PA equipment such as mixers and powered speakers.

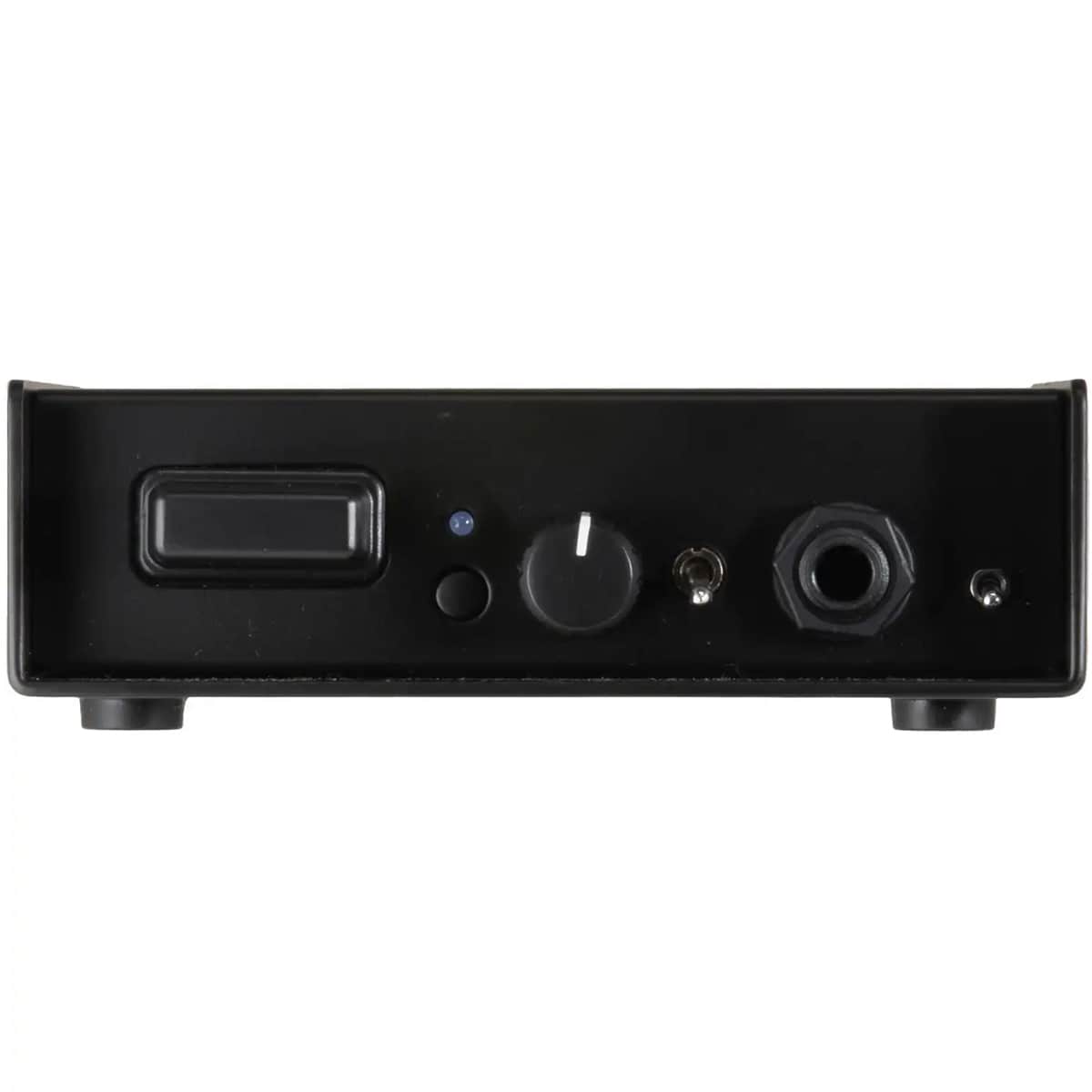

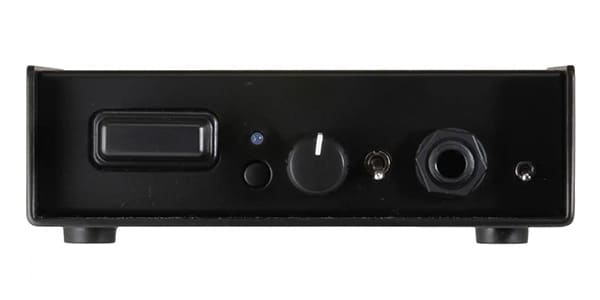

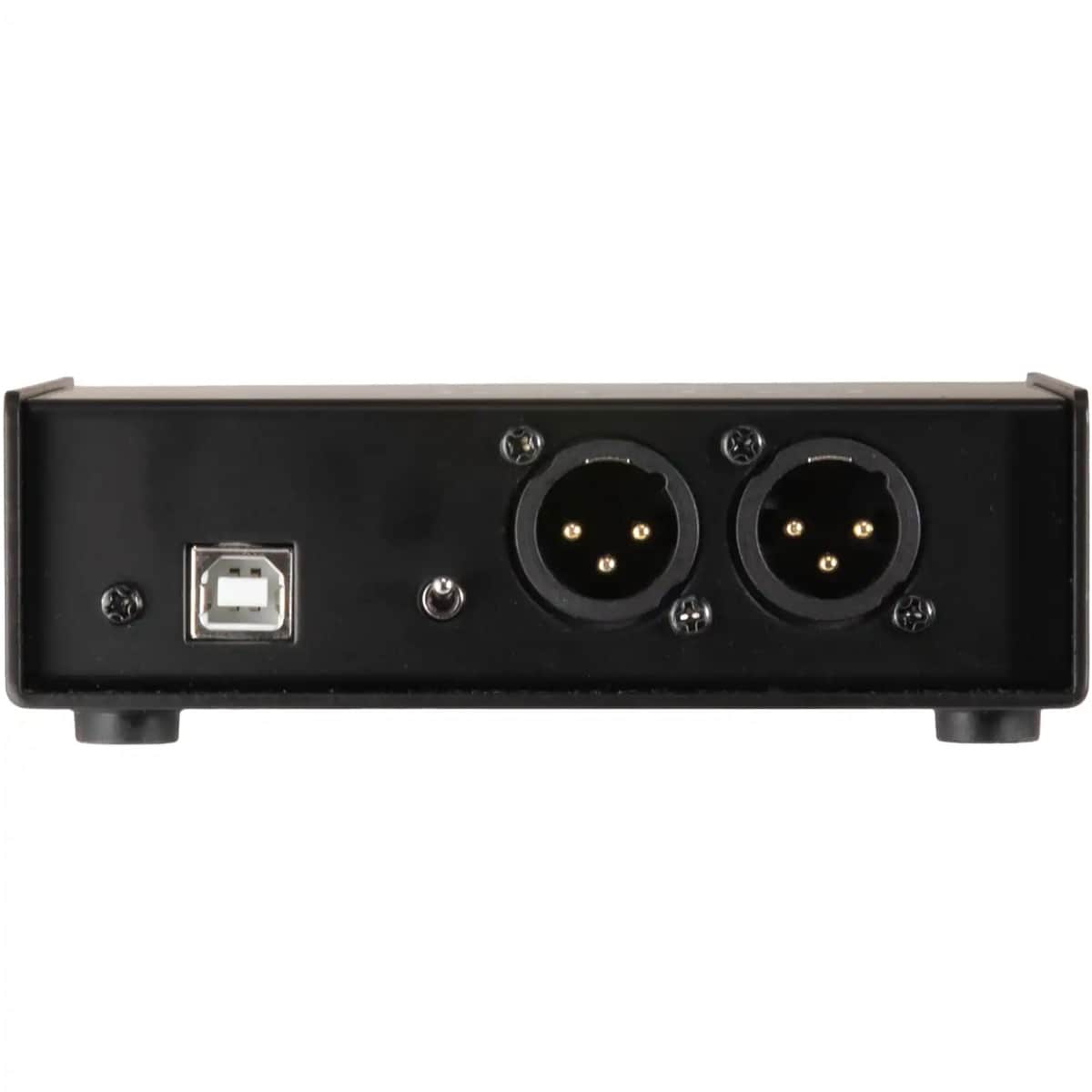

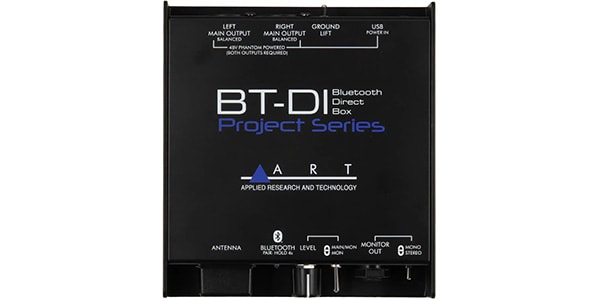

In addition to the XLR output terminal, it is also equipped with a headphone terminal. Also equipped with Bluetooth antenna | output level control | ground lift switch. The power source is phantom power (two left and right XLR terminals) or USB power. Made of sturdy steel, it will last for many years.

～Features～
■Bluetooth 5.0 receiver
■Antenna that works over long distances
■XLR output isolated by transformer
■Headphone output
■Output level control
■Powered by USB power (5V) or phantom power
■ Headphone output can be monaural summed
■Compact and sturdy
■Designed and developed in the United States

~Specs~
■Main output terminal

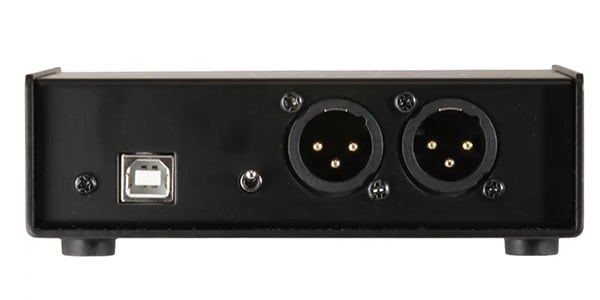

XLR (2) main outputs, transformer coupled, ground switchable
■Main output impedance
300Ω
■Maximum output level
30 dBu (balanced main output)
0 dBu (headphone output)
■S/N ratio
-90dB unweighted typical
■THD
<0.05% typical
■Bluetooth version
5.0, up to 50m, class 2 devices (BDR/EDR)
■Compatible audio codecs
SBC, AAC
■Power supply
5V USB (80mA) or +48V phantom power (when both XLRs are connected)
■Dimensions
36H × 126W × 140D mm
■Weight
0.91 kg
