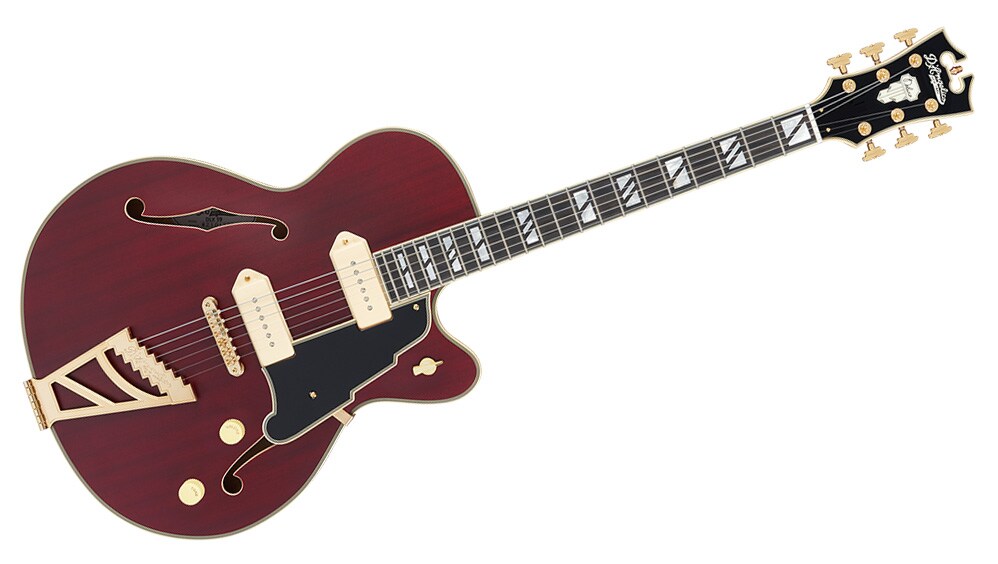

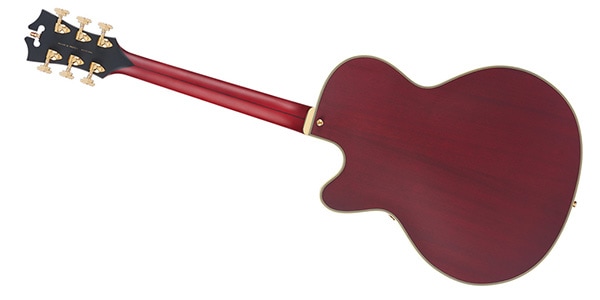

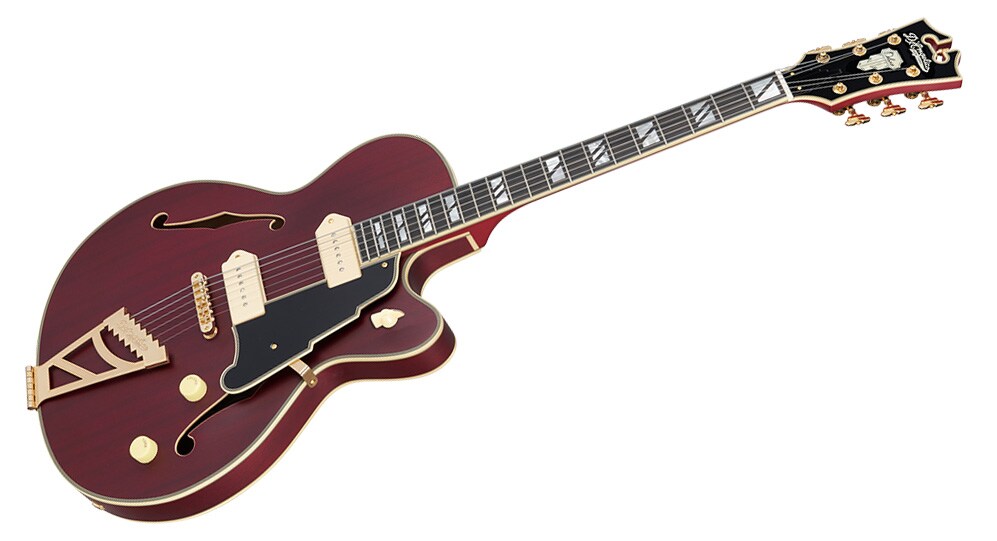

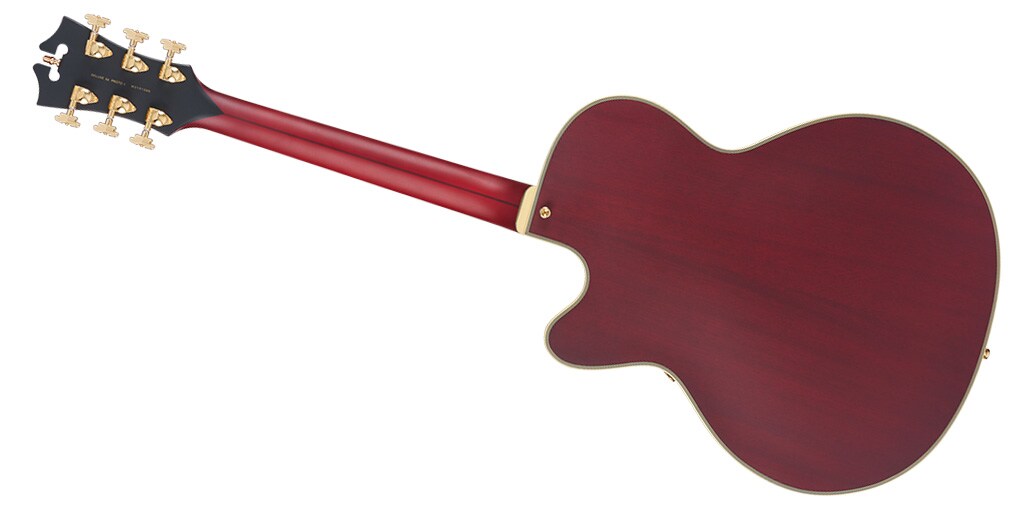

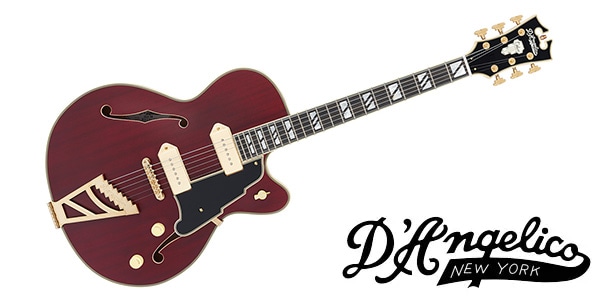

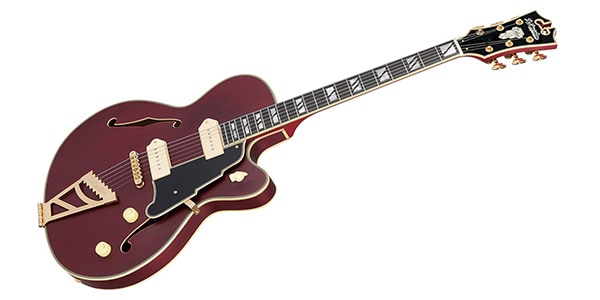

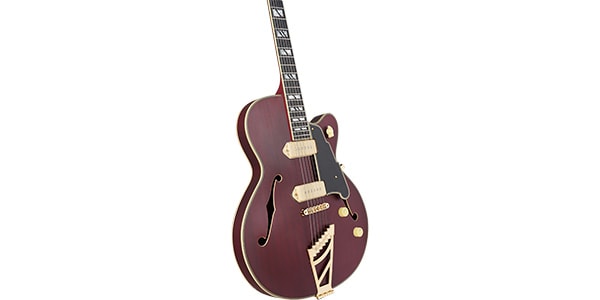

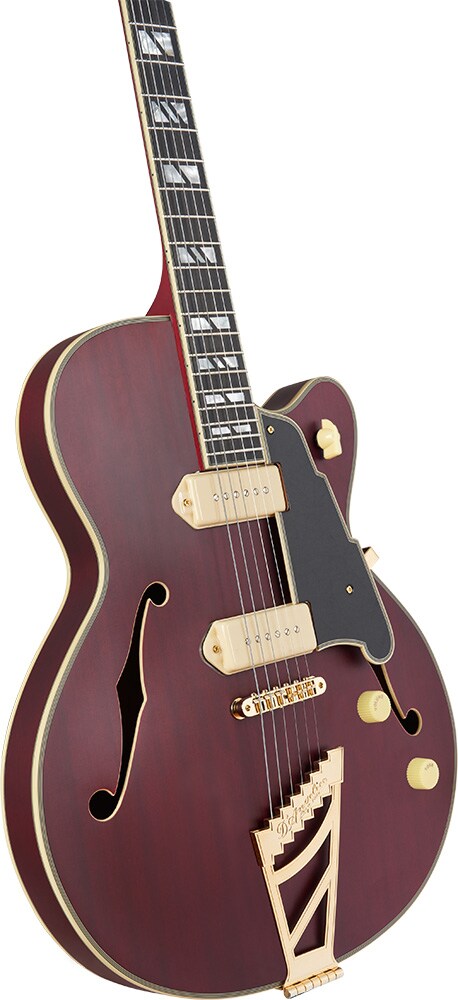

D'Angelico / Deluxe 59 Satin Trans Wine

The Deluxe 59 Satin Trans Wine is the original 16" (406.4mm) wide, 1.75" (44.45mm) thick single cutaway hollow body model.

The original-shaped pickguard, which gives the guitar a distinctive DiAngelico feel, is black with a design that is reminiscent of a f-hole.
The binding on the body top, headstock and neck, combined with the mother-of-pearl split-block position markers, gives the guitar a chic and luxurious look.
The body material is mahogany for the top, sides and back, and the neck is a 3-piece structure with walnut sandwiched between maple to make it strong against warping and twisting. It has a 25-inch (635mm) scale and an ebony fingerboard.
The neck and body are joined by a set-neck joint, and it is equipped with a dual-action truss rod that is adjusted at the head.
The distinctive headstock design carries on the tradition of DiAngelico.
The truss rod cover is made of high-quality ebony and is inspired by the skyscrapers of New York, which were lined with Art Deco architecture (such as the Empire State Building) that was popular in New York around 1930.
The pickups are Seymour Duncan DiAngelico Great Dane P90s.
The controls are 1 volume, 1 tone, and a 3-way pickup selector switch.
The cupcake control knobs and chicken head switch knobs give it a classic look.
The hardware is all gold, and it is equipped with reliable Grover Super Rotomatic locking machine heads, Tune-O-Matic and Steer-Step tailpieces.
The colour is Satin Trans Wine.
A hard case is included.

Specification

Headstock Shape: Standard
Logo Inlay: Mother of Pearl D'Angelico New York Logo
Series Inlay (Front): Mother of Pearl Deluxe Shield Logo
Serial Number (Back): Model Name, Serial Number
Binding: 3-ply
Finish: Satin
Headpin: Cupola
Tuners: Grover 509 Super Rotomatic, Locking
Strings: 10-46
Truss Rod Cover: Skyscraper, Ebony Wood
Nut Width: 1 11/16" (42.86mm)
Nut Material: Bone


Material: Ebony
Binding: 3-ply
Fretwire: Jescar 47/104 Nickel Silver
Scale Length: 25" (635mm)
Radius: 12" (304.8mm)
Top Inlay: Mother of Pearl Split Block
Fret Number: 22


Material: 3 piece: Maple/Walnut/Maple
Finish: Satin
Profile: C-Shape
Joint Type: Set Neck
Truss Rod: Dual Action


Body Shape: Single Cutaway
Body Style: Hollowbody
Body Depth: 1.75" (44.45mm)
Body Width: 16" (406.4mm)
Color: Satin Trans Wine
Finish: Satin
Top Material: Laminated Mahogany
Back Material: Laminated Mahogany
Side Material: Laminated Mahogany
Binding: 5-ply
Bridge: Gold Tune-O-Matic
Tailpiece: Stairstep Tailpiece
Pickguard: Solid Black Scalini (5-ply)
Pickup Selector: 3-way Chickenhead
Knobs: 2 Cream Cupcake with Gold Text
Strap Buttons: Gold, Locking


Overview: 2 Seymour Duncan D'Angelico Great Dane P-90s // 1 Volume 1 Tone // 3-way chickenhead selector switch
Pickup (Neck): Seymour Duncan D'Angelico Great Dane P-90 Neck (Cream Cover)
Pickup (Bridge): Seymour Duncan D'Angelico Great Dane P-90 Bridge (Cream Cover)
Pots: 500k
Output Jack: Standard Mono


Hardware Color: Gold


Case: Deluxe Hardshell
