D'Angelico / Deluxe Mini DC P-90 Satin Trans Wine

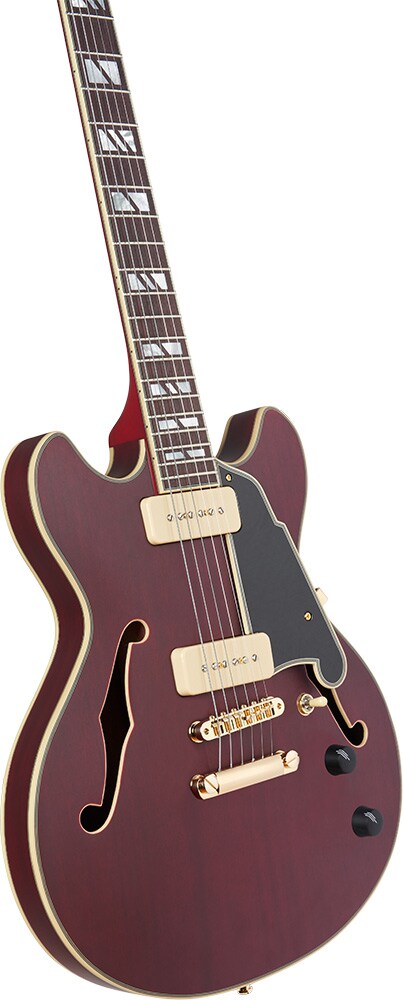

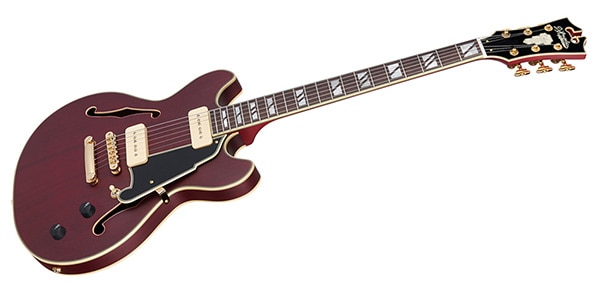

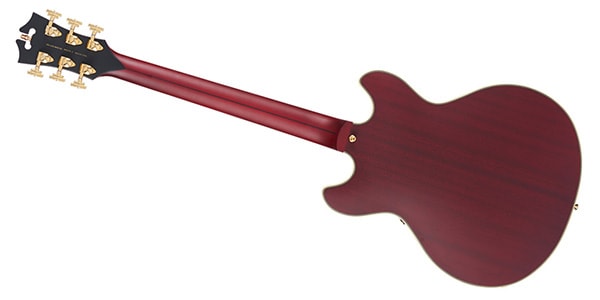

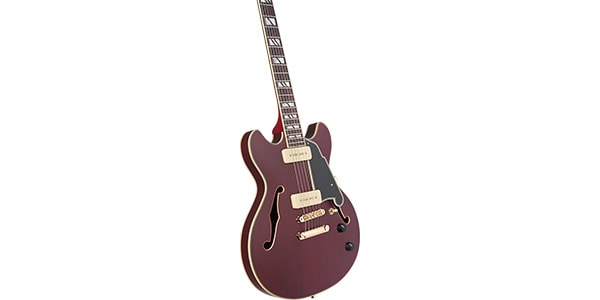

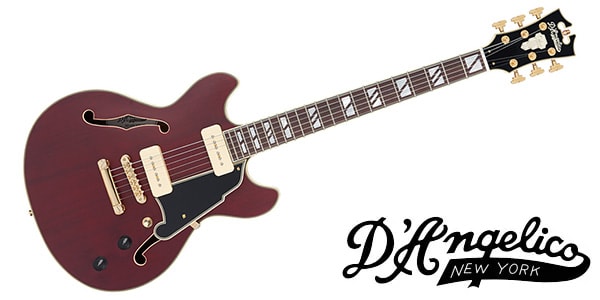

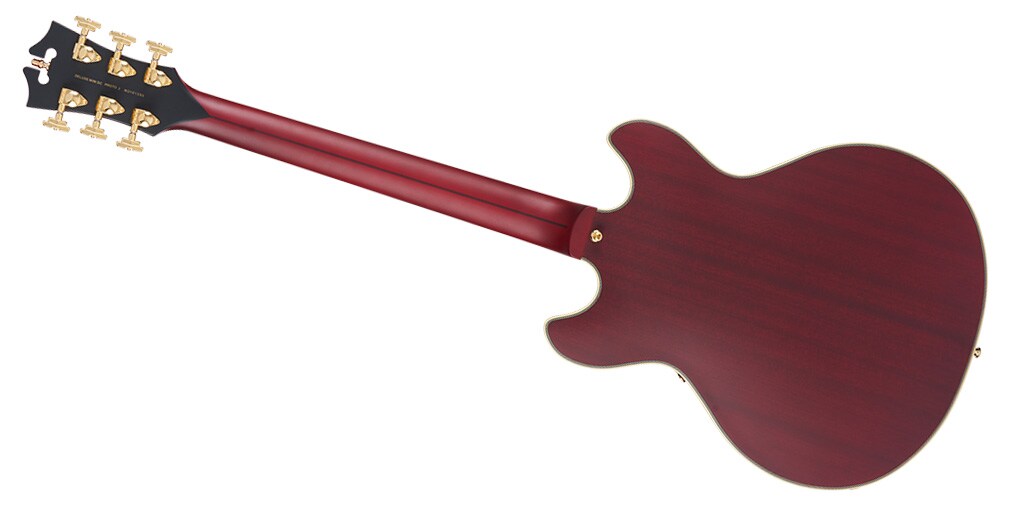

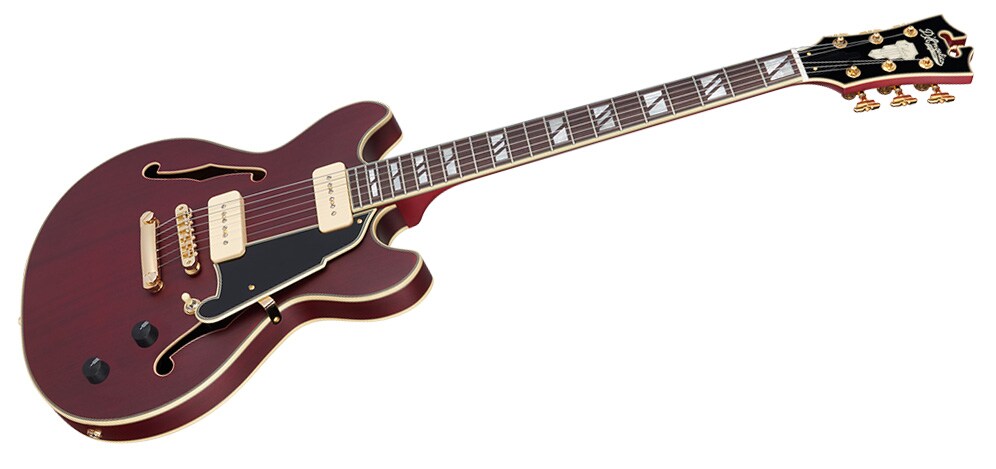

Deluxe Mini DC P-90 Satin Trans Wine is a semi-hollow body model with a center block structure in the original small double cutaway shape with a width of 14 inches (355.6 mm) and a thickness of 1.75 inches (44.45 mm). is.

The original-shaped pickguard, which gives the guitar a distinctive DiAngelico feel, is black with a design that is reminiscent of a f-hole.
The binding on the body top, headstock and neck, combined with the mother-of-pearl split-block position markers, gives the guitar a chic and luxurious look.
The body is made of mahogany for the top, sides and back, and the neck is a 3-piece construction with walnut sandwiched between maple to make it more resistant to warping and twisting. It has a 25-inch (635mm) scale and a rosewood fingerboard.
The neck and body are joined by a set-neck joint, and it is equipped with a dual-action truss rod that is adjusted at the head.
The distinctive headstock design carries on the tradition of DiAngelico.
The truss rod cover is made of high-quality ebony, and the design is inspired by the skyscrapers of New York, which were lined with Art Deco architecture (such as the Empire State Building) that was popular in New York around 1930.
The guitar is equipped with two Seymour Duncan STK P-90 (cream colour) stack-type pickups.
The control layout is 1 volume, 1 tone and 3-way pickup selector.
The hardware is all gold, and it is equipped with Grover Super Rotomatic locking machine heads that ensure stable tuning, as well as Tune-O-Matic and stop-bar tailpieces.
The colour is Satin Trans Wine.
A hard case is included.

Specification

Headstock Shape: Standard
Logo Inlay: Mother of Pearl D'Angelico New York Logo
Series Inlay (Front): Mother of Pearl Deluxe Shield Logo
Serial Number (Back): Model Name, Serial Number
Binding: 3-ply
Finish: Satin
Headpin: Cupola
Tuners: Grover 509 Super Rotomatic, Locking
Strings: .010-.046
Truss Rod Cover: Skyscraper, Ebony Wood
Nut Width: 1 11/16" (42.86mm)
Nut Material: Bone


Material: Rosewood
Binding: 3-ply
Fretwire: Jescar 47/104 N ickel Silver
Scale L ength: 25" (635mm)
Radius: 12" (304.8mm)
Top Inlay: Mother of Pearl Split Block
Fret Number: 22


Material: 3 piece: Maple/Walnut/Maple
Finish: Satin
Profile: C-Shape
Joint Type: Set Neck
Truss Rod: Dual Action


Body Shape: Double Cutaway
Body Style: Semi-hollow (with centerblock)
Body Depth: 1.75" (44.45mm)
Body Width: 14" (355.6mm)
Color: Satin Trans Wine
Finish: Satin
Top Material: Laminated Mahogany
Back Material: Laminated Mahogany
Side Material: Laminated Mahogany
Binding: 5-ply
Bridge: Gold Tune-O-Matic
Tailpiece: Stopbar
Pickguard: Solid Black Scalini (5-ply)
Pickup Selector: 3-way Toggle
Knobs: 2 Ebony
Strap Buttons: Gold, Locking


Overview: 2 P90s // 3-way toggle switch // 1 volume, 1 tone
Pickup (Neck): Seymour Duncan STK P-90 Neck (Cream)
Pickup (Bridge): Seymour Duncan STK P-90 Bridge (Cream)
Pots: 500k
Output Jack: Standard Mono


Hardware Color: Gold


Case: Deluxe Hardshell
