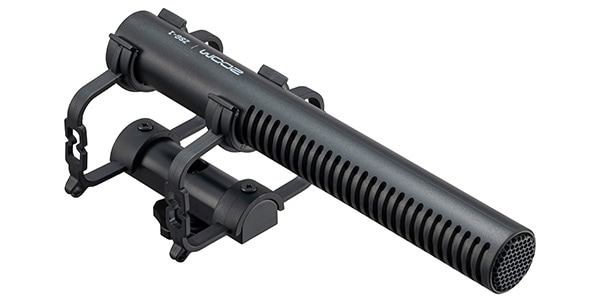

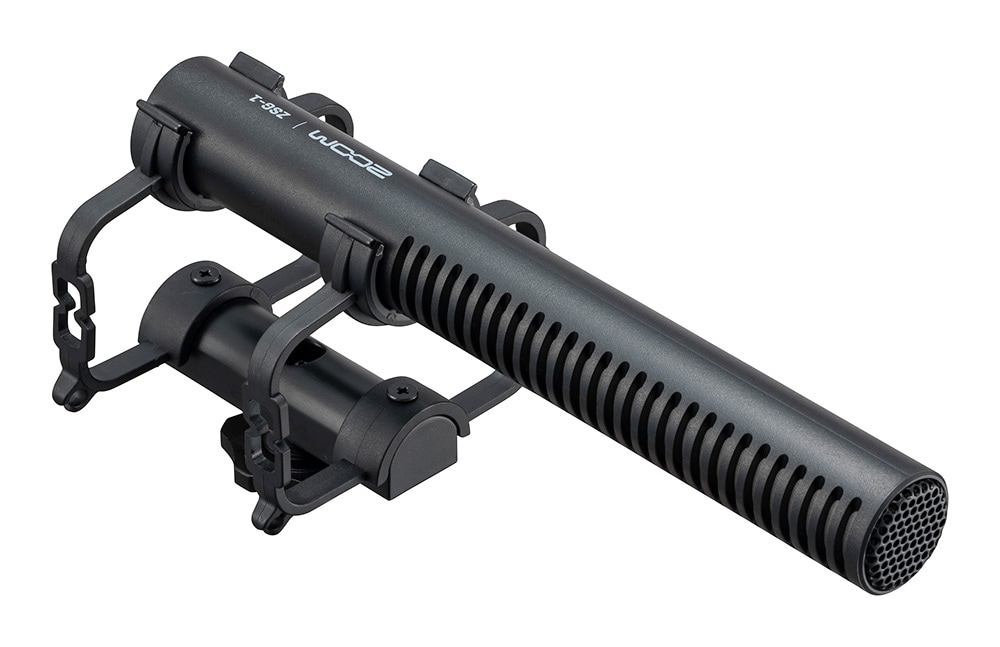

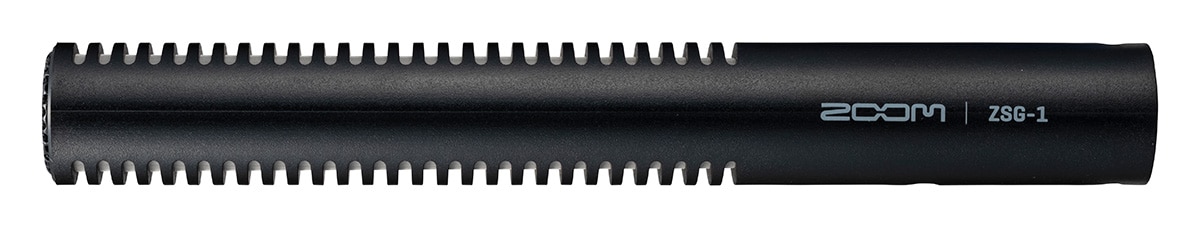

ZOOM / ZSG-1

The ZSG-1 is a plug-in powered shotgun microphone designed for videographers. With a lightweight and compact design weighing only 40g, it is ideal for Vlog and run-and-gun style shooting where footwork and mobility are important.

[Main features of ZSG-1]
◎Plug-in power shotgun microphone ideal for video shooting with a camera
◎High directivity that suppresses surrounding noise and focuses on the desired sound
◎Output terminal that sends audio directly to the camera (microphone level)

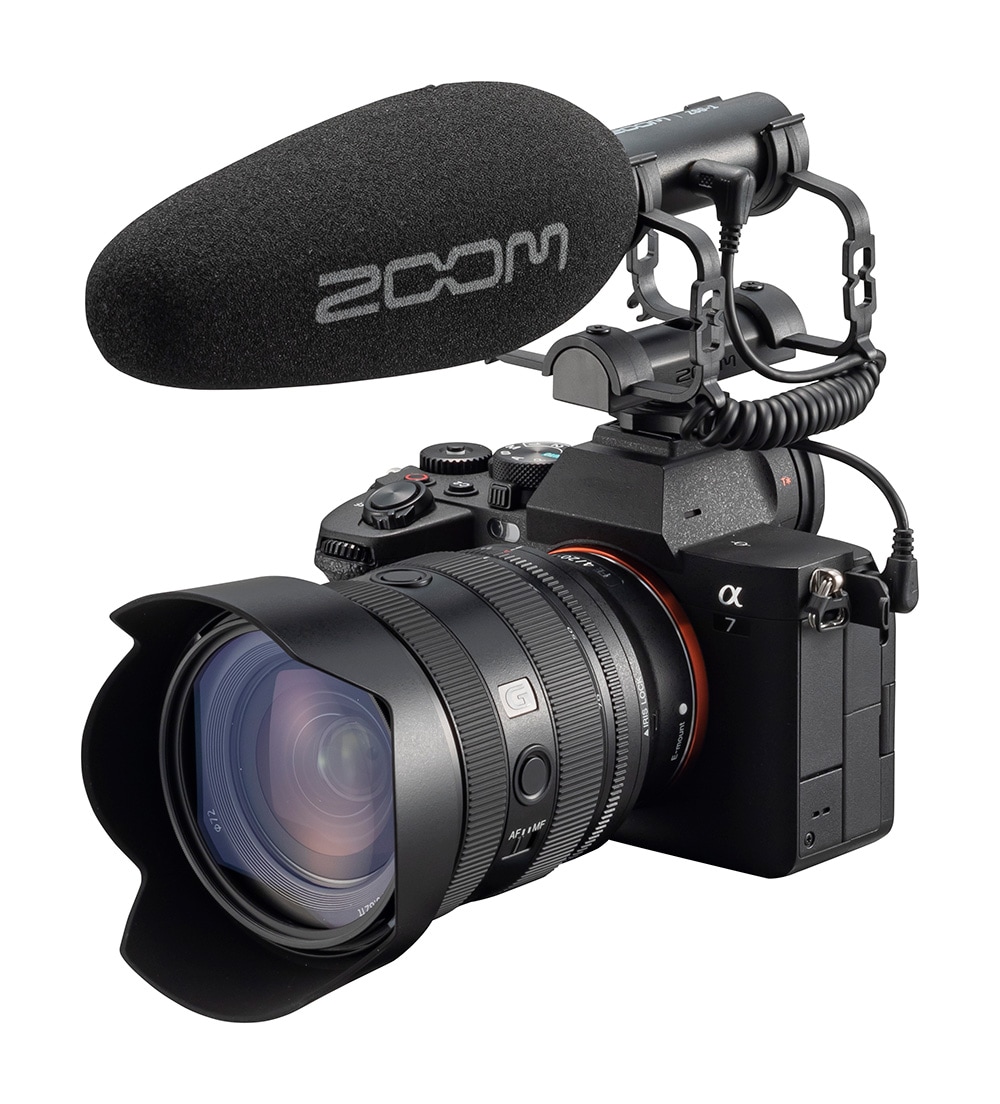

◎Equipped with a dedicated shock mount that can be attached to the camera's hot shoe to reduce vibration noise.

[ZSG-1 specifications]
■ Type: Back electret condenser type
■ Directional characteristics: supercardioid
■ Diaphragm: Ф 14 mm
■ Frequency characteristics: 50 Hz - 20 kHz
■ Sensitivity: -31 ± 2 dBV/Pa
■ Maximum sound pressure level: 118 dB SPL (THD ≦ 1%, 1 kHz)
■ Equivalent noise level: < 24 dB SPL (A-weighted)
■ S/N ratio: 70 dB
■ Output impedance: 2.2 KΩ
■ Output terminal: Stereo mini
■ Power supply: Plug-in power (2 - 5 V)
■ Dimensions: Φ 22.6 mm × 177 mm
■ Mass: 40 g

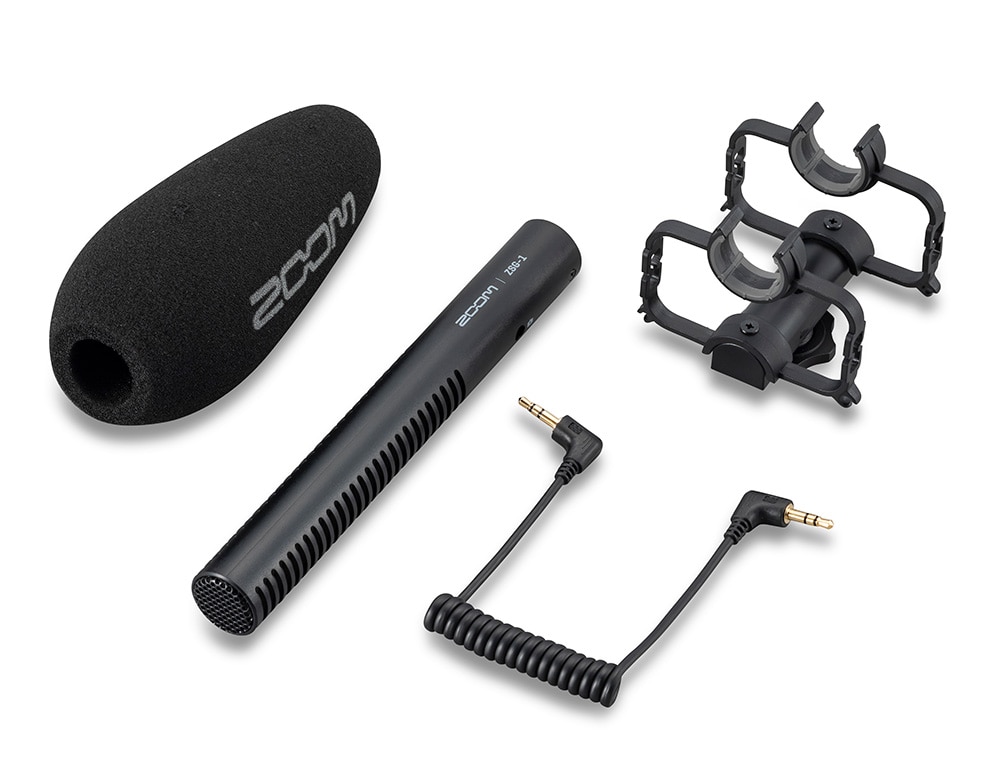

■Accessories: Windscreen (WSM-3)/Shock Mount (SMM-3)/Stereo Mini Cable
