Fractal Audio Systems / FM9 Turbo

The latest floor unit, the “FM9 Turbo”, is equipped with a 4-core DSP and has the same sound quality as the Axe-Fx III MARK II, the flagship model recognized by the world's top professionals.

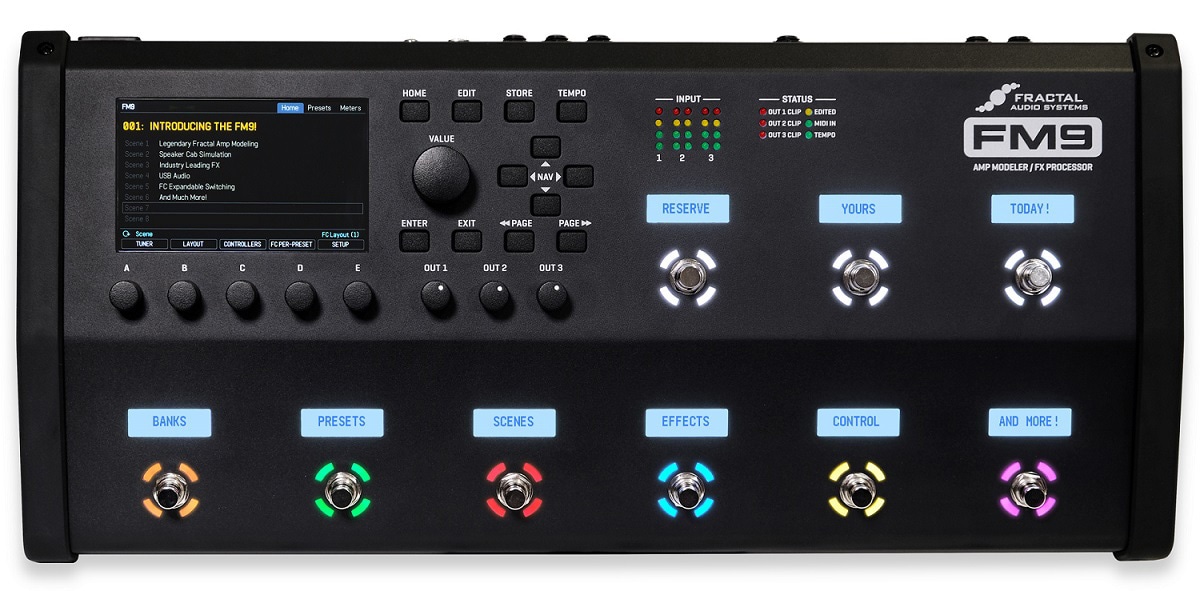

It has a layout grid of 14 x 6, with Mono Input x1, Stereo Input x2, Stereo Output x3, and USB Input, comparable to the Axe-Fx III MARK II, and it supports Preset design and audio routing that meet the needs of the player. In addition, the nine onboard footswitches not only allow you to instantly recall 512 presets and the eight scenes contained in each preset, but also provide user-friendly control over the direct ON/OFF of effect blocks and the ON/OFF of the tuner, making this the ultimate floor unit.

■Product Specifications

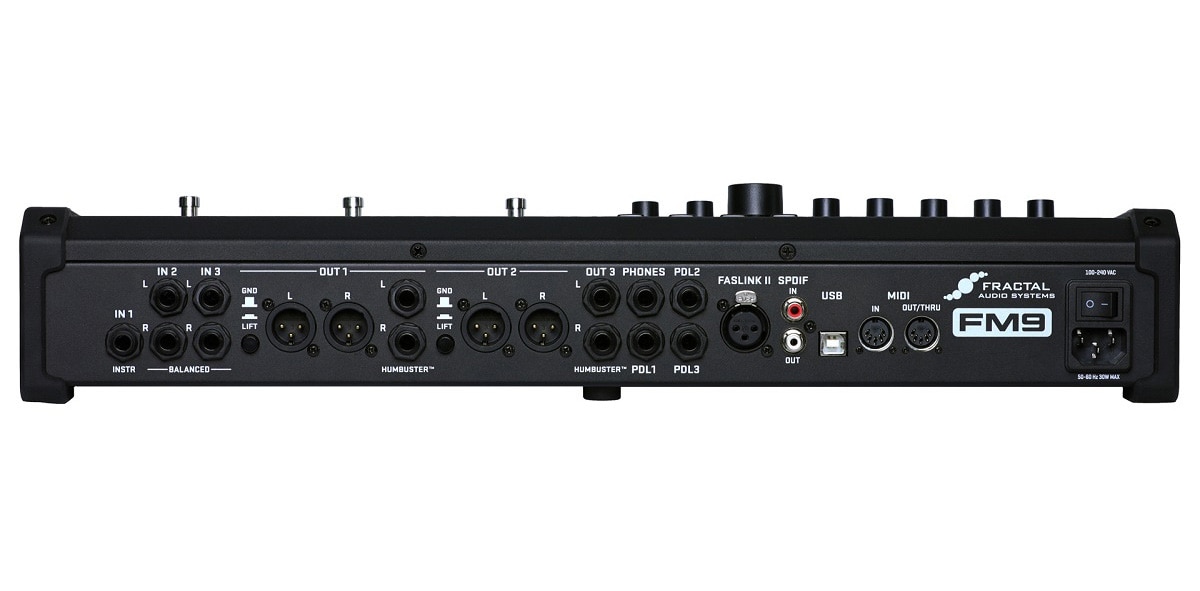

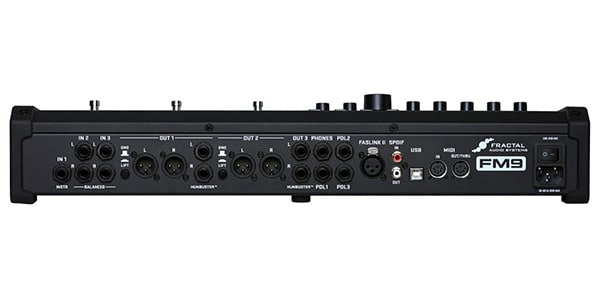

・INSTRUMENT INPUT
Terminal: 1/4“ phone jack
Impedance: 1 MΩ
Maximum input level: +16 dBu
・ANALOG INPUT 2/3
Terminal: 1/4” phone jack (TRS) x 2
Impedance: 1 MΩ
Maximum input level: +20 dBu
・A/D conversion
Bit depth: 24 bits
Sample rate: 48 kHz
Dynamic range: 114 dB
Frequency response: 20 Hz to 20 kHz, -0.01 to +0.01 dB
Crosstalk: 110 dB (typical) Channel-to-channel isolation
・ANALOG OUTPUT 1
Terminal: 2 XLR male (GND/LIFT switch)
Output level: -10 dBV / + 4 dBu (parameter setting)
1/4” phone jack x 2 (Humbuster? function compatible)
Impedance: 600 Ω
Maximum output level: +20 dBu
・ANALOG OUTPUT 2
Terminal: XLR male x 2 (GND/LIFT switch)
Output level: -10 dBV / + 4 dBu (parameter setting)
1/4“ phone jack × 2 (Humbuster? function supported)
Impedance: 600 Ω
Maximum output level: +20 dBu
・ANALOG OUTPUT 3
terminal: 1/4” phone jack × 2 (Humbuster? function supported)
Impedance: 600 Ω
Maximum output level: +20 dBu
HEADPHONE OUTPUT
Terminal: 1/4” stereo phone jack
Impedance: 35 Ω
・D/A conversion
Dynamic range: 114 dB
Frequency response: 20Hz - 20kHz, +0 / -1 dB
・DIGITAL OUTPUT
terminal: S/PDIF: RCA coaxial type
Audio file format: PCM
Sample rate: 48 kHz fixed
・USB AUDIO
standard: USB 2.0
Number of channels: 8 in, 8 out
USB audio clock: 48 kHz fixed
・MIDI connection
IN terminal: 5-pin DIN x 1
OUT/THRU jack: 5-pin DIN x 1
・Pedal connection
Input jack: 1/4” phone jack (TRS) x 3
Pedal: Center wiper 10 - 100 kΩ (max.)
Switch: Normally open / normally closed, latch / unlatch supported
・FASLINK II connection
Terminal: XLR female × 1
* Do not connect to any other terminal than the FASLINK II terminal on the FC series controller.
・Other
Dimensions / Weight: 513 mm (width) × 89 mm (height) × 237 mm (depth) / 5.44 kg
Input voltage: 90 - 264 VAC, 47 - 63 Hz
Power consumption: 40W or less
Backup battery: CR2032
