JBL / HARPASET7

This is a special set that includes the 2-way 12-inch passive speaker PRX412M from the PRX series, which boasts high specs while maintaining a reasonable price, and the CROWN (AMCRON)/XLS2502, a high-quality, ultra-lightweight power amplifier equipped with the latest DSP.

■HARMAN PA set
■PA speakers: PRX412M pair
■Power amplifier: XLS2502

This is a 2-way 12-inch passive speaker from the PRX series that boasts high specs while maintaining a reasonable price. The allowable input is a generous 600W (8Ω) and a maximum SPL of 126dB. The durable DuraFlex-coated enclosure and 16-gauge steel grille not only provide superior sound quality but also stand up to harsh environments. Recommended for a variety of uses such as bands and DJ events.

■Type: 2WAY full range
■Frequency characteristics: (-10 dB): 50 Hz - 20 kHz, (+3 dB): 62 Hz - 19 kHz
■Allowable input: 600 W (Program)
■Impedance: 8ohms
■Output sound pressure level: 120 dB SPL continuous
■Maximum output sound pressure level: 126 dB SPL peak
■Woofer unit: JBL MB112-8
■Driver: JBL 2414H-C
■Connector: Speaker/phone combo jack x2
■Stand mount:○(35mm)
■Size: H574 mm x W353 mm x D399 mm
■Weight: 16 kg
■Remarks:
■Crossover frequency: 2.0kHz
■Nominal directivity angle: 90°H x 50°V
■Sensitivity: 95 dB SPL (1w@1m)

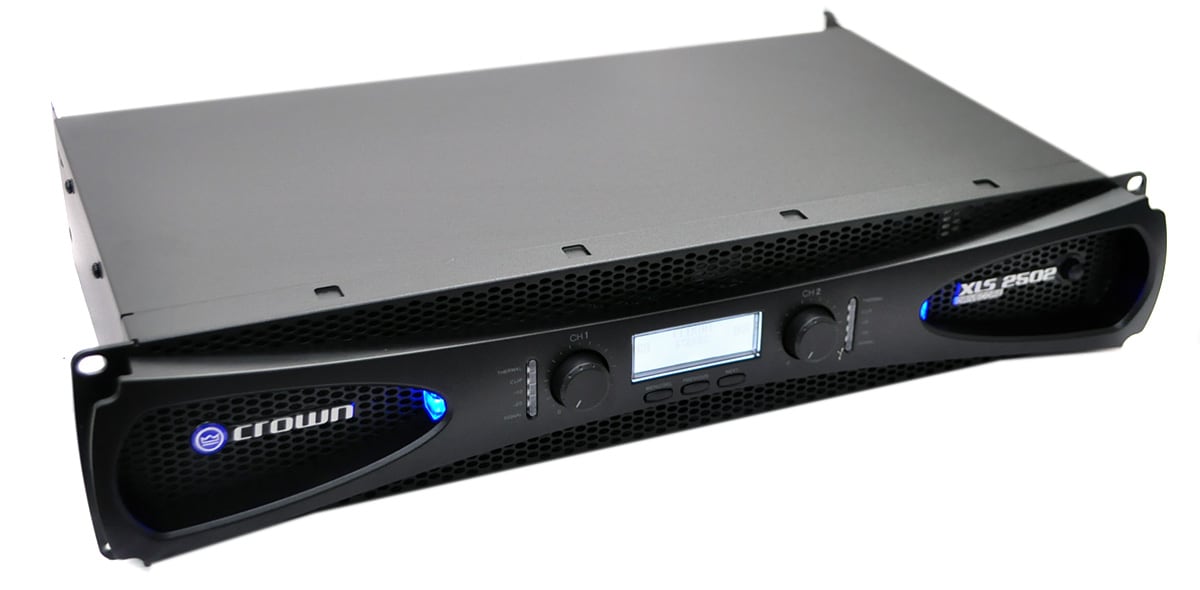

CROWN(AMCRON)/XLS2502 is a high-quality, ultra-lightweight power amplifier equipped with the latest DSP. A crossover with three types of filters can be set on the large, highly visible LCD display. Class-D operation allows both main speakers and subwoofers to be efficiently driven.

■Type: 2 channels
■Stereo output (2ohms): 1,200W+1,200W
■Stereo output (4ohms): 775W+775W
■Stereo output (8ohms): 440W+440W
■Bridge output (4ohms): 2,400W
■Bridge output (8ohms): 1,550W
■Damping factor: 200 or more
■Input terminal: XLR, RCA, standard phone jack
■Output terminal: 4P speed controller x 2, binding post
■Power consumption: 260W (1/8 output, pink noise, 2Ω)
■Dimensions: W48.3 x H8.9 x D22.8cm
■Weight: 5kg

This is a next-generation model that inherits the functions of the well-established XLS series. Improvements have been made including the appearance, and the processing power and operability of the DSP have been improved. All models are lightweight, weighing less than 5 kg, reducing the burden of transportation and installation.

■DriveCore reduces weight without compromising sound quality
Equipped with ""DriveCore,"" a custom IC that integrates functions such as high-precision clock, modulation, error amplification, and feedback, which are the heart of the amplifier circuit, into a single chip. We have reduced the number of parts to the bare minimum without compromising power or sound quality.
The power supply section uses a lightweight, highly efficient switching power supply.
All models weigh less than 5kg, making them lightweight and highly portable.
■Output power that exceeds its class
Class-D operation efficiently drives even highly loaded subwoofers.
Equipped with a Peakx limiter to maximize output performance while protecting the speakers.
■Filter settings possible with powerful DSP
Adopts a PureBand crossover system with a 24dB/oct Linkwitz-Riley filter. Any crossover point can be set every 1/12 oct in the range of 30Hz to 3kHz.
Filter types can be selected from no filter, low pass, high pass, and band pass.

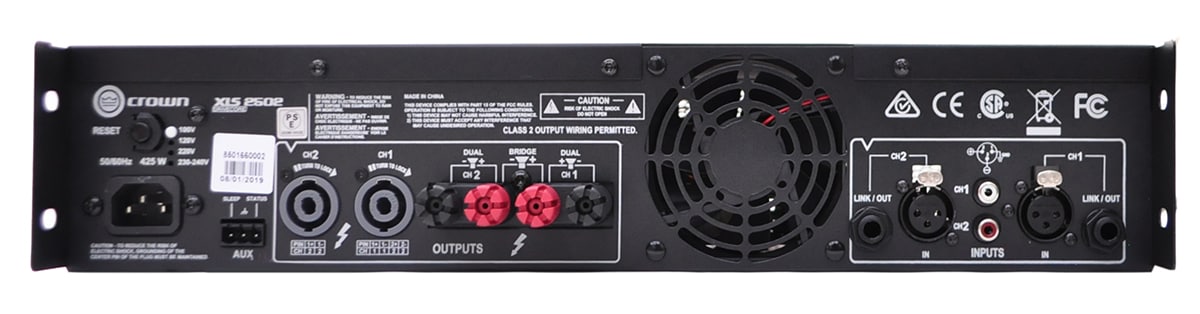

■Flexible input/output
Equipped with three types of input terminals: XLR, standard phone, and RCA. Input sensitivity can be selected from 1.4V and 0.775V.
The output terminal is equipped with a speed controller and a binding post.
■Equipped with the necessary functions in a well-balanced manner
Equipped with a backlit LCD display on the front panel. Including the indicator LED, it can be turned on/off by setting. A lock function is also available to prevent front panel operations.
A status signal is output from the rear panel to confirm normal operation from a remote location.
You can set it to sleep mode using an external contact to reduce power consumption.
Equipped with an air cooling fan to efficiently cool the inside of the main unit.

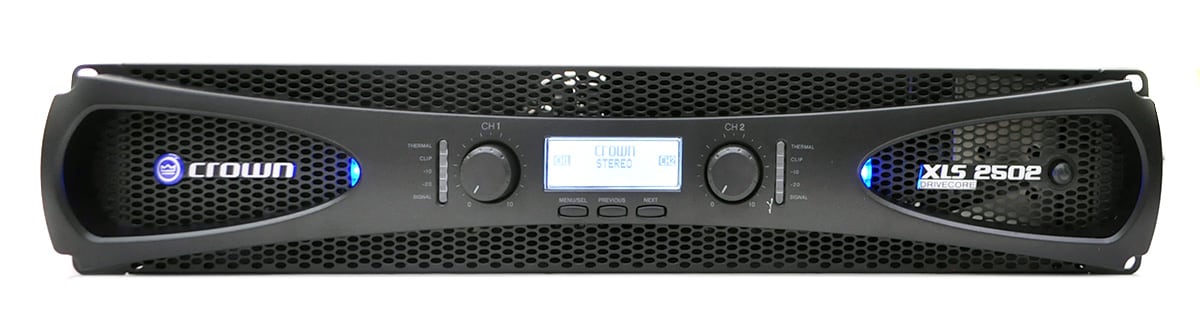

■LCD display with enlarged size
The size is larger than the previous model. The menu structure has also been revised to greatly improve operability.
■AUX terminal
The left pin can be used for sleep mode to reduce power consumption with an external contact.
The right pin outputs a status signal to confirm normal operation from a distance.
