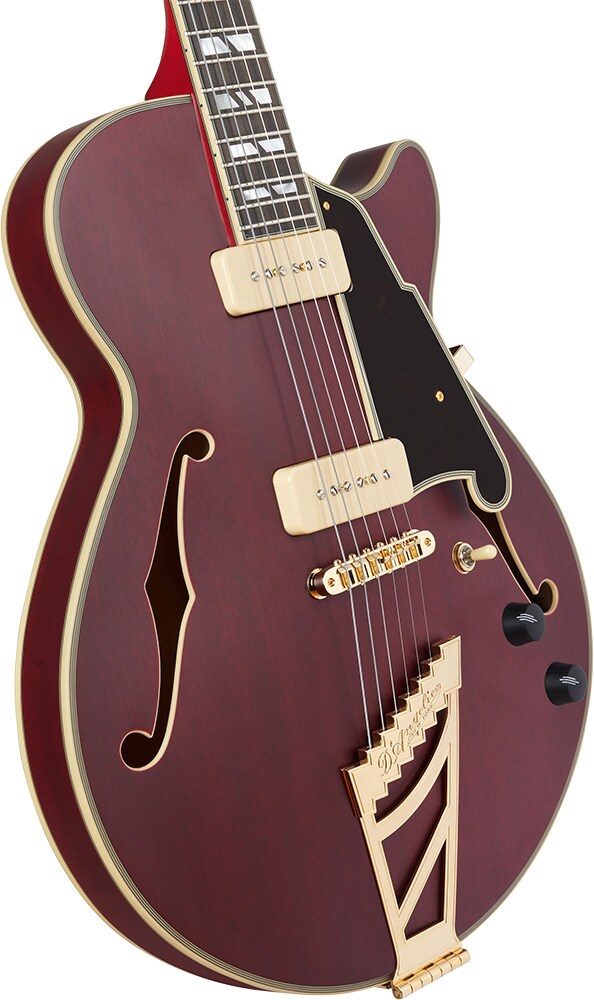

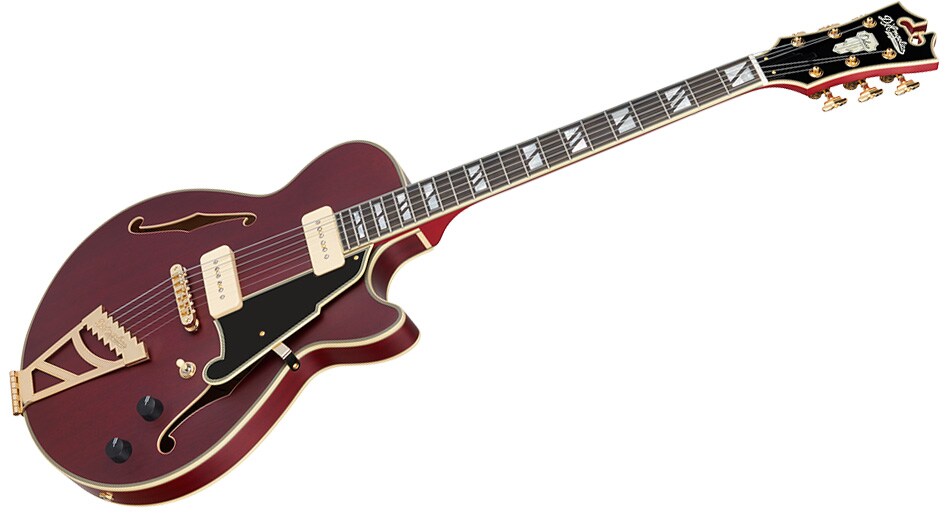

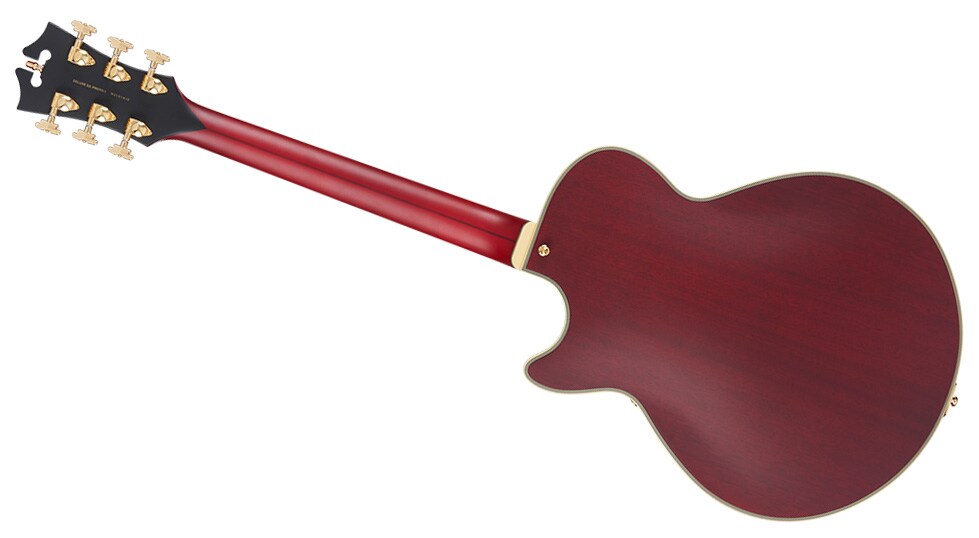

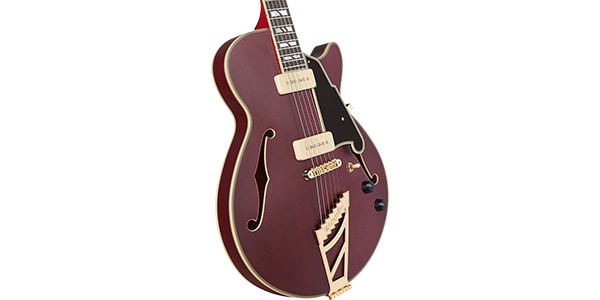

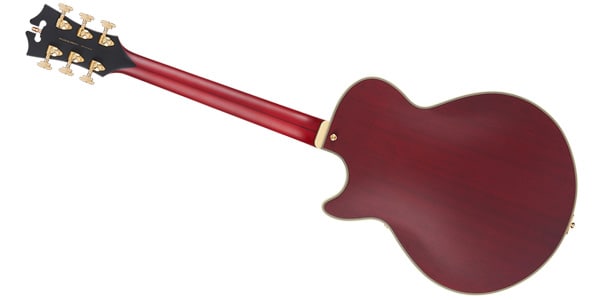

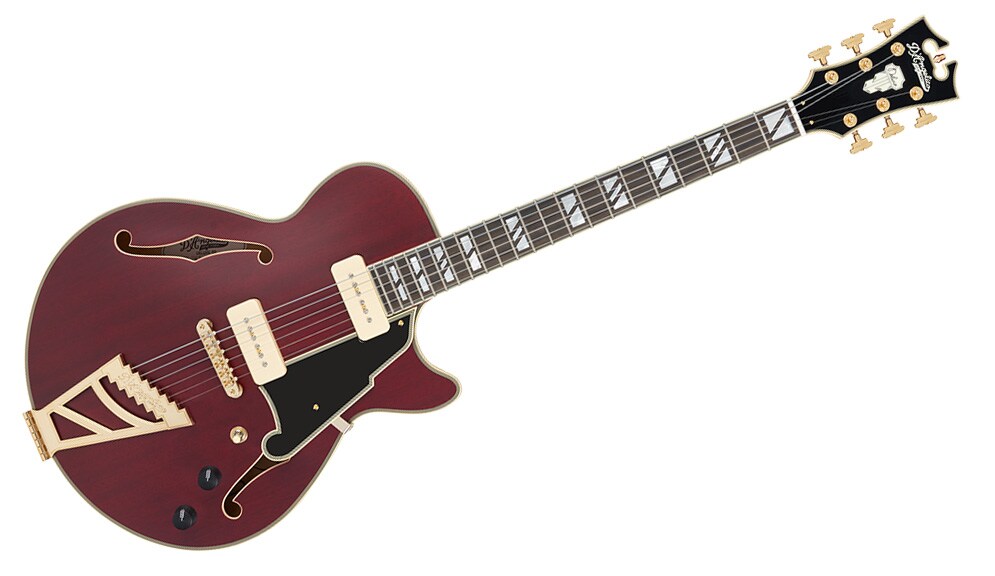

D'Angelico / Deluxe SS P-90 SATIN TRANS WINE

The Deluxe SS P-90 is a semi-hollow body model with a small single cutaway shape, 15 inches wide and 1.75 inches thick, and a center block structure. The original pickguard, which gives the guitar a distinctive DiAngelico feel, is black and 5-ply, with a design that is reminiscent of part of the f-hole.

The binding on the top, headstock and neck, combined with the mother-of-pearl split block position markers, give the guitar a chic and luxurious look.
The body is made of mahogany for the top, sides and back, and the neck is a 3-piece structure with walnut sandwiched between maple for strength against warping and twisting, and it has a 25-inch scale and an ebony fingerboard. The neck and body are joined by a set-neck joint, and it has a dual-action truss rod that is adjusted at the head. The distinctive headstock design is a continuation of the DiAngelico tradition. The truss rod cover is made of high-quality ebony and is inspired by the Art Deco architecture (such as the Empire State Building) that was popular in New York around 1930.

The pickups are two stacked Seymour Duncan STK P-90s (cream color). The control layout is 1 volume, 1 tone, and 3-way pickup selector. The hardware is all gold, and it is equipped with Grover Super Rotomatic locking machine heads, which ensure stable tuning, and Tune-O-Matic and Steer-Step tailpieces. The color is Satin Trans Wine.


■Headstock Shape: Standard
■Logo Inlay: Mother of Pearl D'Angelico New York Logo
■Series Inlay (Front): Mother of Pearl Deluxe Shield Logo
■Serial Number (Back): Model Name, Serial Number
■Binding: 3-ply
■Finish: Satin
■Headpin: Cupola
■Tuners: Grover 509 Super Rotomatic, Locking
■Truss Rod Cover: Skyscraper, Ebony Wood
■Nut Width: 1 11/16"
■Nut Material: Bone


■Material: Ebony
■Binding: 3-ply
■Fretwire: Jescar 47/104 Nickel Silver
■Scale Length: 25"
■Radius: 12"
■Top Inlay: Mother of Pearl Split Block
■Fret Number: 22


■Material: 3 piece: Maple/Walnut/Maple
■Finish: Satin
■Profile: C-Shape
■Joint Type: Set Neck
■Truss Rod: Dual Action


■Body Shape: Single Cutaway
■Body Style: Semi-hollow (with centerblock)
■Body Depth: 1.75"
■Body Width: 15"
■Color: Satin Trans Wine
■Finish: Satin
■Top Material:Laminated Mahogany
■Back Material: Laminated Mahogany
■Side Material: Laminated Mahogany
■Binding: 5-ply
■Bridge: Gold Tune-O-Matic
■Tailpiece: Stairstep Tailpiece
■Pickguard: Solid Black Scalini (5-ply)
■Pickup Selector: 3-way Toggle
■Knobs: 2 Ebony
■Strap Buttons: Gold, Locking


■Overview: 2 P90s // 3-way toggle switch // 1 volume, 1 tone
■Pickup (Neck): Seymour Duncan STK P-90 Neck (Cream)
■Pickup(Bridge): Seymour D uncan STK P -90 B ridge (Cream)
■Pots: 500k
■Output Jack: Standard Mono


■Hardware Color: Gold
■Case: Deluxe Hardshell
