ROLAND / AC-22LX

The AC-22LX is a new concept amp that delivers the ultimate acoustic sound in your home. BOSS has re-examined the ideal playback and expressive capabilities required of an acoustic amp from the player's perspective. It reproduces the rich sound of acoustic instruments that respond faithfully to touch without compromise.

Furthermore, the innovative AIR FEEL function, which was developed independently, reproduces the sound of a microphone set up by a highly specialized sound engineer. The clear and realistic sound that you would never expect from such a compact device fills the entire room.

1. Premium amplifier designed for acoustic instruments
2. AIR FEEL function, developed in collaboration with sound engineers, delivers clear, three-dimensional sound

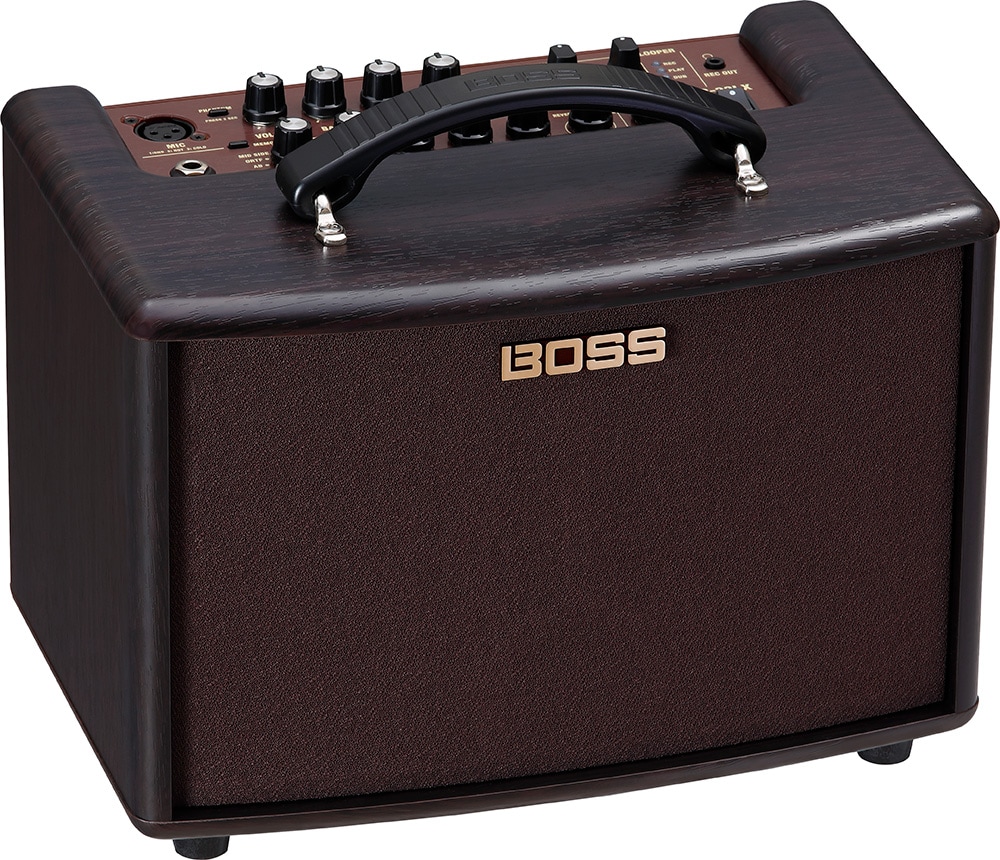

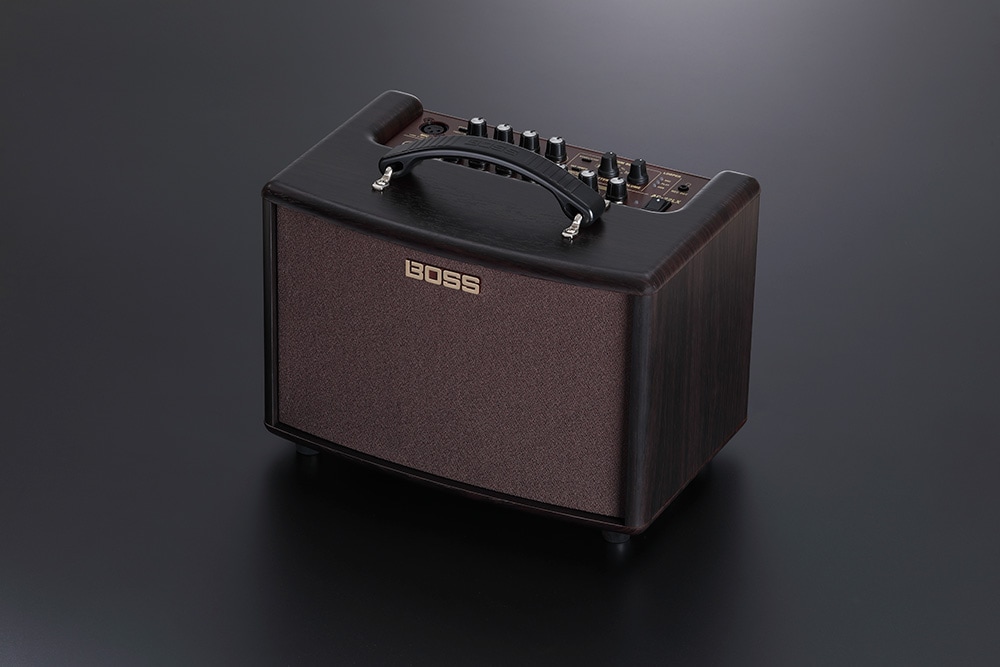

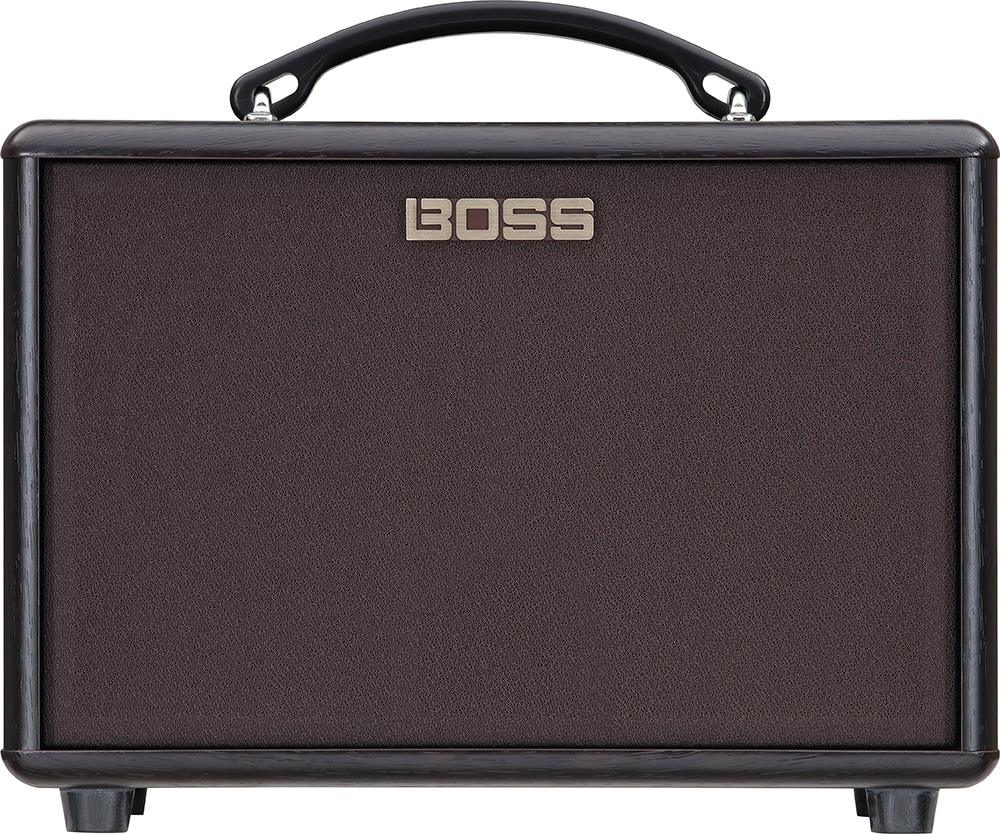

3. Compact, portable body with two 12cm (5-inch) twin cone speakers
4. 10W (5W x 2) stereo output
5. AIR FEEL, 3-band EQ and reverb/chorus effects on the GUITAR/INSTRUMENT channel
6. Phantom power, 2-band EQ and reverb on the MIC channel with XLR terminal
7. 5 types of AIR FEEL (DRY/XY/AB/ORTF/MID SIDE)
8. Up to 15 settings can be saved in the unit
9. 15 types of organic rhythm patterns ideal for sessions are built in
10. A total of 119 rhythm patterns can be used from the AC-22LX dedicated app
11. The built-in looper function can be controlled with an optional external foot switch
12. Stereo-compatible LINE OUT jacks allow you to output AIR FEEL sounds directly to a PA mixer
13. AUX IN jack for convenient playback of music from music players
14. Loop-back compatible USB audio is also useful for live streaming
15. Operates on the included AC adapter or 8 AA batteries
16. Dedicated app (MacOS/Windows/iOS/Android) allows for more precise sound editing and external footswitch settings
17. By attaching the optional Bluetooth Audio MIDI Dual adaptor (BT-DUAL),
sound editing and audio playback in a wireless environment using a smartphone is possible

■Main Specifications
Rated Output 10W (5W+5W)
Input Level GUITAR/INSTRUMENT: -10dBu (10M Ω), MIC: -40dBu (5k Ω), AUX IN: -20dBu (15k Ω)
Output Level LINE OUT L/MONO, R: -10dBu
Speaker 12cm (5 inch) x 2

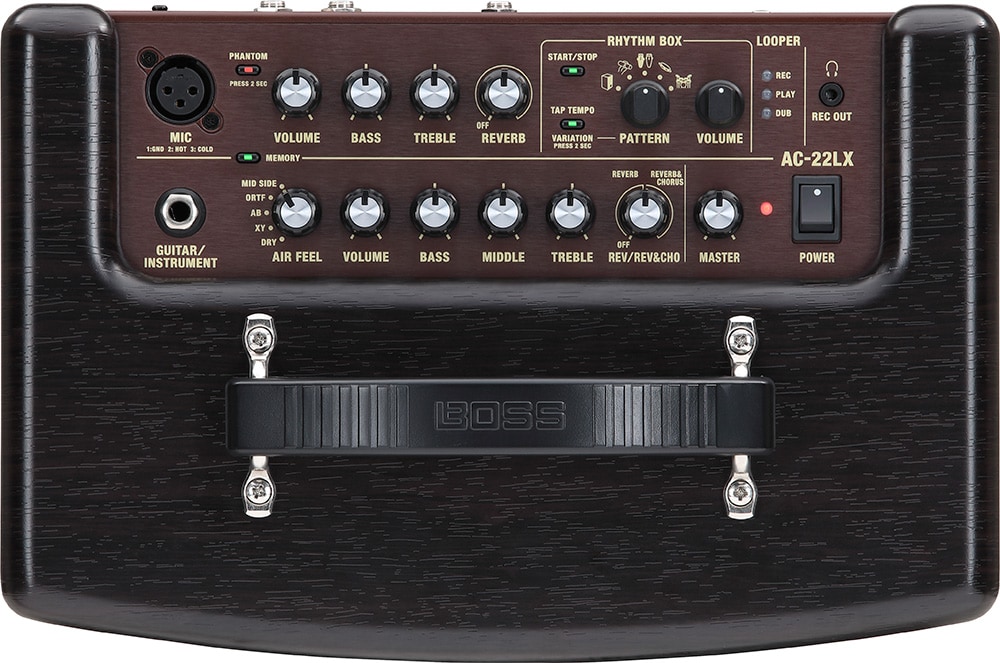

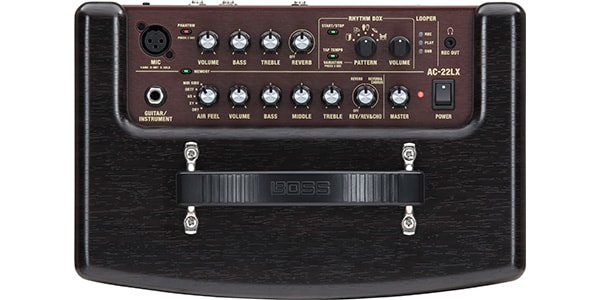

Controls [POWER] switch, [MASTER] knob, [MEMORY] button, USB [LOOPBACK] switch
< GUITAR/INSTRUMENT > [AIR FEEL] knob (DRY, XY, AB, ORTF, MID SIDE), [VOLUME] knob, [BASS] knob, [MIDDLE] knob, [TREBLE]
knob, [REV/REV&CHO] knob (REVERB, REVERB&CHORUS)
[PHANTOM] button, [VOLUME] knob, [BASS] knob, [TREBLE] knob, [REVERB] knob
< RHYTHM BOX > [START/STOP] button, [TAP TEMPO]/[VARIATION] button, [PATTERN] knob (CAJON, SHAKER, CONGA,
TAMBOURINE, DRUMS), [VOLUME] knob
Indicators POWER, PHANTOM, MEMORY, START/STOP, TAP TEMPO/VARIATION, REC, PLAY, DUB

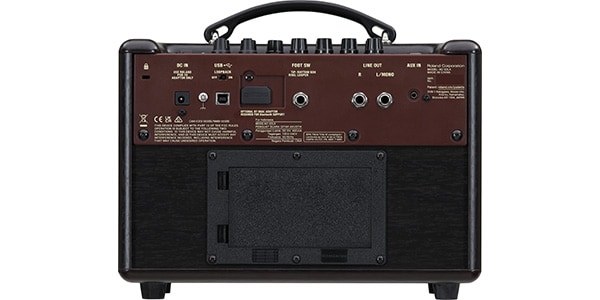

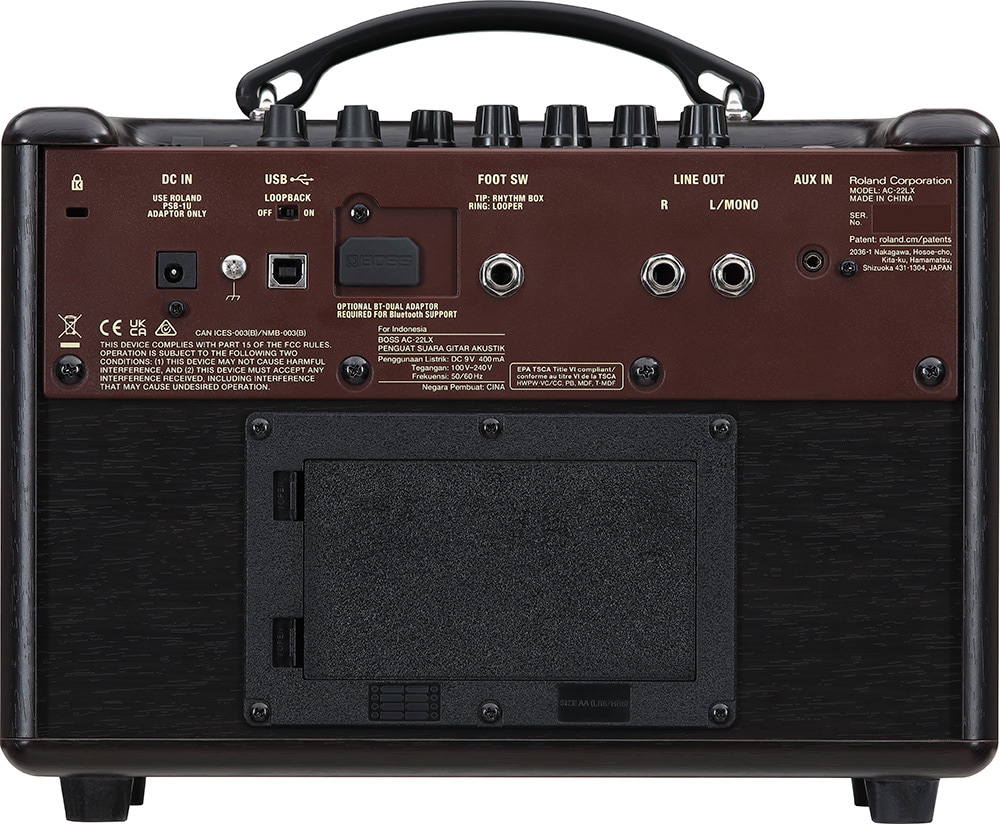

Connector GUITAR/INSTRUMENT jack: Standard type, MIC jack: XLR type, Phantom power (DC 48V, 14mA Max),
PHONES/REC OUT jack: Stereo mini type (stereo), AUX IN jack: Stereo mini type (stereo),
LINE OUT L/MONO, R jacks: standard type, FOOT SW jack: TRS standard type, Bluetooth ADAPTOR jack: dedicated type
USB jack: USB B type, DC IN jack
Power supply AC adapter (DC 9V), 8 x AA alkaline batteries, 8 x AA rechargeable nickel-metal hydride batteries
Current consumption 400mA
Battery life during continuous use Alkaline batteries: approx. 8 hours, Nickel-metal hydride batteries: approx. 10 hours (when using rechargeable nickel-metal hydride batteries with a capacity of 2,500mAh)
* This varies depending on the battery capacity and usage conditions.
External dimensions 317 (W) x 210 (D) x 265 (H) mm
Weight 4.0kg (excluding AC adapter)
Accessories Operation manual, “Safety Precautions” leaflet, AC adapter, power cord, warranty card
Optional accessories Foot switches: FS-5U, FS-6, FS-7
BluetoothRAudio MIDI Dual Adaptor (part number BT-DUAL)
Wireless MIDI expression pedal: EV-1-WL
Wireless foot switch: FS-1-WL
* 0dBu = 0.775Vrms
* This document explains the product specifications at the time of publication. For the latest information, please see the Roland website.
