Xvive / XV-U4T9

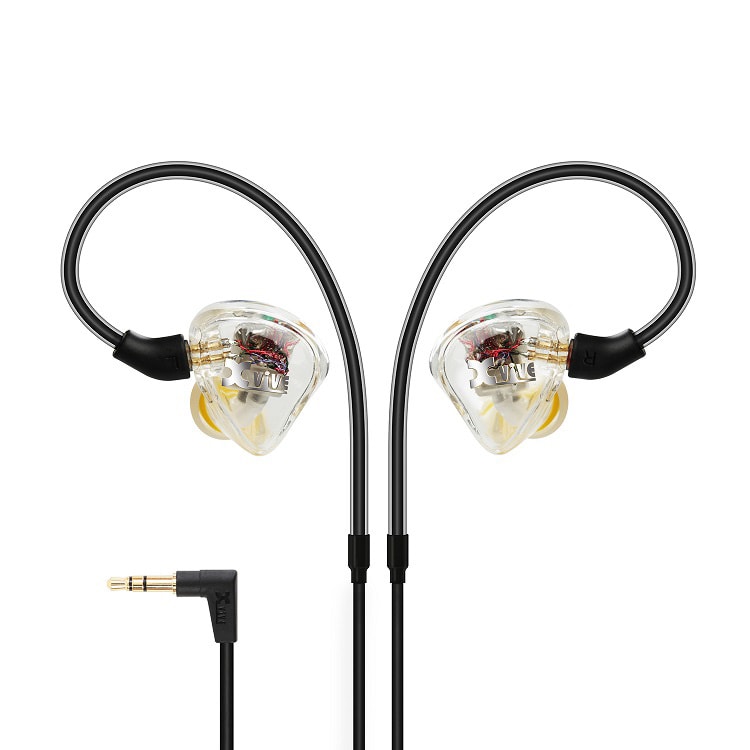

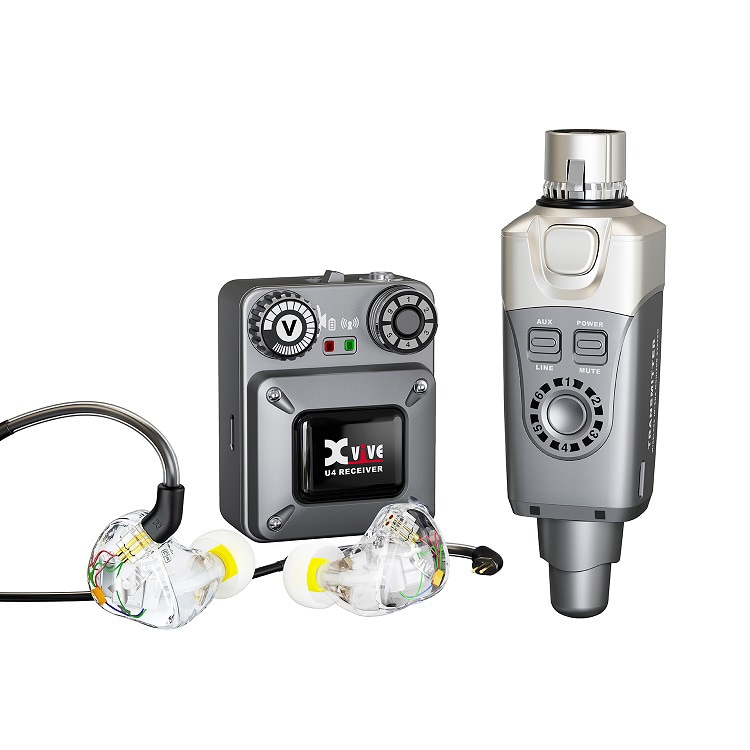

This set includes Xvive's in-ear monitor system XV-U4 and the T9, designed by a top American IEM engineer and delivering professional-level quality comparable to expensive custom IEMs.

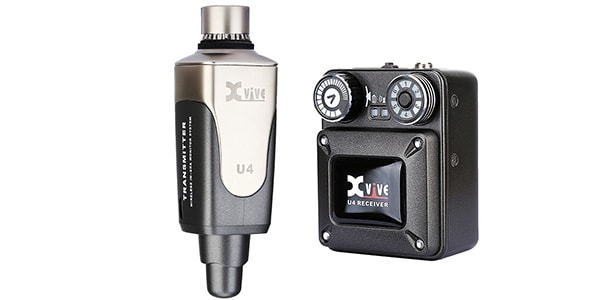

Xvive U4T9 In-ear monitor system XV-U4 and T9 set. XV-U4 2.4GHz wireless in-ear monitor *When monitoring one type of sound, multiple receivers can be connected to one transmitter. (There is no limit on the number of connections.) □Features ・Easy setup ・Lightweight and compact design ・Rugged metal body receiver ・Simple and stylish ・High functionality and high cost performance ・6 channel specification □Specifications Frequency band used: 2.4GHz ISM worldwide (2400-2483.5MHz) Frequency characteristics: 20Hz - 20KHz (-3dB) Dynamic range: 107dB Reception sensitivity: -88dBm Total harmonic distortion: 0.2% RF output power: 10mW E.I.R.P. max Operating temperature: -18℃ to 57℃ *However, this varies depending on the battery specifications. Latency: Less than 5 ms Simultaneous use of channels: 6 Maximum transmission distance: Approximately 27 m (The actual transmission distance varies depending on the environment, such as radio wave reflection, interference, and absorption.) Operating time: Approximately 5 hours (rechargeable lithium battery/charging time approximately 2.5 hours) Contents: Transmitter, receiver, charging cable, conversion connector (XLR male-TS phone male), dedicated soft case, instruction manual *Earphones are not included. Transmitter terminal shape: XLR, mono phone jack (depending on included conversion connector) ●U4 transmitter Size: 30x28x100mm, 90g Material: Molded plastic, cast metal Battery: 3.7V rechargeable Li-Ion, 860mA Impedance: Input 47kΩ (1kHz) Audio input connector: Balanced XLR male Mode: Aux mode -10dBV/max +12.2dBu, Line mode +4dBu/max +22dBu Operating time: Approximately 5 hours (when fully charged) Antenna impedance: 50Ω Antenna type: 1/4 Wave Sleeve Dipole, Non-removable Number of antennas: 1 ●U4 receiver Size: 47x41x60mm, 118g Material: Molded plastic, cast metal Battery: 3.7V rechargeable Li-Ion, 1200mA Impedance: 6-600Ω Audio output connector: 3.5mm stereo out Mode: Maximum output level 2.8Vp-p Operating time: Approximately 5 hours (when fully charged) Antenna impedance: 50Ω Antenna type: 1/4 Wave Sleeve Dipole, Non-removable Number of antennas: 2■ The T9 in-ear monitor (IEM) was designed by a top American IEM engineer, achieving professional-level quality comparable to expensive custom IEMs. ・Dual balanced armature driver ・Hand assembly ・High sound insulation, prevents sound leakage ・3.5mm jack specification ・Carry case and cleaning tool included ・Durable and replaceable cable ●SOUNDS GOOD T9 is equipped with two Knowles balanced armature drivers, the most powerful mid-base range and a custom-tuned tweeter range. It reproduces responsive and high-resolution sound that is faithful to the original sound while achieving ample headroom to accommodate any EQ adjustment. ●HIGH PERFORMING T9 is ideal for live musicians, studio recording and mixing, providing the best listening experience for all users. ●WIRELESS MONITORING T9 can be used as an IEM for Xvive U4 in-ear monitor wireless system (XV U4) to create the perfect monitoring environment for live performances and studio work. ● Accessories Ear pieces (yellow, red) in 3 sizes Memory foam ear pieces (black) in 3 sizes Cleaning tool 1/8” to 1/4” TRS conversion adapter Carry case [Product specifications] Frequency response: 20 Hz - 16.5 kHz +/- 3 dB Impedance: 59 ohms @ 1 kHz Sensitivity: 120 dB @ 1 kHz Total harmonic distortion: < 0.2% @ 1 kHz Driver unit: Dual balanced armature Jack: 1/8” jack, 1/4” jack conversion adapter included Cable length: 120 cm (47”) Weight (including cable): 18.6 g
