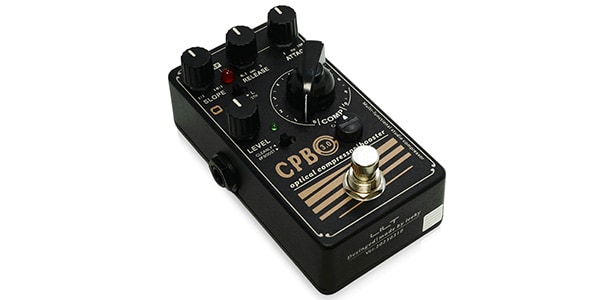

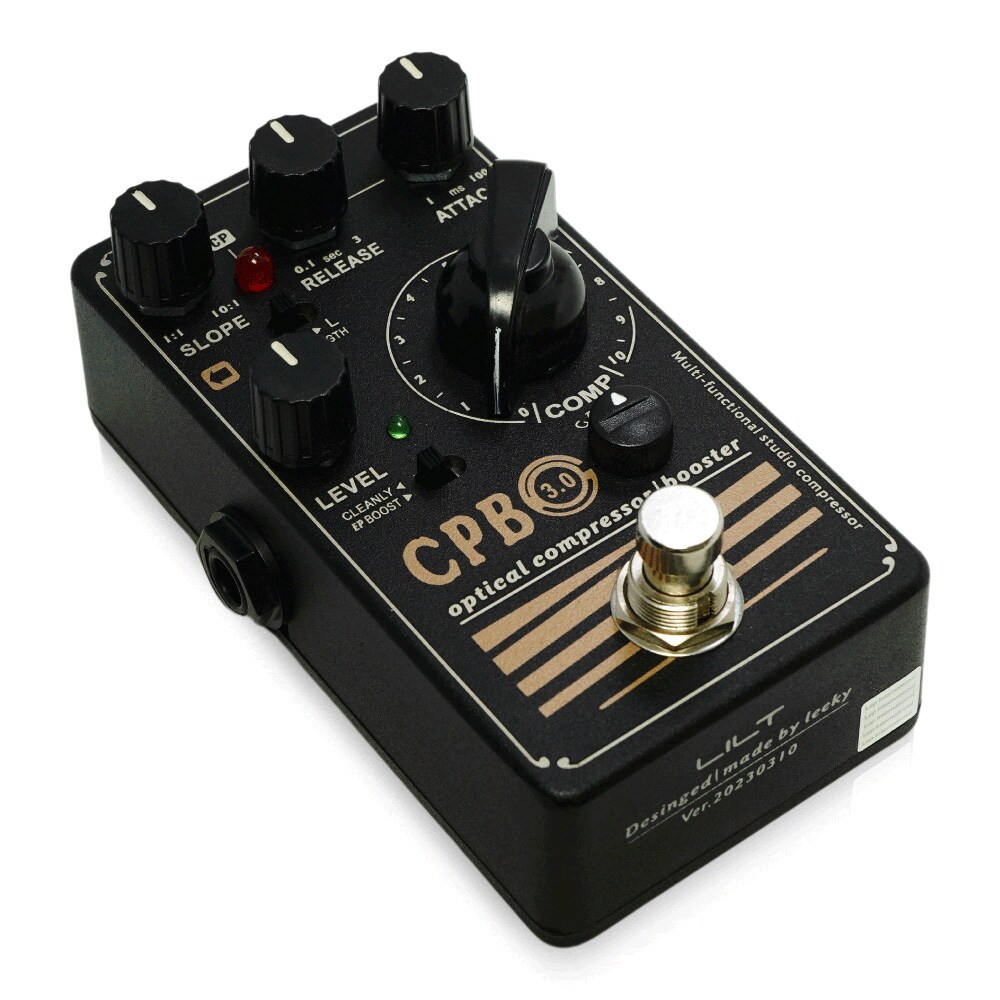

LILT / CPB Optical Compressor / Booster

The LILT CPB Optical Compressor/Booster is a combination studio compressor and booster pedal.

It creates a high quality rack compressor-like effect, where you can choose between an echoplex type or a clean booster.
The compressor is not only for guitars but also for basses and features a JFET high-impedance input with visible guitar and bass detail.
Compressor movement is visualised by the brightness of the CP LED.

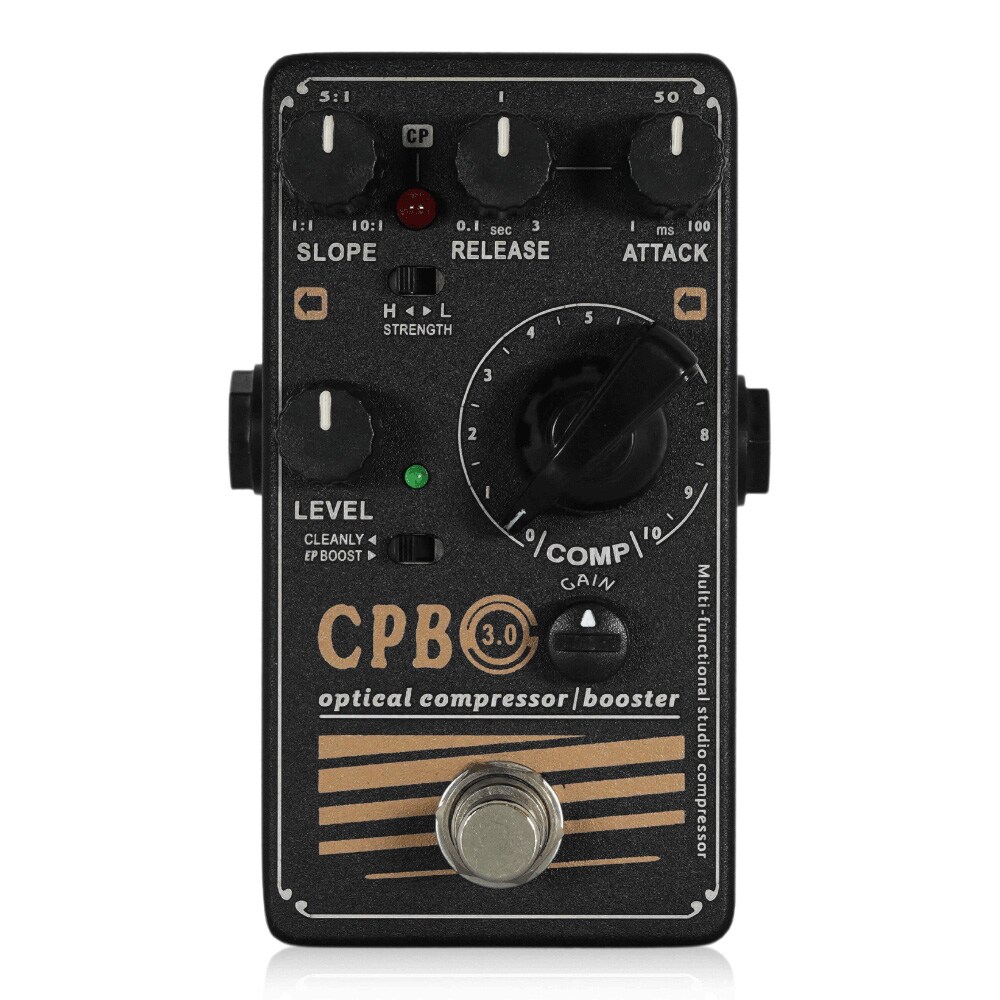

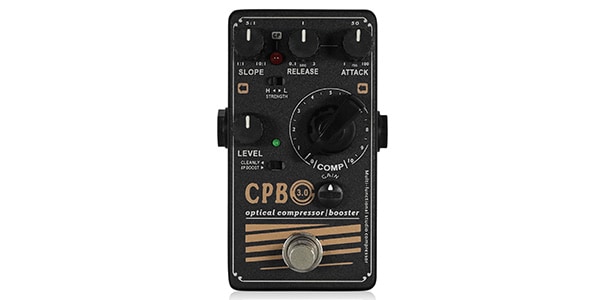

● Controls
SLOPE: Adjusts the compression rate of the compressor, so that signals that exceed the threshold set by COMPRESS are compressed at the compression rate set by SLOPE.
COMP: Adjusts the threshold at which the compressor starts to apply. Clockwise rotation decreases the threshold and the compressor is applied more strongly.
ATTACK: Adjusts the speed at which the compressor responds to peaks above the threshold. Counter-clockwise is faster and clockwise is slower. Faster gives a more percussive tone.
RELEASE: Sets the length of time the compressor remains engaged after the compressor signal drops below the threshold.
LEVEL: Adjusts the overall volume.
GAIN: Adjusts the boost level applied to the signal.
STRENGTH: Toggles the compression depth.
CLEANLY/EP BOOST: Switches the booster type. CLEANLY mode is recommended for electric basses.

Specs.

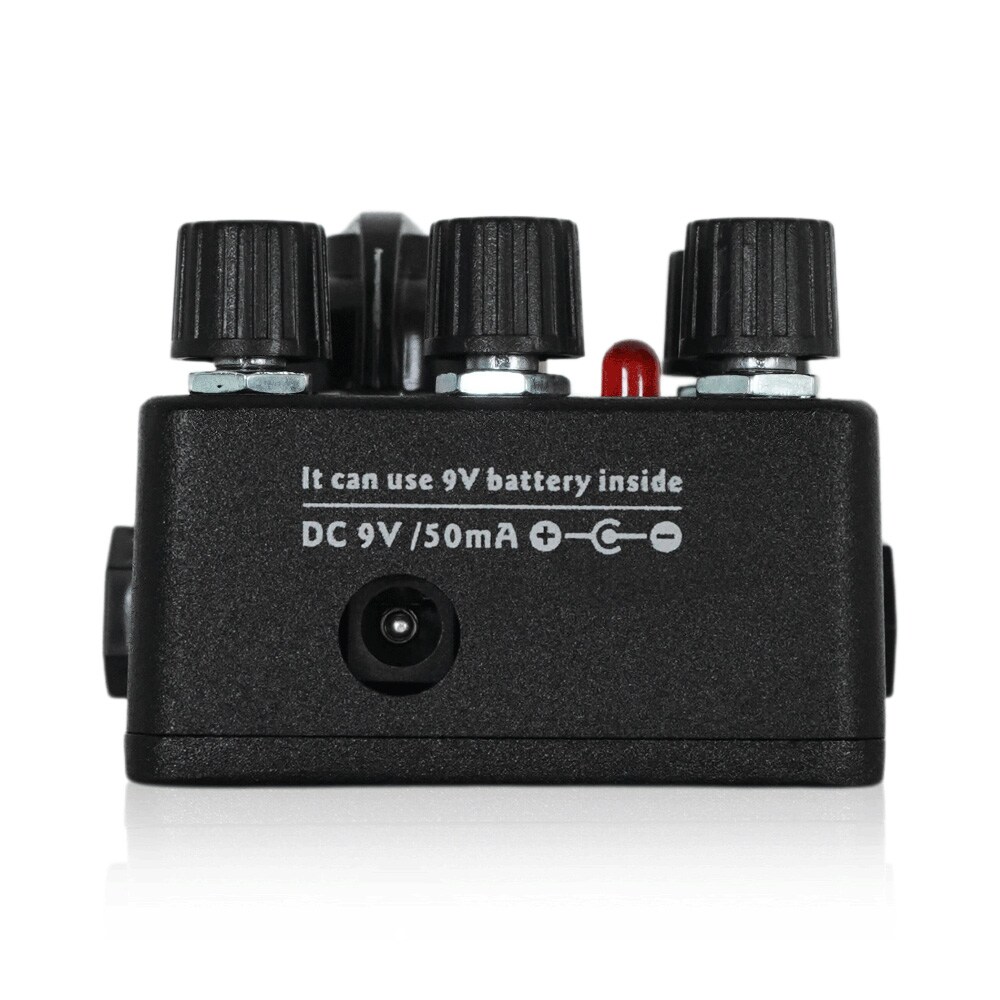

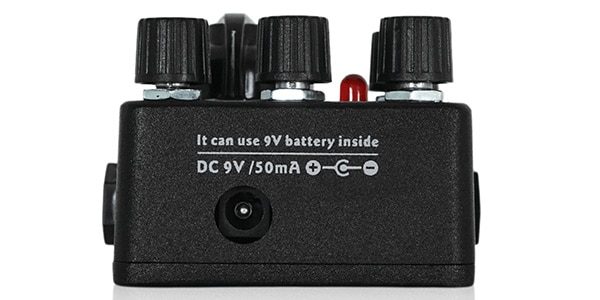

Power supply: standard centre-minus DC 9V adaptor or 9V battery.
Current consumption: 50 mA
