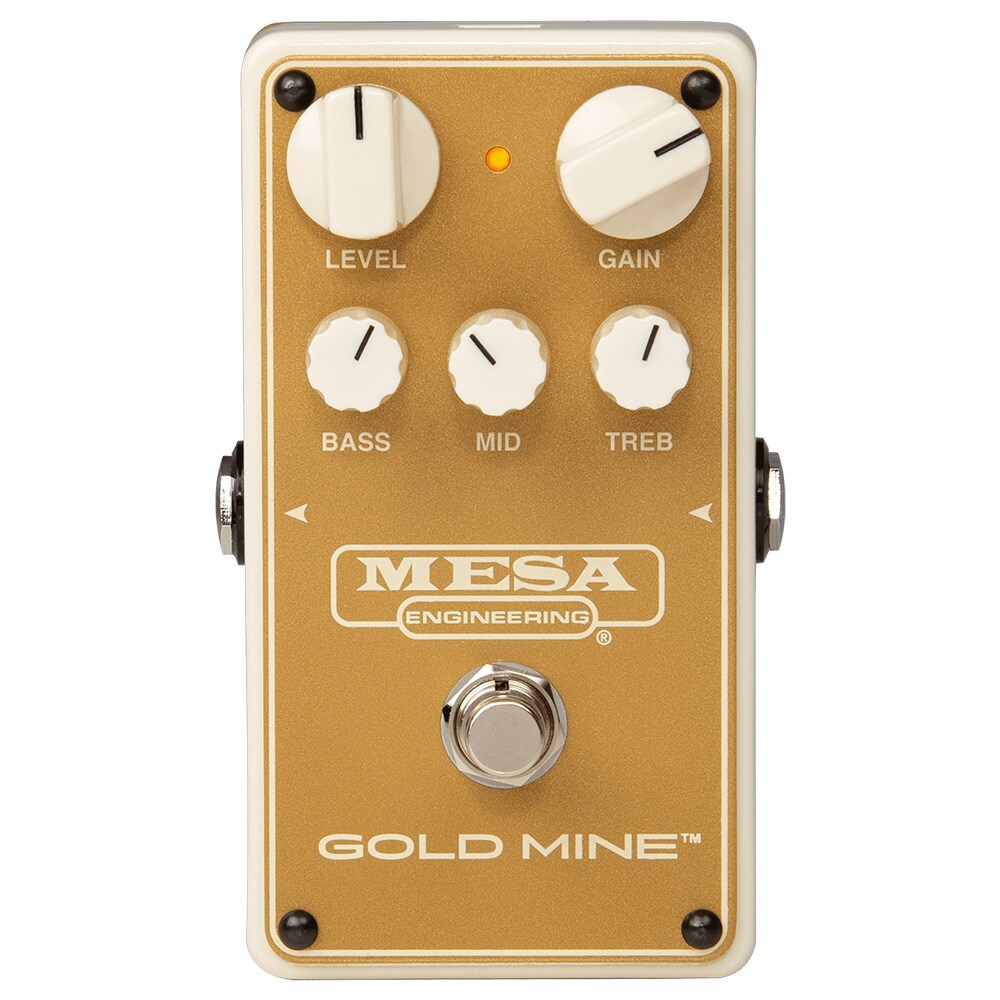

MESA BOOGIE / GOLD MINE

Gold Mine features a TIGHT switch on the circuit board, accessed from the bottom under the removable lid, for tighter tracking low end. The bass response is trimmed and the sound is geared toward rhythm playing and solo work that requires faster pick attack and more precise tracking.

Controls:
LEVEL is the master output level and it controls the amount of signal provided to the host amplifier. GAIN determines the amount of gain (overdrive) in the signal path. BASS works in tandem with the TREBLE control to adjust low frequencies. MID increases or decreases the amount of midrange frequencies. TREBLE adjusts the amount of high frequencies present in the mix and - unlike devices with just a TONE control - allows you to fine tune the high frequencies separately from the low frequencies.

Switches:
True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss,

Led Indicators:
On/Off Status LED

Power Requirements:
9V Battery Powered or optional AC Powered via External Power Jack Input. WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC with a NEGATIVE CENTER plug polarity and a jack plug size of 2.1mm x 5.5mm.

Current Draw:
9VDC/15mA

Input Output Jacks:
Input & Output Jacks (Nominal Input -20 db)

Input Impedance:
1M Ohm (500k Ohm minimum)

Output Impedance:
10k Ohm

Switching Type:
True Bypass

Dimensions:
4.77 x 2.87 x 2.29

Weight:
0.865
