BOSS / SDE-3000D

The SDE-3000D is a floor pedal equipped with two Roland SDE-3000s, the famous digital delay machines introduced in 1983.

The SDE-3000 is Roland's most famous rack digital delay. It was born in 1983, at the dawn of digital delay.
It was used by a wide range of musicians for its high-quality delay sound with ample headroom and high versatility.
It is still highly regarded today as the one and only vintage digital delay with a clear yet warm sound.
The modulation effect that gives the delay its distinctive shimmer and breadth is one of the main reasons why it continues to attract so many fans.
The SDE-3000D faithfully reproduces this distinctive sound, while offering even greater versatility to meet today's needs.
Two stereo-compatible SDE-3000s are mounted in a floor-type enclosure for direct control. The internal chain, which can be selected from series or parallel, and a full range of input/output terminals allow for a wide range of sound creation.
The SDE-3000 also supports up to 100 memories, MIDI, and external controller expansion, allowing you to freely use its iconic sound.

1. faithfully reproduces the sound and behavior of the famous Roland SDE-3000
2. clear yet warm vintage digital delay sound

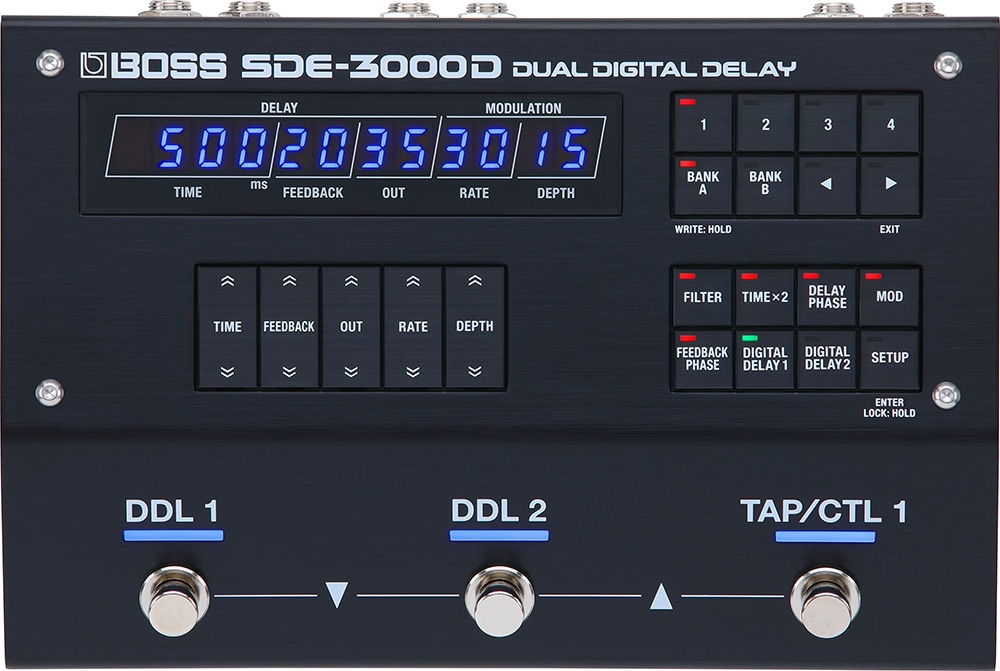

User interface that retains the original panel design

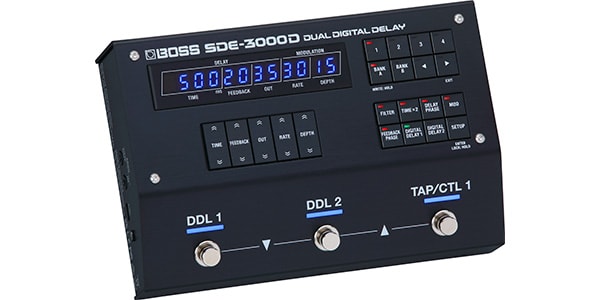

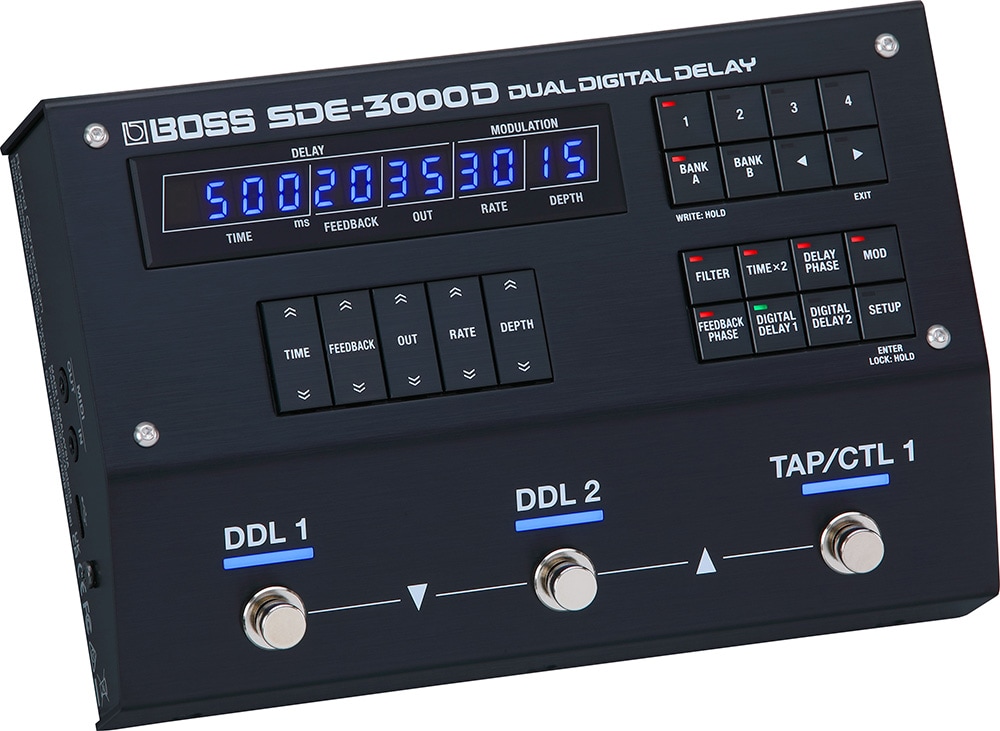

Two stereo-compatible SDE-3000s in a pedal-type enclosure 5.
X2 switch to adjust delay time from 0 - 1,500 ms to 0 - 3,000 ms
MODULATION switch for beautiful shimmering delay sound
Phase inversion of the delay sound to accentuate the modulation effect. 8.
Low/high cut filter for adjusting the delay sound
Stereo input/output jacks for stereo connection and separate dry/wet sound outputs
10. two SDE-3000 units can be connected in series or parallel
11. up to 100 favorite settings can be stored
12. footswitches on the main unit can be assigned to hold tap tempo or delay sound
13. extensive control expansion jacks for connection of up to 4 footswitches, 2 expression pedals, or GA-FC foot controllers
TRS mini type MIDI jacks

■Main Specifications
●Sampling frequency: 48 kHz
●AD conversion: 24-bit + AF method * AF method (Adaptive Focus method) is a Roland/Boss proprietary method that dramatically improves the signal-to-noise ratio of the AD converter.
●DA conversion: 32 bits
●Internal arithmetic: 32-bit floating point
●Effect type: SDE-3000 STEREO DELAY × 2, foot volume
●Memory: 100
●Input level: INPUT L/MONO terminals: -10dBu, INPUT R terminals: -10dBu
●Maximum input level INPUT L/MONO terminal: +12dBu, INPUT R terminal: +12dBu
●Input impedance INPUT L/MONO terminal, INPUT R terminal: 1M Ω
●Output level OUTPUT L/MONO terminal, OUTPUT R terminal: -10dBu
●Output impedance OUTPUT L/MONO, OUTPUT R: 1k Ω
●Recommended load impedance OUTPUT L/MONO terminal, OUTPUT R terminal: 10k Ω or more
●Controls: TIME button, FEEDBACK button, OUT button, RATE button, DEPTH button, 1 - 4 buttons, BANK A button, BANK B button, LEFT button,
RIGHT button, FILTER button, TIME x 2 button, DELAY PHASE button, MOD button, FEEDBACK PHASE button, DIGITAL DELAY1 button,
DIGITAL DELAY1 button, DIGITAL DELAY2 button, SETUP button, DDL1 switch, DDL2 switch, TAP/CTL1 switch
●Display 7-segment, 12-digit LED

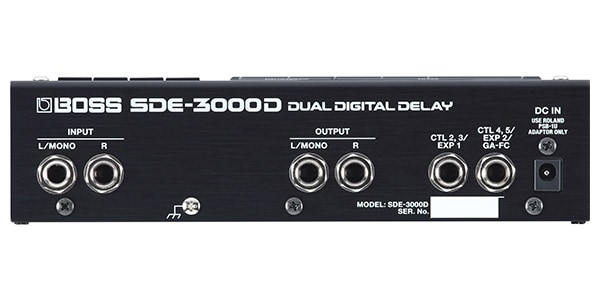

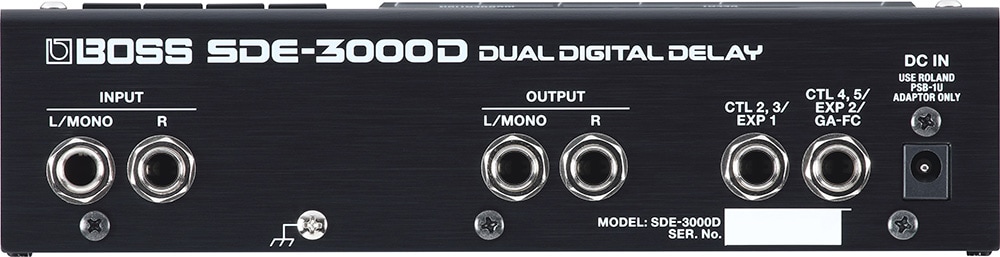

●INPUT L/MONO terminal, INPUT R terminal, OUTPUT L/MONO terminal, OUTPUT R terminal: standard type, CTL2, 3/EXP1 terminal,

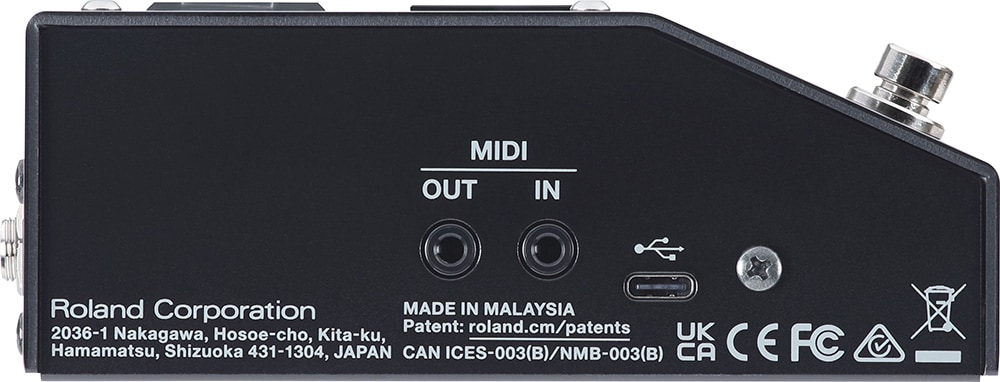

CTL4, 5/EXP2/GA-FC jacks: TRS standard type, MIDI (IN, OUT) jacks: stereo mini type, USB COMPUTER jack: USB Type-C, DC IN jack
●Power supply: AC adapter
●Current consumption: 450mA
●External dimensions: 199 (W) x 135 (D) x 54 (H) mm (including rubber feet)
●Weight (excluding AC adapter): 1.1kg
●Accessories: AC adapter (PSB-1U + power cord), Startup Guide, “Safety Precautions” leaflet, rubber feet × 4, warranty card
●Foot switch: FS-5U, FS-5L
Dual footswitch: FS-6, FS-7
Expression pedals: Roland EV-5, EV-30, FV-500L, FV-500H
Foot controller: GA-FC, GA-FC EX
TRS/MIDI connecting cables: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
