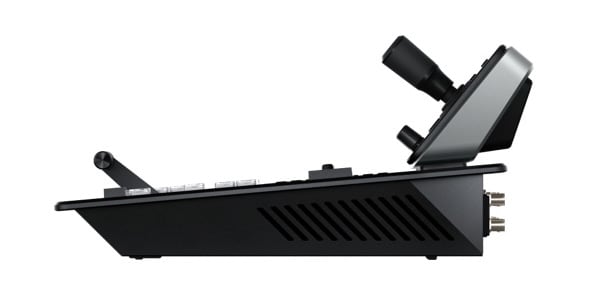

Blackmagic Design / SWATEMTVSTC/K4K8

Ultra HD live production switcher with built-in broadcast control panel.

【connection】
■SDI video input: 8
■SDI video output: 12
■SDI rate: 1.5G, 3G, 6G, 12G
■HDMI video output: 1
■Total audio input:
XLR balanced analog audio x2
BNC 32ch MADI digital audio x1
RCA stereo analog audio x2
5 pin XLR talkback x1
■Total audio output:
1/4 inch jack terminal analog audio x4
BNC 64ch MADI digital audio x1 (up to 50 active)
5 pin XLR talkback x1
■SDI audio input:
4ch embedded audio on all SDI inputs
■SDI audio output:
16 assignable channels
■Time code connection:
BNC input x1, BNC output x1
■Reference input:
BNC input x1, BNC output x1
Trilevel sync or black burst
■Video input resynchronization:
Total 8 inputs
■Frame rate/format converter:
Total 8 inputs
■SDI Aux output: 10
■SDI program output: 1
■Webcam output:
USB-Cx2 (Supports 720p or 1080p at PGM frame rate9
■Total number of multiviews:
12G-SDIx1
HDMI2.0x1
■Remote:
RJ12 (compatible with RS-422)
■Control panel connection:
Ethernet. Connect the panel and chassis directly or via network.
■Internal time code generator:
correspondence
■Talkback:
RJ45 (for third party talkback systems)
■Tally output:
Add Blackmagic Design GPI and Tally Interface with Ethernet connection
*Not included
■Ethernet:
RJ45 x4 (with internet network switch), supports 10/100/1000/10G BASE-T.
■Computer interface:
USB-C x2 (USB 2.0 compatible. For external drive recording, webcam output, software control, software updates, switcher connection)

【others】
■SIZE: 482(W)x90(H)x337(D) 8.4kg

*The warranty period for this product is one year of the manufacturer's warranty.
