Blackmagic Design / SWATEMSCN2/2ME4/4K

A 4 M/E Ultra HD live production switcher that also includes a 156-channel professional Fairlight audio mixer with EQ and dynamics.

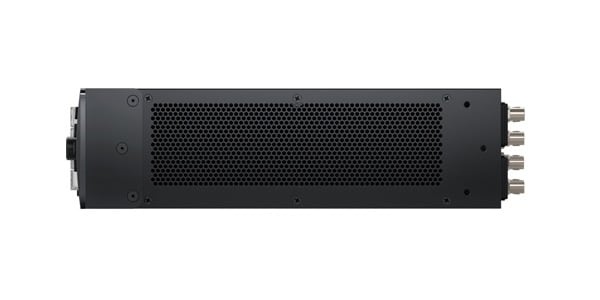

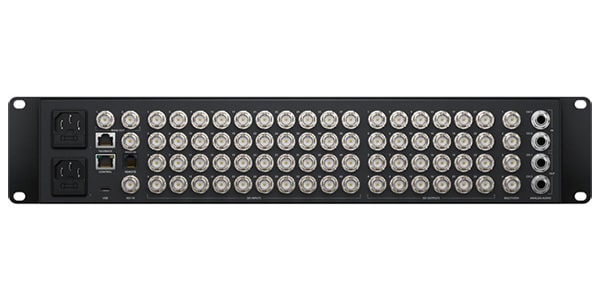

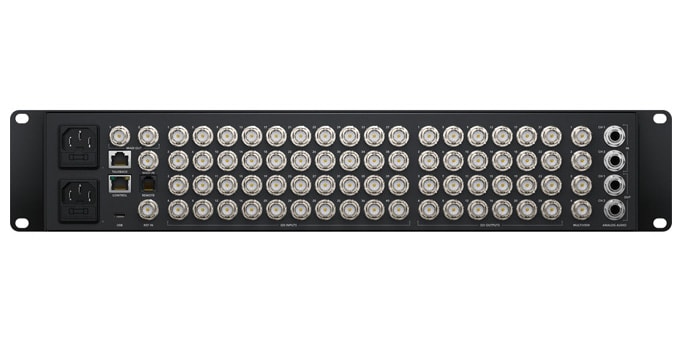

【connection】
■Total video input: 40
■Total video output: 28
■Aux output total: 24
■SDI rate: 1.5G, 3G, 6G, 12G
■Total audio input:
Balanced 1/4 inch jack x2,
1 x 32 stereo channel BNC MADI input,
5 pin XLR talkback x1
■Total audio output:
Balanced 1/4 inch jack x2,
32 stereo channel BNC MADI output x2,
5 pin XLR talkback x1
■Time code connection:
Not supported
■Reference input:
Trilevel sync or black burst
■Video input resynchronization:
Total 40 inputs
■Frame rate/format converter:
Total 40 inputs
■SDI video input:
10-bit 720p, 1080i, 1080p, 2160p x40
■SDI audio input:
2ch embedded audio (all SDI inputs)
■Other audio inputs:
5 pin XLR talkback x1
■SDI video output:
10-bit 720p, 1080i, 1080p, 2160p x28
■SDI audio output:
2ch embedded audio (all SDI outputs)
■Other audio outputs:
5 pin XLR talkback x1
■SDI program output:
Any of 24 SDI outputs
■Down-converted SDI program output:
Not supported
■SDI preview output:
Any of 24 SDI outputs
■SDI multiview output:
4
■HDMI multi-view output:
Not supported
■Webcam output:
USB-Cx1
*Supports 720p or 1080p at PGM frame rate
■Remote:
RJ12 (compatible with RS-422)
control panel connection
Ethernet supports 10/100/1000 BASE-T. Connect the panel and chassis directly or via network.
■Internal time code generator:
correspondence
■Talkback:
RJ45 (for third party talkback systems)
■Tally output:
Add Blackmagic Design GPI and Tally Interface with Ethernet connection
*Not included
■Computer interface:
1 x USB-C port

【format】
■SD video format: Not supported
■HD video format:
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25
1080p29.97, 1080p30, 1080p50
1080p59.94, 1080p60.
■Ultra HD video format
2160p23.98, 2160p24, 2160p25, 2160p29.97
2160p30, 2160p50, 2160p59.94, 2160p60
■SDI standard:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081?1
SMPTE 2081?10, SMPTE 2082?1 and SMPTE 2082?10, SMPTE 2082?12
■Video sampling: 4:2:2
■Color accuracy: 10-bit
■Color space:
REC 709, REC 2020
■SDI automatic switching:
Automatic detection of 1.5G-SDI, 3G-SDI Level A and Level B, 6G-SDI, 12G-SDI

[Product specifications]
■Upstream keyer: 16
■Downstream keyer: 4
■Advanced Chroma Keyer: 16
■SuperSource: 2
■Talkback: Supported
■Mix minus: supported
■Linear/luma keyer: 21
■Transition keyer (Stinger/DVE)
Stinger x4, DVEx4
■Number of layers: 28
■Pattern generator: 21
■Color generator: 2
■DVE: 4
■Control panel:
Emergency switching on front panel, software or optional hardware panel
■Routable windows: 64
■Tally:
Red is program output, green is preview output
■Window source label: supported

[Media player]
■Media player: 4
■Channel:
Fill & key for each media player
■Media pool still image capacity: 40
■Media pool clip capacity: 4
■Maximum number of frames for media player clips (720 HD):
3200 frames
■Maximum frame number of media player clips (1080 HD):
1600 frames
■Maximum number of frames for media player clips (Ultra HD):
400 frames
■Still image format of media pool:
PNG, TGA, BMP, GIF, JPEG, TIFF
■Media pool video file format:
TGA sequence
■Media pool audio file format:
WAV, MP3, AIFF

【display】
■Interface:
Minimum monitor resolution 1366x768

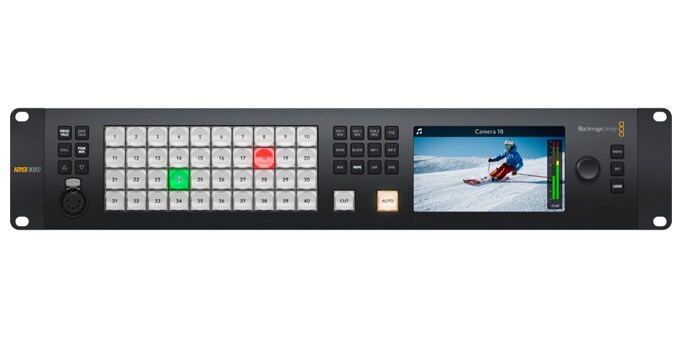

■Front panel:
Built-in HD LCD monitor (for video), 42 LED buttons (for configuration and emergency switching), 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and SET button, front panel lock button

【process】
■Processing delay: Under confirmation
■Audio mixer:
156ch mixer
*On/Off/Audio-Follow-Video can be selected
Measure levels and peaks
master gain control
6-band parametric EQ, various dynamics (expander, gate, compressor, limiter)
■Down conversion: TBA

【software】
■Included control panel:
Includes ATEM Software Control Panel for free (Mac 12.0 Monterey, Mac 13.0 Ventura or later, Windows 10 or 11)
■Software update:
Connect USB-C directly to your Mac OS or Windows computer. Includes ATEM Setup Utility
■Configuration:
Set in the ATEM Software Control panel. The IP address of the ATEM chassis is set using the ATEM Setup Utility connected to the chassis via USB-C.

【operating system】
Mac 12.0 Monterey
Mac 13.0 Ventura or later
Windows 10, 11

[Power conditions]
■Power supply:
Built-in 100-240V AC x2, 50/60Hz
■Power consumption: TBA

【install】
■Installation
Height: 2U rack

[Operating environment]
■Operating temperature:
0°?40°C(32°?104°F)
■Storage temperature
-20°?60°C(-4°?140°F)
■Relative humidity
0% - 90% (no condensation 9

【others】
■SIZE: 482(W)x90(H)x337(D) 8.4kg

*The warranty period for this product is one year of the manufacturer's warranty.
