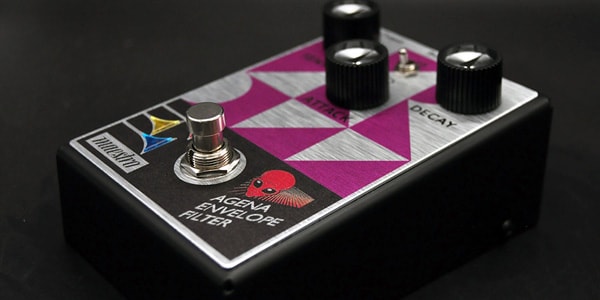

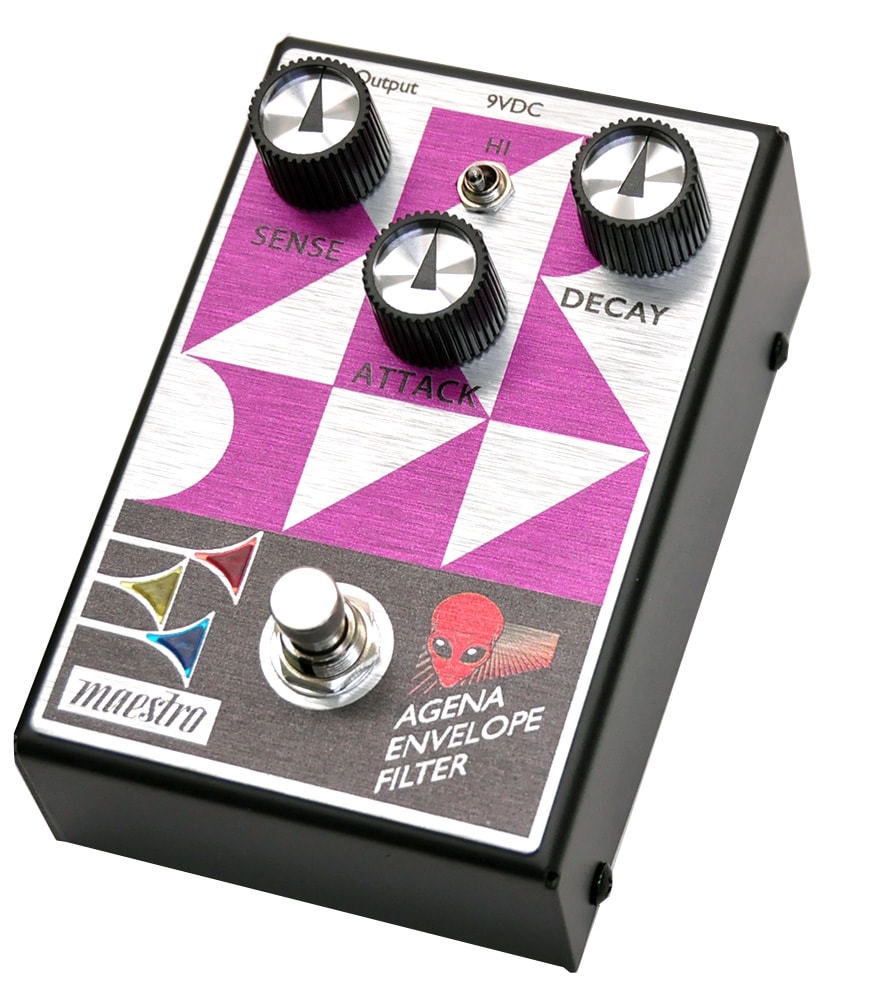

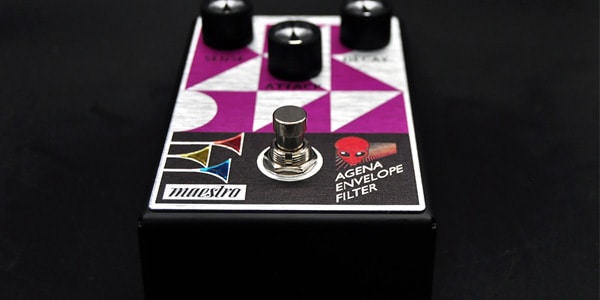

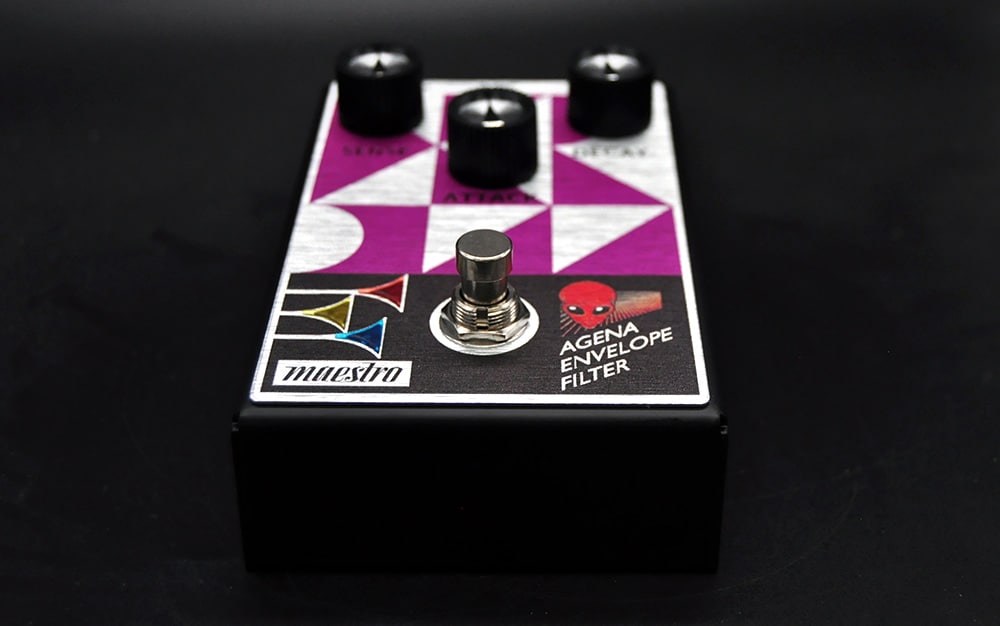

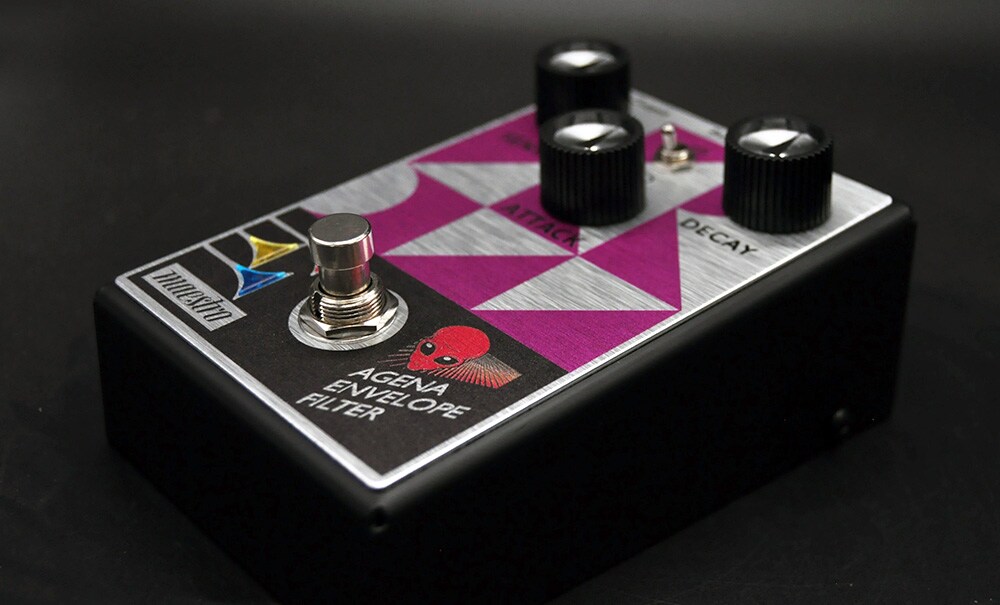

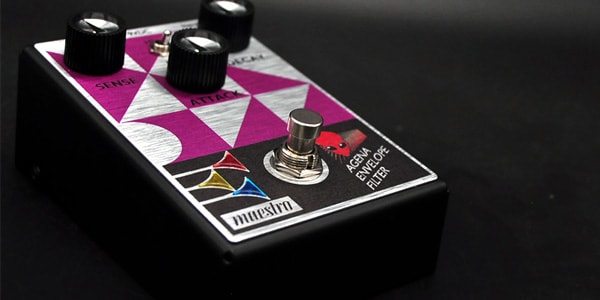

Maestro / Agena Envelope Filter Pedal

The Maestro Agena Envelope Filter is designed for ease of use and provides optimum dynamic control with two different filter frequencies for a wide range of sound-making possibilities.

The creative sounds of the Agena envelope filter will evoke the funk sounds of yesteryear.

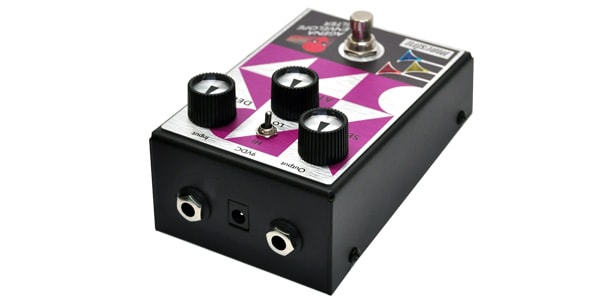

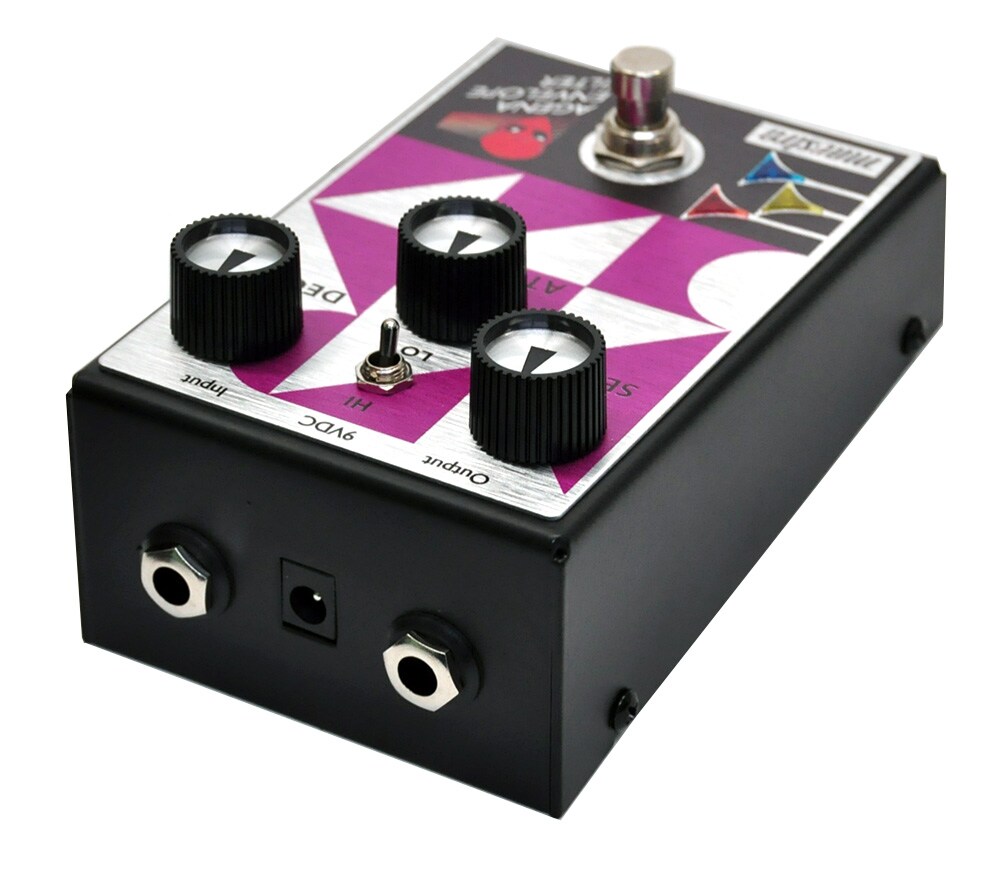

This analogue pedal features a two-mode toggle switch for greater sonic versatility.
The LO mode emphasises the low frequencies, while the HI mode emphasises the high frequencies.

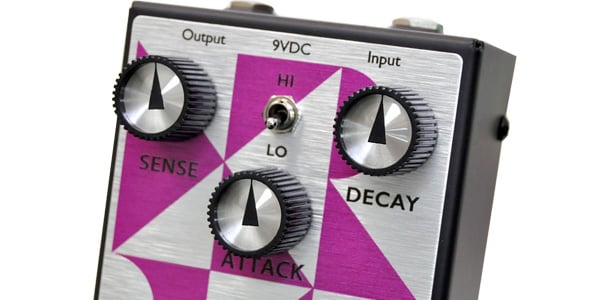

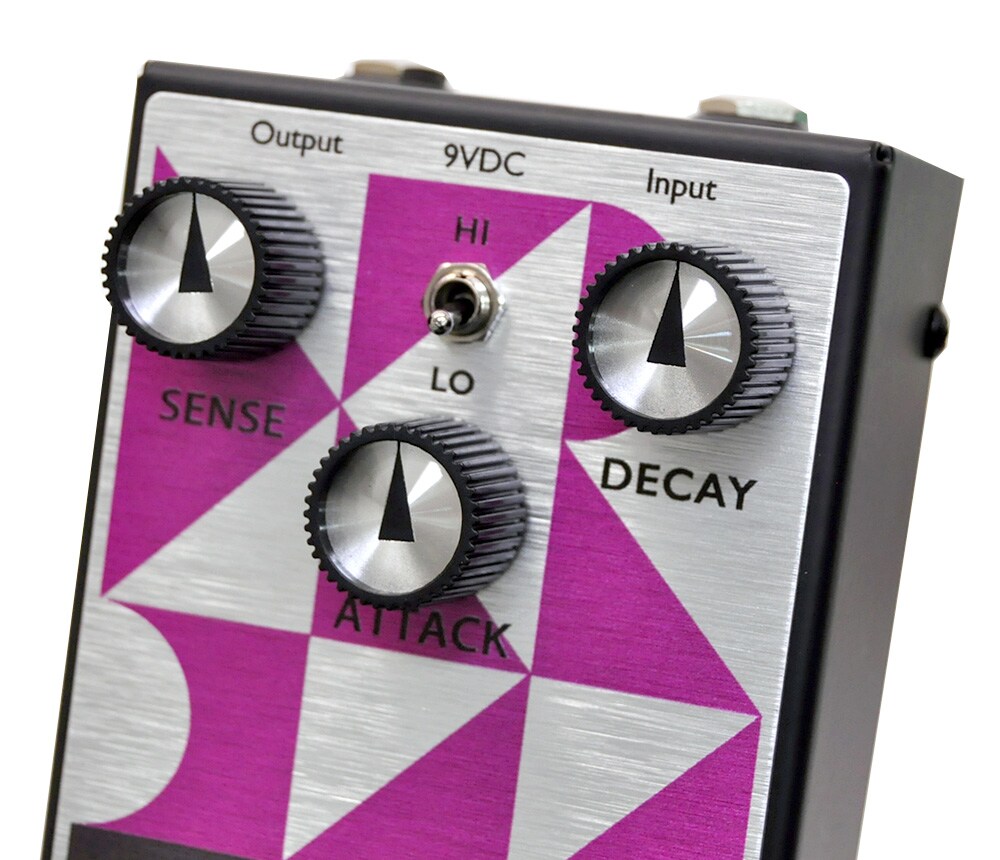

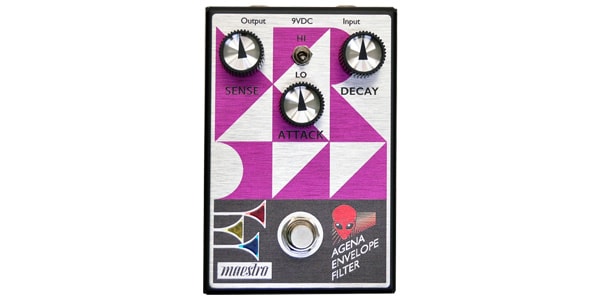

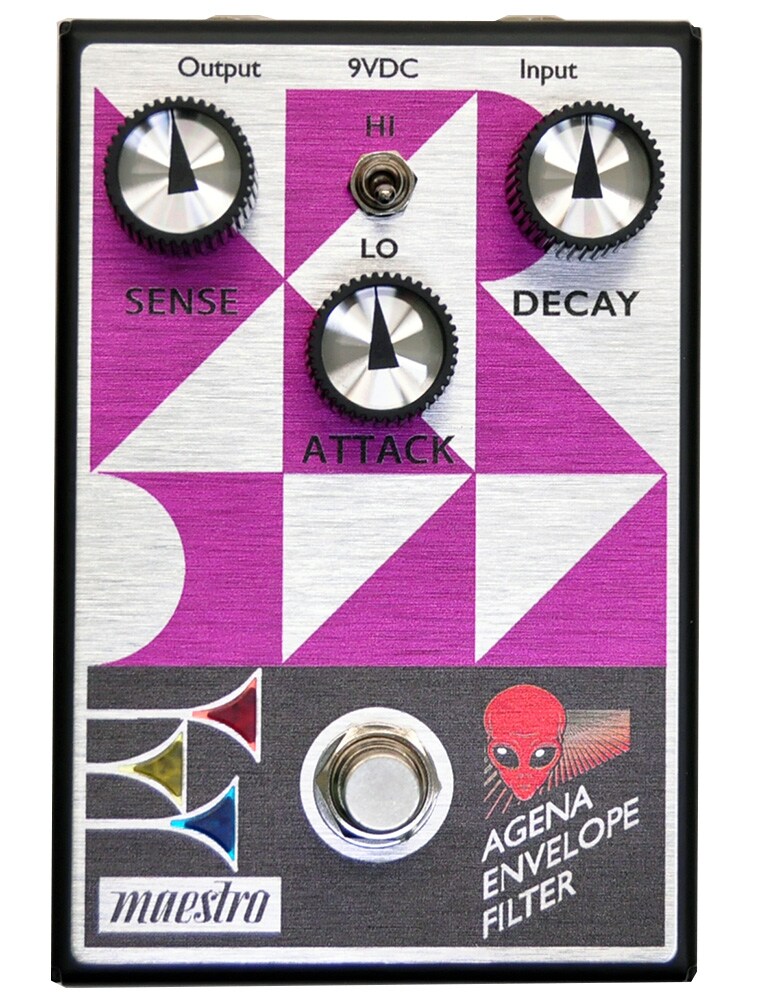

The layout of the three controls allows you to quickly set Sense (adjusts the sensitivity of the filter effect), Attack (how fast the filter rises) and Decay (how long the filter stays open).

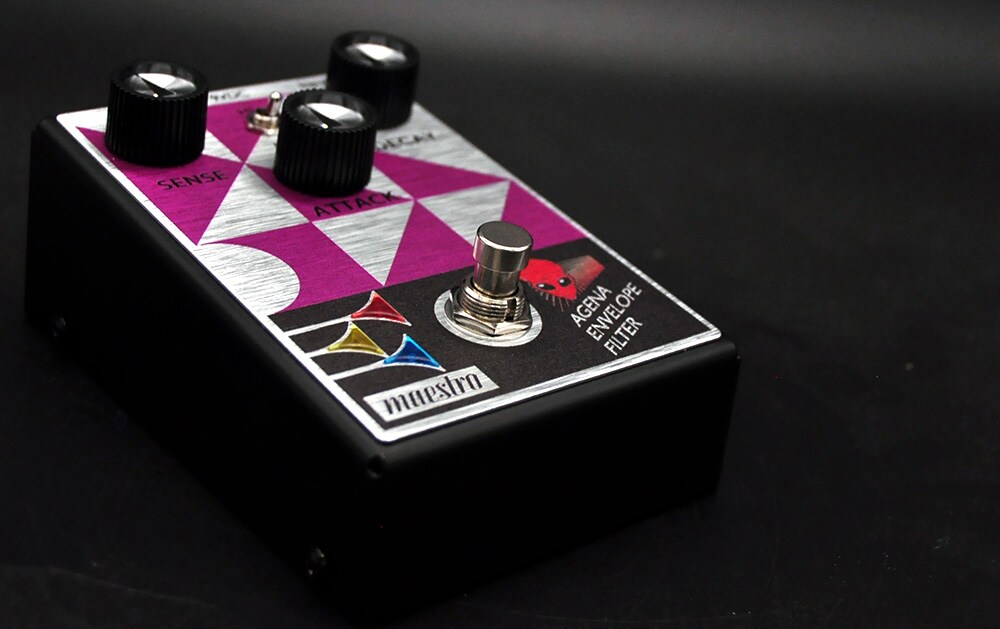

When the True Bypass footswitch is switched on, a bugle LED light above the Maestro logo illuminates so you can check the active status of the effector at any time.

Switches: true bypass footswitch, HI/LO Mode toggle switch
Led Indicators: red, yellow and blue bugle lights above the Maestro logo when the pedal is active
Signal Processing: All analogue.

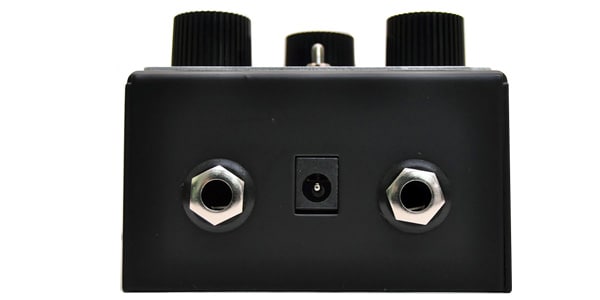

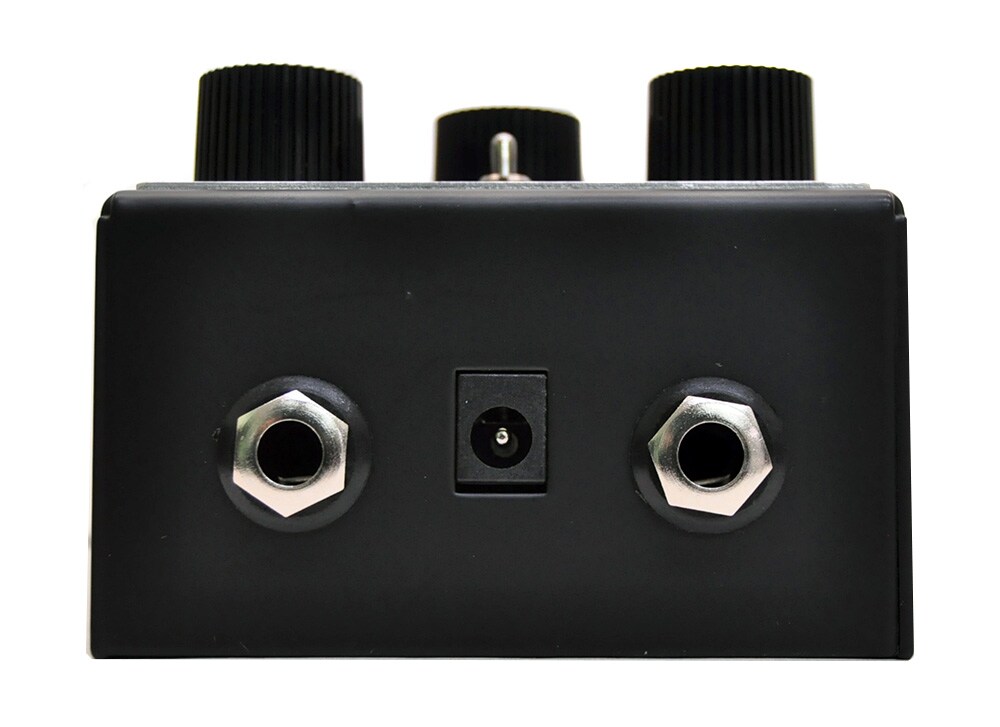

Power Requirements: 9V battery or 9VDC power supply (5.5 x 2.1mm plug, centre negative wiring)
Current Draw: 26.6 mA
Power On Switch: built into the input jack; for 9V battery operation, unplug when not in use to prevent battery drain.
If the unit is to be stored for an extended period of time, remove the battery to prevent leakage or damage to the battery.
Input Impedance: 380 kΩ
Output Impedance: 500 Ω
Switching Type: True Bypass
Dimensions: (D x W x H) 5.04" x 3.45" x 2.5" (12.8cm x 8.76cm x 6.35c) including feet, knobs and jacks
Weight: 1.23 lb. (558.4g)
