Maestro / Titan Boost Pedal

Variations

The Maestro Titan Boost is the ultimate tone sculpting boost pedal, providing over 25dB of clean boost for a natural tube overdrive sound with any amp.

The classic tone control and variable high-pass filter allow you to cut out excess high frequencies and adjust muddy low frequencies.
The Maestro Titan Boost delivers the perfect boost tone regardless of the guitar, pickup or pickup position used.

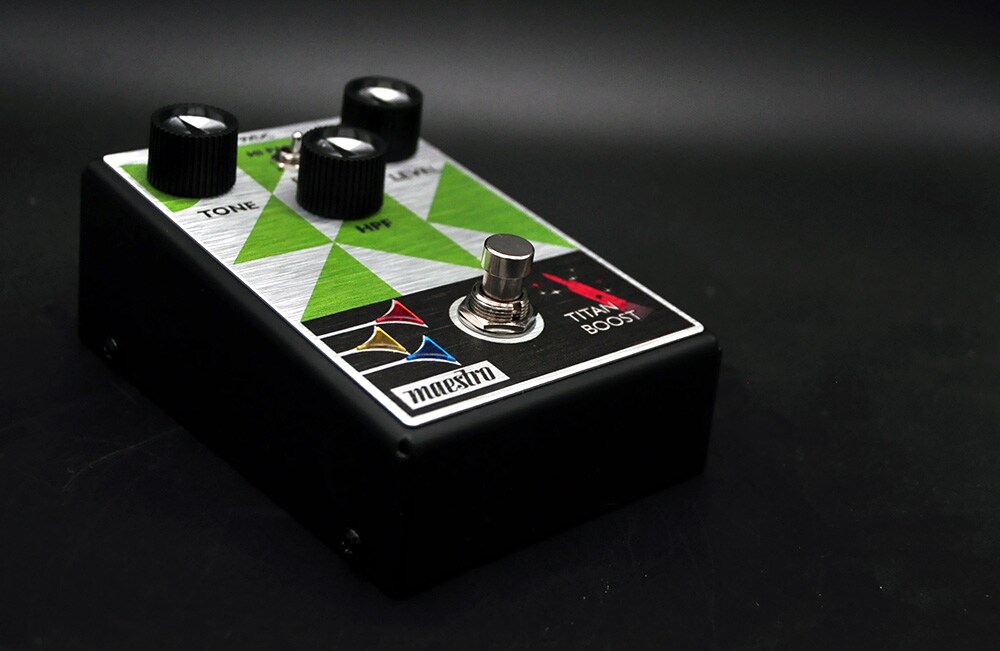

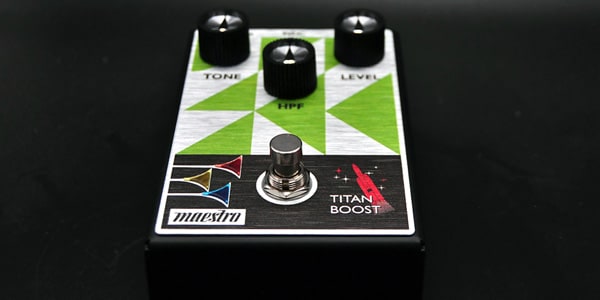

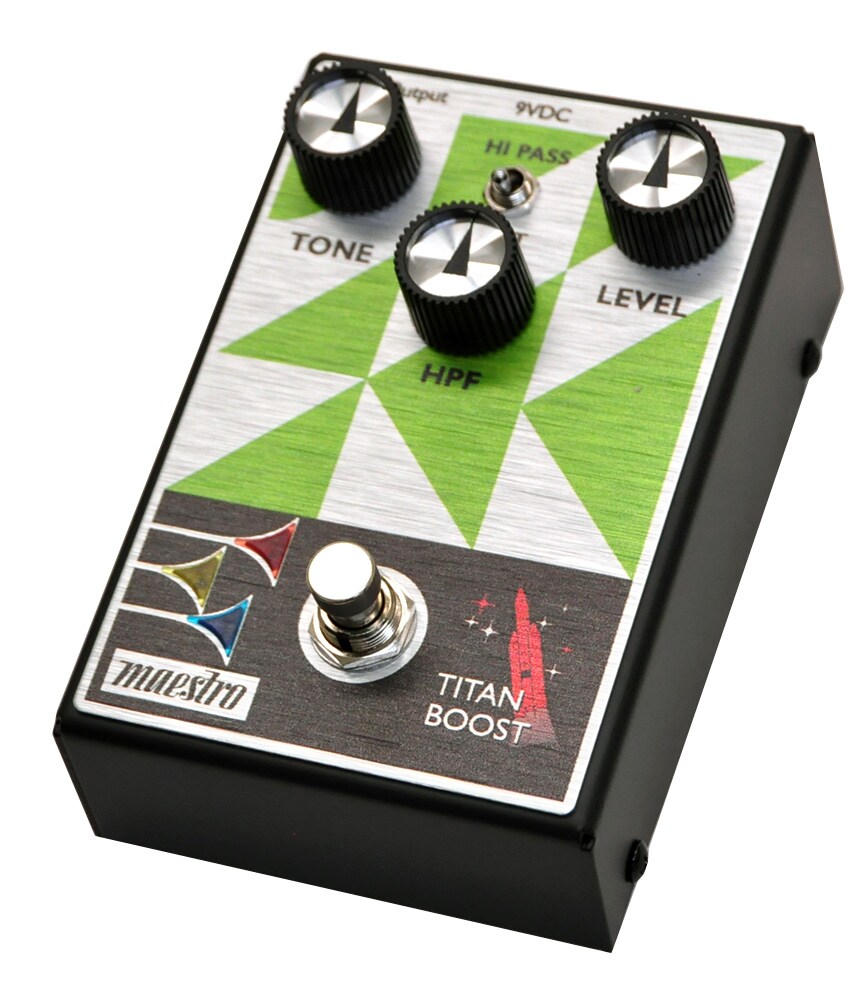

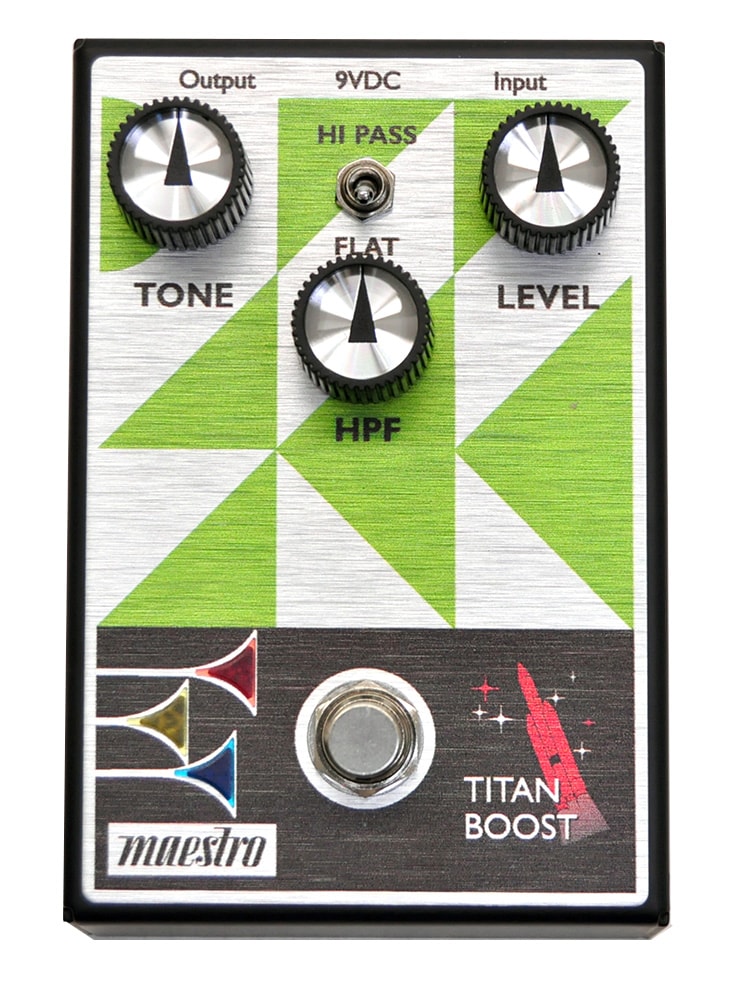

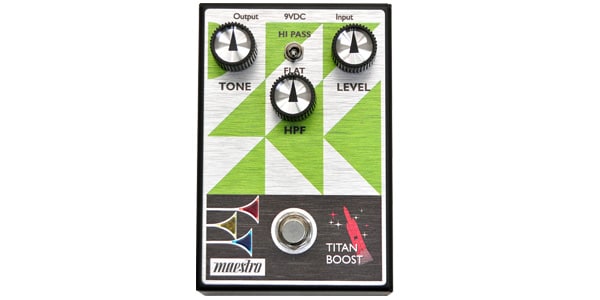

The three-control layout allows you to quickly set the volume and boost with your choice of Tone (tone control/variable low-pass filter), HPF (variable high-pass filter) and Level.

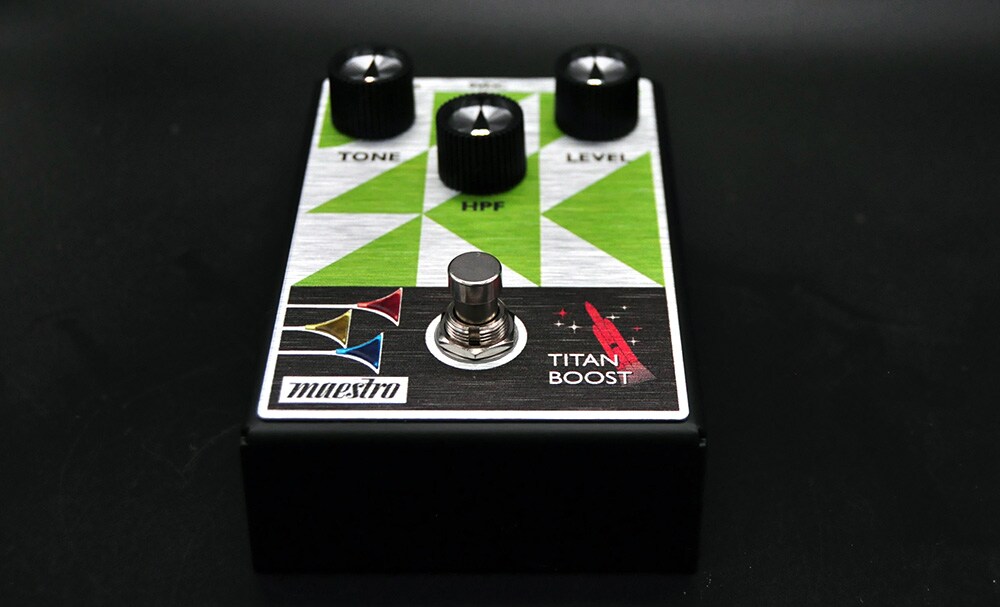

When the true bypass footswitch is switched on, a bugle LED light above the Maestro logo illuminates so you can always see the active status of the effects pedal.

■ Specifications.

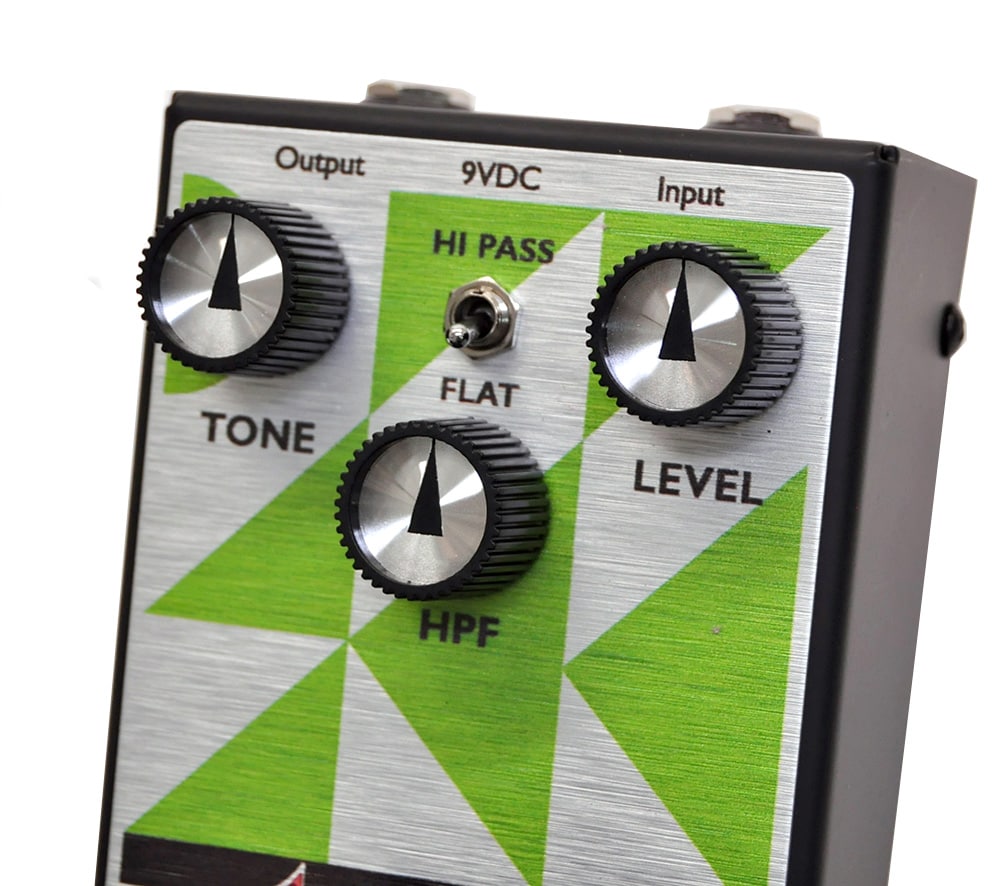

Switches: True Bypass footswitch, Flat/Hi-Pass Mode toggle switch
Led Indicators: red, yellow and blue bugle lights above the Maestro logo when the pedal is active
Signal Processing: All analogue.

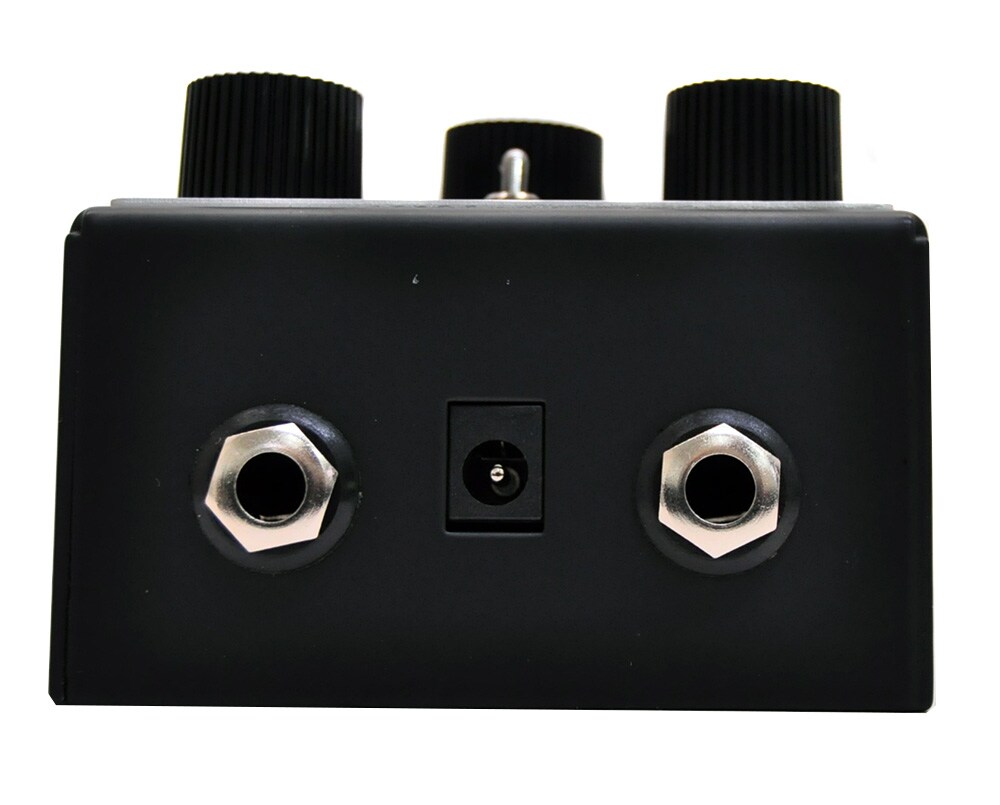

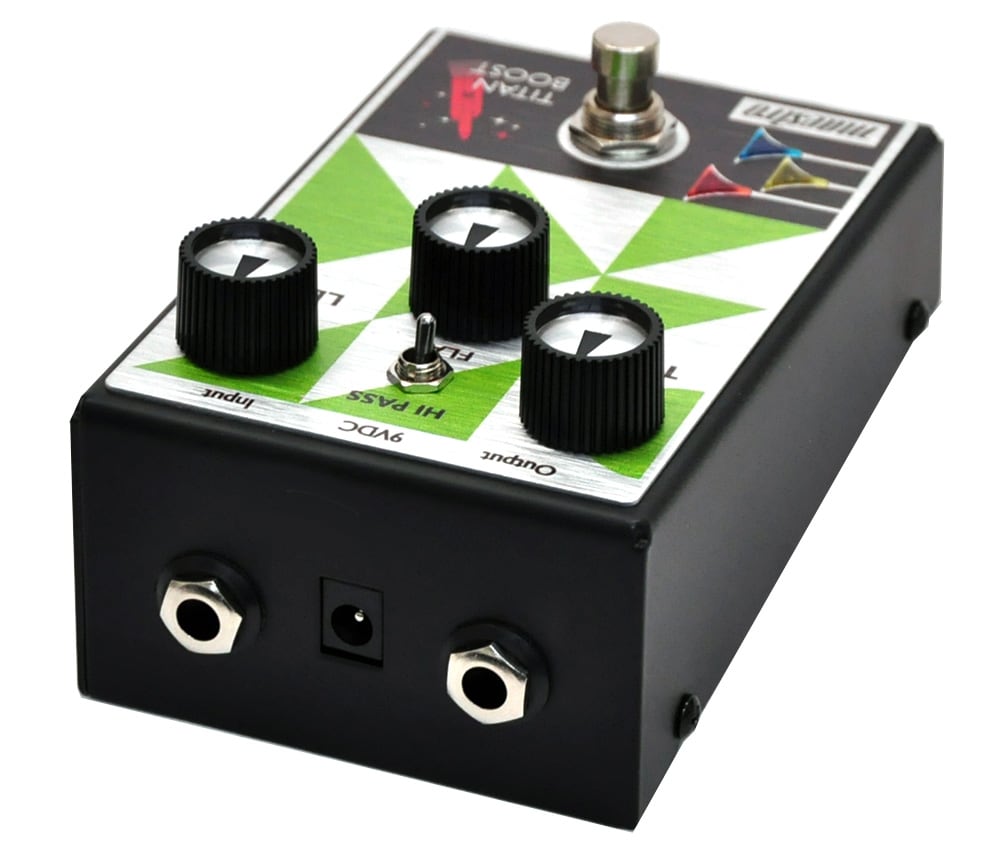

Power Requirements: 9V battery or 9VDC power supply (5.5 x 2.1mm plug, centre negative wiring)
Current Draw: 38.6 mA
Power On Switch: built into the input jack; for 9V battery operation, unplug when not in use to prevent battery drain.
If the unit is to be stored for an extended period of time, remove the battery to prevent leakage or damage to the battery.
Input Impedance: 400 kΩ
Output Impedance: 280 Ω
Switching Type: True Bypass
Dimensions: (L x W x H) 5.04" x 3.45" x 2.5" (12.8cm x 8.76cm x 6.35c) including feet, knobs and jacks
Weight: 1.20 lb. (544.6g)
