Maestro / Orbit Phaser Pedal

The Maestro Orbit Phaser is the successor to the legendary Maestro PS-1, the first ever phaser pedal. This classic effect has been redesigned to meet the needs of today's players.

The Maestro Orbit Phaser is designed with the sound character and vibe you expect from an all-analogue phaser, offering a warm, smooth and versatile phaser effect.

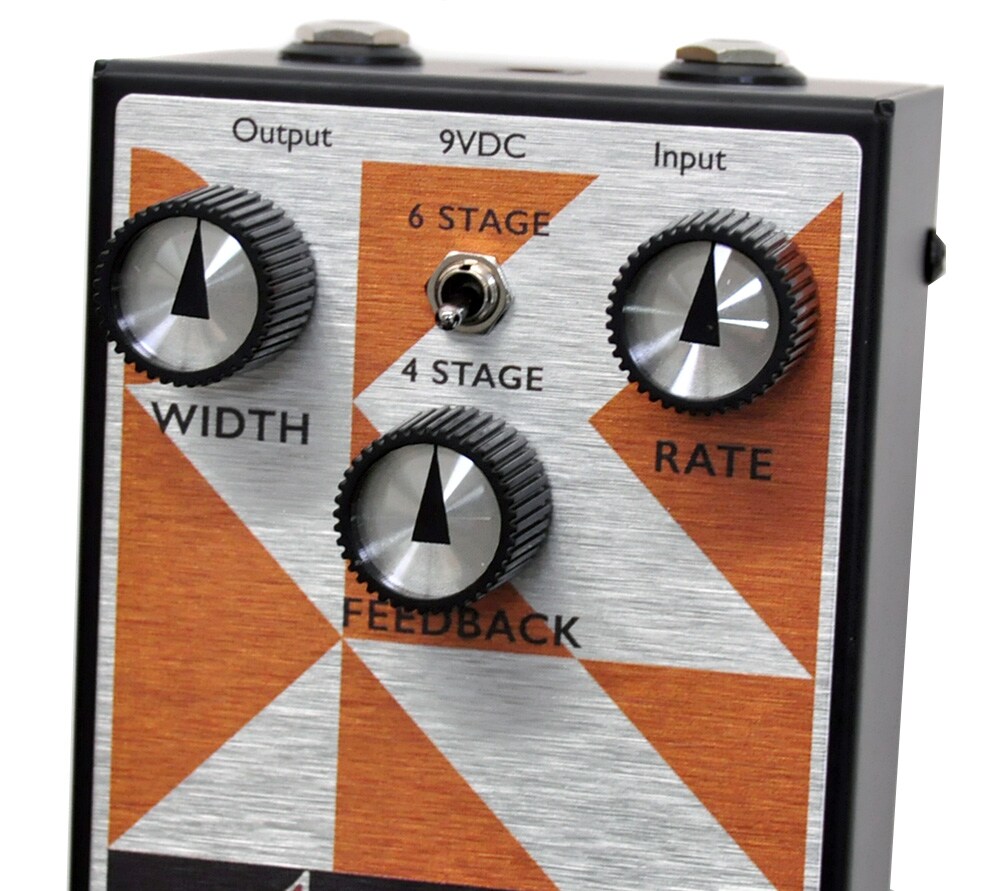

A two-position mode switch lets you choose between a four-stage or six-stage phaser.

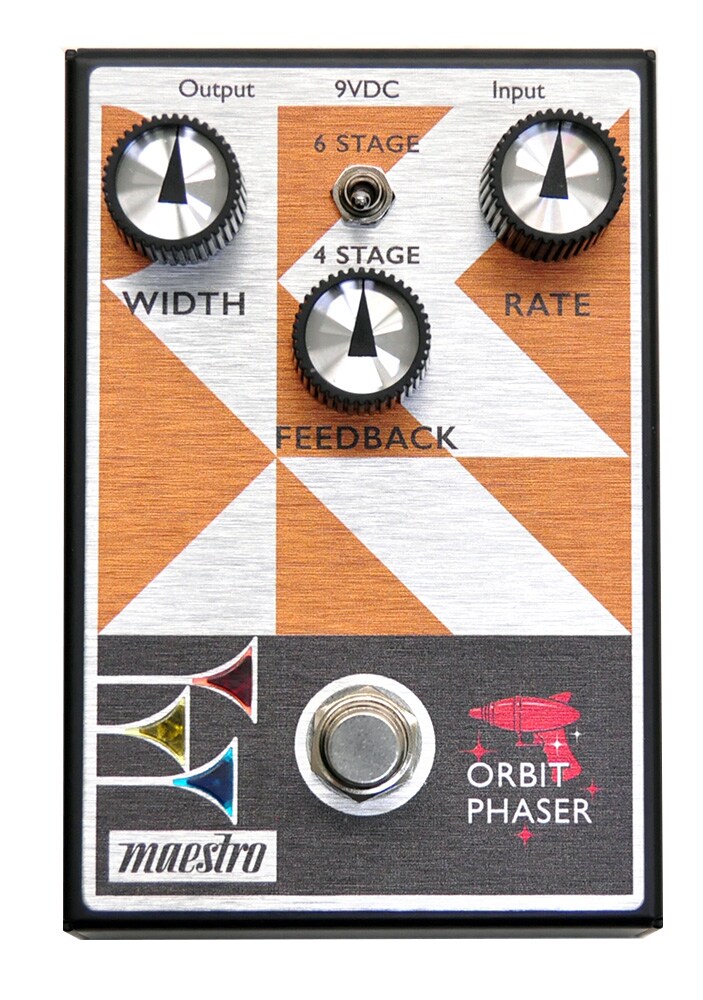

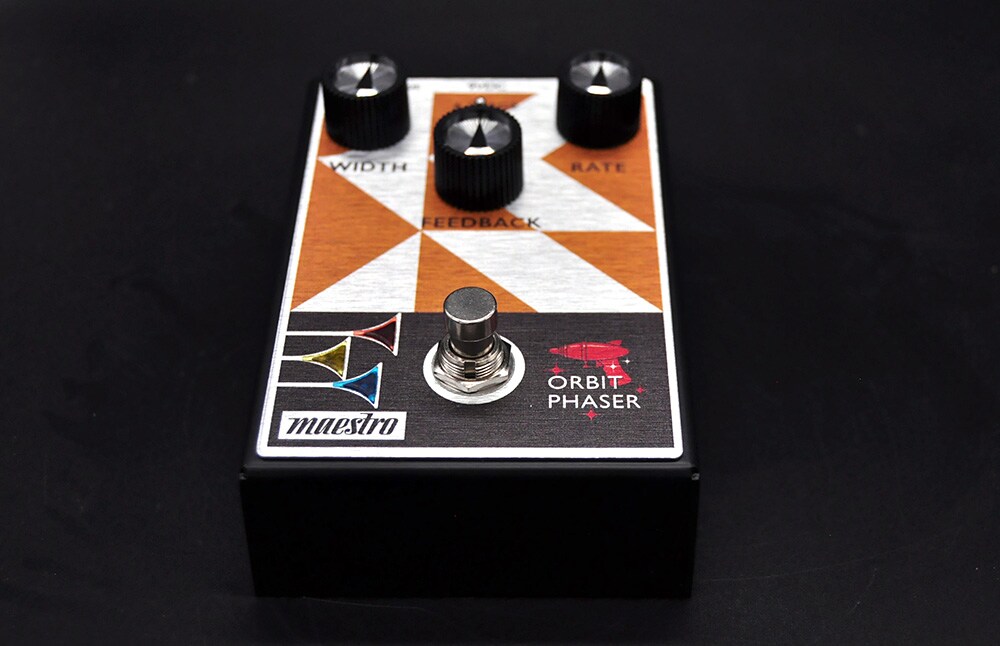

The layout of the three controls allows you to quickly set the Width (phaser effect intensity), Feedback (echo of the phaser effect) and Rate (amplitude speed) to your liking.
When the true bypass footswitch is switched on, a bugle LED light above the Maestro logo illuminates so you can check the active status of the effects pedal at any time.

■ Specifications.
Switches: True Bypass footswitch, 6-Stage/4-Stage Mode toggle switch
Led Indicators: Red, yellow and blue viewggles above the Maestro logo light up when the pedal is active
Signal Processing: All analogue.

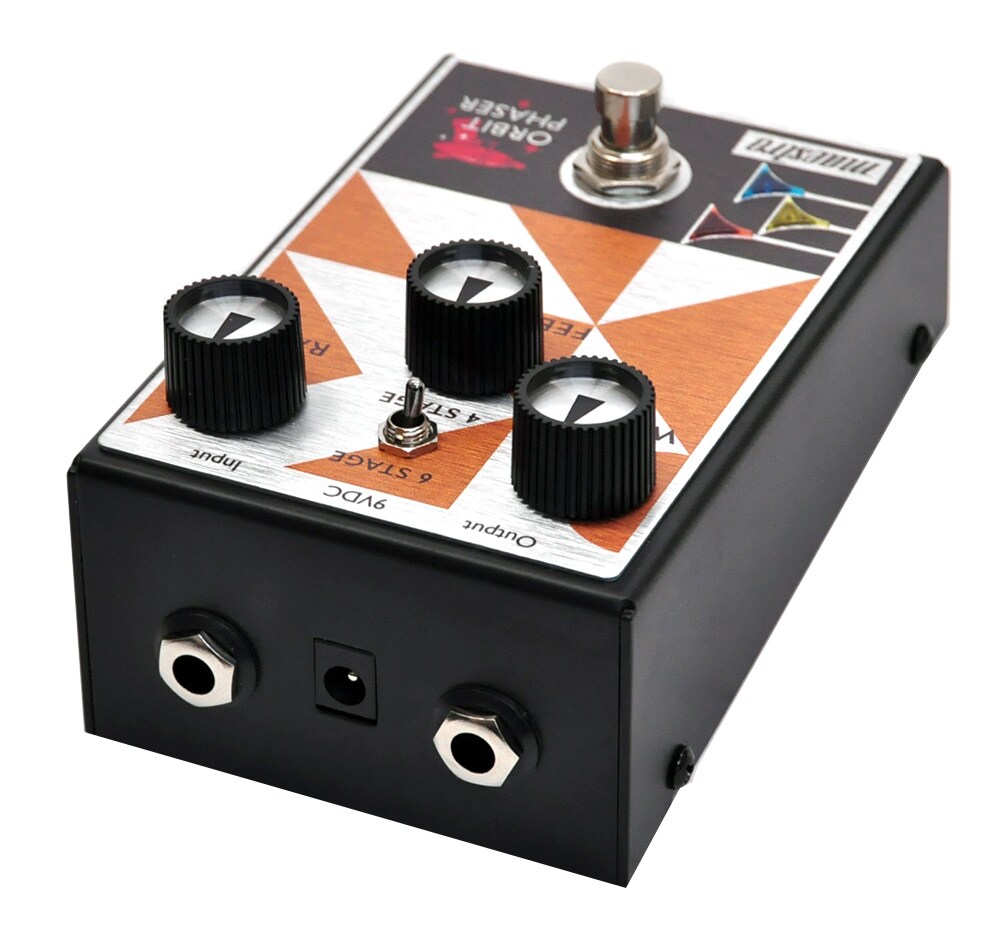

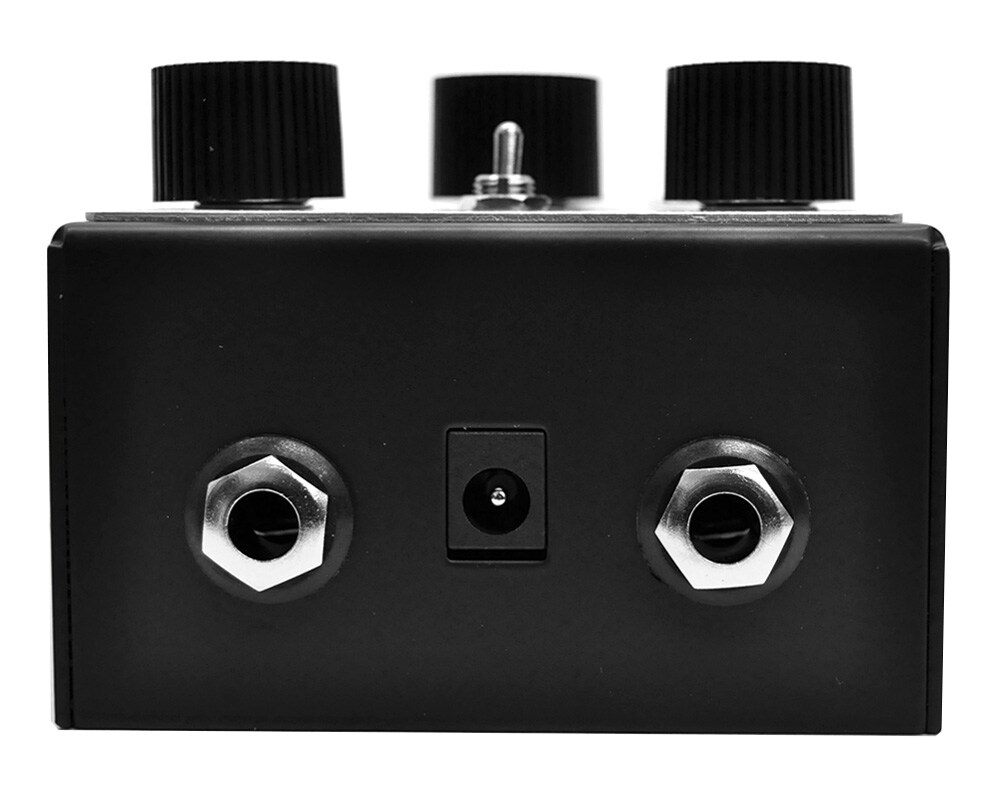

Power Requirements: 9V battery or 9VDC power supply (5.5 x 2.1mm plug, centre-minus wiring)
Current Draw: 27.5 mA
Power On Switch: built into the input jack; for 9V battery operation, unplug when not in use to prevent battery drain.
If the unit is to be stored for an extended period of time, remove the battery to prevent leakage or damage to the battery.
Input Impedance: 280 kΩ
Output Impedance: 220 Ω
Switching Type: True Bypass
Dimensions: (D x W x H) 5.04" x 3.45" x 2.5" (12.8cm x 8.76cm x 6.35c) including feet, knobs and jacks
Weight: 1.24 lb. / 557.92 g (including battery)
