SHURE / GLXD24R+J/SM58-Z2

The GLX-D24R+/ SM58 Vocal Wireless System with Half-Rack Receiver uses the highly reliable industry-standard SM58 microphone head to deliver crystal clear, great digital audio. half-rack receiver.

■GLX-D+ Digital Wireless System Series Overview
The GLX-D+ digital wireless system is the perfect solution for musicians and lecture organizers who want a reliable wireless system that is uninterrupted and does not require complicated operation. It manages all operations and ensures high reliability, so you can focus on your performance.

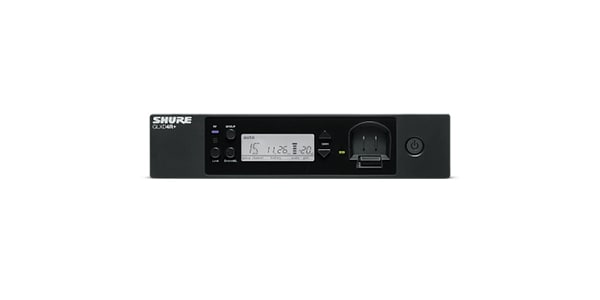

■Features of the GLX-D4R+ Half-Rack Receiver

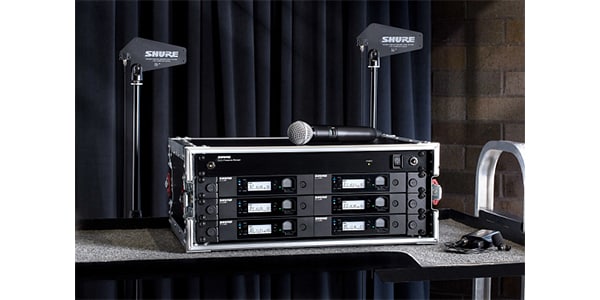

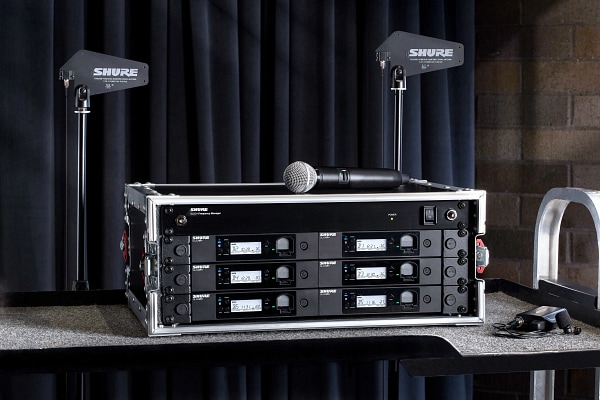

The GLX-D4+ is a half-rack receiver offering superior audio and stable performance. Combined with a flikency manager, up to 9 units (11 units under optimal conditions) can be installed. It provides reliable RF performance, antenna distribution, and automatic frequency management. Wireless connections can be made without requiring complex operations.
Stable RF performance
LCD screen status display: shows real-time battery life in hours and minutes
Remotely adjustable transmitter gain control
Built-in rechargeable lithium-ion battery charging port for Shure's GLX-D+ transmitter
XLR and 6.3mm output connectors
Rugged metal case

Not compatible with first generation GLX-D transmitters.

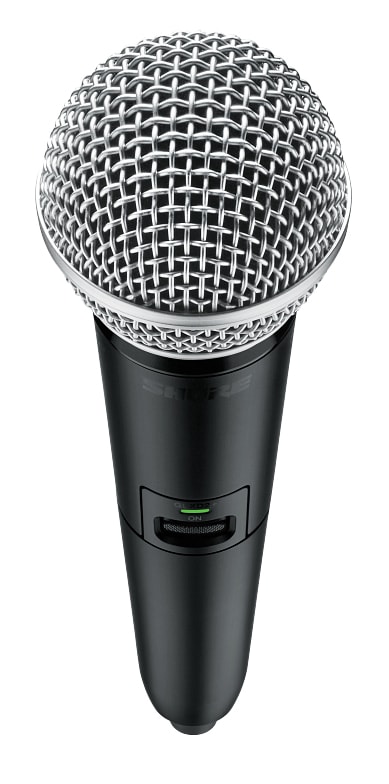

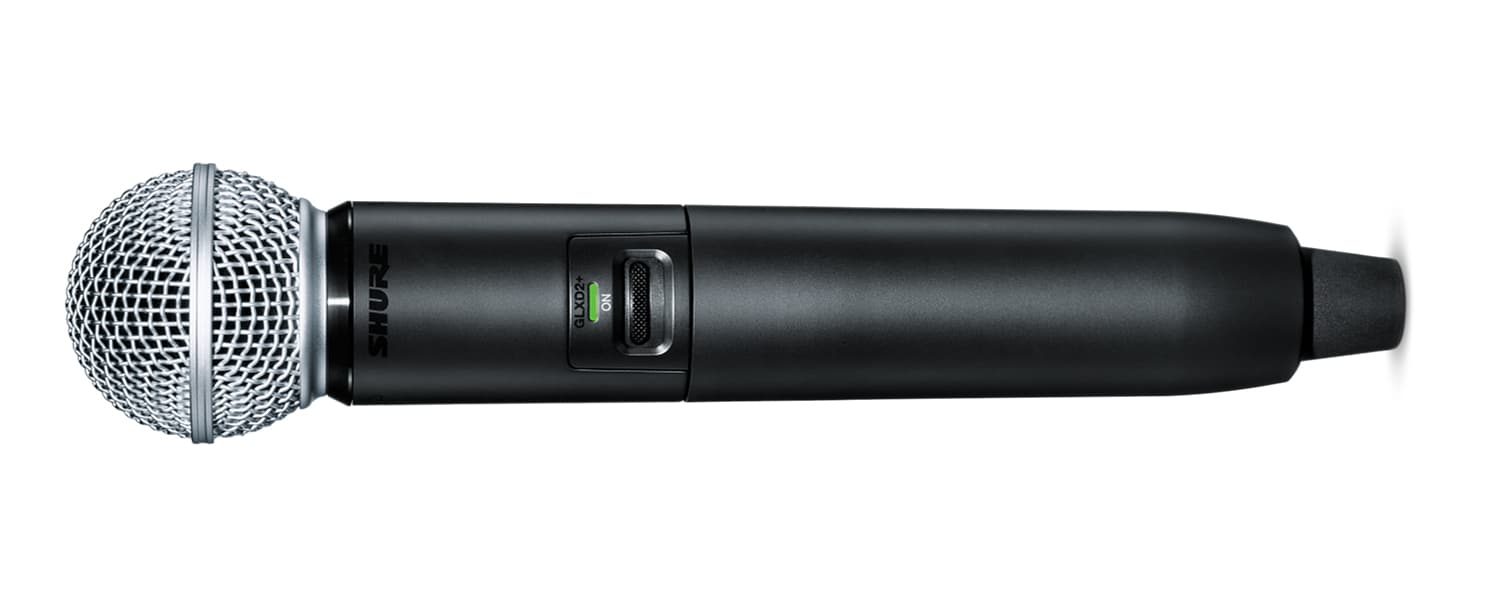

■GLX-D2+/SM58 handheld transmitter
The GLX-D2+/SM58 handheld transmitter with SM58 microphone head offers digital clarity and high reliability.
Automatically links to the GLX-D+ digital wireless receiver for seamless frequency changes
Shure's proprietary lithium-ion rechargeable battery provides up to 17 hours of continuous use
Industry-standard SM58 microphone head for high reliability
Reach:
　Indoor: up to 30 meters under normal use, up to 60 meters under best conditions
　Outdoor: up to 20 meters under normal use, up to 50 meters under best environmental conditions

Not compatible with first generation GLX-D receivers.

■Accessories
SB904 lithium-ion rechargeable battery
Carrying case
PS43J AC adapter

- Hardware kit
Reverse SMA coaxial cable (approx. 55 cm) x2
1/2-wavelength antenna x2
Antenna bulkhead adapter x2
Rack mount bracket (short) x1
Rack mount bracket (long) x1
Connecting plate x1
Rubber Legs

──────────────────────
GLX-D4+Half-rack receiver Product Specifications
■Dimensions: W196.8 x D162.97 x H41.8 mm (excluding antenna)
■Weight: 866 g
■Exterior material: Steel
■Power supply: 14.5V ? 17V, 600mA
■Spurious rejection: >35dB, typical
■Gain adjustment range: -18 to 42dB in 1dB increments
■Phantom power protection: Onboard
■Audio Output
-Configuration
　XLR output: Impedance balanced
　6.35mm (1/4") output: Impedance balanced
-Impedance
　XLR output: 100 ohm
　6.35mm (1/4") output: 100 Ω (50 Ω, unbalanced)
-Full scale output
　XLR: Line setting = +18 dBV, MIC setting = -12 dBV
　6.35mm (1/4"): +12 dBV
-Pin Assignment
　XLR outputs: 1 = ground, 2 = hot, 3 = cold
　6.35 mm (1/4") connector: Tip=Audio, Ring=Unused, Sleeve=Ground
-Mic/Line switch: 30dB PAD

■Receiver Antenna Input
　Impedance: 50 ohm
　Antenna Type: 1/2-wavelength sleeve dipole
　Maximum input level: ?

──────────────────────
GLX-D2+/SM58 Handheld Transmitter Specifications
Dimensions: Grille diameter 51 x length 246 x grip diameter 37 mm
Weight: 275 g (excluding batteries)
Exterior material: Aluminum alloy, ABS resin
Power source: 3.6V rechargeable lithium-ion
RF transmit output: 10 mW E.I.R.P. max.
Maximum input level: 146 dB SPL
Type: Dynamic
Directionality：Cardioid

Country of Origin: China
Warranty：2-year manufacturer's warranty
