SHURE / GLX-D1+

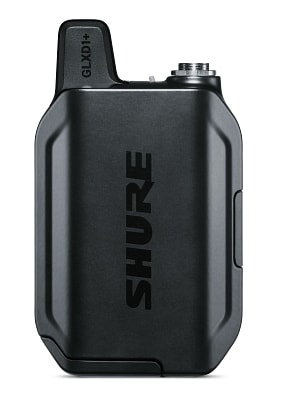

The GLX-D1+ is a bodypack transmitter compatible with the GLX-D+ digital wireless receiver. It is ergonomically designed in rugged metal and can be securely attached in a variety of positions with a reversible belt clip.

■GLX-D+ Digital Wireless System Series Overview
The GLX-D+ digital wireless system is the perfect solution for musicians and lecture organizers who want a reliable wireless system that is uninterrupted and does not require complicated operation. It manages all operations and ensures high reliability, so you can concentrate on your performance.

■Features of the GLX-D1+ bodypack transmitter

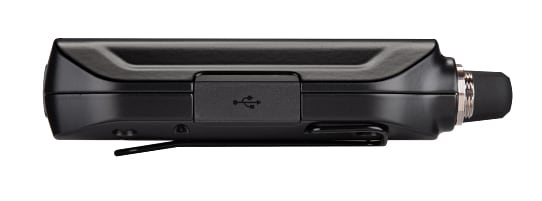

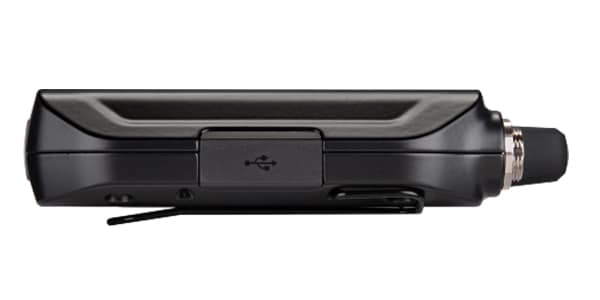

The GLX-D1+ bodypack transmitter is ergonomically designed with rugged metal construction. The reversible belt clip allows for comfortable and secure attachment in a variety of positions.
Automatically links to GLX-D+ digital wireless receiver for seamless frequency changes
Shure's proprietary lithium-ion rechargeable battery provides up to 17 hours of continuous use
Indoors: up to 30 meters under normal use, up to 60 meters under best conditions Outdoors: up to 20 meters under normal use, up to 50 meters under best conditions
For use with Shure microphones and guitar cables with TAF4 connectors

This product is sold individually. A dedicated receiver is required separately.
This product is not compatible with the first generation GLX-D receiver.

■Accessories
SB904 lithium-ion rechargeable battery

──────────────────────
GLX-D1+Bodypack Transmitter Product Specifications
■Dimensions: H 115 x W 66.94 x D 28.51 mm (excluding antenna)
■Weight: 153.1 g (excluding batteries)
■Exterior material: Die-cast metal, black powder coated
■Power source: 3.7 V rechargeable lithium-ion
■Input impedance: 900 kΩ
■RF Transmitter Output: 10 mW E.I.R.P. max.
■Transmitter Input

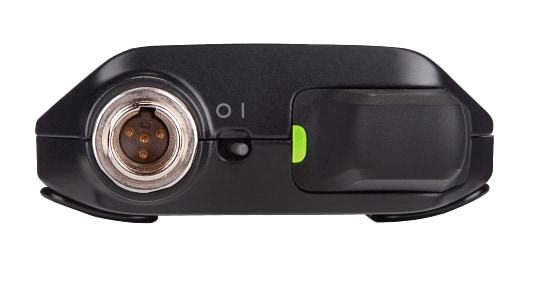

　Connector: 4-pin male mini-connector (TA4M)
　Configuration: Unbalanced
　Maximum input level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp-p)
　Antenna type: Internal single-pole
　Pin assignment TA4M
　　　1: Ground (cable shield)
　　　2: + 5 V bias
　　　3: Audio
　　　4: Connected to ground through active load (pin 4 floats on instrument adapter cable)

Country of Origin: China
Warranty: 2-year manufacturer's warranty
