SHURE / GLXD14R+J/SM35-Z2

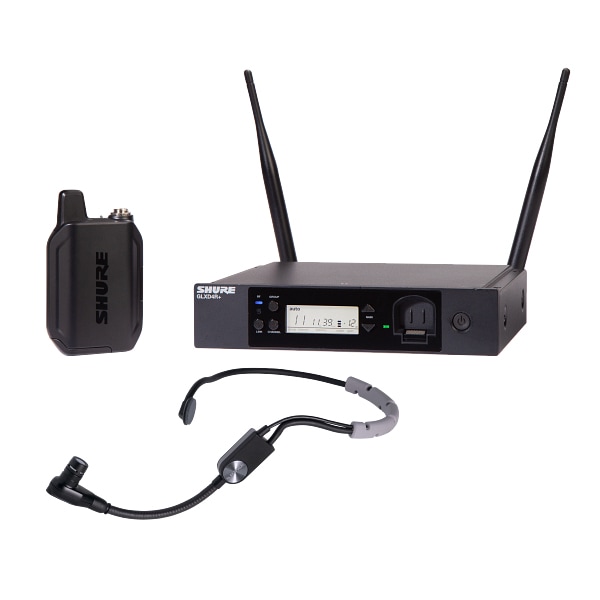

The GLX-D14R+/-SM35 is a half-rack headset wireless system with receiver, ideal for performances with a lot of movement; it operates in the 2.4 GHz frequency band and delivers excellent digital audio quality without the need for complex operations. Combined with the optional Flikency Manager, the system can be installed with up to 9 units (or 11 units under optimal conditions). It provides reliable RF performance, antenna distribution, and automatic frequency management.

■GLX-D+ Digital Wireless System Series Overview The GLX-D+ Digital Wireless System is the perfect solution for musicians and lecture organizers who want a reliable wireless system that doesn't require complicated operations and that won't break. It manages all operations and ensures high reliability, so you can focus on your performance. ■GLX-D4R+ Half-Rack Receiver Features The GLX-D4R+ is a half-rack receiver that provides excellent audio and stable performance. When combined with a Frequency Manager, up to 9 units (11 units under optimal conditions) can be installed. It provides reliable RF performance, antenna distribution, and automatic frequency management. Wireless connection without the need for complicated operations. - Stable RF performance - LCD screen status display: shows real-time battery life in hours and minutes - Remotely adjustable transmitter gain control - Built-in charging port for Shure's lithium-ion rechargeable battery for GLX-D+ transmitters - XLR and 6.3mm output connectors - Robust metal case * Not compatible with first-generation GLX-D transmitters. ■Features of the GLX-D1+ bodypack transmitter The GLX-D1+ bodypack transmitter is ergonomically designed and made of robust metal. The reversible belt clip allows for comfortable and secure mounting in a variety of positions. ・Automatically links to the GLX-D+ digital wireless receiver for seamless frequency changes ・Shure's proprietary lithium-ion rechargeable battery provides up to 17 hours of continuous use ・Range: Indoors: up to 30m under normal use, up to 60m under optimal conditions Outdoors: up to 20m under normal use, up to 50m under optimal conditions ・Can be used with Shure microphones and guitar cables with TAF4 connectors *Not compatible with first-generation GLX-D receivers. ■SM35 Headset Condenser Microphone A headset microphone ideal for dynamic vocal performances. Stable frequency response across the entire frequency range faithfully captures everything from subtle nuances to dynamic sounds. - High fit performance supports active performances - Cardioid polar pattern prevents feedback and sound overlap, and is suitable for use on loud stages - Flexible gooseneck design allows adjustment to optimal microphone position and achieves high sound insulation - Lightweight and simple design makes it comfortable to wear for long periods of time - TA4F connector connects to Shure wireless bodypack transmitters - Secure snap-fit ​​windscreen reduces pops, breath, and wind noise for clear sound - Optimized frequency response reproduces clear and vivid vocals ■ Accessories SB904 Lithium-ion rechargeable battery Carrying case PS43J AC adapter - Hardware kit Reverse SMA coaxial cable (approx. 55 cm) x 2 1/2 wavelength antenna x 2 Antenna bulkhead adapter x 1 Rack mount bracket (short) x 1 Rack mount bracket (long) x 1 Connecting plate x 1 Rubber feet ────────────────────── GLX-D4+ half rack receiver Product specifications ■ Dimensions: Width 196.8 x Depth 162.97 x Height 41.8 mm (excluding antenna) Weight: 866g Exterior material: Steel Power supply: 14.5V to 17V, 600mA Spurious rejection: >35dB, standard Gain adjustment range: -18 to 42dB in 1dB increments Phantom power protection: Equipped Audio output - Configuration - XLR output: impedance balanced - 6.35mm (1/4") output: impedance balanced - Impedance - XLR output: 100Ω - 6.35mm (1/4") output: 100Ω (50Ω, unbalanced) - Full-scale output - XLR: Line setting = +18dBV, MIC setting = -12dBV - 6.35mm (1/4“): +12 dBV - Pin assignment 4. Receiver Antenna Inputs - Impedance: 50Ω - Antenna type: 1/2 wavelength sleeve dipole - Maximum input level: 20dBm ────────────────────── GLX-D1+ Bodypack Transmitter Product Specifications - Dimensions: H 115 x W 66.94 x D 28.51 mm (excluding antenna) - Weight: 153.1 g (excluding battery) - Exterior material: Die-cast metal, black powder coated - Power source: 3.7 V rechargeable lithium-ion - Input impedance: 900 kΩ - RF transmit power: 10 mW E.I.R.P. maximum - Transmitter inputs - Connector: 4-pin male mini connector (TA4M) - Configuration: Unbalanced - Maximum input level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp-p) - Antenna type: internal monopole - Pin assignment: TA4M 1: Ground (cable shield) 2: + 5 V bias 3: Audio 4: Connected to ground via active load (pin 4 is floating on instrument adapter cable) ────────────────────── SM35 Headset Microphone Product Specifications ■Type: Electret condenser ■Directivity: Cardioid ■Frequency response: 40Hz-20kHz ■Connector: TA4F ■Weight: 72g ■Cable length: 1.1m Country of manufacture: China Warranty: 2-year manufacturer's warranty
