SHURE / GLXD14R+J/MX53-Z2

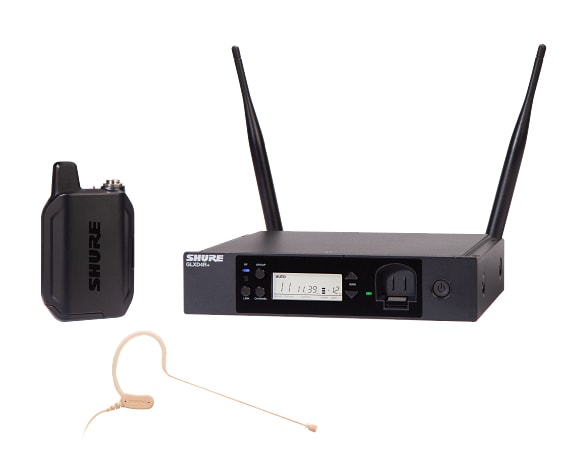

The GLX-D14R+/MX153 is an ear-set wireless system with half-rack receiver, ideal for professional speech and presentation applications. The microphone can be discreetly worn over the ear and allows the speech content to be conveyed very clearly.

■GLX-D+ Digital Wireless System Series Overview The GLX-D+ Digital Wireless System is the perfect solution for musicians and lecture organizers who want a reliable wireless system that doesn't require complicated operations and that won't break. It manages all operations and ensures high reliability, so you can focus on your performance. ■GLX-D4R+ Half-Rack Receiver Features The GLX-D4R+ is a half-rack receiver that provides excellent audio and stable performance. When combined with a Frequency Manager, up to 9 units (11 units under optimal conditions) can be installed. It provides reliable RF performance, antenna distribution, and automatic frequency management. Wireless connection without the need for complicated operations. - Stable RF performance - LCD screen status display: shows real-time battery life in hours and minutes - Remotely adjustable transmitter gain control - Built-in charging port for Shure's lithium-ion rechargeable battery for GLX-D+ transmitters - XLR and 6.3mm output connectors - Robust metal case * Not compatible with first-generation GLX-D transmitters. ■Features of the GLX-D1+ bodypack transmitter The GLX-D1+ bodypack transmitter is an ergonomic design made of rugged metal. The reversible belt clip allows for comfortable and secure mounting in a variety of positions. ・Automatically links to the GLX-D+ digital wireless receiver for seamless frequency changes ・Shure's proprietary lithium-ion rechargeable battery provides up to 17 hours of continuous use ・Range: Indoors: up to 30m under normal use, up to 60m under optimal conditions Outdoors: up to 20m under normal use, up to 50m under optimal conditions ・Can be used with Shure microphones and guitar cables with TAF4 connectors *Not compatible with first-generation GLX-D receivers. ■MX153 Earset Microphone The MX153 is an ultra-compact earset microphone that is ideal for applications that require a wider feedback margin than a lavalier microphone and want to wear it discreetly during speeches, etc. - Features an ultra-compact omnidirectional cartridge, ideal for situations where reduced exposure is desired - Provides extremely clear speech with no proximity effect - Ultra-lightweight, comfortable, and flexible design for a stable fit - CommshieldR technology protects against interference from mobile devices and digital bodypack transmitters - Connects to Shure wireless bodypack transmitters via a TA4F connector ■Accessories SB904 Lithium-ion rechargeable battery Carrying case PS43J AC adapter - Hardware kit 2 reverse SMA coaxial cables (approx. 55 cm) 2 1/2 wavelength antennas 2 antenna bulkhead adapters 1 rack mount bracket (short) 1 rack mount bracket (long) 1 connecting plate Rubber feet ────────────────────── GLX-D4+ Half Rack Receiver Product Specifications ■Dimensions: W 196.8 x D 162.97 x H 41.8 mm (excluding antennas) ■Weight: 866 g ■Exterior material: Steel ■Power supply: 14.5 V - 17V, 600mA ■Spurious rejection: >35dB, typical ■Gain adjustment range: -18 to 42dB in 1dB increments ■Phantom power protection: Yes ■Audio output - Configuration - XLR output: impedance balanced - 6.35mm (1/4") output: impedance balanced - Impedance - XLR output: 100Ω - 6.35mm (1/4") output: 100Ω (50Ω, unbalanced) - Full-scale output - XLR: Line setting = +18dBV, MIC setting = -12dBV - 6.35mm (1/4“): +12 dBV - Pin assignment - XLR output: 1=ground, 2=hot, 3=cold - 6.35mm (1/4“) connector: Tip=audio, Ring=unused, Sleeve=ground - Mic/Line switch: 30dB 4 English: PADd ■Receiver antenna input 　・Impedance: 50Ω 　・Antenna type: 1/2 wavelength sleeve dipole 　・Maximum input level: -20dBm ────────────────────── GLX-D1+ bodypack transmitter Product specifications ■Dimensions: H115 x W66.94 x D28.51 mm (excluding antenna) ■Weight: 153.1 g (excluding battery) ■Exterior material: Die-cast metal, black powder coated ■Power source: 3.7 V rechargeable lithium-ion ■Input impedance: 900 kΩ ■RF transmit power: 10 mW E.I.R.P. maximum ■Transmitter input 　・Connector: 4-pin male mini connector (TA4M) 　・Configuration: Unbalanced 　・Maximum input level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp-p) 　・Antenna type: Internal monopole 　・TA4M pin assignment 　　　1: Ground (cable shield) 　　　2: + 5 V bias 　　　3: Audio 　　　4: Connected to ground through active load (pin 4 will be floating on the instrument adapter cable) ────────────────────── MX153 Earset Microphone Product Specifications ■Type: Electret condenser ■Directivity: Omnidirectional ■Frequency response: 20Hz-20kHz ■Connector: TA4F ■Weight: 19.8g ■Power supply: +1?5 V DC (500μA max) Country of manufacture: China Warranty: 2-year manufacturer's warranty
