SHURE / GLXD14R+J/B98-Z2

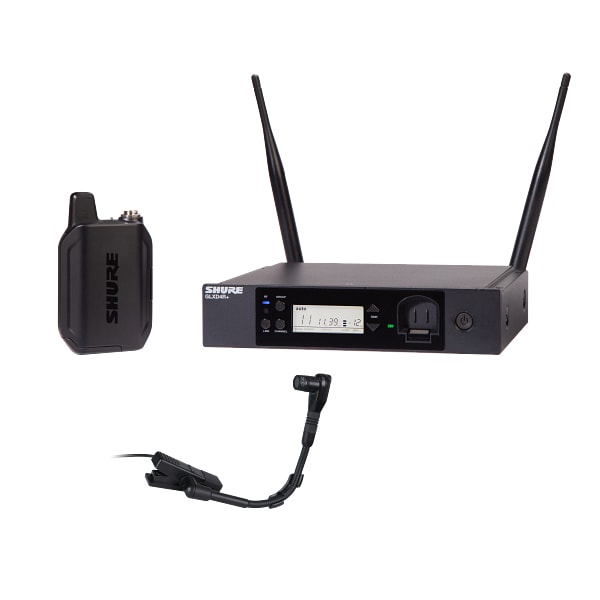

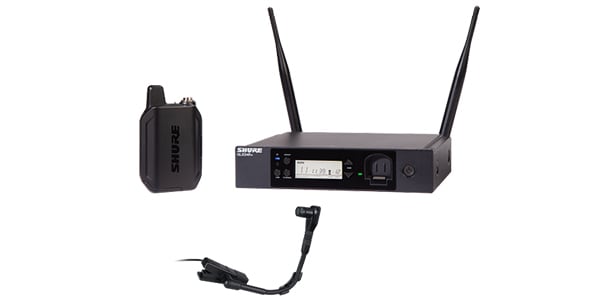

The GLX-D14R+/BETA98 wireless system for musical instruments with half-rack receiver features a musical instrument microphone with a flexible gooseneck that can be easily attached to wind instrument bells or percussion rims.

■GLX-D+ Digital Wireless System Series Overview The GLX-D+ Digital Wireless System is the perfect solution for musicians and lecture organizers who want a reliable wireless system that doesn't require complicated operations and that won't break. It manages all operations and ensures high reliability, so you can focus on your performance. ■GLX-D4R+ Half-Rack Receiver Features The GLX-D4R+ is a half-rack receiver that provides excellent audio and stable performance. When combined with a Frequency Manager, up to 9 units (11 units under optimal conditions) can be installed. It provides reliable RF performance, antenna distribution, and automatic frequency management. Wireless connection without the need for complicated operations. - Stable RF performance - LCD screen status display: shows real-time battery life in hours and minutes - Remotely adjustable transmitter gain control - Built-in charging port for Shure's lithium-ion rechargeable battery for GLX-D+ transmitters - XLR and 6.3mm output connectors - Robust metal case * Not compatible with first-generation GLX-D transmitters. ■Features of the GLX-D1+ bodypack transmitter The GLX-D1+ bodypack transmitter is an ergonomic design made of robust metal. The reversible belt clip allows for comfortable and secure mounting in a variety of positions. - Automatically links to the GLX-D+ digital wireless receiver for seamless frequency changes - Shure's proprietary lithium-ion rechargeable battery provides up to 17 hours of continuous use - Range: Indoors: up to 30m under normal use, up to 60m under optimal conditions Outdoors: up to 20m under normal use, up to 50m under optimal conditions - Can be used with Shure microphones and guitar cables with TAF4 connectors *Not compatible with first-generation GLX-D receivers. ■WB98H/C instrument microphone This wireless version of the BETA 98H/C is a cardioid condenser instrument microphone that can be easily attached to the bell of a wind instrument or the rim of a percussion instrument.・Transformerless preamp circuit improves linearity across the entire frequency range ・High maximum sound pressure level (SPL) handles extremely high sound pressure from wind instruments, woodwind instruments, and percussion instruments ・Achieves high gain with reduced feedback and excellent separation from unwanted sound sources ・Connects to Shure wireless bodypack transmitters with a highly flexible cable (1.6m) with a TAF4 connector ・Sharpened frequency response reproduces a natural sound with an open feel ・Compact and lightweight design ■Accessories SB904 Lithium-ion rechargeable battery Carrying case PS43J AC adapter - Hardware kit Reverse SMA coaxial cable (approx. 55cm) x2 1/2 wavelength antenna x2 Antenna bulkhead adapter x2 Rack mount bracket (short) x1 Rack mount bracket (long) x1 Connecting plate x1 Rubber feet ────────────────────── GLX-D4+ Half Rack Receiver Product Specifications ■Dimensions: Width 196.8 x Depth 162.97 x Height 41.8 mm (excluding antenna) Weight: 866g Exterior material: Steel Power supply: 14.5V to 17V, 600mA Spurious rejection: >35dB, typical Gain adjustment range: -18 to 42dB in 1dB increments Phantom power protection: Equipped Audio output - Configuration - XLR output: impedance balanced - 6.35mm (1/4") output: impedance balanced - Impedance - XLR output: 100Ω - 6.35mm (1/4") output: 100Ω (50Ω, unbalanced) - Full-scale output - XLR: Line setting = +18dBV, MIC setting = -12dBV - 6.35mm (1/4“): +12 dBV - Pin assignment - XLR output: 1=Ground, 2=Hot, 3=Cold 7 English: - 6.35mm (1/4“) Connector: Tip = audio, Ring = unused, Sleeve = ground - Mic/Line switch: 30dB PAD ■ Receiver antenna input - Impedance: 50Ω - Antenna type: 1/2 wavelength sleeve dipole - Maximum input level: -20dBm ────────────────────── GLX-D1+ bodypack transmitter Product specifications ■ Dimensions: H 115 x W 66.94 x D 28.51 mm (excluding antenna) ■ Weight: 153.1 g (excluding battery) ■ Exterior material: Die-cast metal, black powder coated ■ Power source: 3.7 V rechargeable lithium-ion ■ Input impedance: 900 kΩ ■ RF transmit power: 10 mW E.I.R.P. maximum ■ Transmitter input - Connector: 4-pin male mini connector (TA4M) - Configuration: Unbalanced - Maximum input level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp-p) - Antenna type: Internal monopole - Pin assignment: TA4M 1: Ground (cable shield) 2: + 5 V bias 3: Audio 4: Connected to ground via active load (pin 4 is floating on the instrument adapter cable) ────────────────────── WB98H/C Miniature Instrument Microphone Product Specifications ■Type: Electret condenser ■Directivity: Cardioid ■Frequency response: 20Hz-20Hz ■Connector: TA4F ■Weight: 65g (microphone part) ■Cable length: 1.6m Country of manufacture: China Warranty: 2-year manufacturer's warranty
