SHURE / GLXD14R+J/93-Z2

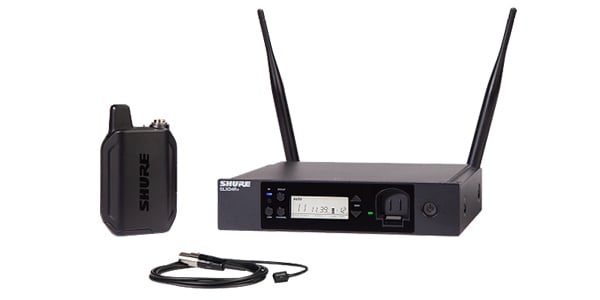

The GLX-D14R+/WL93 is a lavalier wireless system with a half-rack receiver ideal for speeches and presentations, featuring a small, discreet, ultra-compact lavalier microphone.

■GLX-D+ Digital Wireless System Series Overview
The GLX-D+ digital wireless system is the perfect solution for musicians and lecture organizers who want a reliable wireless system that is uninterrupted and does not require complicated operation. It manages all operations and ensures high reliability, so you can focus on your performance.

■Features of the GLX-D4R+ Half-Rack Receiver
The GLX-D4+ is a half-rack receiver offering superior audio and stable performance. Combined with a flikency manager, up to 9 units (11 units under optimal conditions) can be installed. It provides reliable RF performance, antenna distribution, and automatic frequency management. Wireless connections can be made without requiring complex operations.
Stable RF performance
LCD screen status display: shows real-time battery life in hours and minutes
Remotely adjustable transmitter gain control
Built-in rechargeable lithium-ion battery charging port for Shure's GLX-D+ transmitter
XLR and 6.3mm output connectors
Rugged metal case

*Not compatible with first generation GLX-D transmitters.

■Features of the GLX-D1+ bodypack transmitter
The GLX-D1+ bodypack transmitter has a rugged metal ergonomic design. The reversible belt clip allows for comfortable and secure attachment in a variety of positions.
Automatically links to GLX-D+ digital wireless receiver for seamless frequency changes
Shure's proprietary lithium-ion rechargeable battery provides up to 17 hours of continuous use
Indoors: up to 30 meters under normal use, up to 60 meters under best conditions Outdoors: up to 20 meters under normal use, up to 50 meters under best conditions
Can be used with Shure microphones and guitar cables with TAF4 connectors

*Not compatible with first generation GLX-D receivers.

■WL93 Omni-directional Condenser Lavalier Microphone
The WL93 is an ultra-compact omni-directional condenser lavalier microphone designed for speech applications. It delivers accurate, clear sound quality that rivals that of a normal sized microphone. The frequency response is ideal for body-worn applications, providing improved presence as well as low-frequency roll-off. Ideal for broadcast presentations, speeches, classes, and public addresses.
Accurate, clear sound quality that rivals that of a standard-size microphone, despite its small size.
Smooth, extended, presence-enhancing frequency response optimized for chest-mount use
Tuned low-frequency roll-off reduces clothing friction and ambient noise.
Extended dynamic range with minimal distortion

■Included accessories
SB904 lithium-ion rechargeable battery
Carrying case
PS43J AC adapter

- Hardware kit
Reverse SMA coaxial cable (approx. 55 cm) x2
1/2-wavelength antenna x2
Antenna bulkhead adapter x2
Rack mount bracket (short) x1
Rack mount bracket (long) x1
Connecting plate x1
Rubber Legs

──────────────────────
GLX-D4+Half-rack receiver Product Specifications
■Dimensions: W196.8 x D162.97 x H41.8 mm (excluding antenna)
■Weight: 866 g
■Exterior material: Steel
■Power supply: 14.5V ? 17V, 600mA
■Spurious rejection: >35dB, typical
■Gain adjustment range: -18 to 42dB in 1dB increments
■Phantom power protection: Onboard
■Audio Output
　-Configuration
　　XLR output: Impedance balanced
　　6.35mm (1/4") output: Impedance balanced
　-Impedance
　　XLR output: 100 ohm
　　6.35mm (1/4") output: 100 Ω (50 Ω, unbalanced)
　-Full scale output
　　XLR: Line setting = +18 dBV, MIC setting = -12 dBV
　　6.35mm (1/4"): +12 dBV
　-Pin Assignment
　XLR outputs: 1 = ground, 2 = hot, 3 = cold
　6.35 mm (1/4") connector: Tip=Audio, Ring=Unused, Sleeve=Ground
　-Mic/Line switch: 30dB PAD
■Receiver Antenna Input
　Impedance: 50 ohm
　Antenna Type: 1/2-wavelength sleeve dipole
　Maximum input level: ?

──────────────────────
GLX-D1+Bodypack Transmitter Product Specifications
■Dimensions: H 115 x W 66.94 x D 28.51 mm (excluding antenna)
■Weight: 153.1 g (excluding batteries)
■Exterior material: Die-cast metal, black powder coated
■Power source: 3.7 V rechargeable lithium-ion
■Input impedance: 900 kΩ
■RF Transmitter Output: 10 mW E.I.R.P. max.
■Transmitter Input
　Connector: 4-pin male mini-connector (TA4M)
　Configuration: Unbalanced
　Maximum input level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp-p)
　Antenna type: Internal single-pole
　Pin assignment TA4M
　　　1: Ground (cable sealed)
　　　2: + 5 V bias
　　　3: Audio
　　　4: Connected to ground through active load (pin 4 floats on instrument adapter cable)

──────────────────────
WL93 Lavalier Microphone Product Specifications
■Format: Electret condenser
■Directionality: Omni-directional
■Frequency Response: 50Hz-20Hz
■Connector：TA4F
■Weight：16g
■Cable length：1.2m

Country of origin：China
Warranty：2-year manufacturer's warranty
