SHURE / GLXD14R+J/85-Z2

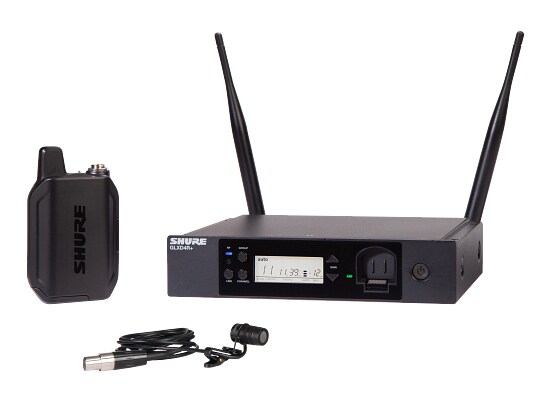

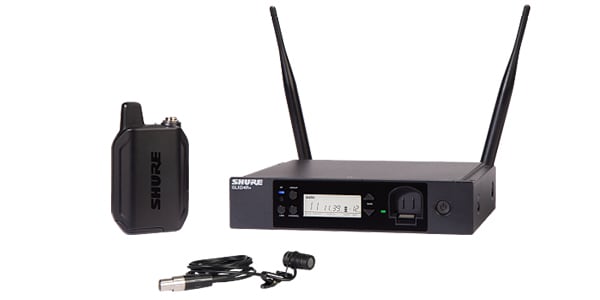

The GLX-D14R+/WL185 is a half-rack lavalier wireless system with receiver, ideal for presentation and speech applications. Operating in the 2.4 GHz frequency band, it delivers excellent digital audio quality without the need for complex operation. Combined with the optional Flikency Manager, the system can be installed with up to 9 units (or 11 units under optimal conditions). It provides reliable RF performance, antenna distribution, and automatic frequency management.

■GLX-D+ Digital Wireless System Series Overview The GLX-D+ Digital Wireless System is the perfect solution for musicians and lecture organizers who want a reliable wireless system that doesn't require complicated operations and that won't break. It manages all operations and ensures high reliability, so you can focus on your performance. ■GLX-D4R+ Half-Rack Receiver Features The GLX-D4R+ is a half-rack receiver that provides excellent audio and stable performance. When combined with a Frequency Manager, up to 9 units (11 units under optimal conditions) can be installed. It provides reliable RF performance, antenna distribution, and automatic frequency management. Wireless connection without the need for complicated operations. - Stable RF performance - LCD screen status display: shows real-time battery life in hours and minutes - Remotely adjustable transmitter gain control - Built-in charging port for Shure's lithium-ion rechargeable battery for GLX-D+ transmitters - XLR and 6.3mm output connectors - Robust metal case * Not compatible with first-generation GLX-D transmitters. ■Features of the GLX-D1+ bodypack transmitter The GLX-D1+ bodypack transmitter is an ergonomic design made of robust metal. The reversible belt clip allows for comfortable and secure mounting in a variety of positions. ・Automatically links to the GLX-D+ digital wireless receiver for seamless frequency changes ・Shure's proprietary lithium-ion rechargeable battery provides up to 17 hours of continuous use ・Range: Indoors: up to 30m under normal use, up to 60m under optimal conditions Outdoors: up to 20m under normal use, up to 50m under optimal conditions ・Can be used with Shure microphones and guitar cables with TAF4 connectors *Not compatible with first-generation GLX-D receivers. ■WL185 Cardioid Lavalier Microphone The WL185 captures sophisticated personal voices. It is ideal as a microphone for presentations, speeches and classroom speeches. - Wide dynamic range and frequency response reproduces accurate sound across the audio spectrum - Microphone head can be replaced to suit the application (sold separately) - Transformerless output reduces noise even when the cable is extended long Accessories SB904 lithium-ion rechargeable battery Carrying case PS43J AC adapter - Hardware kit Reverse SMA coaxial cable (approx. 55 cm) x 2 1/2 wavelength antennas x 2 Antenna bulkhead adapters x 1 Rack mount bracket (short) x 1 Rack mount bracket (long) x 1 Connecting plate x 1 Rubber feet ────────────────────── GLX-D4+ Half-rack Receiver Product Specifications ■Dimensions: W 196.8 x D 162.97 x H 41.8 mm (excluding antenna) ■Weight: 866 g ■Exterior material: Steel ■Power supply: 14.5 V to 17 V, 600 mA ■Spurious rejection: > 35 dB, typical ■Gain adjustment range: -18 to 42 dB 1dB increments ■Phantom power protection: Equipped ■Audio output - Configuration - XLR output: Impedance balanced - 6.35mm (1/4") output: Impedance balanced - Impedance - XLR output: 100Ω - 6.35mm (1/4") output: 100Ω (50Ω, unbalanced) - Full-scale output - XLR: Line setting = +18dBV, MIC setting = -12dBV - 6.35mm (1/4“): +12 dBV - Pin assignment - XLR output: 1=ground, 2=hot, 3=cold - 6.35mm (1/4“) connector: Tip=audio, Ring=unused, Sleeve=ground - Mic/Line switch: 30dB PAD ■Receiver antenna input - Impedance: 50Ω - Antenna type: 1/2 wavelength sleeve dipole - Maximum input level: -20dBm ────────────────────── GLX-D1+ Bodypack Transmitter Product Specifications ■Dimensions: H 115 x W 66.94 x D 28.51 mm (excluding antenna) ■Weight: 153.1 g (excluding battery) ■Exterior material: Die-cast metal, black powder coating ■Power source: 3.7 V rechargeable lithium-ion ■Input impedance: 900 kΩ ■RF transmit power: 10 mW E.I.R.P. maximum ■Transmitter input 　・Connector: 4-pin male mini connector (TA4M) 　・Configuration: Unbalanced 　・Maximum input level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp-p) 　・Antenna type: Internal monopole 　・TA4M pin assignment 　　　1: Ground (cable shield) 　　　2: + 5 V bias 　　　3: Audio 　　　4: Connect to ground via active load (pin 4 is floating on instrument adapter cable) ────────────────────── WL185 Lavalier Microphone Product Specifications ■Type: Electret condenser ■Directivity: Cardioid ■Frequency response: 50Hz-17kHz ■Connector: TA4F ■Weight: 26g ■Cable length: 1.2m Country of origin: China Warranty: 2-year manufacturer's warranty
