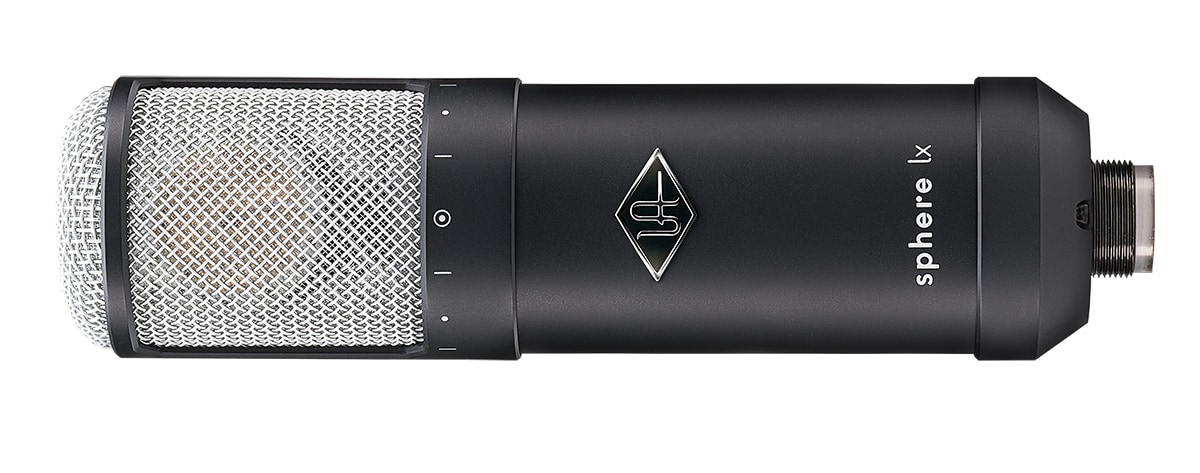

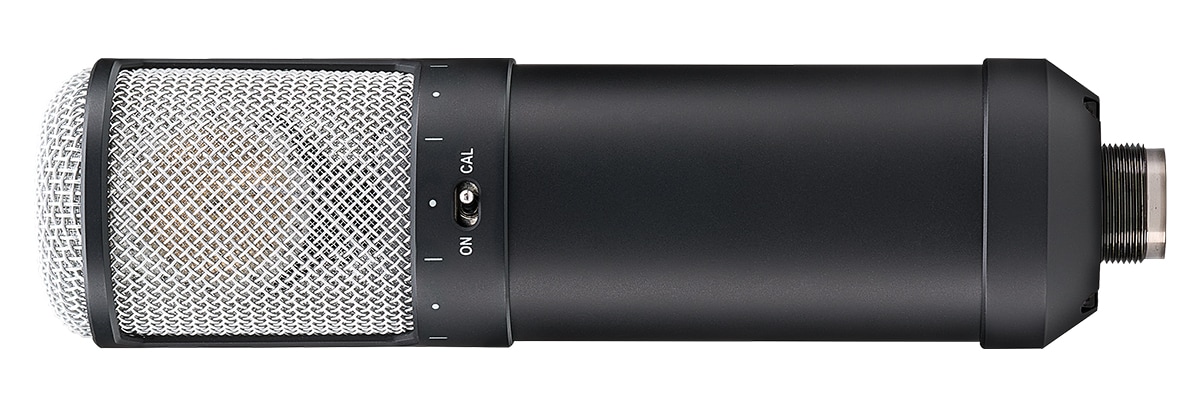

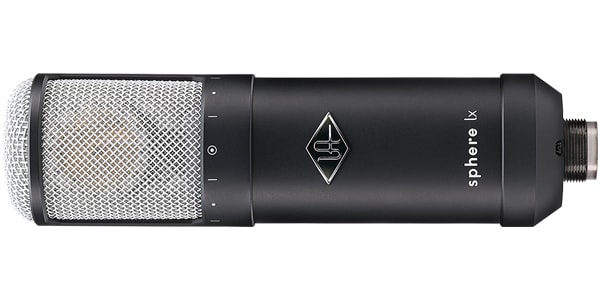

UNIVERSAL AUDIO / Sphere LX

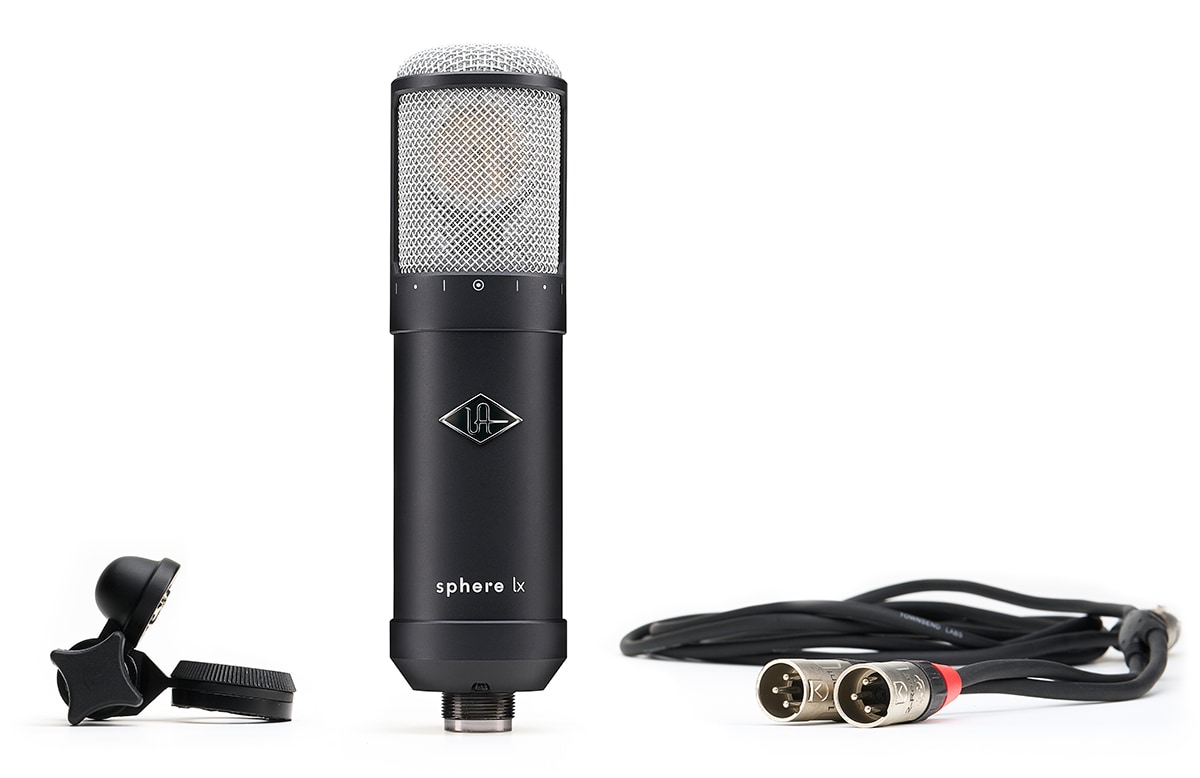

Equipped with 20 types of microphone models. Dual mode allows classic microphone pairing. Includes approximately 3m microphone cable, microphone stand mount, and carrying case.

Universal Audio Sphere DLX/LX is here for all recording engineers and musicians who want to use world-class microphones, even vintage ones, without worrying about cost or maintenance.
Exclusive Sphere technology provides unprecedented sonic detail, versatility, or control during and after recording.
Experience authentic tone, rich and cultivated from a long recording history.

・Condenser microphone with the lowest noise in its class
Equipped with gold sputtered dual diaphragm. best in class basis
Achieving this performance. Stand mount, custom 2-channel cable, and carrying case
We also have a wide selection of accessories, shock mounts (DLX only), and accessories.

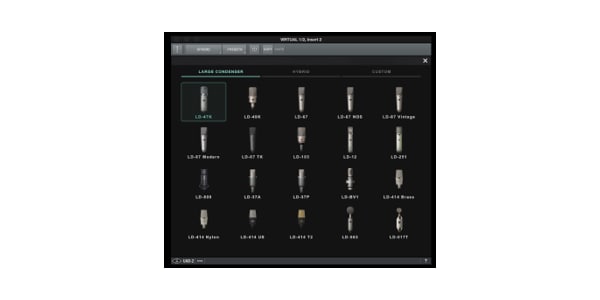

・Record with the most popular microphone collection in history (DLX: 38 models, LX:
20 models*)
Numerous legendary microphone models including Neumann, Telefunken, AKG, Sony and more
It is equipped with The most popular ribbons, capacitors, and dynamics of all time.
A micro-mic will be provided to your micro-rocker.
*Paid versions of Sphere-specific UAD plug-ins such as “Ocean Way Mic Collection” and “Putnam
Mic Collection”, LX users will also be provided with 38 different models.
vinegar.

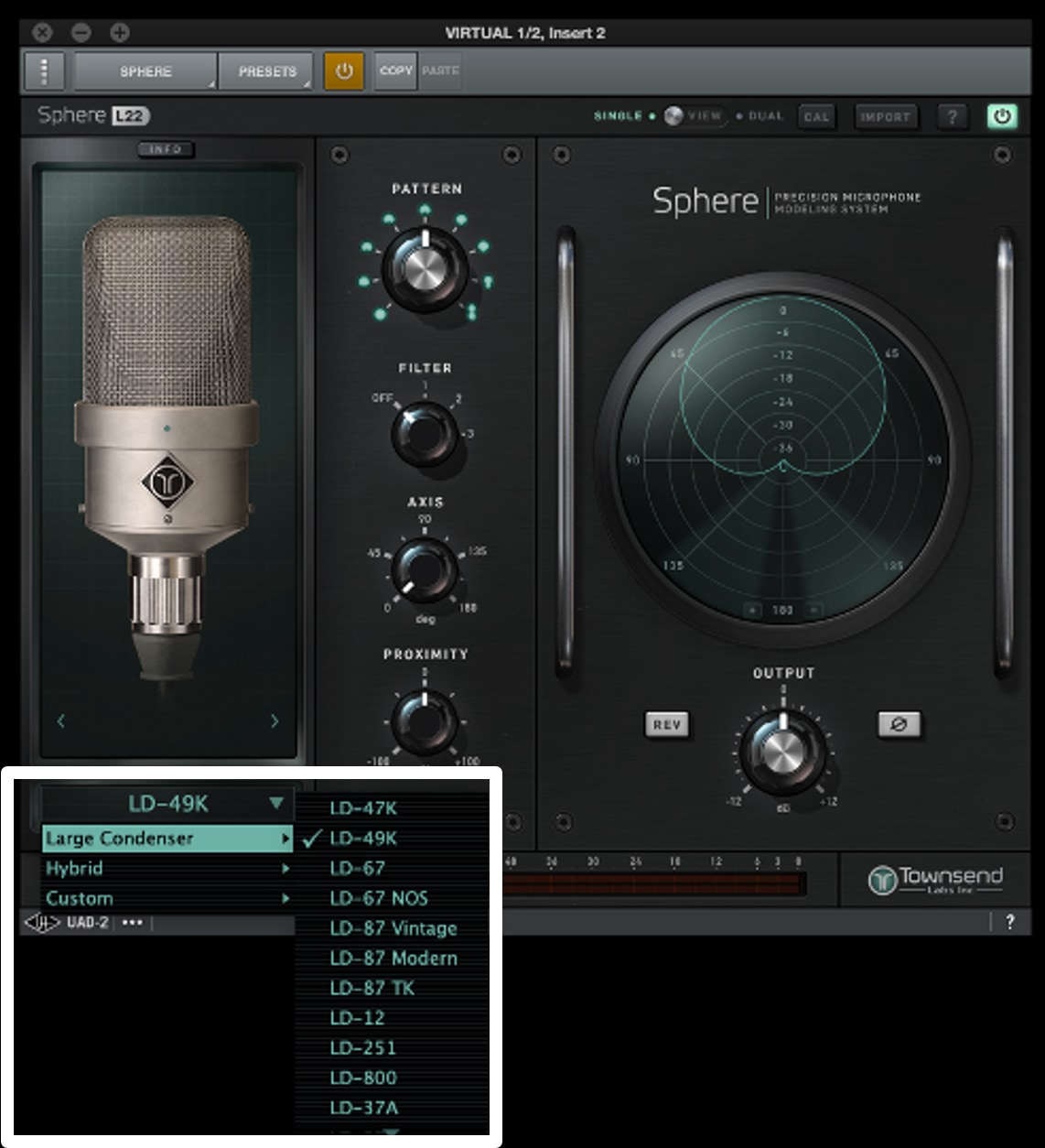

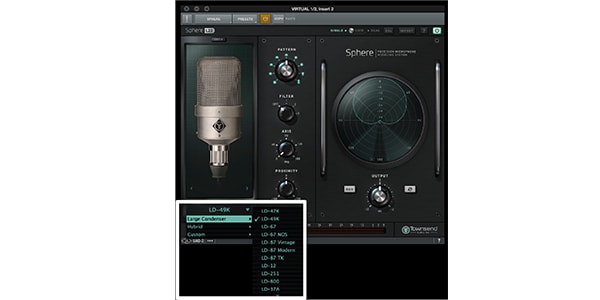

-Mic type, polar pattern, and other microphone characteristics can be changed even after recording

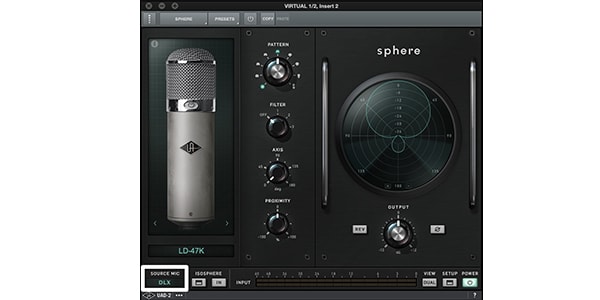

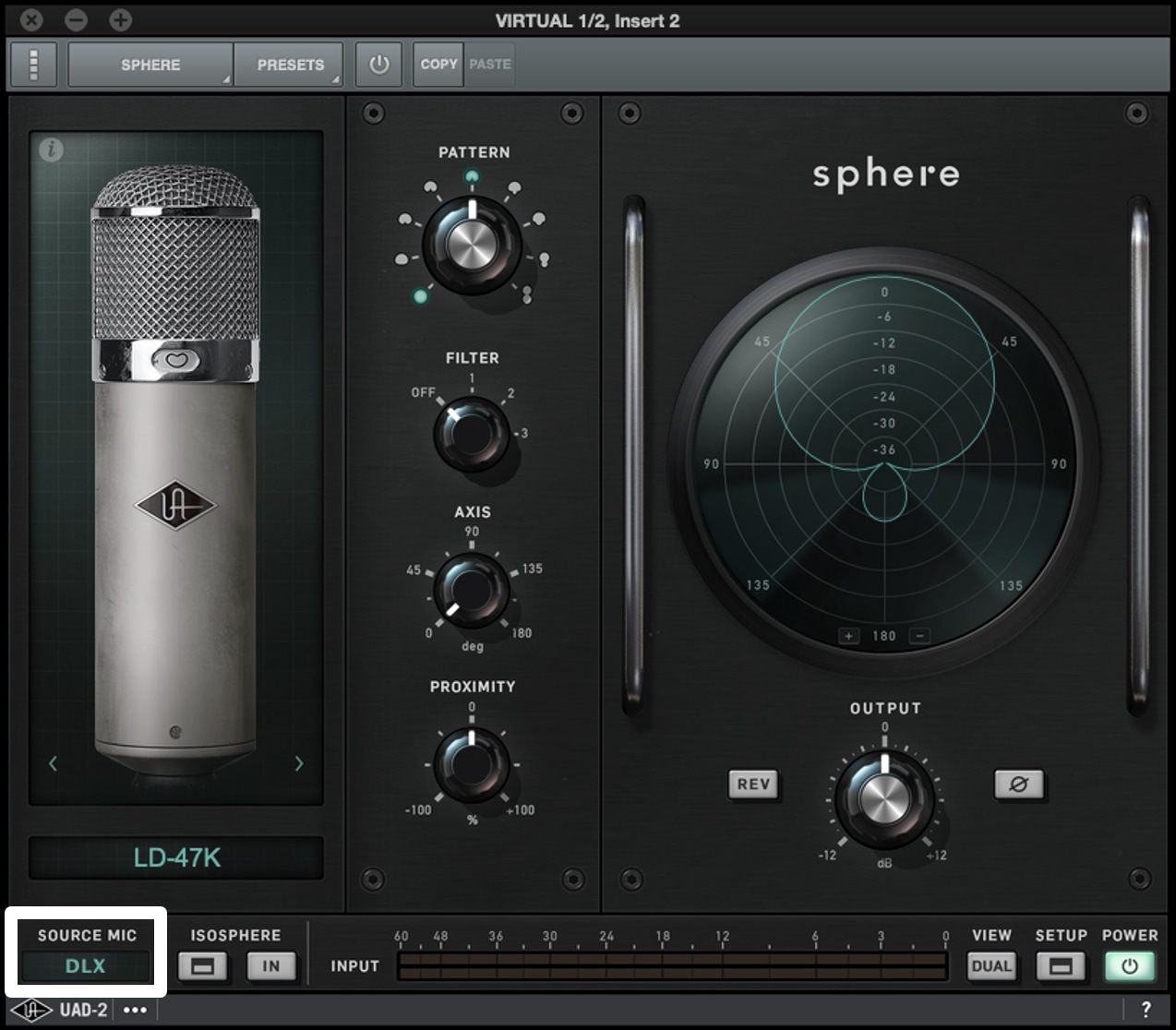

Sphere plug-in is available in native version and Apollo/UAD version. The format is also VST,
Supports VST3, AU, AAX Native, AAX DSP (UAD version supports VST, AU, AAX
Native).
・Blend two classic monaural microphones using dual mode
Blend two monaural microphones and create snare and guitar sounds by combining them.
This allows you to record the rich reverberations of a turret cabinet, etc.

・Real-time microphone audition with Apollo interface

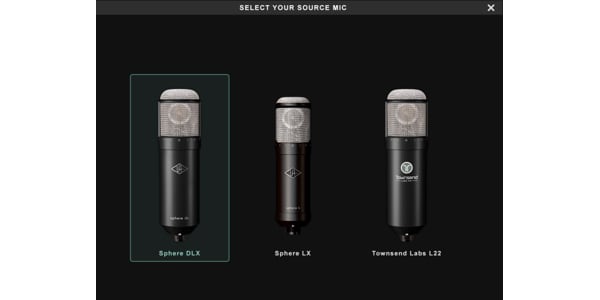

Sphere DLX/LX is compatible with various audio interfaces equipped with mic preamps.
Can be used with your DAW to switch mic types before, during, and of course after recording.
You can try changing it.
Furthermore, when used with the Apollo interface, real-time data with virtually no latency is possible.
monitoring becomes possible.

・Isosphere function that reduces unnecessary coloring in the recording space
Reduce unnecessary coloration due to room-specific characteristics or isolation filters.
Equipped with Isosphere function.
*It is also included in the paid version of the Sphere-specific UAD plug-in.

・Frequency characteristics: 20 Hz - 20 kHz
・Equivalent noise level: 10 dBA
・Maximum SPL (1% THD): 145 dB
・Dynamic range: 135 dB
・Sensitivity: -39 dB (11 mV) ref 1V @ 1 Pa, 1 kHz
・Output terminal: 5 pin XLR (male)
・Breakout cable: 5-pin XLR (female) to dual 3-pin XLR (male)
・Output impedance: 200?
・Recommended load impedance: 1000? or more
・Phantom power
Voltage: 48V DC for each channel
Current: 3 mA for each channel (typical)
・External dimensions: length 195 mm x diameter 50 mm
・Body weight: Approx. 545 g

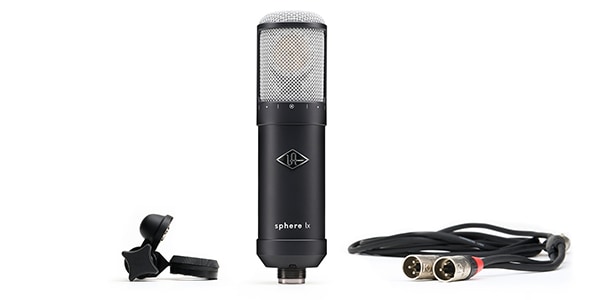

・Accessories: Microphone stand mount, microphone cable (approximately 3m), carrying case
vinegar

〇Minimum operating environment
[Hardware]
Mic preamp with two channels of balanced XLR input and +48V phantom power
Or an audio interface

【software】

Apple Silicon or Intel processor
macOS 10.15 Catalina, 11 Big Sur, 12 Monterey, 13 Ventura


Intel or AMD processor
Windows 10, 11 (64 bit)


Native (CPU processing): VST2, VST3, AAX, Audio Units
DSP (real-time processing):
UAD: VST2, AAX, Audio Units HDX: AAX

*UA Connect software is required to register the product and download the native version software.
Requires software v1.3.3 or later.
*Apollo/UAD version requires UAD software v10.2.2 or later.
