Blackmagic Design / SWATEMTVSTA/HD08

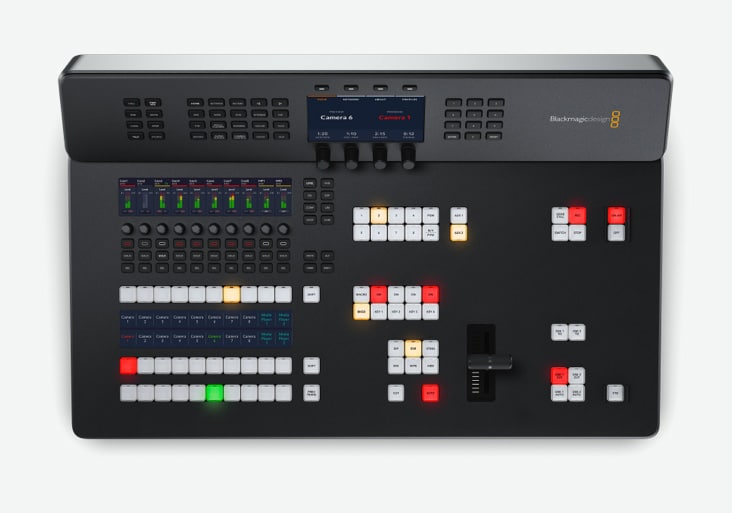

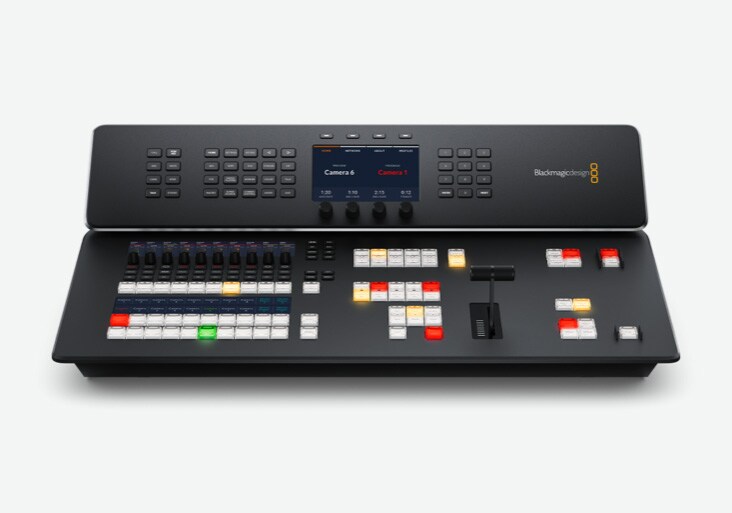

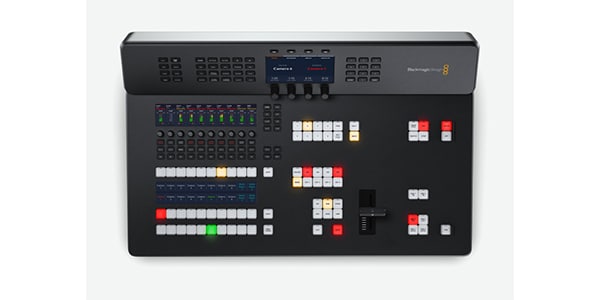

A compact switcher with a built-in broadcast control panel. It supports eight 3G-SDI inputs with format conversion function.

■Live production switcher
【specification】
■SDI video input: 8
■SDI video output: 12
■SDI rate: 1.5G, 3G
■HDMI video output: 1
■Total audio input:
XLR balanced analog audio x2
BNC 32ch MADI digital audio x1
RCA stereo analog audio x2
5 pin XLR talkback x1
■Total audio output:
1/4 inch jack terminal analog audio x4
BNC 64ch MADI digital audio x1 (up to 50 active)
5 pin XLR talkback x1
■SDI audio input:
4ch embedded audio on all SDI inputs
■SDI audio output:
2ch embedded audio on all SDI outputs
■Time code connection:
BNC input x1, BNC output x1
■Reference input:
BNC input x1, BNC output x1
Trilevel sync or black burst
■Video input resynchronization: Total 8 inputs
■Frame rate/format converter:
Total 8 inputs
■SDI Aux output: 2
■SDI program output: 1
■Webcam output:
USB-Cx2 (supports 720p or 1080p at PGM frame rate)
■Total number of multiviews:
3G-SDIx1
HDMIx1
■Remote:
RJ12 (compatible with RS-422)
■Control panel connection:
ethernet
Connect the panel and chassis directly or via network
■Internal time code generator: supported
■Talkback:
RJ45 (for third party talkback systems)
■Tally output:
Add Blackmagic Design GPI and Tally Interface with Ethernet connection
*Not included
■Ethernet:
RJ45x4 (with internet network switch), supports 10/100/1000 BASE-T
■Computer interface:
USSB-Cx2 (USB 2.0 compatible. For external drive recording, webcam output, software control, software update, switcher connection)

【format】
■SD video format: Not supported
■HD video input format:
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50
1080p59.94, 1080p60
■SDI standard:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
■Video sampling: 4:2:2
■Color accuracy: 10-bit
■Color space: REC709
■SDI automatic switching:
Automatic detection of 1.5G-SDI and 3G-SDI Level A or Level B

[Product specifications]
■Upstream keyer: 4
■Downstream keyer: 2
■Advanced Chroma Keyer: 4
■SuperSource: 1
■Linear/luma keyer: 7
■Transition keyer (Stinger/DVE):
Stinger x1, DVEx1
■Number of layers: 8
■Pattern generator: 7
■Color generator: 2
■Control panel:
integrated panel
Full control over switching and configuration
■Routable windows: 16
■Window source label: supported
■Tally: Red is program output, green is preview output
■Talkback: Supported
■Mix minus: supported

[Streaming]
■Direct delivery:
Live streaming directly using Real Time Messaging Protocol (RTMP) via Ethernet or a shared internet connection via USB-C

[Recording]
■Direct video and audio recording:
USB-C expansion port lets you record directly to external media
■Video recording:
The program supports streaming quality settings and ATEM video formats, and is recorded in H.264 .mp4 files with AAC audio.
■Media format:
Supports media formatted as ExFAT (Windows/Mac), APFS or HFS+ (Mac)

[Multi-view monitoring]
■Multi-view monitoring:
Multiview x1 (configurable to 16, 13, 10, 7, 4 views) via SDI and HDMI
Supports program, preview, input, media player, DSK, SuperSource, and clean feed monitoring
Optional display of labels and audio meters
■Multi-view video format: HD
■Minimum display resolution: 1366x768

[Media player]
■Media player: 2
■Channel:
Fill & key for each media player
■Still image capacity of media pool: 20
■Still image format of media pool:
PNG, TGA, BMP, GIF, JPEG, TIFF
■Media pool clip capacity:
Up to 1080p60x2
■Maximum number of frames for media player clips (720 HD):
400 frames
■Maximum frame number of media player clips (1080 HD):
200 frames
■Media pool video file format:
TGA sequence
■Media pool audio file format:
WAV, MP3, AIFF

【process】
■Processing delay:
Less than 10 lines (if genlocked and in the same format as the switcher)
■Audio mixer:
58ch mixer
On/Off/Audio-Follow-Video selectable
Measure levels and peaks
master gain control
6-band parametric EQ, various dynamics (expander, gate, compressor, limiter)
■Camera control:
Controls focus, iris, and zoom for compatible lenses when used with most Blackmagic Design cameras
Also supports operation of camera settings such as gain, white balance, tint, shutter, ND filter, color corrector, tally, and recording start/stop.
■Down conversion: Not supported
【software】
■Included control panel:
Includes ATEM Software Control Panel for free (Mac 12.0 Monterey, Mac 13.0 Ventura or later, Windows 10 or 11)
■Software update:
Direct USB or Ethernet connection to Mac OS or Windows computers
Includes ATEM Setup Utility

【operating system】
Mac 12.0 Monterey
Mac 13.0 Ventura or later
Windows 10, 11.

【size】
■SIZE：585.2(W)x161.2(H)x375.2(D)
■6.76kg
*Power cable is sold separately.
※※ The warranty period for this product is one year of the manufacturer's warranty.
