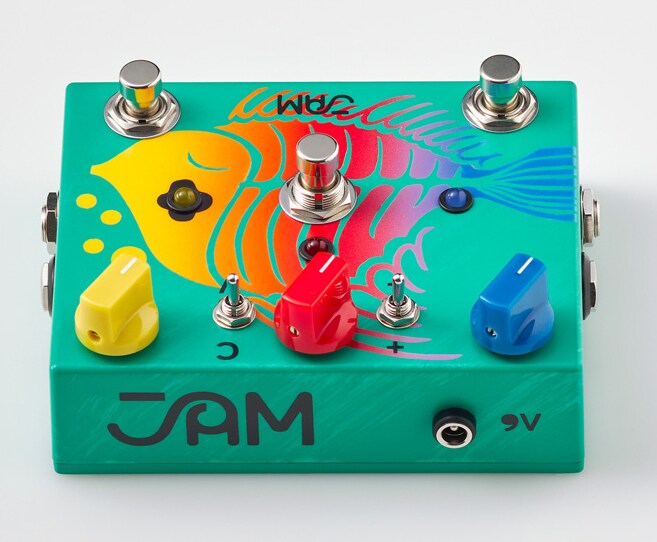

JAM PEDALS / Ripply Fall

The Ripply Fall chorus is a guitar effect pedal that excellently combines WaterFall and Ripple.

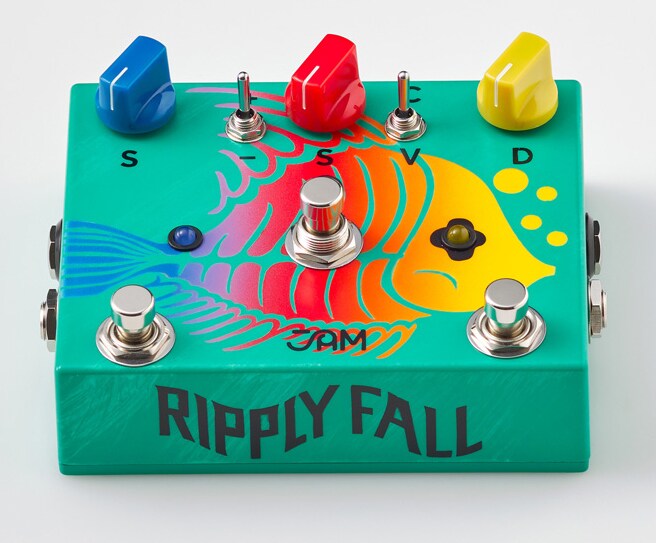

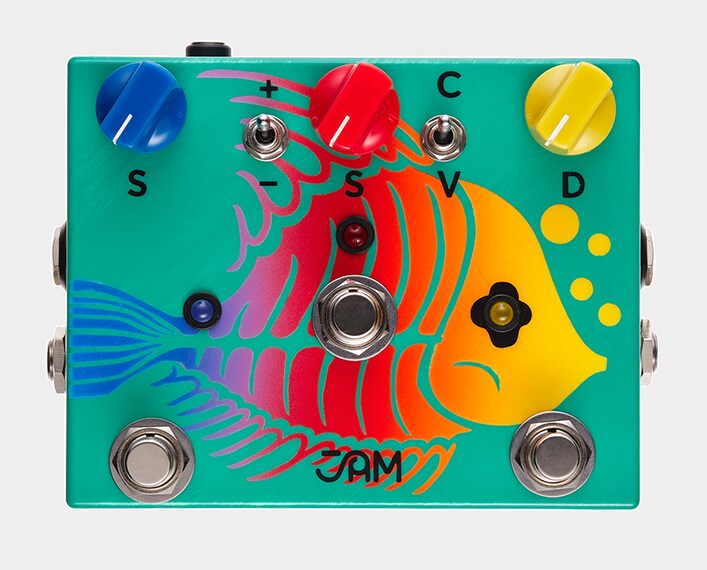

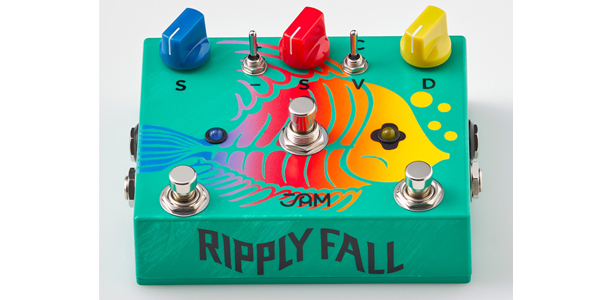

■CONTROLS
1. DEPTH controls the WaterFall’s depth on top of the Dry signal
2. SPEED (middle) sets the WaterFall’s speed
3. SPEED (left) sets the Ripple’s Speed
4. The left footswitch engages the Ripple
5. Right footswitch engages the WaterFall
6. The middle footswitch engages the WaterFall speed multiplier
7. “C / V” 2-way toggle-switch selects between the WaterFall’s Chorus and Vibrato modes
8. “+ / -“ 2-way toggle-switch selects between discrete (-) or more pronounced (+) WaterFall modulation
9. The internal trimmer adjusts the WaterFall’s maximum speed

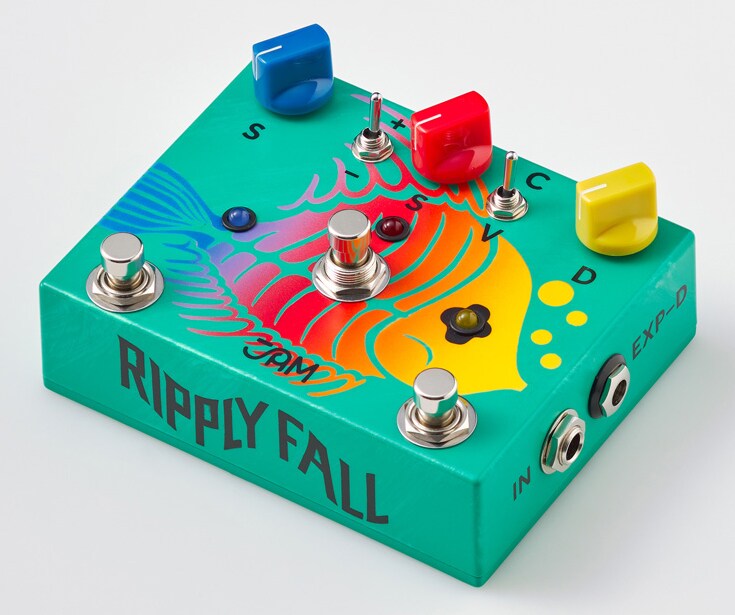

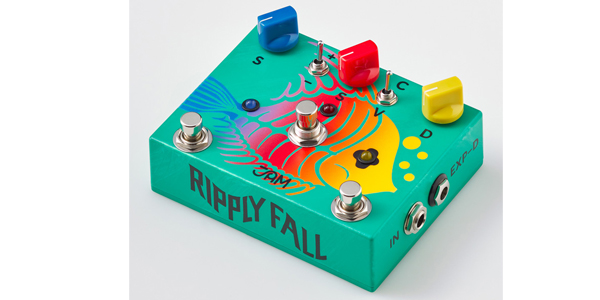

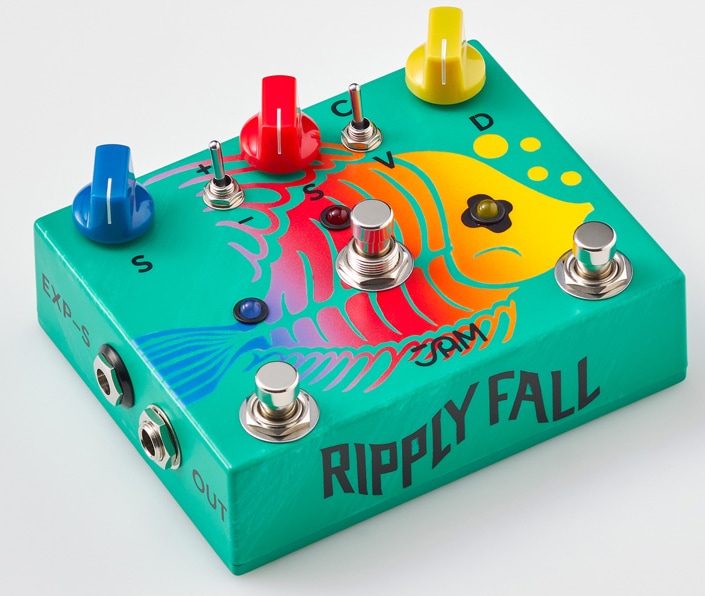

■EXPRESSION PEDAL INPUTS
1. DEPTH: Expression pedal input to control the WaterFall’s depth
2. SPEED: Expression pedal input to control the WaterFall’s speed

■SPECIFICATIONS
1. True Bypass

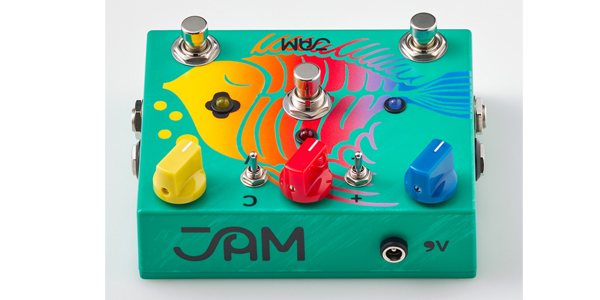

2. Works with 9V DC adaptor (tip-negative)
3. Power consumption: 26 mA
4. Dimensions (jacks, pots, etc. included): 13 x 10 x 5.1 cm / 5.1 x 3.9 x 2 inches
5. Weight: 430g / 0.95 lbs.
