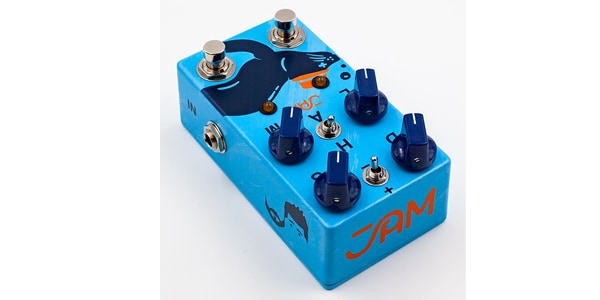

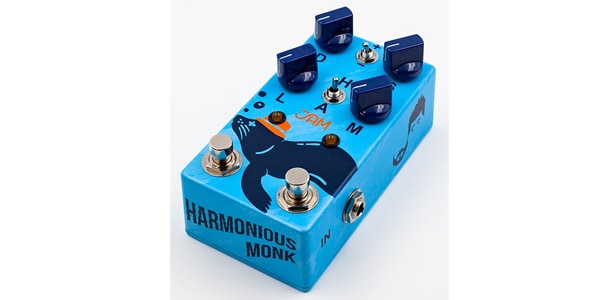

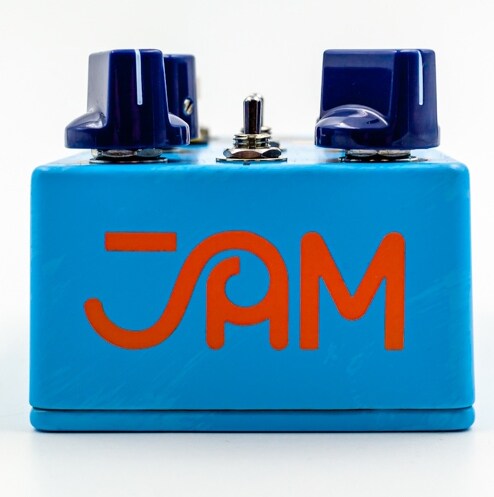

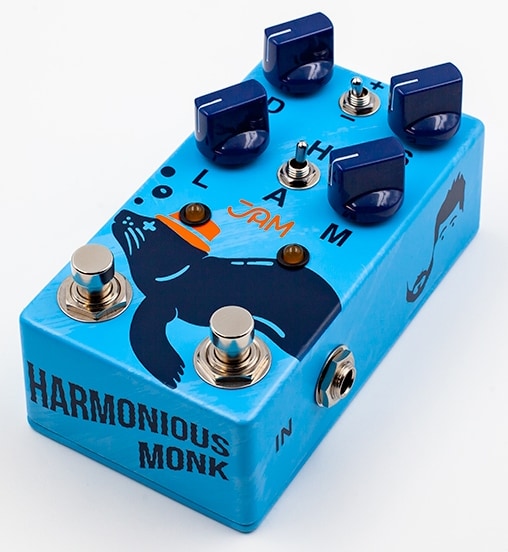

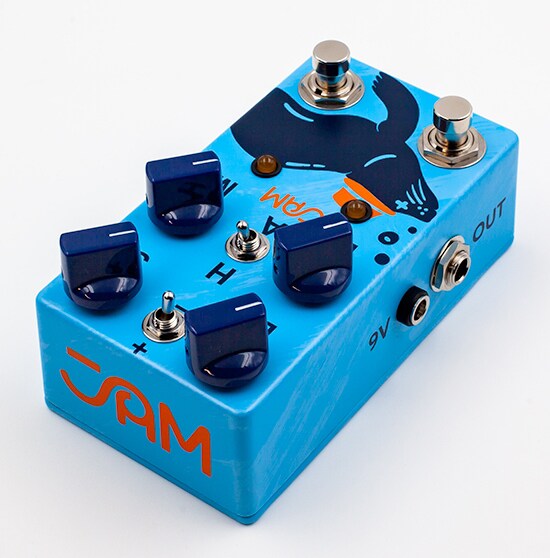

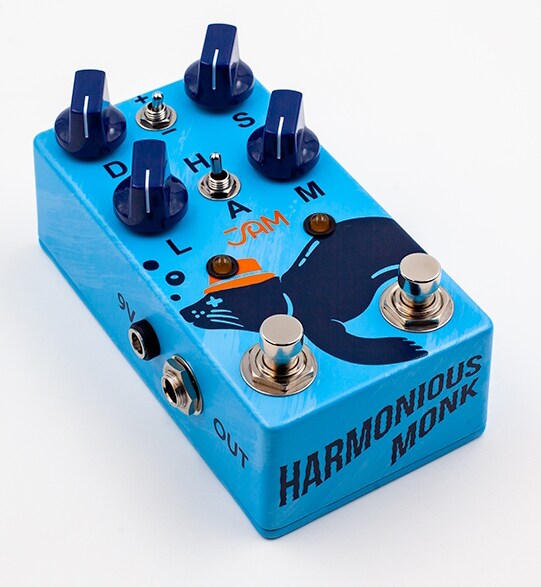

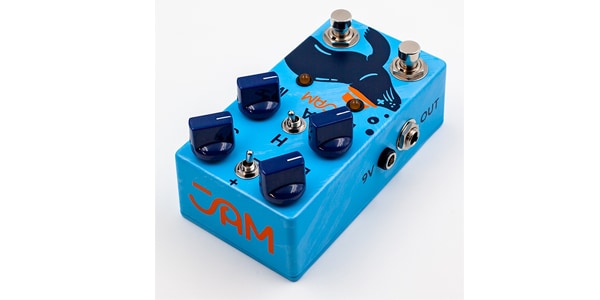

JAM PEDALS / Harmonious Monk

The Harmonious Monk uses all analog circuits and uses two selectable LFOs to achieve a wide range of modulation.

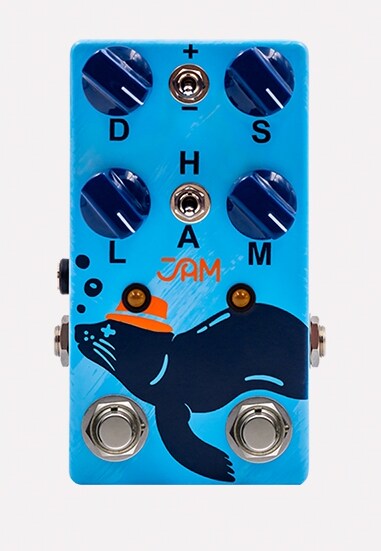

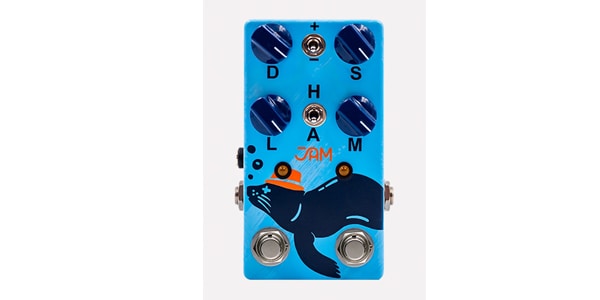

■CONTROLS
KNOBS:
? D = Depth of tremolo effect
? S = Speed (rate) of tremolo
modulation
? L = Master Volume Level
? M = Mix between dry and affected signal
TOGGLE-SWITCHES:
? +/-: Intense (+) / Subtle (-) LFO
settings
? H/A: Harmonic or Amplitudemodes
FOOTSWITCHES:
? RIGHT: Turns the pedal ON / OFF
? LEFT: Standard/double speed
JACKS:
? IN: Input
? OUT: Output
? 9V: 9V DC power(see specifications)INTERNAL TRIMMERS:
? LEFT: Treble EQfor effected sound
? MIDDLE: Midrange EQ for effected sound
? RIGHT: Bass EQ for affected sound

■SPECIFICATIONS
? True Bypass
? Works with 9V DC adaptor(centre-negative, isolated power supply recommended)
? Power consumption (max): 35 mA
? Dimensions (jacks, pots etc. included): 7.5 x 12 x 5.6 cm / 2.9 x 4.7 x 2.2 inches
? Weight: 300g / 0.66lbs
? Output and input are in-phase
