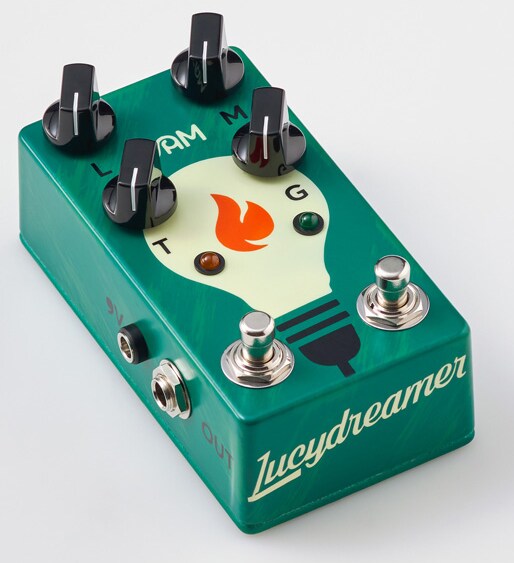

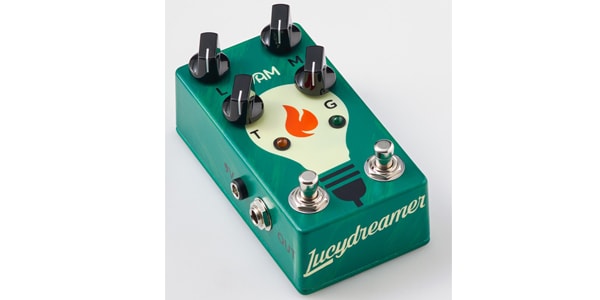

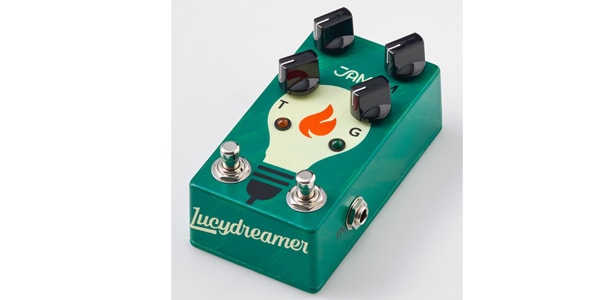

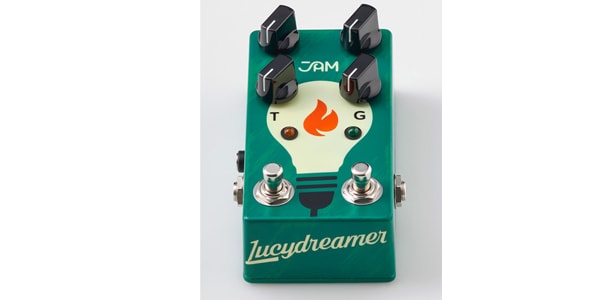

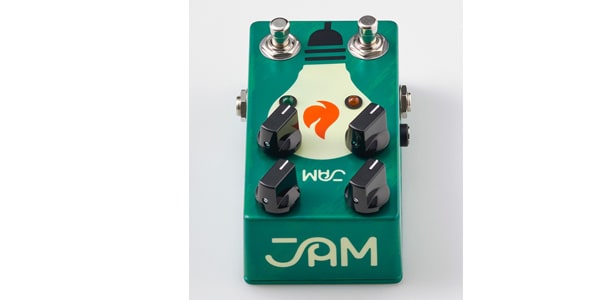

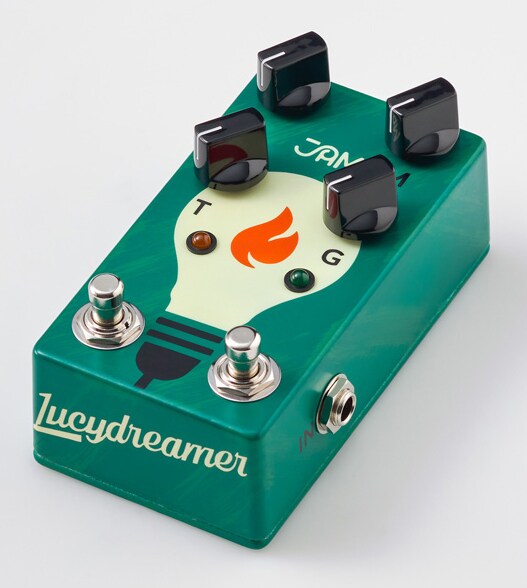

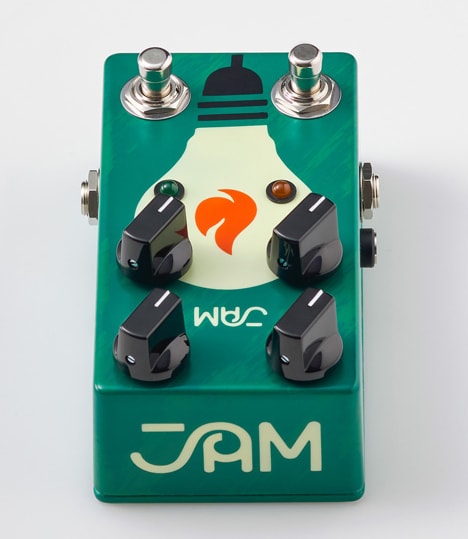

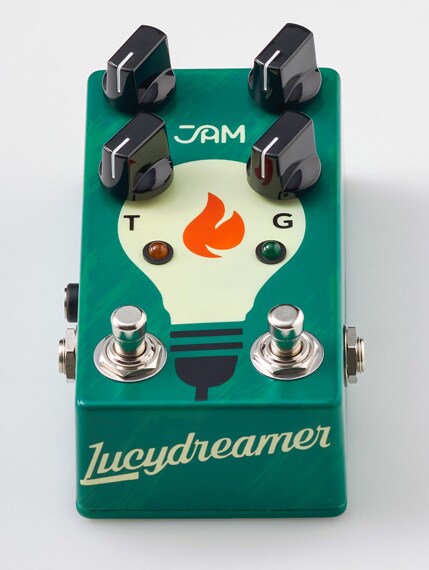

JAM PEDALS / Lucydreamer

Lucydreamer is a dry/wet overdrive. Compared to Tube Screamer, it has less midrange, less compression, and more low end, so it has a unique overdrive sound.

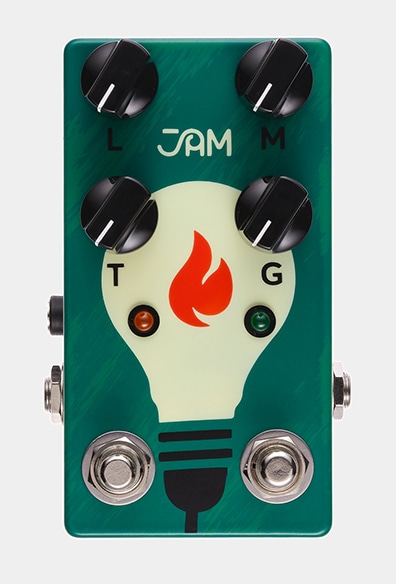

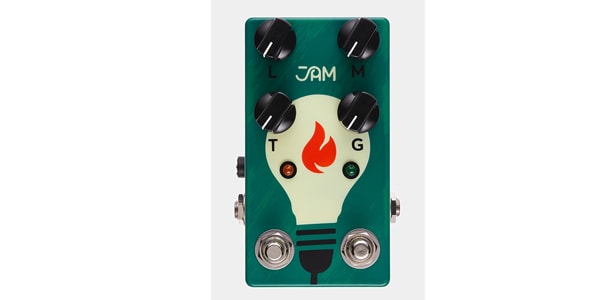

■CONTROLS
1. Right footswitch engages the Lucydreamer
2. The left footswitch engages the high-gain-stage
3. LEVEL controls the master output level
4. TONE adjusts the Overdrive’s tone
5. GAIN sets the Overdrive’s gain level
6. MIX sets the blend ratio between the clean and overdriven signal

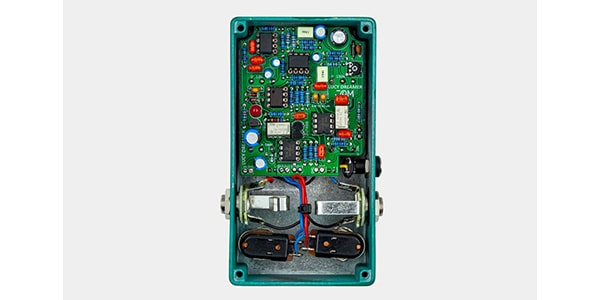

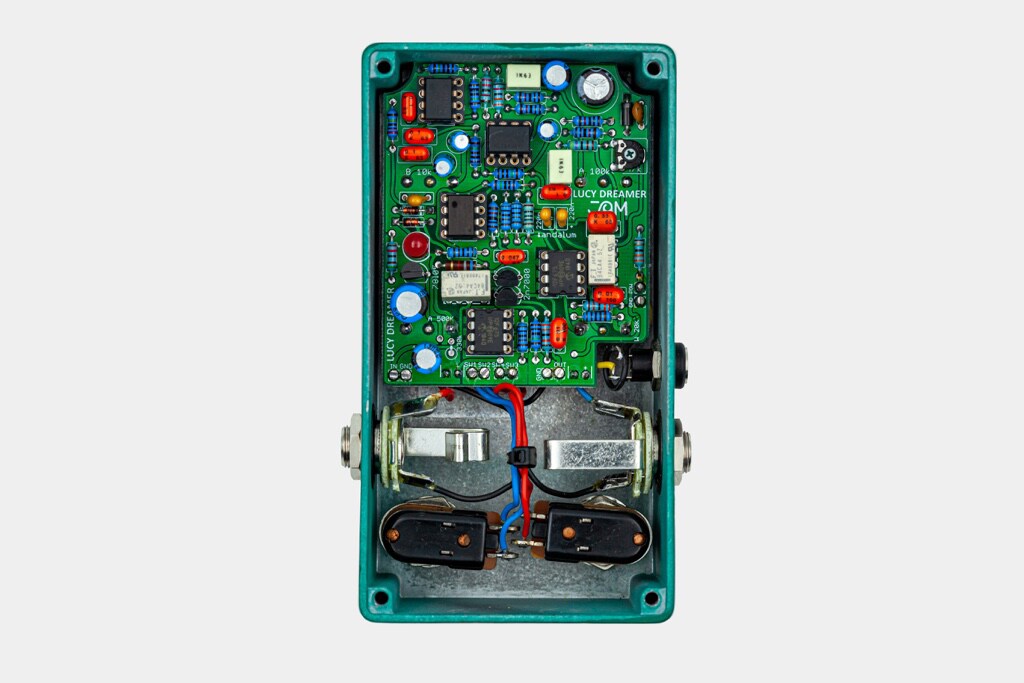

7. Internal trimmer to set the high-gain-stage’s output level

■SPECIFICATIONS
1. True Bypass
2. Works with 9V DC adaptor (tip-negative)
3. Power consumption: 18 mA
4. Dimensions (jacks, pots, etc. included): 7.5 x 12 x 5.6 cm /2.9 x 4.7 x 2.2 inches
5. Weight: 300g / 0.66 lbs
