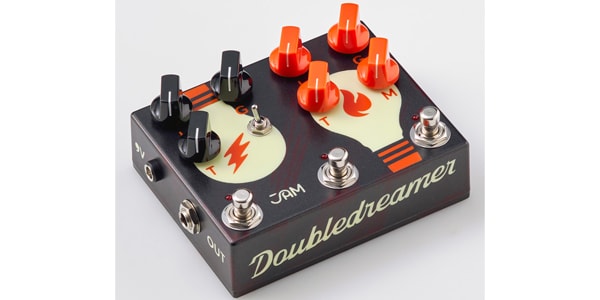

JAM PEDALS / Double Dreamer

The Double Dreamer is a drive pedal that combines two single overdrive units, the Tubedreamer, and the Lucydreamer, into a

■CONTROLS
● Right footswitch engages the Lucydreamer
● Left footswitch engages the Tubedreamer
● Middle footswitch engages the high-gain function
● LEVEL (left) controls the Tubedreamer’s output level
● TONE (left) adjusts the Tubedreamer’s tone
● GAIN (left) sets the Tubedreamer’s gain level
● 3-way toggle-switch assigns the high-gain function as follows
Left assigns it to the Tubedreamer
Right assigns it to the Lucydreamer
Middle assigns it to both
● MIX sets the blend ratio between the clean and overdriven signal for the Lucydreamer
● LEVEL (right) controls the Lucydreamer’s output level
● TONE (right) adjusts the Lucydreamer’s tone
● GAIN (right) sets the Lucydreamer’s gain level
● The left internal trimmer sets the high-gain stage output level for the Lucydreamer in relation to the low-gain-stage
● The right internal trimmer sets the high-gain stage output level for the TubeDreamer in relation to the low-gain-stage

■ROUTING CONTROLS
Internal dip-switches determine the Doubledreamer’s signal routing
Default routing (Series: input → Lucydreamer → Tubedreamer → output)
Two left dip-switches UP & 2 right dip-switches
DOWN
Independent routing (Y mode: input signal splits to both overdrive circuits) 2 left dip switches DOWN & 2 right dip-switches UP. In order for this mode to work properly, you will need two “Y” insert cables (stereo jack to two mono jacks)
? The IN jack becomes the Lucydreamer side’s breakout point (tip is input, ring is output)
? The OUT jack becomes the Tubedreamer breakout point (tip is output, the ring is input)

■SPECIFICATIONS
● True Bypass
● Works with 9V DC adaptor (tip-negative)
● Power consumption: 110 mA
● Dimensions (jacks, pots etc. included):13 x 10 x 5.1 cm / 5.1 x 3.9 x 2 inches
● Weight: 430g / 0.95 lbs.
