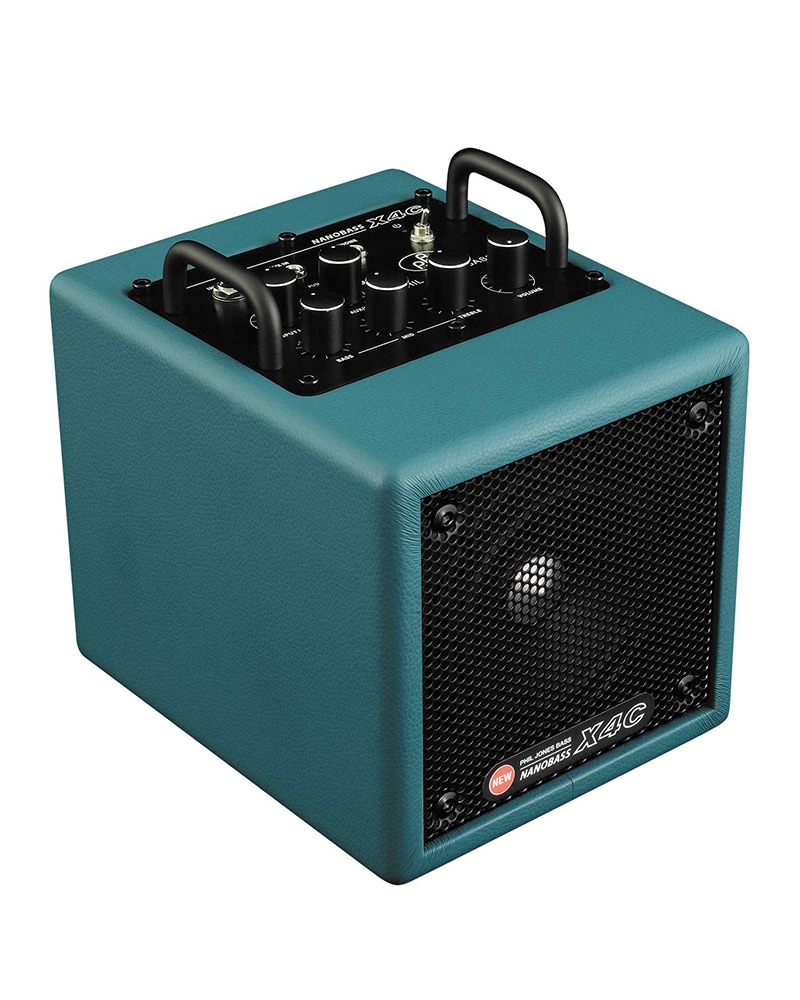

PJB（PHIL JONES BASS） / NANOBASS X4C Peacock Blue

A new model compatible with a mobile battery has been added to the classic small bass amp series. The combination of a high-performance 4-inch speaker and a passive radiator RALFER delivers rich bass sounds that you would never imagine from such a compact size. With a flat and wide-range frequency response, this high-grade amp can be used not only as a bass amp, but also for guitars, keyboards, and more. It also supports Bluetooth like the X4. This is a winter-only color!

■Bass combo amp
■Peacock blue
■Output: 35W (when using AC)
■Speaker: PJB Custom 4"" x1, RALFER passive radiator

■Frequency characteristics: 68Hz - 15kHz
■Input: INPUT (1/4""), AUX (3.5mm stereo mini), Bluetooth (select either AUX/BT)
■Bluetooth standard: 5.0 (SDC, AAC, aptX, aptX HD compatible)
■Controls: Input Level, 3bandEQ, AUX/BT Volume, Master Volume
・Bass 100Hz, +/-15dB
・Mid 1kHz(Band width 120Hz-10kHz), +/-15dB
・Treble 10kHz, +/-15dB
・AUX/BT switches each time you press AUX/BT Volume. A long press will cancel the BT connection.
■Output: Headphone out (3.5mm stereo mini)

■Power supply: AC100-240V, USB-C 12-20V/1.5-2.25A
■Accessories: AC cord

Power can be supplied using a commercially available mobile battery. Please use a battery that is compatible with the USB PD standard and can output a voltage of 12V or higher. It cannot output USB power, only supplies power. When the battery is connected and ready for use, the LED next to the USB-C socket lights green. It may take a few seconds for the LED to light up.


[Usable battery conditions]
1. Mobile battery compatible with USB PD (PD=USB standard)
2. USB output is 12-20V/1.5-2.25A

*Please note that it cannot be powered by a 5-9V output battery. Also, we do not guarantee that it can be used with all batteries.
*Amplifier output, sound quality, and usable time will vary depending on battery specifications. Please check the manual for details.
*With some batteries, the protection circuit may activate and stop the amplifier when the input/output is excessive.
*Battery not included.

■Size: 160(W) x 200(H) x 197(D)mm
■Weight: 2.6kg

*This is a winter-only color, so quantities are limited.
