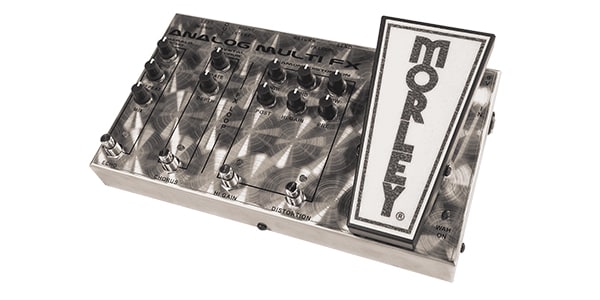

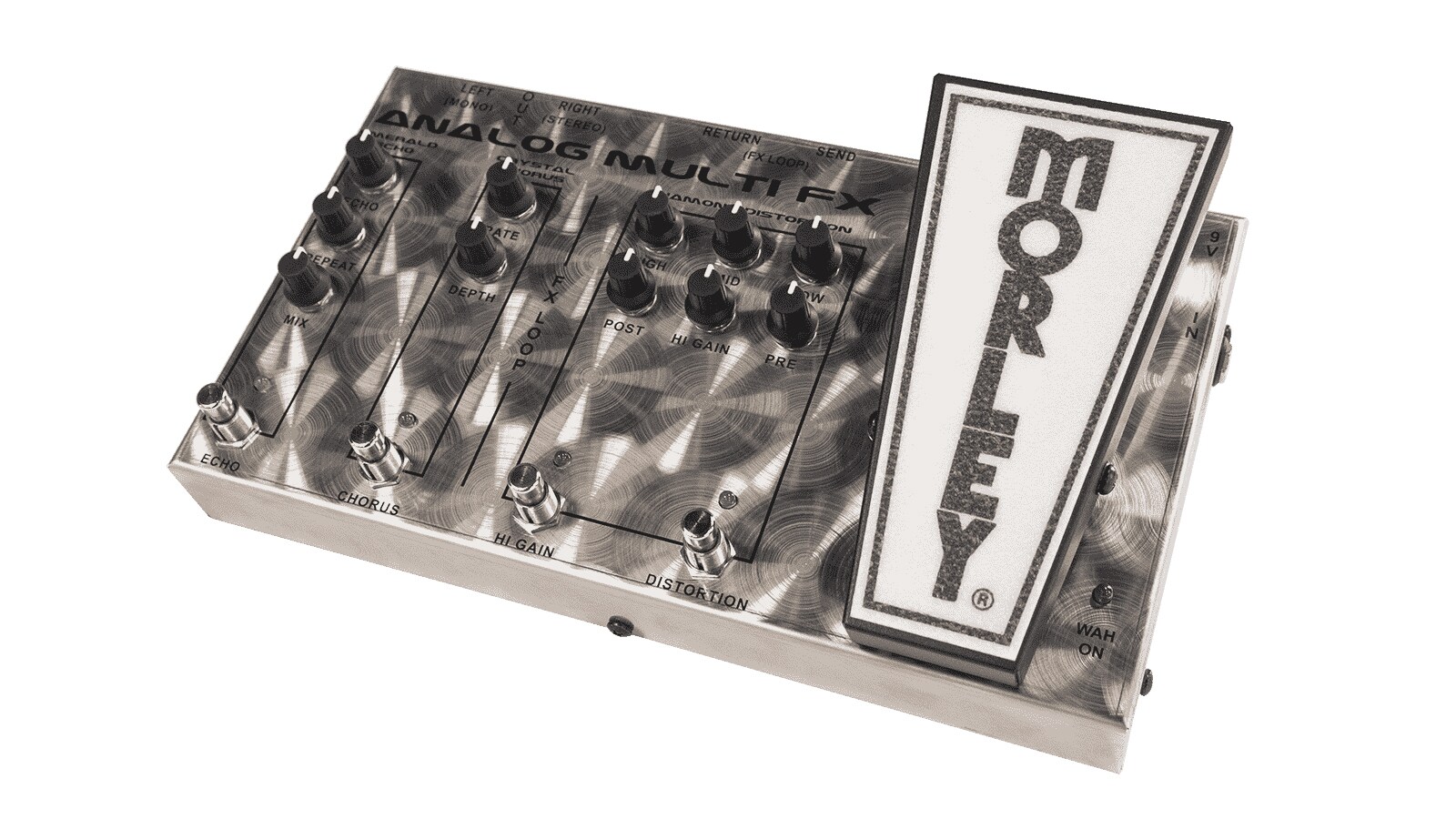

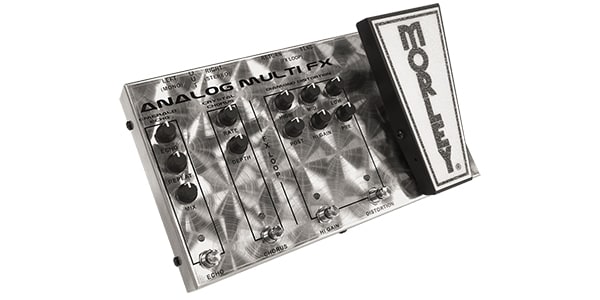

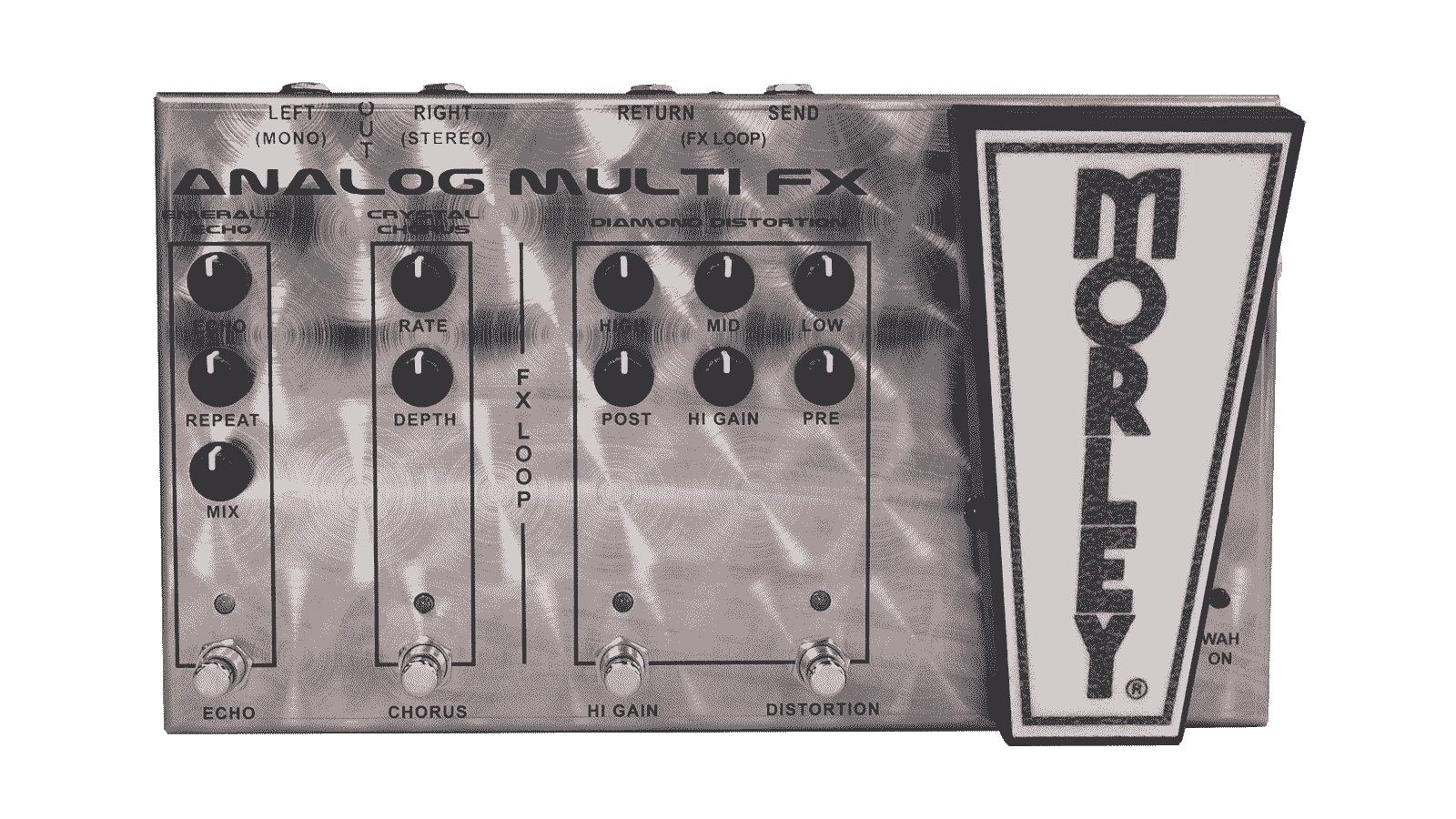

MORLEY / Analog Multi FX AFX-1

The Analog Multi FX is a full-fledged analog multi-effects pedal with everything you need to work on stage or in the studio.

It has a switchless optical wah, distortion, effects loop, stereo chorus, and echo. Even more distinctive, these are reissues of classic Maury circuits dating back to the 1970s.
Speaking of the '70s, the new finishes pay homage to the original chrome Maury pedals.

Built like tanks, they are crafted from heavy-duty spun stainless steel that looks great under stage lights.
Each one is handmade in our Illinois factory.

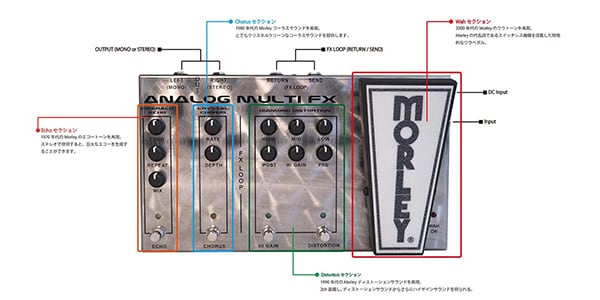

Wah Section
Replicates Morley's wah tone from the 2000s.
This distinctive wah pedal has a switchless mechanism that is synonymous with Morley. The effect is activated by depressing the pedal and bypassed by releasing it.
The well-proven optical wah circuit is built into the pedal.

Distortion Section
Replicates the 1990s Morley distortion sound.
Two channels are incorporated to provide a higher gain sound from the distortion sound.
Distortion has High/Mid/Low controls, pre-and post-gain controls, and a high-gain control.

Chorus Section
Replicates the 1980's Morley chorus sound.
Provides a very crystal-clean chorus sound.
It has late and depth control and can be outputted in stereo for a more massive sound.

Echo Section
Replicates the 1970s Morley echo tone.
It has Delay Time (Echo), Repeats (Repeat), and Mix controls.
It can be used in stereo to create massive echoes.

■DC Inputs
9V/1.7A, Φ2.1 mm, center-minus
Please be sure to use the supplied AC adapter.

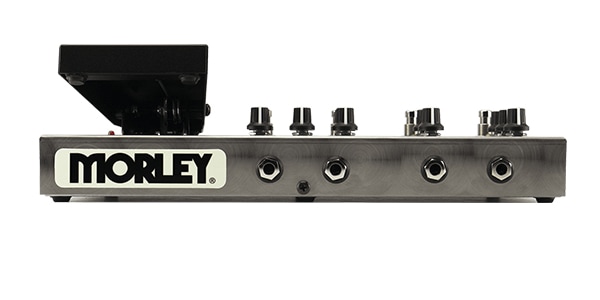

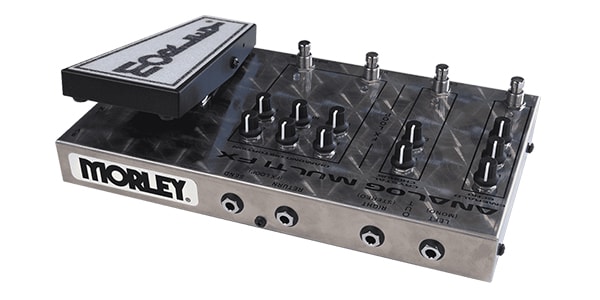

■Input
TS standard phone

FX LOOP
SEND: TS standard phone, output to external effects
RETURN: TS standard phone, input from external effects
FX LOOP is inserted between DISTORTION and CHORUS.

■OUTPUT
RIGHT: Stereo output
LEFT: Mono output
