KarDiaN / NITROGLYCERIN "ADD CBF"

By blending a good quality clean booster into the effect section, you can adjust the attenuation of the original sound that occurs when the effect is passed through.

In addition, by adjusting the LPF on the clean side (a mechanism that cuts the highs while allowing the lows to come through), it is possible to blend only the low component of the original sound. By using LPF, you can create the best sound communication without masking each other. The "ADD CBF" module is unique in that it allows for optimal sound communication without masking each other.

The new sound blend of KarDiaN's Nitroglycerin and ADD CBF can add musicality to the original sound that was previously lost by using effects.

SPECS.
? input impedance: 1MΩ
Input Impedance : 1MΩ Output Impedance : 10kΩ

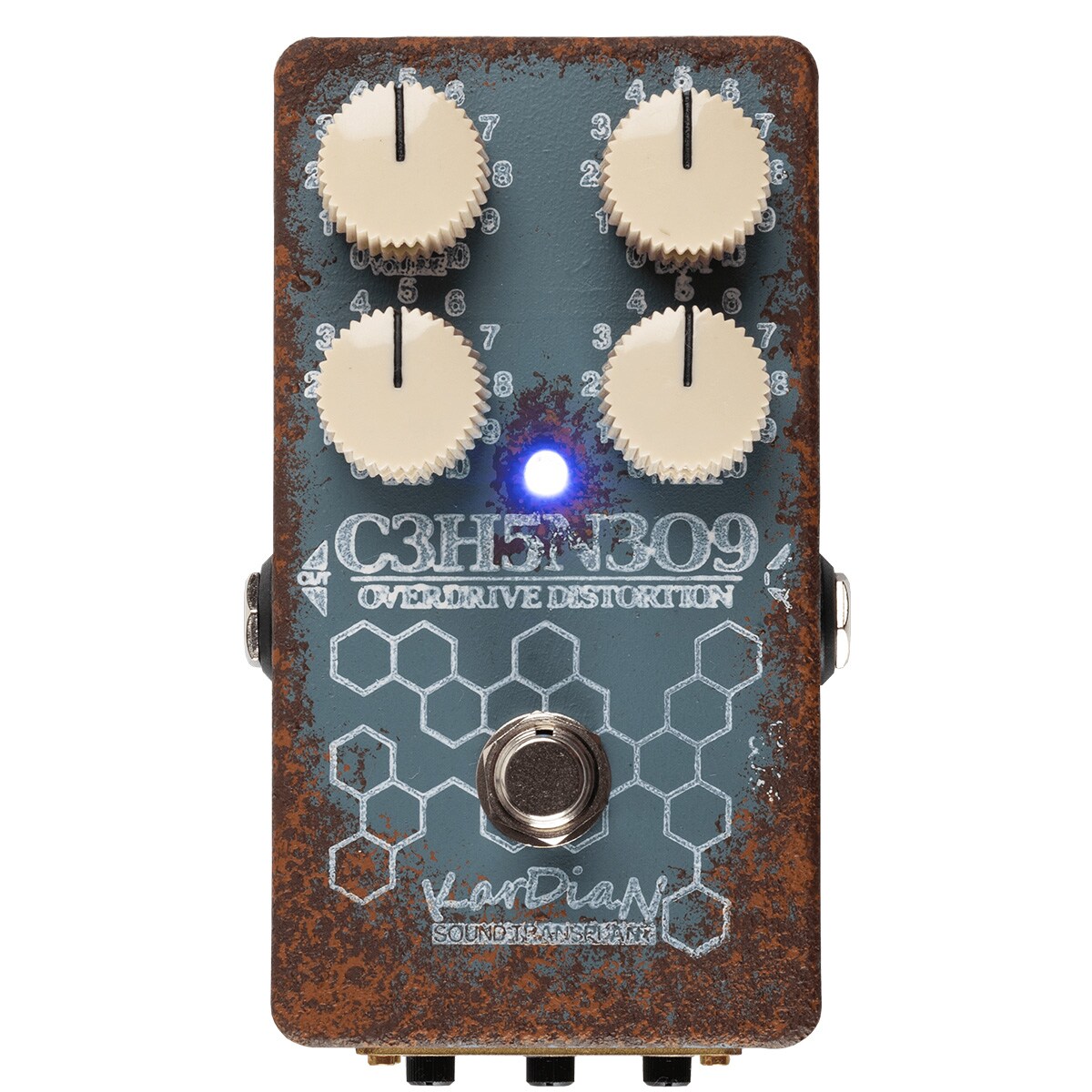

Front Controls: Volume, Drive, Treble, Bass Front controls: Volume, Drive, Treble, Bass.

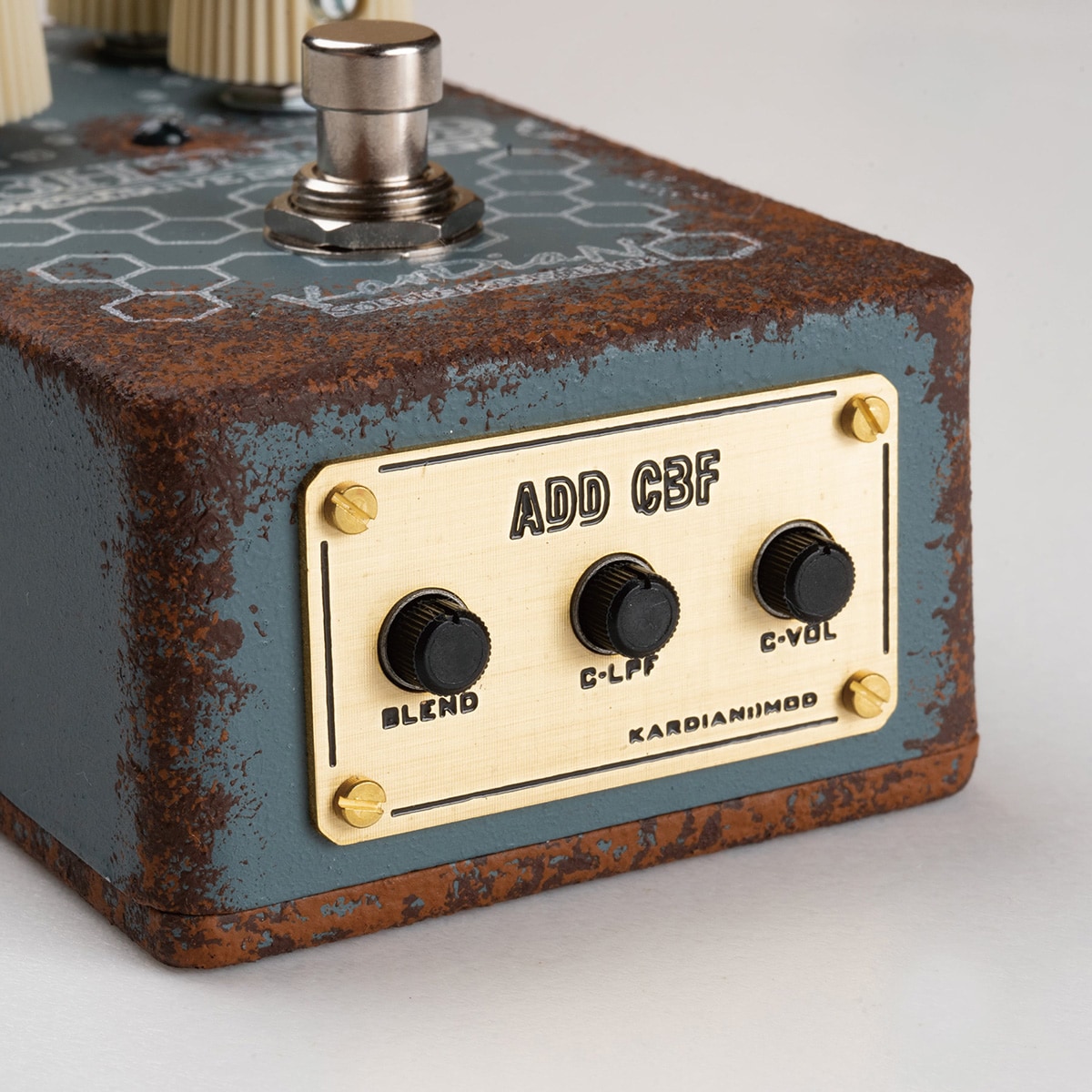

Front Controls: Volume, Drive, Treble, Bass Side control: Blend, Clean-LPF, Clean-Vol
Switching method: True bypass Switching method: True bypass
Connections : 1/4" standard phone jack Connections : 2 x 1/4" standard phone jacks (input, output)
Power Supply System: 9V center-minus DC Power supply method: 9V center-minus DC power supply
Power supply method: 9V center-minus DC power supply Current consumption: 14mA
Dimensions: Width (W) 72 mm Depth (D) 72 mm Dimensions: Width (W) 72 mm, Depth (D) 125 mm, Height (H) 55 mm (including footswitch, jack, and other protrusions)
? Weight: 312 g
? JAN : 4589825520369
Weight: 312g? Attachment: Warranty card

Specifications are subject to change without notice due to product improvement. The image is a sample. Please note that the paint finish may vary slightly from one unit to another.
