APOGEE / Symphony I/O MKII TB Chassis with 8x8 Mic Pre Amps
Variations

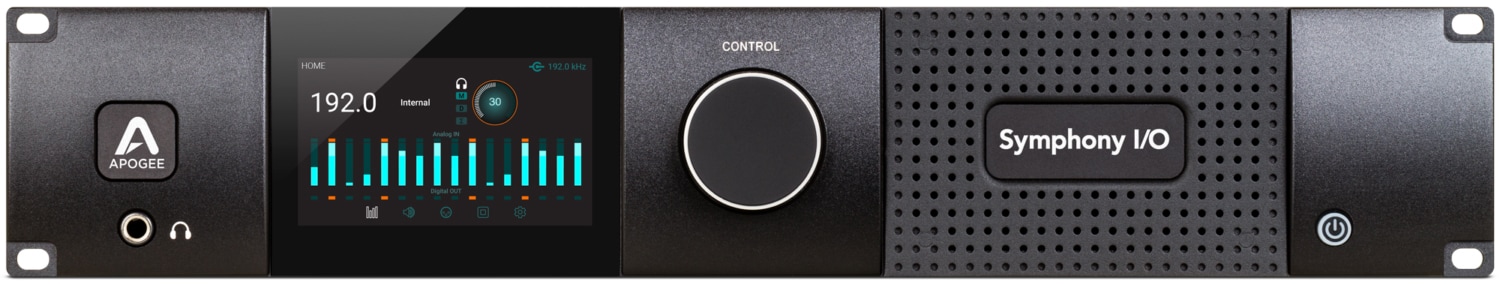

Apogee / Symphony I/O MKII is a multi-channel audio interface with the latest flagship AD/DA converter.
■Multi-channel audio interface
Thunderbolt connection
Traditional High-Definition Sound and Complete Flexibility at a Highly Cost-Effective Price
The Symphony I/O Mk II 8x8 MP and Symphony I/O Mk II 16 MP Connect series are equipped with Apogee's proprietary AD/DA converters with high stability and performance, as well as Advanced Step architecture. Apogee engineers have designed a simpler, more optimized analog circuitry using state-of-the-art components to provide a single modular board that can be used for a multitude of AD/DA converters, microphone preamplifiers, and other applications. This allows us to have a large number of AD/DA converters and mic preamps on a single modular board. The Symphony Connect series is a single Symphony I/O Mk II unit with up to 32 channels of mic preamps that offers unprecedented price advantages while maintaining Symphony's traditional quality. The Symphony Connect series is compatible with DanteR, ProToolsRHD, and ThunderboltR systems, implementing industry-leading sound quality and scalable, high-density I/O configurations. It is the ideal choice for various installations in broadcast, live sound, post-production, education, and even worship and congregation, as well as, of course, recording studios.
Immersive Audio Support *Released June 2022 A software update for the Apogee Symphony I/O mk2 is now available. This update makes it easy to configure and operate a monitor system optimized for Dolby Atmos, 360 Reality Audio, and other Immersive Audio productions. It allows control of up to 32 speaker outputs.
> Flexible Monitor Control Features Have Free Update; Learn More About Immersive Audio Support.
Symphony I/O Mk II Connect Series Key Features Symphony's new analog inputs, with Advanced Stepped Gain mic preamps and world-leading A/D converters
Microphone preamplifier section:
Noiseless gain adjustment up to 72 dB in 1 dB increments
Maximum input level of +26 dBu
Optimized performance through elimination of common-mode noise and improved EMI suppression
Supports impedance switching (2.4k/10k ohms) for passive microphone splits in live sound applications
Control of all mic preamps from Symphony I/O front panel, optional Apogee hardware remote, or Apogee control software
Simplified and optimized signal paths and carefully selected components deliver more channels with traditional flagship audio quality
Have flagship mic preamps in 8, 16, 24, or 32 channel configurations per unit
Supports Dante, Pro Tools HD, and Thunderbolt system connectivity

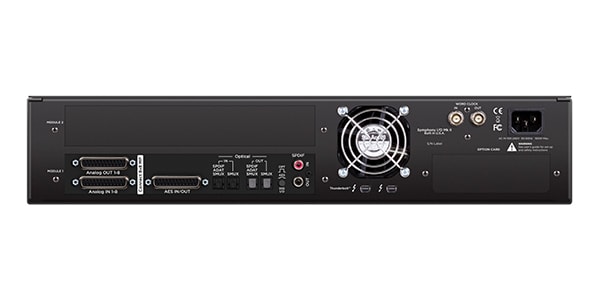

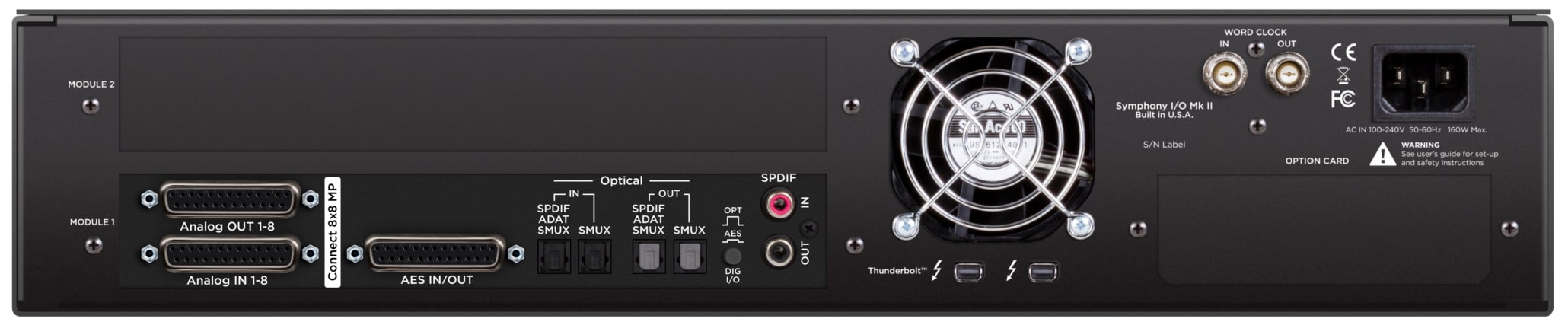

Inputs Analog Inputs: 8 balanced inputs on 1x DSUB 25-pin connector
Eight mic preamps with up to 72dB of gain
Has Advanced Stepped Gain Architecture
AES-EBU Inputs: 8x inputs on 1x DSUB 25-pin connector
(192k single wide)
Optical Inputs: ADAT, SMUX, S/PDIF compatible
ADAT: 8 channels 44.1-48 kHz
SMUX: 8 channels, 88.2-96 kHz
S/PDIF: 2 channels up to 96 kHz
Coax input: 2 channels S/PDIF, up to 192 kHz
Outputs Analog Outputs: 8 balanced outputs on 1x DSUB 25-pin connector
AES-EBU outputs: 8x outputs on 1x DSUB 25-pin connector
(192k single-wide supported)
Optical outputs: ADAT, SMUX, S/PDIF compatible
ADAT: 8 channels 44.1-48 kHz
SMUX: 8 channels, 88.2-96 kHz
S/PDIF: 2 channels, up to 96 kHz
Coaxial output: 2 channels S/PDIF, up to 192 kHz
Hardware switch selects AES/OPTICAL digital input format
Connections Thunderbolt cable (sold separately)
Thunderbolt connection
Traditional High-Definition Sound and Complete Flexibility at a Highly Cost-Effective Price
The Symphony I/O Mk II 8x8 MP and Symphony I/O Mk II 16 MP Connect series are equipped with Apogee's proprietary AD/DA converters with high stability and performance, as well as Advanced Step architecture. Apogee engineers have designed a simpler, more optimized analog circuitry using state-of-the-art components to provide a single modular board that can be used for a multitude of AD/DA converters, microphone preamplifiers, and other applications. This allows us to have a large number of AD/DA converters and mic preamps on a single modular board. The Symphony Connect series is a single Symphony I/O Mk II unit with up to 32 channels of mic preamps that offers unprecedented price advantages while maintaining Symphony's traditional quality. The Symphony Connect series is compatible with DanteR, ProToolsRHD, and ThunderboltR systems, implementing industry-leading sound quality and scalable, high-density I/O configurations. It is the ideal choice for various installations in broadcast, live sound, post-production, education, and even worship and congregation, as well as, of course, recording studios.
Immersive Audio Support *Released June 2022 A software update for the Apogee Symphony I/O mk2 is now available. This update makes it easy to configure and operate a monitor system optimized for Dolby Atmos, 360 Reality Audio, and other Immersive Audio productions. It allows control of up to 32 speaker outputs.
> Flexible Monitor Control Features Have Free Update; Learn More About Immersive Audio Support.
Symphony I/O Mk II Connect Series Key Features Symphony's new analog inputs, with Advanced Stepped Gain mic preamps and world-leading A/D converters
Microphone preamplifier section:
Noiseless gain adjustment up to 72 dB in 1 dB increments
Maximum input level of +26 dBu
Optimized performance through elimination of common-mode noise and improved EMI suppression
Supports impedance switching (2.4k/10k ohms) for passive microphone splits in live sound applications
Control of all mic preamps from Symphony I/O front panel, optional Apogee hardware remote, or Apogee control software
Simplified and optimized signal paths and carefully selected components deliver more channels with traditional flagship audio quality
Have flagship mic preamps in 8, 16, 24, or 32 channel configurations per unit
Supports Dante, Pro Tools HD, and Thunderbolt system connectivity
Inputs Analog Inputs: 8 balanced inputs on 1x DSUB 25-pin connector
Eight mic preamps with up to 72dB of gain
Has Advanced Stepped Gain Architecture
AES-EBU Inputs: 8x inputs on 1x DSUB 25-pin connector
(192k single wide)
Optical Inputs: ADAT, SMUX, S/PDIF compatible
ADAT: 8 channels 44.1-48 kHz
SMUX: 8 channels, 88.2-96 kHz
S/PDIF: 2 channels up to 96 kHz
Coax input: 2 channels S/PDIF, up to 192 kHz
Outputs Analog Outputs: 8 balanced outputs on 1x DSUB 25-pin connector
AES-EBU outputs: 8x outputs on 1x DSUB 25-pin connector
(192k single-wide supported)
Optical outputs: ADAT, SMUX, S/PDIF compatible
ADAT: 8 channels 44.1-48 kHz
SMUX: 8 channels, 88.2-96 kHz
S/PDIF: 2 channels, up to 96 kHz
Coaxial output: 2 channels S/PDIF, up to 192 kHz
Hardware switch selects AES/OPTICAL digital input format
Connections Thunderbolt cable (sold separately)
