iBasso Audio / DC03PROGY

Variations

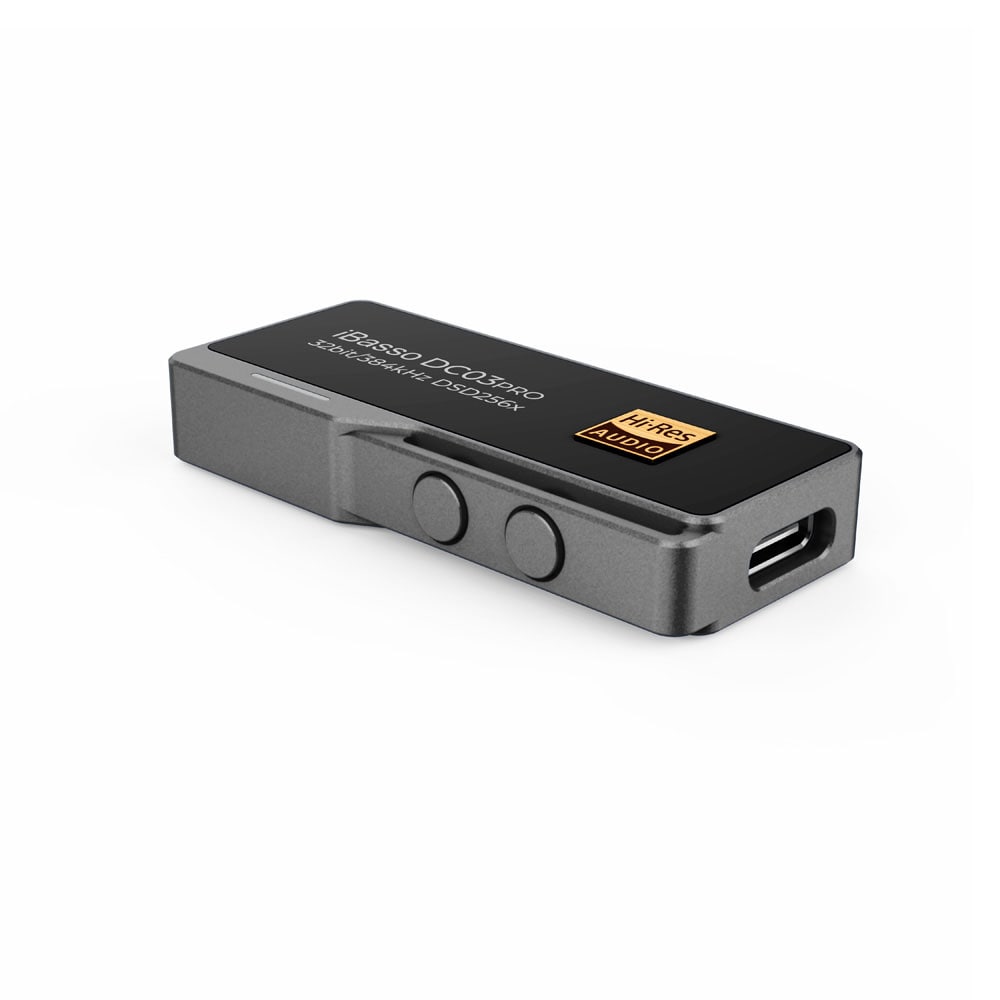

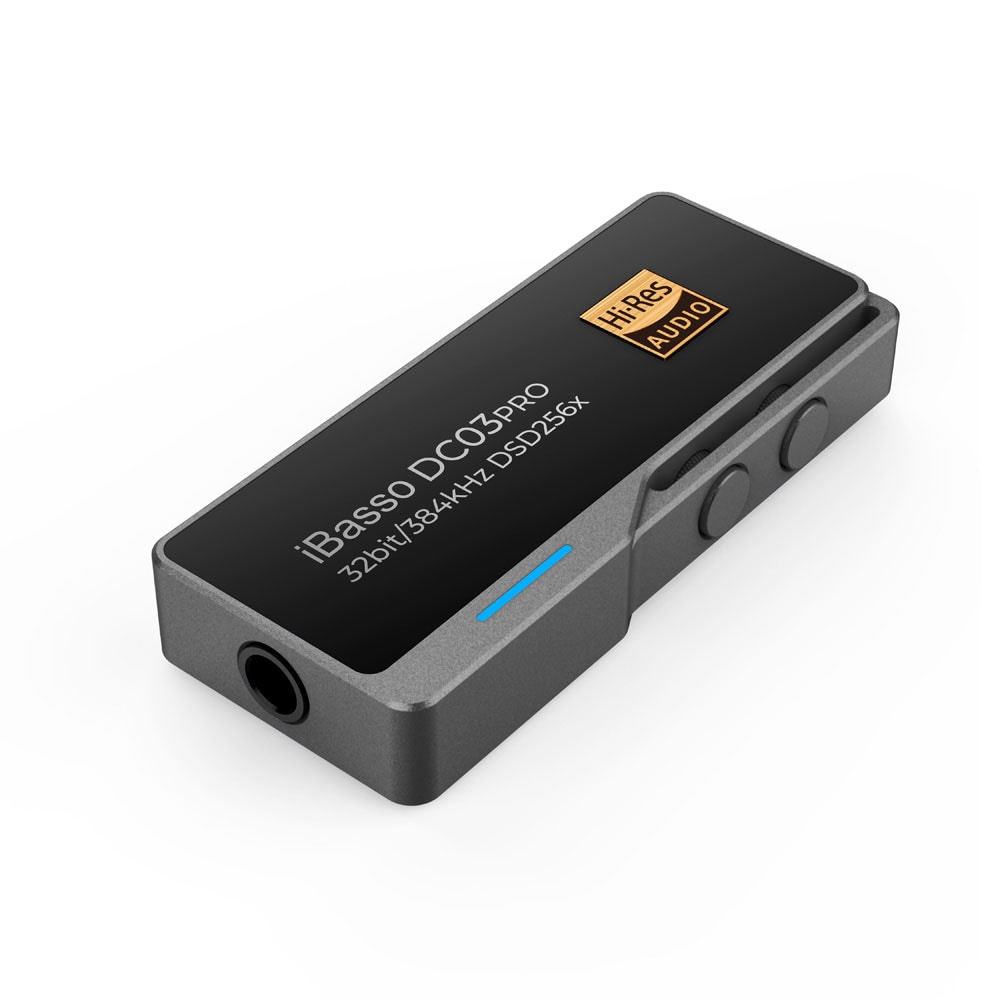

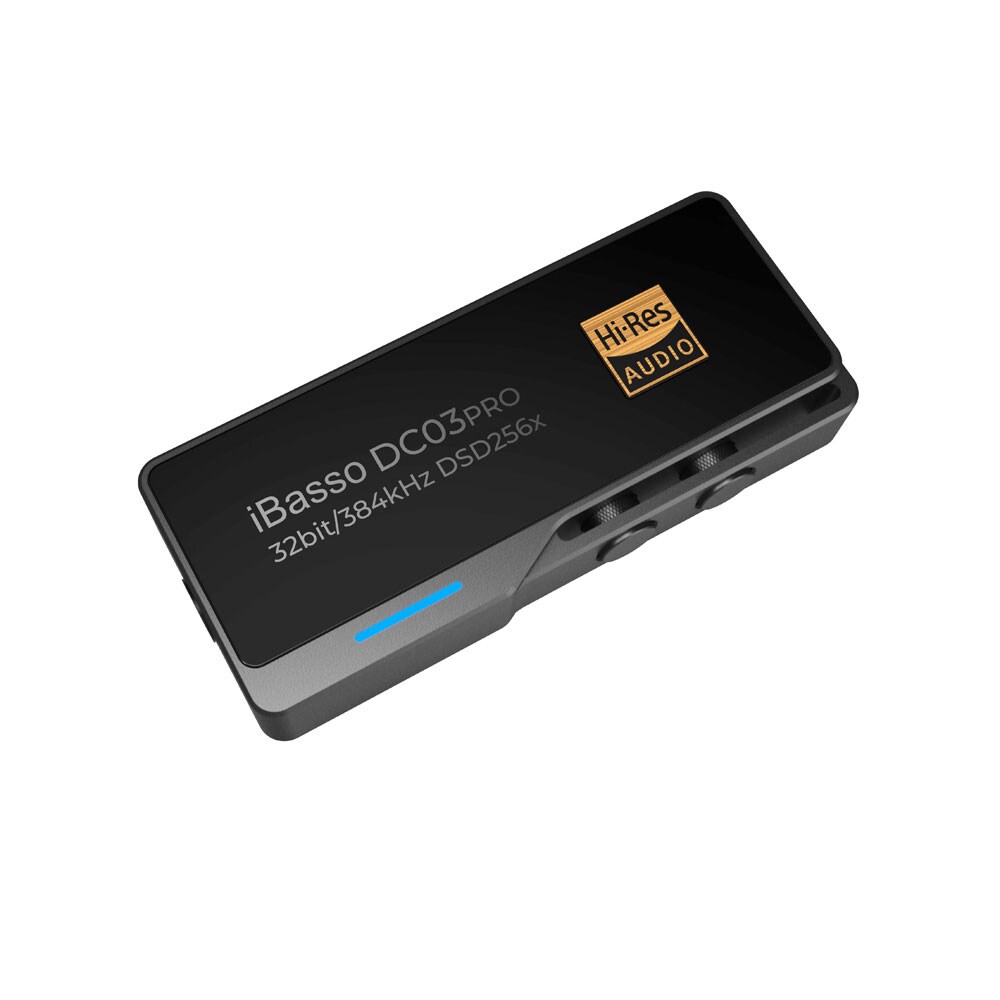

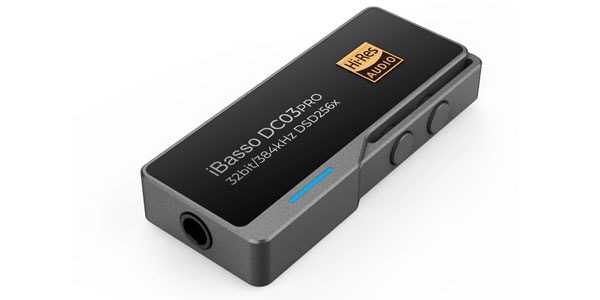

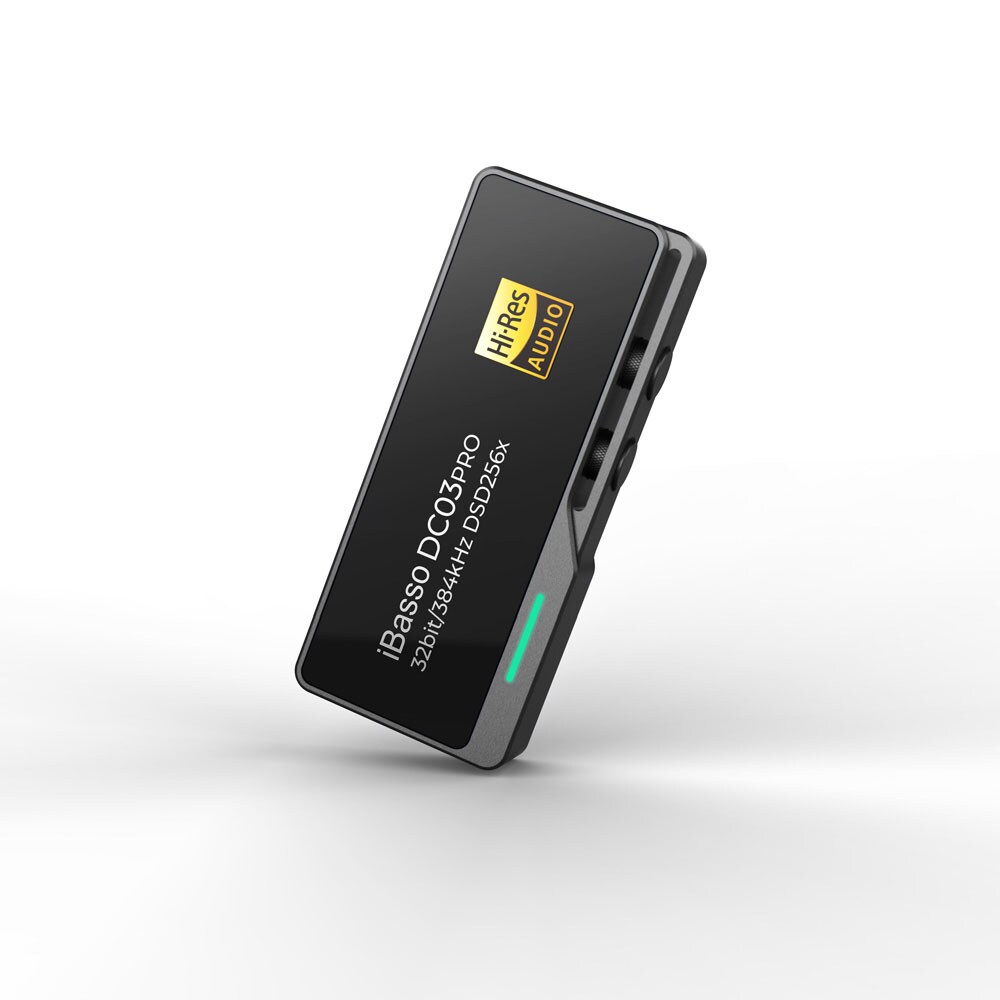

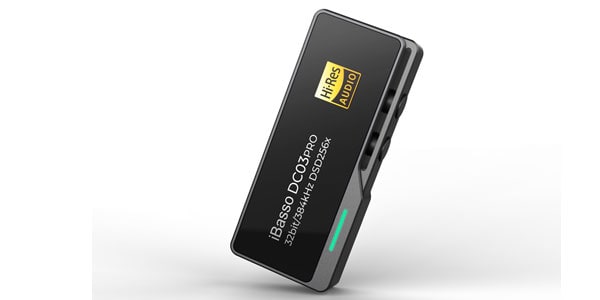

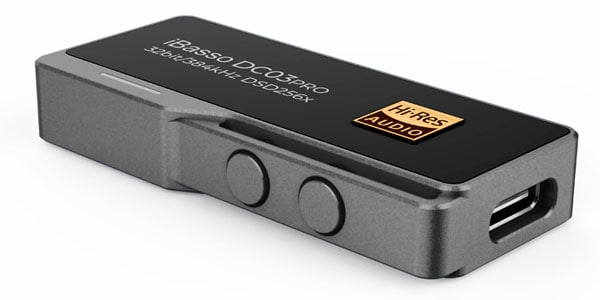

iBasso Audio / DC03PRO is an evolved compact dual DAC adapter. CS43131-Dual DAC configuration | 3.5mm stereo terminal CNC machined-Aluminum body Front/rear-Glass panel design.

■CS43131-Dual DAC ""PRO"" Quality
-The model equipped with the DAC chip ""CS43131"" from Cirrus Logic's ""Master HIFI"" line, which boasts excellent audio quality, has been powered up.

■KDS Femto Clock Crystal Oscillator Significantly improved clock accuracy
-By installing the ""Femto Clock Crystal Oscillator"" made by KDS (Dainiku Co., Ltd.), one of the world's leading crystal device manufacturers, the time axis deviation is greatly reduced. The accuracy of the clock is greatly improved, achieving a sound that is more faithful to the original sound without blurring.

■Completely new body design More fun and attractive

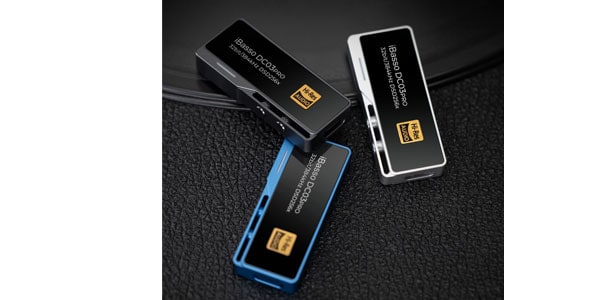

-Unlike the previous DC series, the DC03PRO adopts a new design that combines ""beauty of appearance"" and ""high durability"" with tempered glass panels on both sides of the aluminum body that has been precisely CNC machined. In addition, the lineup includes three attractive color variations: silver, gray, and blue.

■Supports access to hardware volume for more comfortable volume control

- DC03PRO is equipped with a hardware volume control key on the side of the product. This allows you to access the volume inside DC03PRO without using an application. It allows 100 levels of volume adjustment from 0 to 100, and guides users to a comfortable volume with any connected device.

■ Sound quality personalization function added to major update app integration for ""iBasso UAC""

- If you connect DC03PRO to an Android device with OS version ""Android 5.1"" or later, you can use it immediately without any special settings. If possible, we recommend installing the ""iBasso UAC"" (※) app to experience all of the DC03PRO's functions. By installing this app, you can make fine volume adjustments, change digital filters, and change the L/R (volume balance).

(※) iBasso UAC is an application for Android only.

■3.5mm stereo connector model Turn your smartphone into a Hi-Fi audio player
・The DC03PRO is equipped with the most popular 3.5mm stereo connector.

■Cable replacement design Select a cable to match the connected device
・The DC03PRO is designed to allow cable replacement, so you can connect to a wide range of devices by using a cable that supports the USB-OTG standard. A USB Type-C to Type-C cable, which is widely used in modern digital devices, is included as a standard accessory.

※ Compatibility may not be maintained on some devices due to compatibility issues with the system or hardware.

※ For some Android devices, you may need to manually enable the USB device setting from the settings.

■LED lamp equipped with multi-color display according to the playback file
・Red: Standby (standby state)
・Blue: DSD
・Green: PCM

■Entry model ideal for your first one. Convincing sound quality approaching that of higher-end models
・S/N ratio: 127dB
・Floor noise: <0.9μV
・Output level: 98mW@32Ω
・THD+N: 0.00022% (-114dB)
・Output impedance: <0.12Ω
※ The above values were measured using an analyzer made by AUDIO PRECISION.

■A perfect device for enjoying not only music but also videos and games.
・The powerful audio experience dramatically enhances the immersive feeling of games and movies.

■Suitable for all situations of mobile devices, tablets, and PCs.
・DC03PRO is a versatile ""UAC 2.0"" standard to connect to devices. It is possible to play high-quality files without loss on many devices on the market. It performs well not only on mobile devices but also on tablets, PCs, and other home use. ""

■Input terminal: USB Type-C terminal
■Output terminal: 3.5mm stereo mini jack
■DAC chip: CS43131 x2
■THD+N: -114dB (300Ω load) -111dB (32Ω load)
■Output level: 2Vrms (300Ω load) 1.77Vrms (32Ω load)
■S/N ratio: 127dB
■Frequency response: 20Hz~40kHz +/-0.5dB
■Noise floor: <0.9μVrms
■Output impedance: 0.12Ω
■PCM support: Supports native playback up to 384kHz/32bit
■DSD support: Up to 11.2MHz Supports native playback up to
■Weight: 10.5 g
■Body size: Approx. 49.4 x 21 x 8 mm
■Accessories: USB Type-C to Type-C cable, USB Type-C to USB-A adapter, Quick Start Guide
