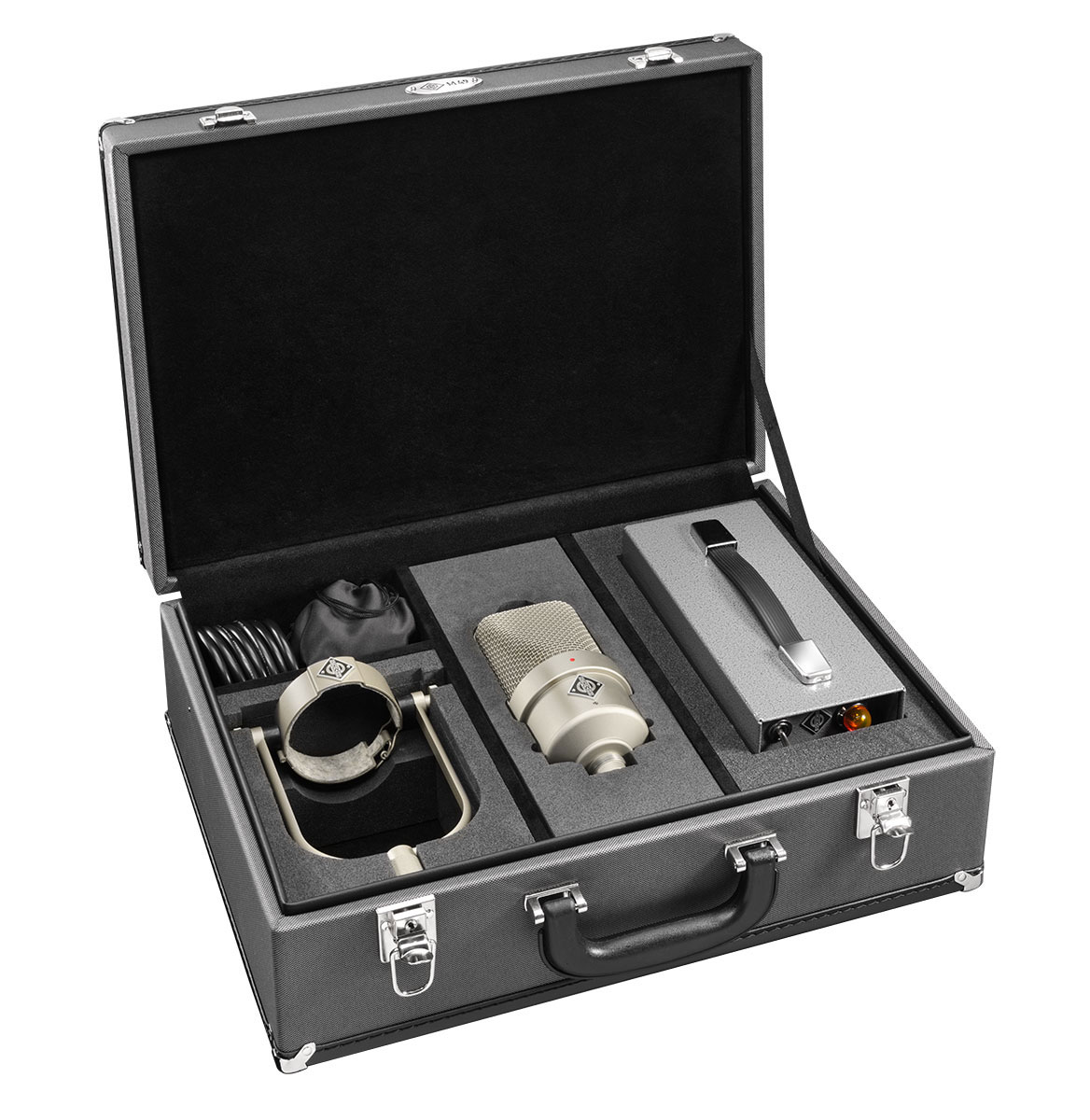

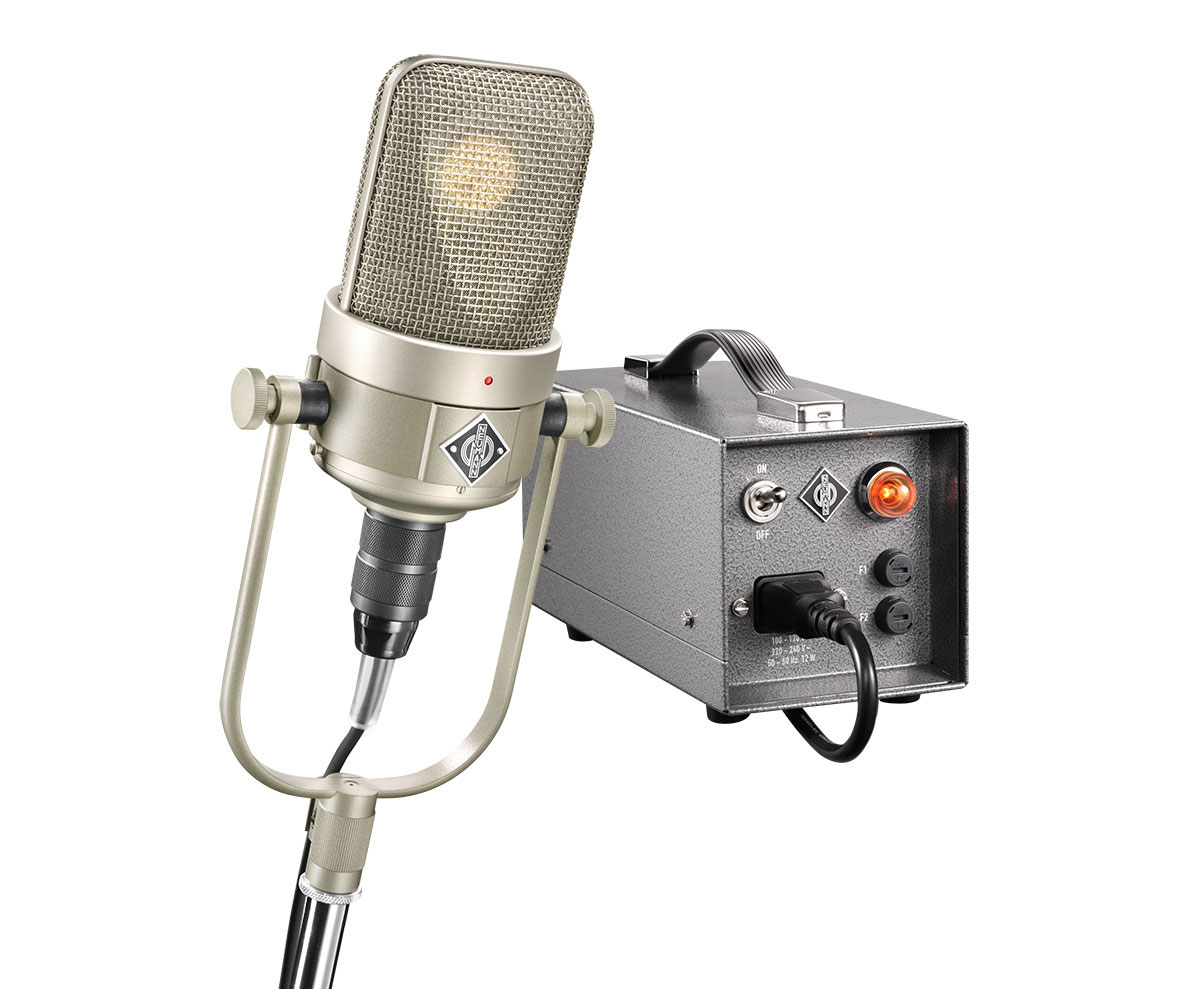

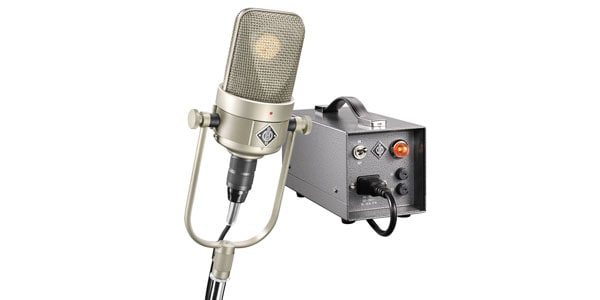

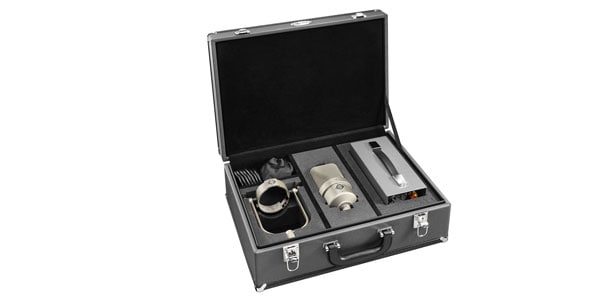

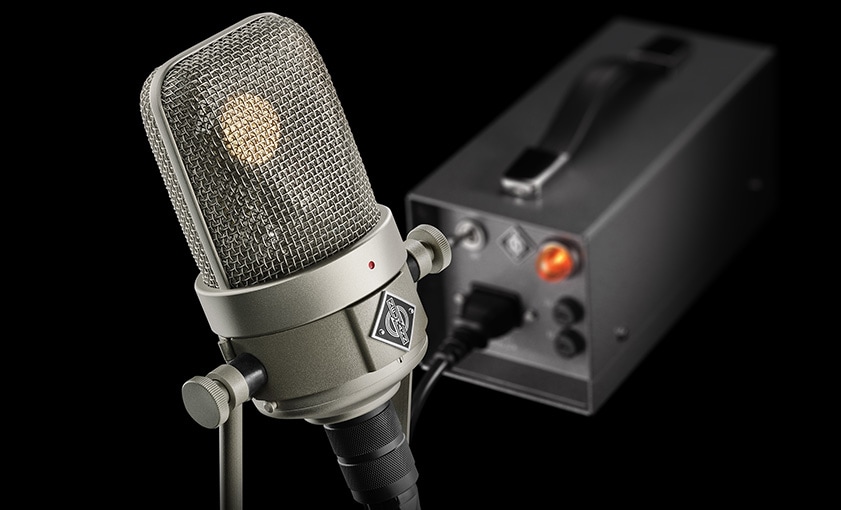

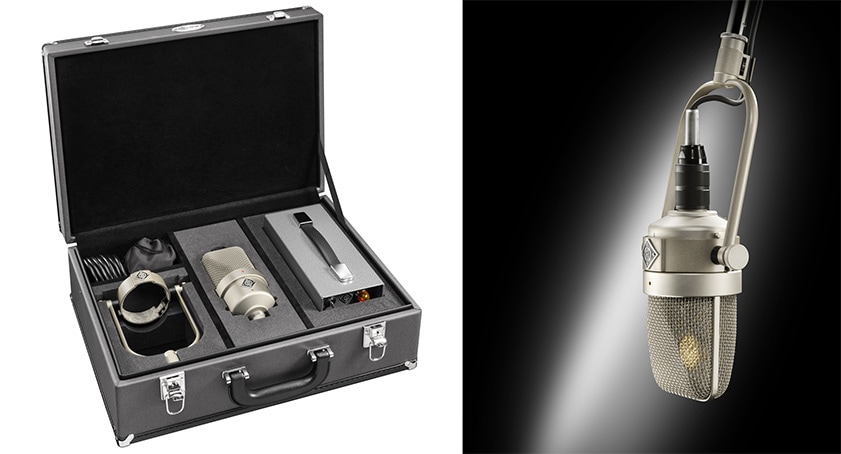

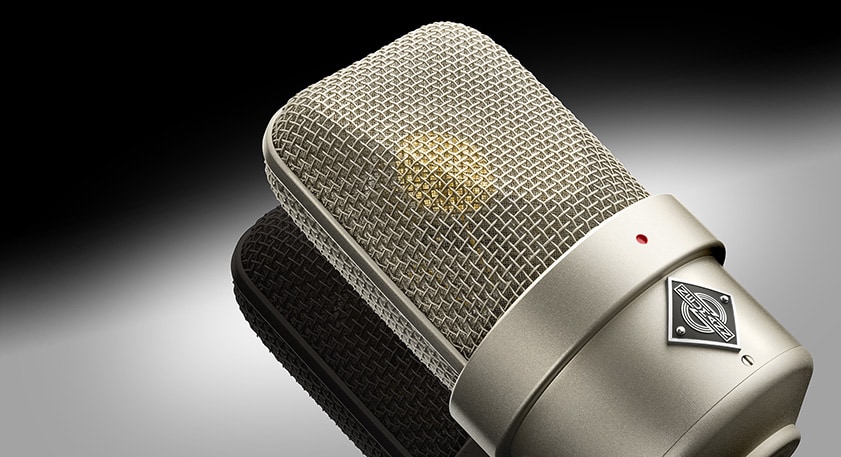

NEUMANN / M 49 V Set

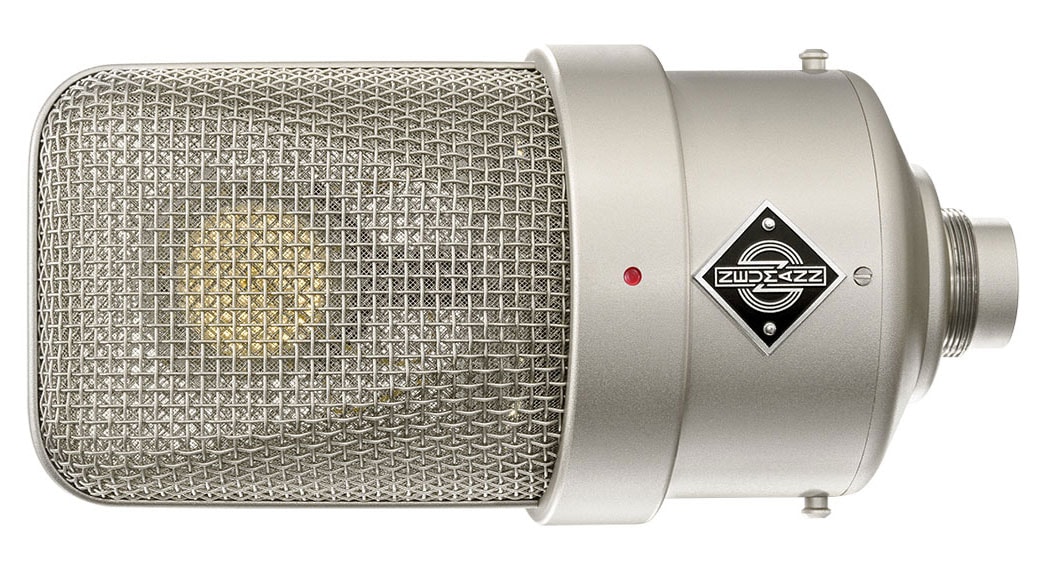

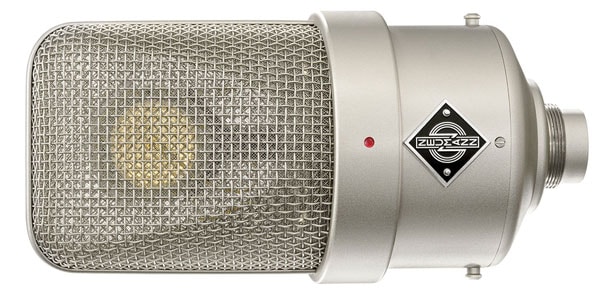

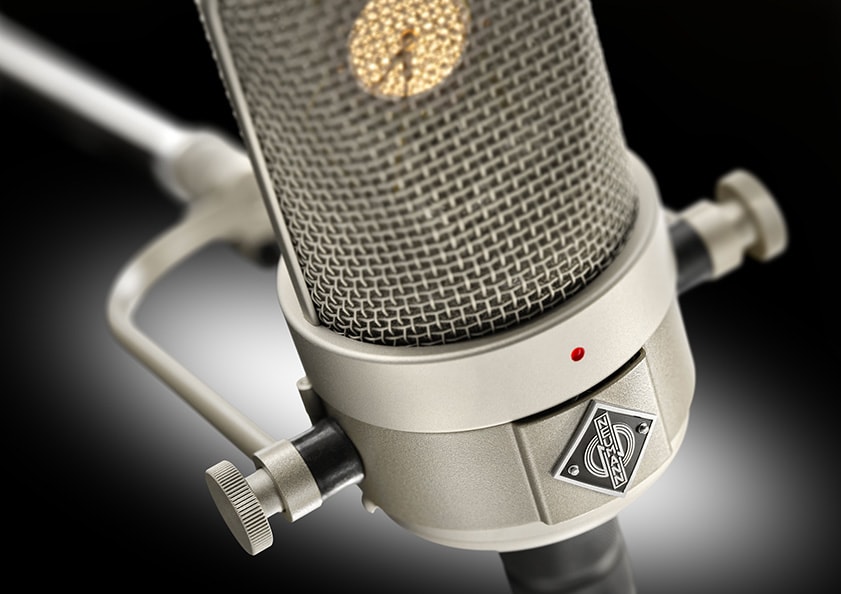

The M 49 V is a reissue of the M 49, a legendary tube microphone from the 1950s and 1960s that has been improved in every detail. The legendary M 49 is an iconic microphone that changed how the recording was done in its era and set the standard for blues, jazz, pop music, and classical sound.

Features
The legendary M 49 has been reissued with improved details.
Outstanding vocal microphone for both men's and women's voices
Versatile microphone suitable for all types of instruments
Classic tube circuit with output transformer
Versatile, infinitely switchable directivity pattern with remote switch.
Original specifications based on archived records.
The new directivity pattern switching unit automatically adapts to the mains voltage.
Handmade in Germany, including soldering

Product Specifications
Acoustic operating principle Pressure gradient transducer

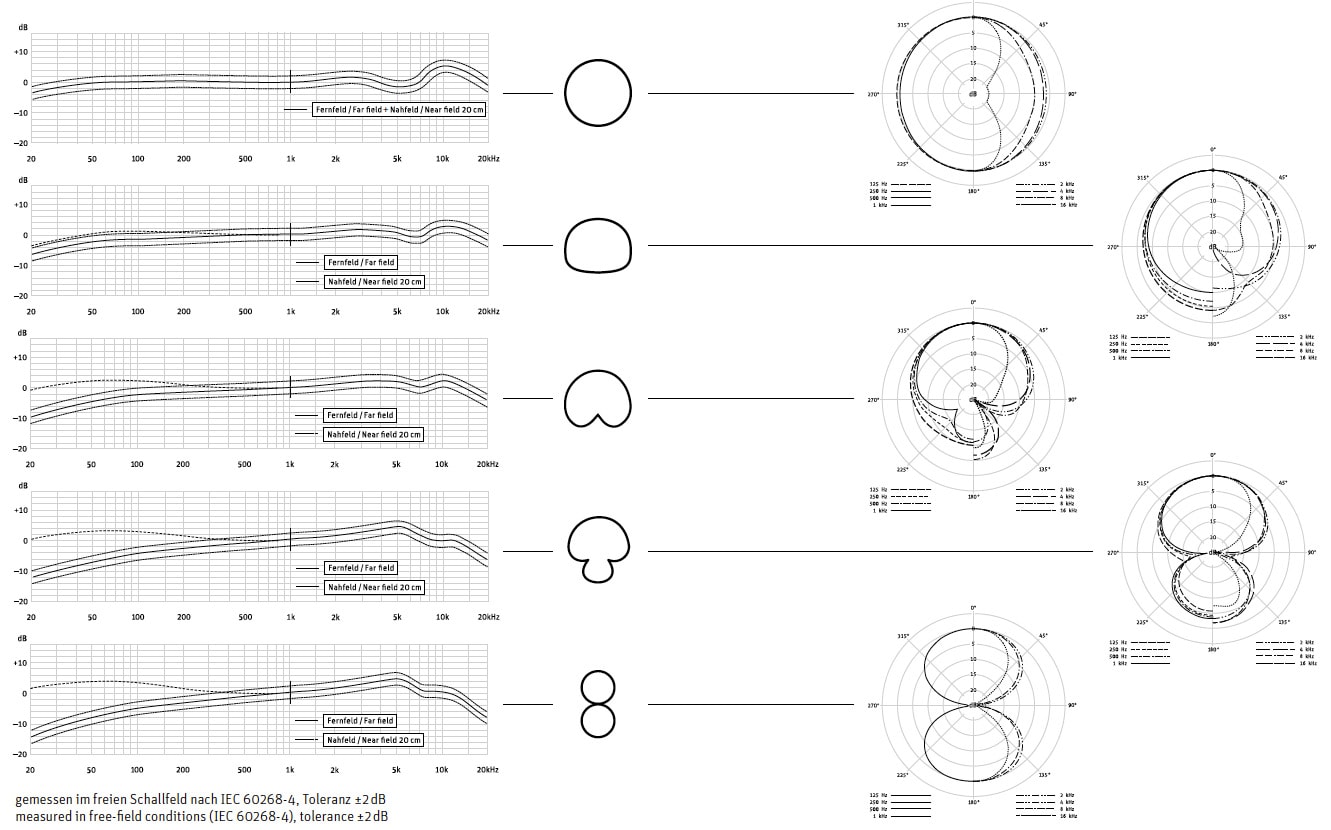

Variable directivity pattern (omnidirectional/cardioid/letter-8)
Frequency response 40Hz to 16kHz
Sensitivity 6.5/8/10 mV/Pa ± 1 dB
Rated impedance 200 Ω
Rated load impedance 1000 Ω
Signal-to-noise ratio, CCIR 62/64/64 dB
Signal-to-noise ratio, characteristic A 73/74/75 dB
Equivalent Noise Level, CCIR 32/30/30 dB
Equivalent Noise Level, A-weighted 21/20/19 dB-A
Maximum SPL, 125 dB (cardioid) with THD 0.5
Maximum output voltage 300 mV
Power supply NM V
Tube system Selective triode
Plate voltage +120 V± 2%
Plate current? One mA
Heater voltage +6.3 V± 2% Heater current ≦ 200 mA
Heater current ≦ 200 mA
Vacuum tube warm-up time Approx. 1 min.
Temperature range Operating 0 °C ... +40 °C Storage: -20 °C ... +70 °C
Relative humidity Operating 0 % ... 75 % ｜Storage 0 % ... 95 % ... 95 %

Required Connectors
Microphone 7-pin connector
Pattern control unit - output XLR 3 F
Weight 800 g
Diameter 80 mm
Length 163 mm

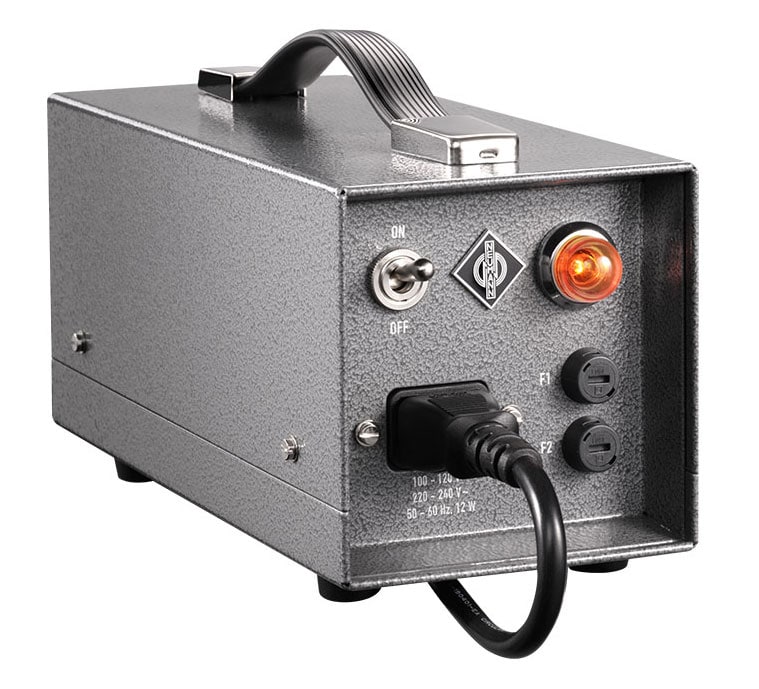

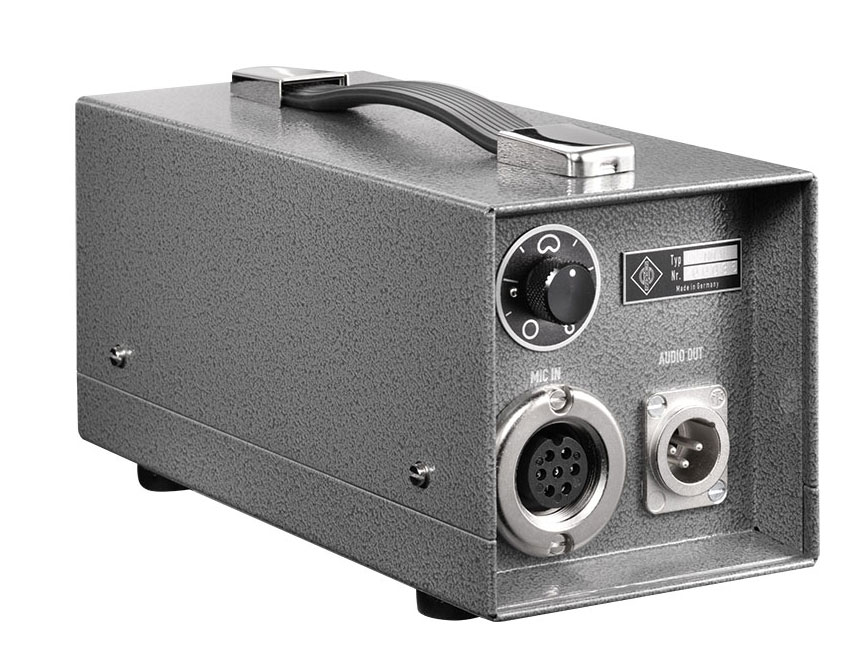

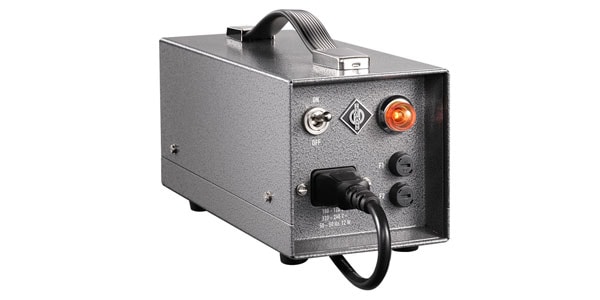

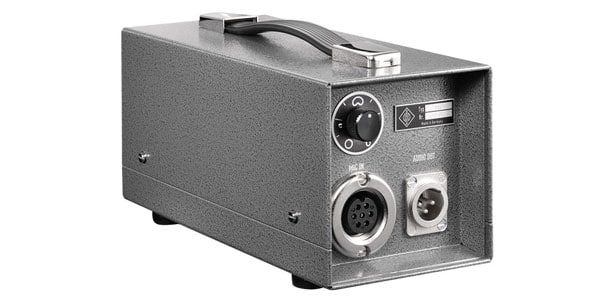

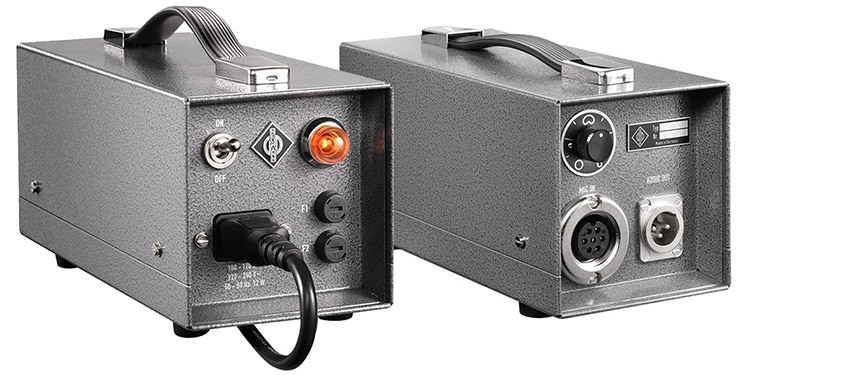

NM V pattern control unit
Power supply voltage 100 - 120 V or 220 - 240 V
Power consumption max. 12 W
Fuse O 5 mm x 20 mm 500 mA/Slow-Blow
Lamp E10 24V/2W
DC voltage
Plate voltage +120 V
Heater voltage +6,3 V
Dimensions (L x W x H) 220 mm x 100 mm x 120 mm
Weight 2.2 kg
Temperature range Operating: 0 °C to +40 °C｜ Storage: -20 °C to +70 °C
Relative humidity Operating: 0 % to 75 % ｜Storage: 0 % to 95
Maximum altitude 2000 m
