MOOER / LOOPER X2

The Mooer LOOPER X2 is a stereo sampling looper pedal with a wide variety of features. Loops can be stored in 77 slots, with a total recording time of up to 300 minutes.

"There is an auto-record function for comfortable operation and 11 song banks that combine multiple loops into a single song.
Each song bank has seven save slots to which recorded loops can be assigned, and the loops can be changed sequentially with a footswitch.
Banks 1-9 slots can store up to 2.5-minute loops, and Banks 10 and 11 can hold loops of up to 10 minutes, making them suitable for importing long files.
Audio files can be saved to slots and banks and used as notes for phrases that come to mind, or various parts of a song can be recorded and seamlessly switched to different tracks with a footswitch.
It can be used on a PC/Mac, and editor software is available for managing loop files and updating firmware.

Features
Dual footswitch stereo looper pedal
Up to 77 slots with a total recording time of up to 300 minutes
Auto recording function
The fade-out function for natural play stops
Save option for quick recording and playback anywhere in the song calibration.
Two footswitch modes to control seven different tracks
External footswitch controller support
Dedicated editor software for importing and exporting audio tracks and updating firmware

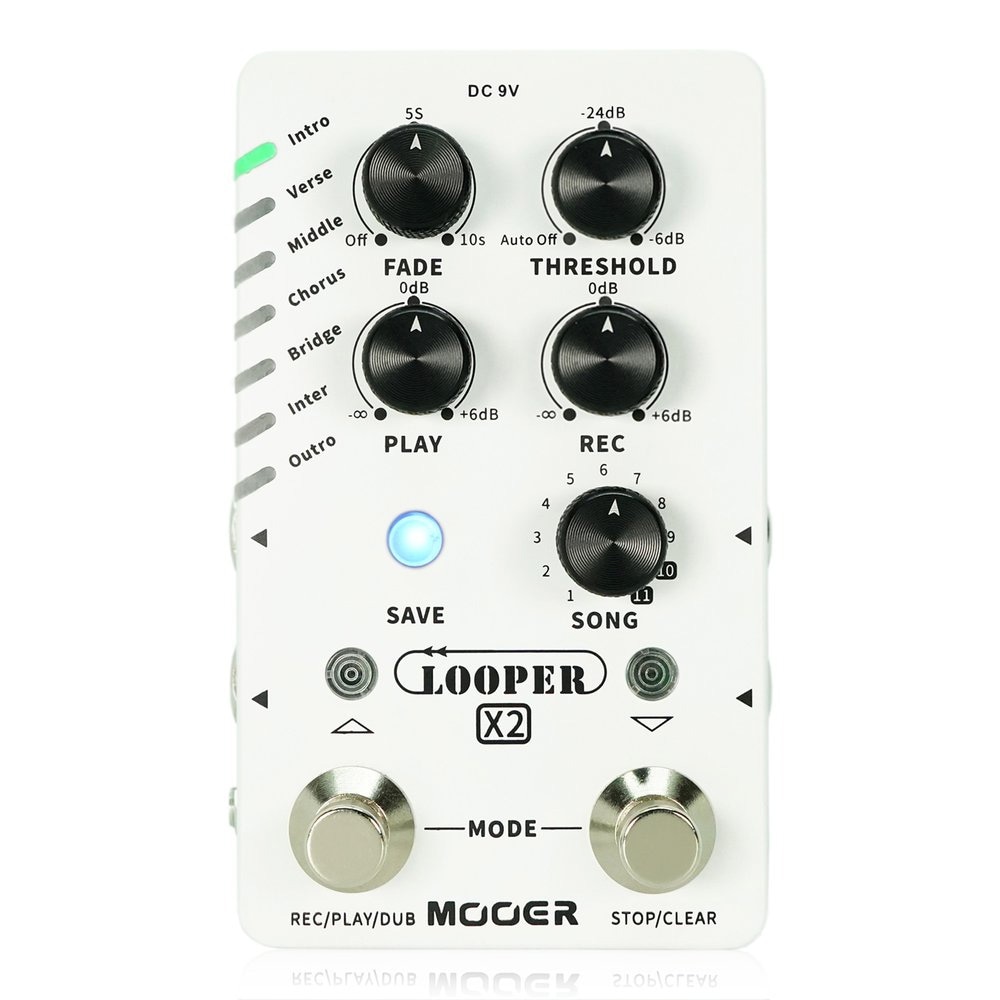

Controls
-FADE: Controls the fade-out function. Counterclockwise minimum turns off the fade-out function. Clockwise maximum will give a fade-out time of 10 seconds.
THRESHOLD: Sets the threshold level for the AUTO REC function. Counterclockwise minimum turns off the AUTO REC function. THRESHOLD: Adjusts the volume at which recording starts automatically according to your playing style.
-PLAY: Adjusts the playback volume of the looper. Setting the guitar signal and playback volume simultaneously is standard practice. Up to +6 dB of boost is possible.
REC: Adjust the looper recording volume level. Setting the recording signal and playback volume at the same level is expected. Up to +6 dB of boost is possible.
-SAVE: Press the button to switch between save slots 1-7. Press and hold to save the current audio file.
SONG: The LOOPER X2 has 11 song banks. Each bank has seven save slots. (LED indicators show the current slot.) The SONG knob selects one of the 11 song banks.
Left footswitch: REC/PLAY/DUB/REDO/UNDO/CANCEL in normal mode; scrolls up slots in slot select mode.
Right foot switch: STOP/CLEAR in normal mode, and scroll down the slot in slot select mode.

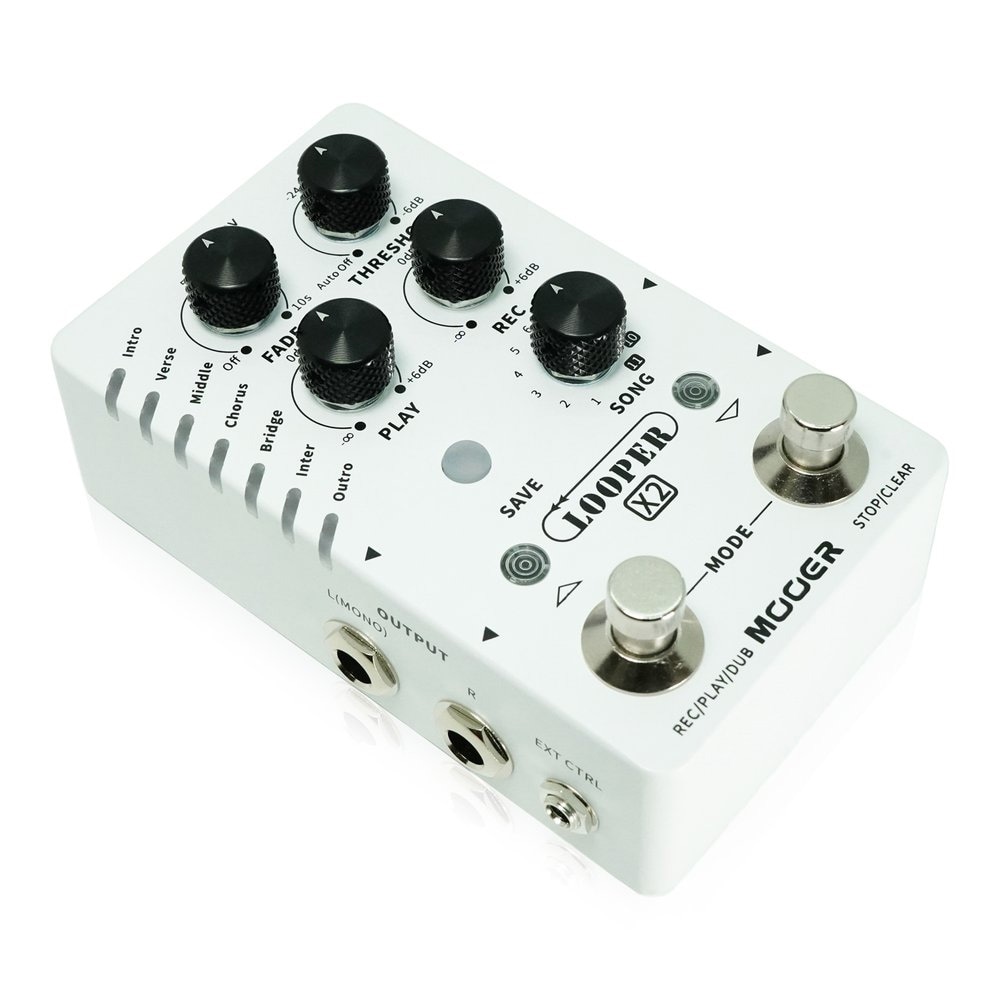

Input/Output
INPUT L (MONO): 1/4" monaural audio jack. Use this jack for a monaural setup. For a stereo setup, connect the L channel.
INPUT R: 1/4" monaural audio jack. Connect the R channel for stereo.
OUTPUT L (MONO): 1/4" monaural audio jack. Use this jack for a monaural setup. For a stereo setup, connect the L channel.
OUTPUT R: 1/4" monaural audio jack. Connect the R channel for stereo.
EXT CTRL: 1/8 TRS stereo mini jack. Connect an external footswitch pedal (sold separately).

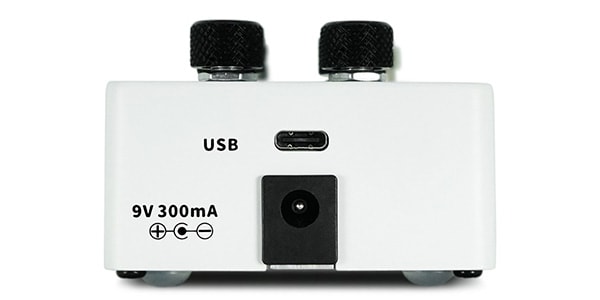

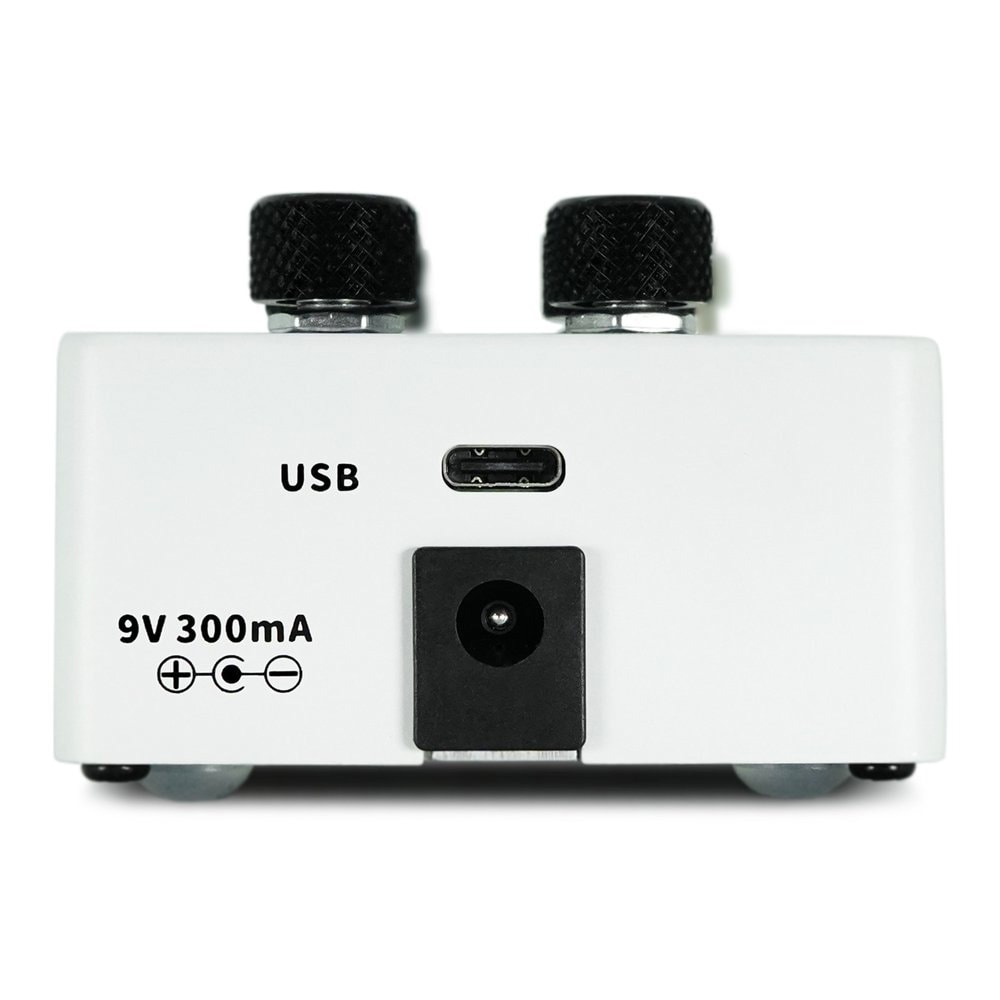

TYPE-C: USB type C jack. Connects to a computer for data import/export and firmware updates.
DC IN: Connect an adapter with 9V DC center-minus and 300mA or more. Use of the supplied adapter is recommended.

Basic looper operations
REC/PLAY/DUB.
Select an empty preset, and each time the left footswitch is pressed, the REC-PLAY-DUB switches between REC and PLAY-DUB.
UNDO/REDO
When recording two or more layers of tracks, pressing and holding the left footswitch performs the UNDO (undo) operation, which cancels the last recorded layer. Before registering a new layer, press and have the left foot switch perform a redo (redo) to recall the canceled layer.
CANCEL
If you make a mistake during DUB recording and want to cancel the recording, you can do so directly by pressing and holding the left footswitch. Unlike UNDO, this cannot be recalled by redo. This is only available during DUB recording.
DELETE.
Deletes an unsaved track or deletes an audio file imported into the current slot.
CLEAR
Deletes the data in the current slot (also deletes saved tracks and imported audio files).
SAVE
Press the SAVE button to save the recorded track when the recording is complete. Unsaved tracks will be lost when the power is turned off.
Audio files exported from the computer are automatically saved without pressing the SAVE button.

Specifications
Input: 2*1/4'' mono audio input jack (impedance value 1Mohm)
Output: 2*1/4'' mono audio jack (impedance value 510ohm)
External Control Jack: 1/8'' stereo audio jack
Num. of Saving Slot: 77
Recording Capacity: Approximate 300 minutes (stereo)
Sample Rate/Sample Depth: 44.1kHz/24bit
Export File Format: WAV
Power Requirements: 9V 300mA, center negative (recommended to use an original power supply to avoid unexpected noise caused by sharing power supply with other pedals.)
Dimensions: 75mm(D) * 115mm(W) * 33mm(H)
Accessories: Power adaptor, USB-C to USB-A cable, Quick Guide, LOGO sticker.
Specifications are subject to change without notice.

Type: Sampling Looper
Adaptor: 9V center-minus
Battery powered: -
Controls: FADE, THRESHOLD, PLAY, REC, SONG, SAVE"
