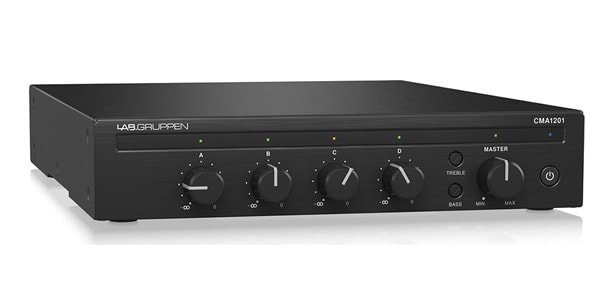

LABGRUPPEN / CMA1201

This 4-channel mixer power amplifier supports low/high impedance quantities of 8 ohms, and 120 W. Its 1U size makes it suitable for rack mounting.

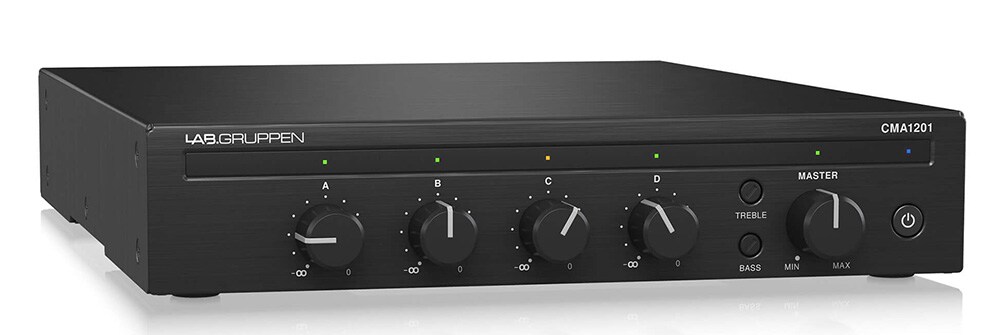

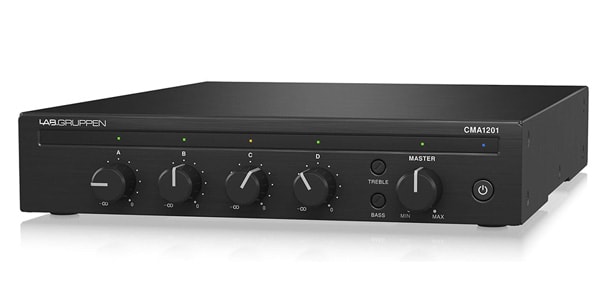

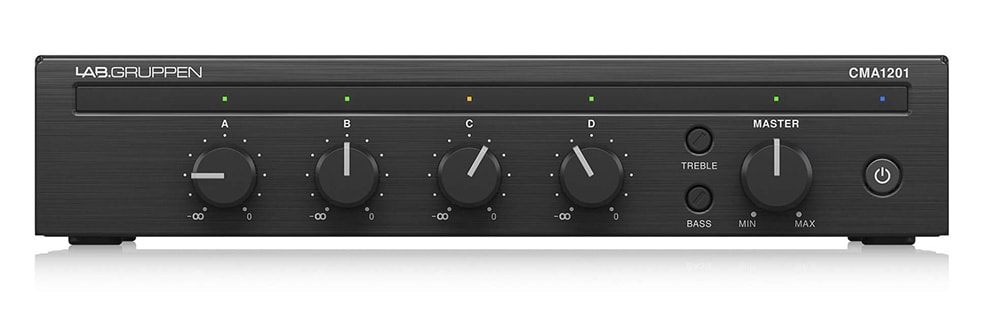

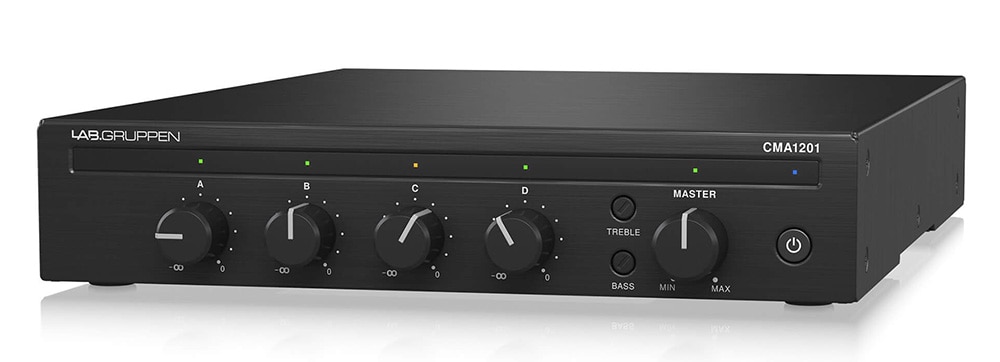

Incorporates independent volume controls for each of the four microphone and line inputs
Direct Drive Constant Power Technology* for transformerless, constant voltage transmission
Switchable between low impedance (4Ω, 8Ω) and high impedance (70V, 100V)
Ducking function to mute other channels during announcements, suitable for paging microphones
AUX output incorporated for expansion to additional amplifiers
Energy Star v3.0 compliant with significantly reduced current consumption
A high-pass filter (80 Hz) incorporated
Fanless natural air cooling system
Supports remote control with optional CRC-V series wall controller

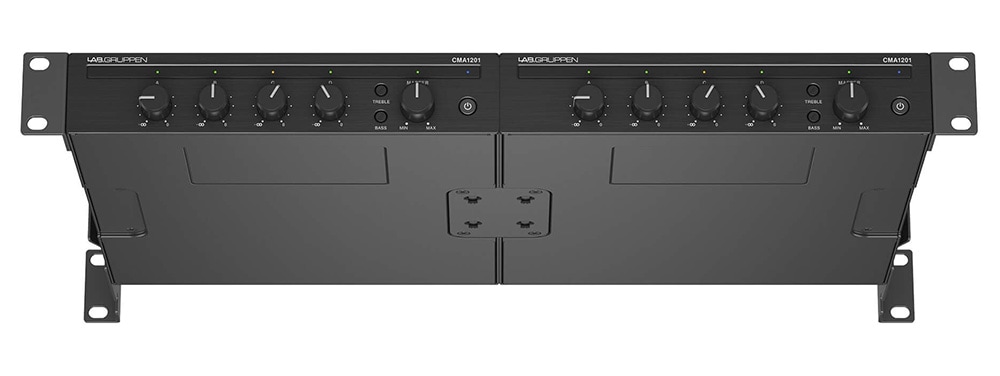

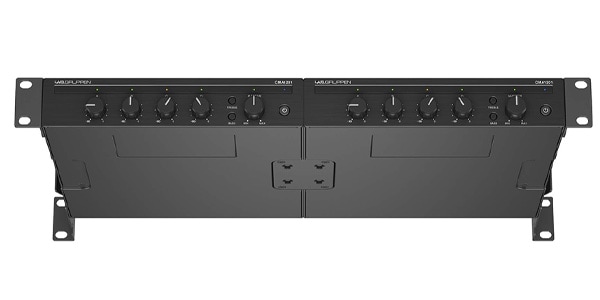

Brackets included for mounting in an EIA rack on the wall or under a table/shelf

* Direct Drive Constant Power Technology : Allows for 70V/100V high impedance connections as well as 4Ω and 8Ω low impedance connections at the output stage of the amplifier
