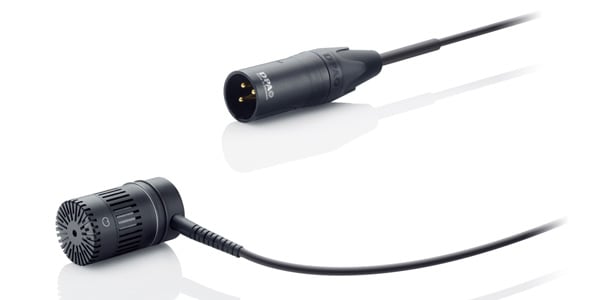

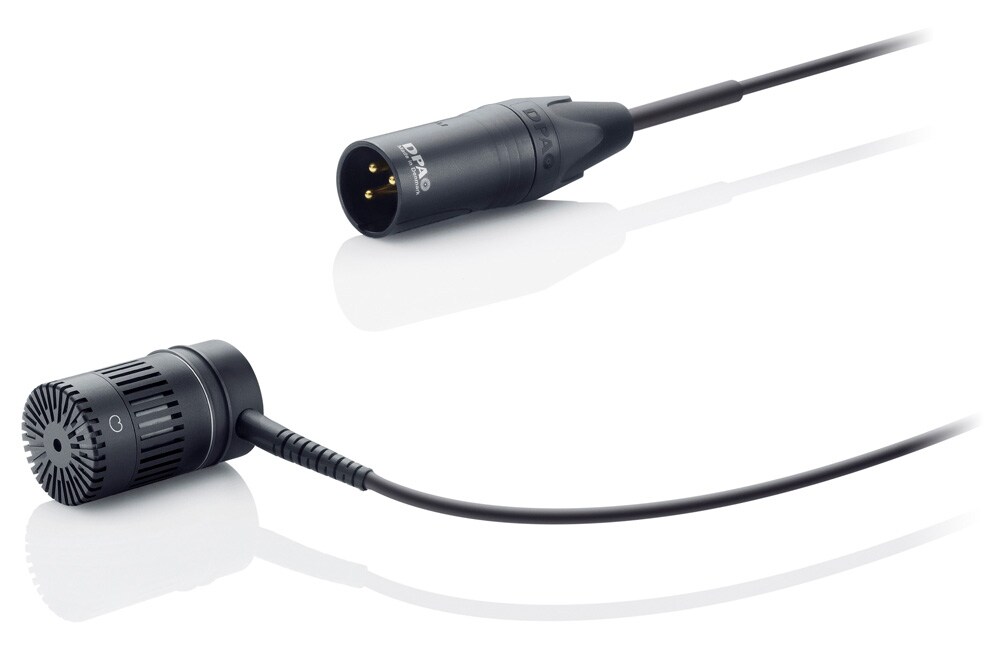

DPA / 4011ES

Variations

・Side cable model [LF] ・Stable directional characteristics even off-axis provide high separation even during close miking. [LF] ・Flat frequency response and excellent phase characteristics capture the original sound faithfully. [LF] ・Can also be suspended from the ceiling using the included suspension mount (SM4000-C). [LF] ・Adopts a modular system that allows the microphone capsule and preamplifier to be replaced. The shape of the microphone can be changed to suit the application.

■Specifications
Polar pattern: unidirectional
Cartridge: prepolarized condenser type, φ19mm
Frequency range (±2dB/30cm): 40Hz to 20kHz
Sensitivity (±2dB): -40dB re. 1V/Pa
Equivalent noise level (A-weighted): 18dB re. 20μPa
Total harmonic distortion (THD): 1% or less (139dB SPL)
Dynamic range: 121dB
Maximum sound pressure level: 144dB SPL
Impedance: 100Ω
Cable length: 3m (up to 30m available by special order)
Maximum cable extension distance: 100m
Power supply: phantom DC48V (± 4V)/3.5mA
Connector: XLR3 pin (male)
Dimensions and weight φ19×35mm, approx. 109g *including cable

■Accessories
Microphone holder (MC4001)×1
Windscreen (DUA0041)×1
Suspension mount (SM4000-C)×1
